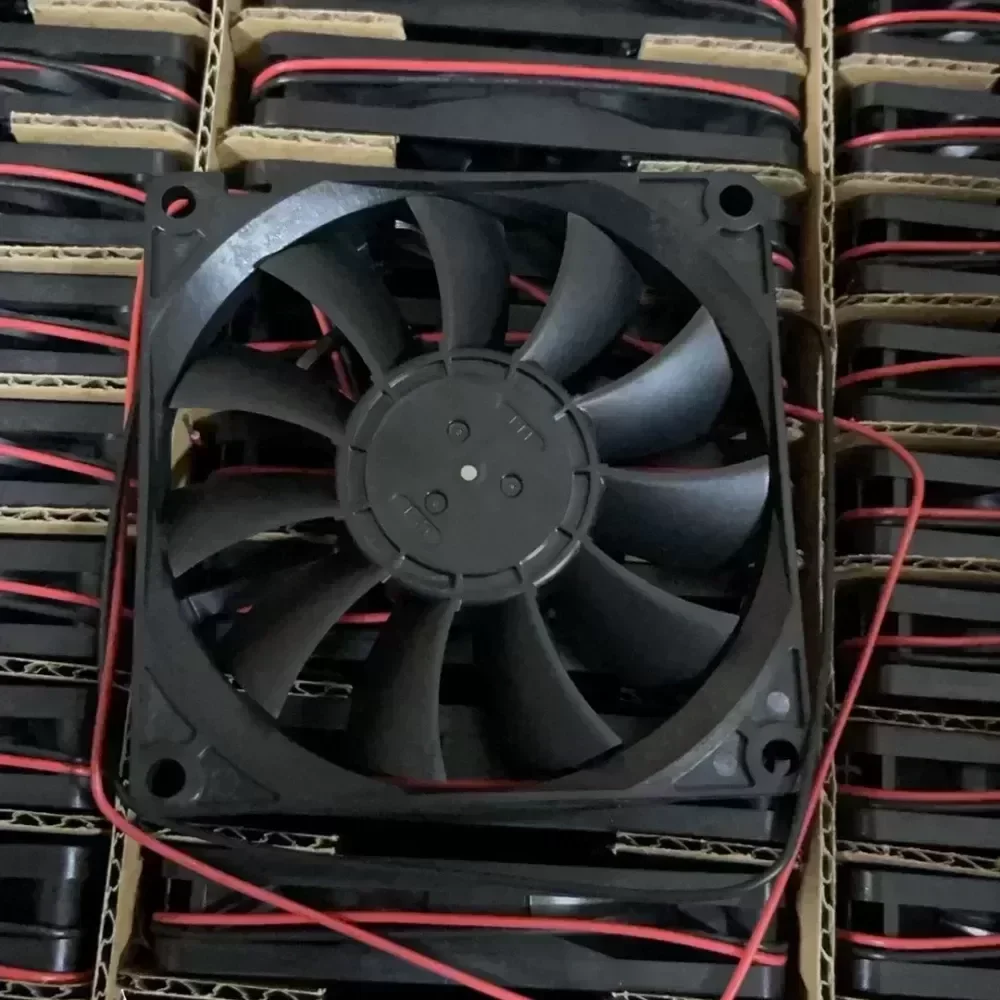

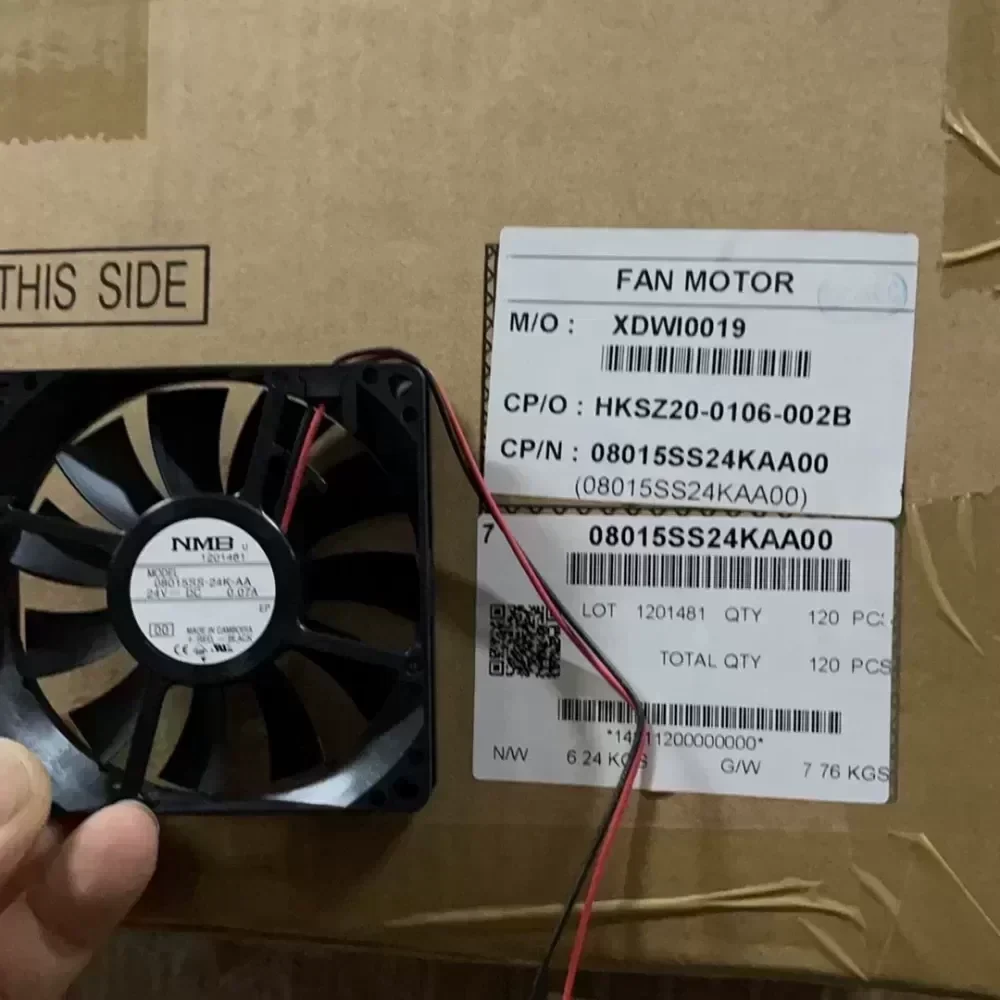

08015SS-24K-AA NMB 24V DC fan
08015SS-24K-AA NMB 24V DC fan
08015SS-24K-AA NMB 24V DC fan

08015SS-24K-AA NMB 24V DC fan

$3.57

SKU: 900497343273 Brand:

Description

Manufacturer: MinebeaMitsumi (NMB Technologies)
Model Designation: 08015SS-24K-AA
Product Category: DC Axial Cooling Fan
Design Profile: Ultra-Slim Low-Profile Thermal Management
Manufacturing Standard: Original Engineering factory specification

TECHNICAL SPECIFICATIONS
Frame Dimensions: 80 mm x 80 mm x 15 mm
Rated Operating Voltage: 24 V DC
Operating Voltage Range: 18.0 V DC to 27.6 V DC
Rated Operating Current: 0.07 A
Rated Input Power: 1.68 W
Nominal Rotational Speed: 2800 RPM
Maximum Volumetric Airflow: 33.5 CFM (0.95 m³/min)
Maximum Static Pressure: 28.4 Pa (0.114 in H2O)
Acoustic Noise Emission: 28.0 dBA
Bearing Architecture: NMB Precision Dual Miniature Ball Bearings
Frame Structural Material: PBT Thermoplastic, UL94V-0 Flame Retardant (Glass-Fiber Reinforced)
Impeller Material: PBT Thermoplastic, UL94V-0 Flame Retardant (Glass-Fiber Reinforced)
Electrical Interface: 2-Wire Lead Harness (Positive: Red, Negative: Black)
Lead Wire Specification: AWG26, UL Style Insulated Wire
Insulation Resistance: Minimum 10 MΩ at 500 V DC
Dielectric Withstand Voltage: 500 V AC for 1 minute
Motor Protection: Locked Rotor Protection with Auto-Restart Capability
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -40 °C to +70 °C
Operational Life Expectancy (L10): 70,000 Hours at 25 °C
Mounting Hole Diameter: Ø 4.3 mm (±0.2 mm)
Weight: 60 g

ENGINEERING ARCHITECTURE AND SLIM-PROFILE DESIGN
The NMB 08015SS-24K-AA is engineered to mitigate severe space-constrained thermal bottlenecks in industrial electronic enclosures. Featuring a 15 mm frame depth, this model provides critical airflow dynamics in envelopes where conventional 25 mm depth axial fans cause physical clearance violations against internal heat sinks, backplanes, or structural shrouds. Equipped with Minebea precision-machined dual ball bearings, the unit ensures low mechanical friction, operational balance, and continuous-duty reliability irrespective of whether mounted vertically, horizontally, or suspended.

APPLICATIONS AND TECHNICAL COMPATIBILITY
Technical Compatibility encompasses standard 24 V DC distributed power topologies found in factory automation, automated test stations, and communication enclosures. The fan is specifically targeted for integration into:
– 1U/2U low-profile rack-mounted server hardware and telecommunications switches
– Compact switch-mode power supplies (SMPS) and uninterruptible power units (UPS)
– Programmable logic controller (PLC) field cabinets requiring localized cooling
– Medical diagnostic equipment and analytical laboratory instrumentation
– Closed-loop industrial drive housings with tight z-axis envelope constraints

LOGISTICS AND PROCUREMENT DATA
Component Provenance: Original Engineering verified production surplus
Immediate Allocation: 500 Units verified inventory
Standard Lead Time: Rapid dispatch within 24 to 48 hours from stock
Packaging Integrity: Antistatic industrial bulk-pack packaging with individual functional validation prior to shipment

08015SS-24K-AA NMB 24V DC fan

08015SS-24K-AA NMB 24V DC fan

08015SS-24K-AA NMB 24V DC fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
