$9.71

SKU: 911343025801 Brand:

Description

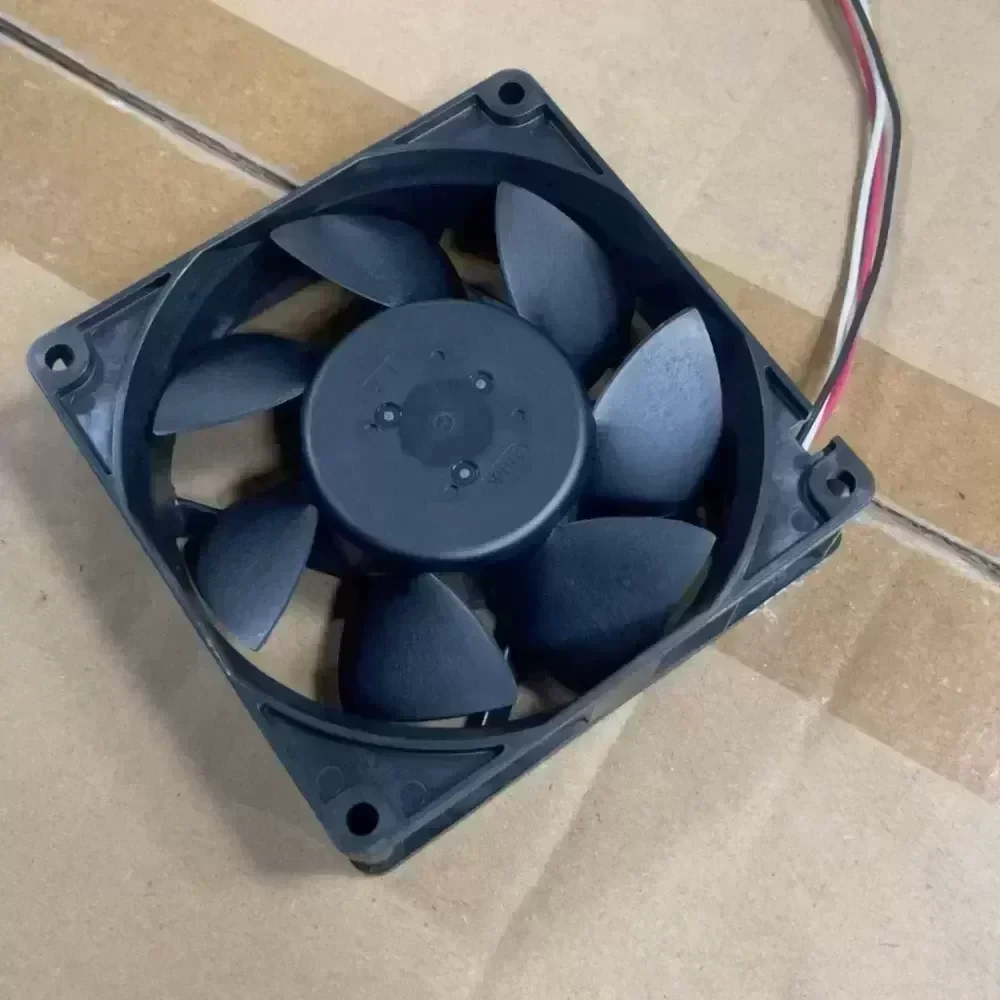

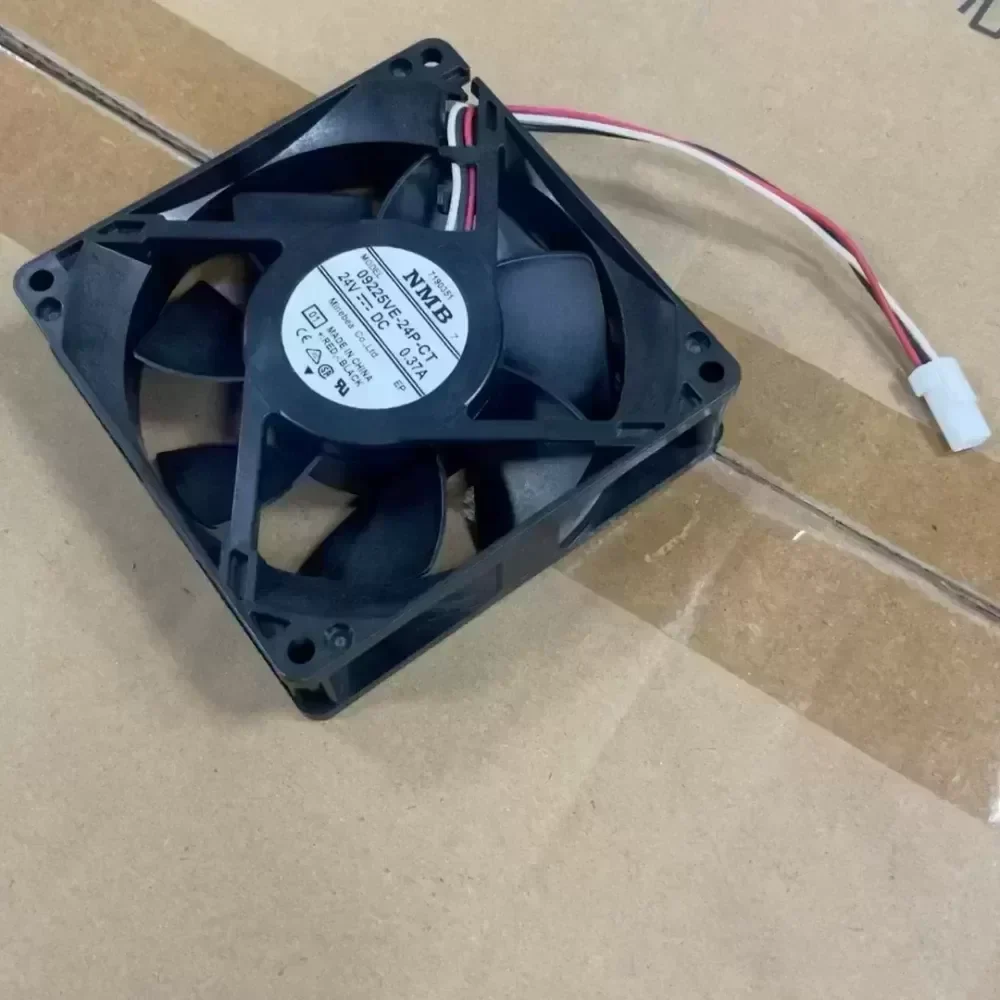

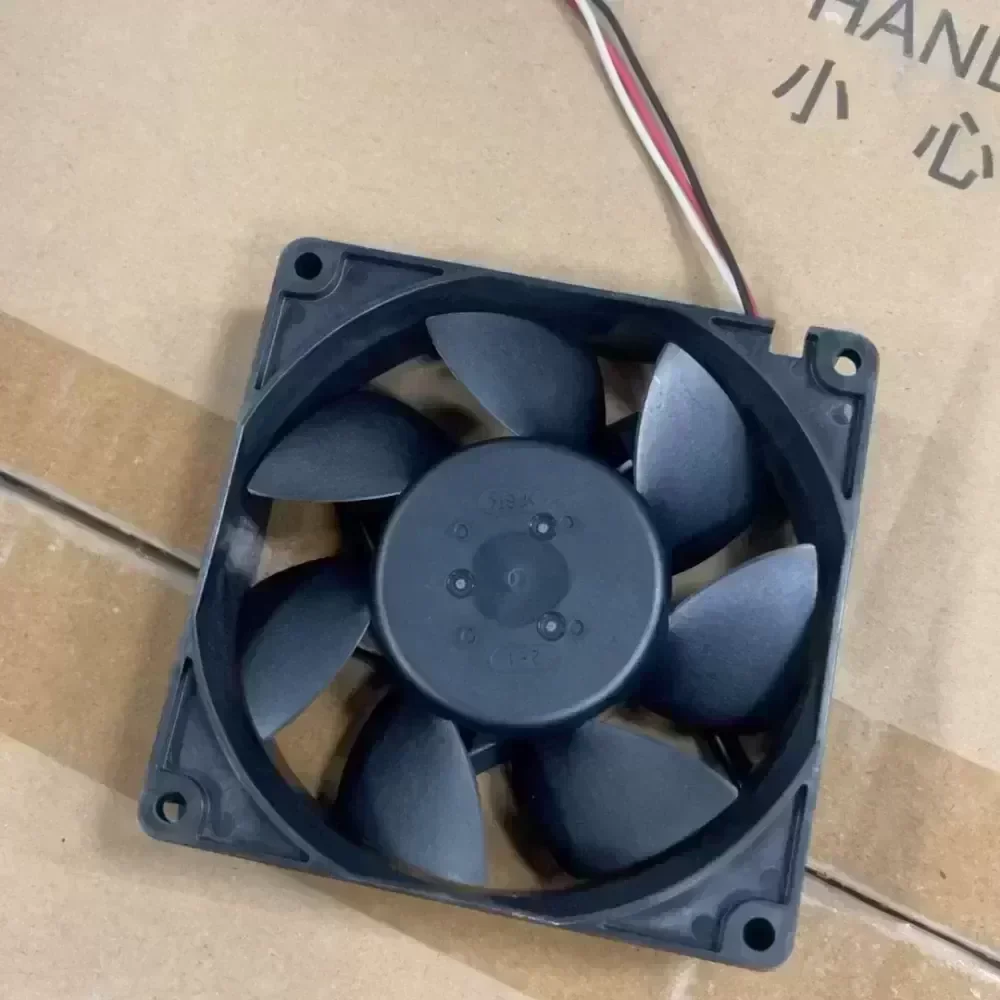

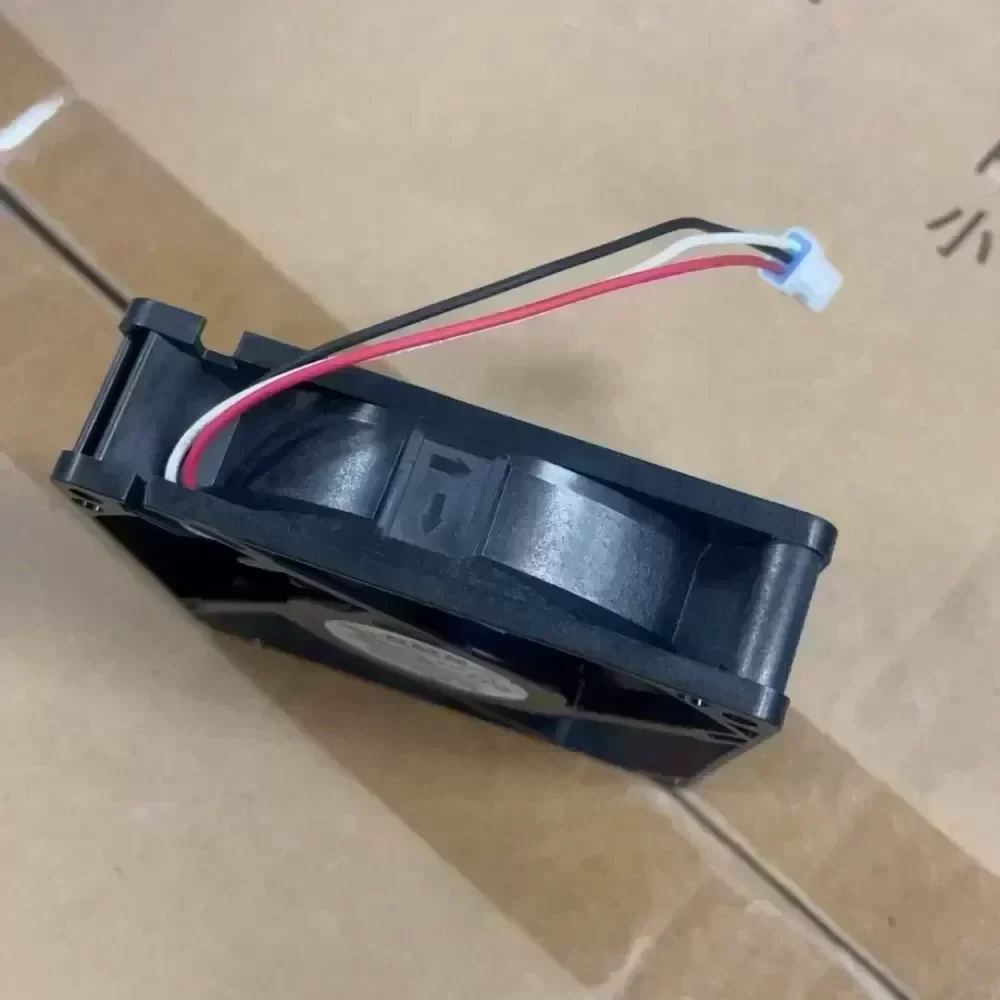

The NMB-MAT 09225VE-24P-CT is a high-performance 92mm x 92mm x 25mm DC axial cooling fan engineered for mission-critical thermal management applications. Designed by MinebeaMitsumi with Original Engineering precision, this brushless DC cooling fan combines high static pressure and high airflow volume in a standardized form factor, ensuring continuous duty reliability across telecommunications, power electronics, automated drive cabinets, and embedded industrial computing systems.

Model Number Decoding:
Brand: NMB-MAT (MinebeaMitsumi)
Series Dimensions: 09225 (92mm Width x 92mm Height x 25mm Depth)
Frame Type: VE Series (High Airflow and Pressure Optimized Aerodynamic Profile)
Rated Voltage: 24 (24V DC Nominal)
Speed / Power Grade: P (High Speed Performance Tier)
Termination / Function: CT (Custom Lead Wire Configuration with Sensor / Control Capability)

Technical Specifications:
Manufacturer: NMB-MAT / MinebeaMitsumi
Model: 09225VE-24P-CT
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V DC to 26.4V DC
Rated Current: 0.37A
Input Power: 8.88W
Bearing Type: Precision Dual Ball Bearing System
Nominal Speed: 4200 RPM ± 10%
Airflow Rate: 2.12 m³/min (75.0 CFM)
Static Pressure: 88.0 Pa (0.354 in H2O)
Acoustic Noise Level: 46.0 dBA
Direction of Rotation: Counter-Clockwise (viewed from rotor face)
Direction of Airflow: Over Struts (Strut-side exhaust)

Physical and Material Characteristics:
Frame Dimensions: 92.0mm x 92.0mm x 25.0mm
Mounting Hole Pitch: 82.5mm ± 0.3mm
Mounting Hole Diameter: Ø 4.3mm
Frame Material: Reinforced PBT Thermoplastic (UL94V-0 Rated)
Impeller Material: Reinforced PBT Thermoplastic (UL94V-0 Rated)
Termination: Multi-conductor UL1061 / UL1007 Lead Wires
Weight: 140g

Environmental Ratings and Protection:
Operating Temperature Range: -10°C to +70°C
Storage Temperature Range: -40°C to +70°C
Operating Humidity Range: 5% to 95% RH (Non-condensing)
Motor Protection: Polarity Reverse Protection and Auto-Restart Locked Rotor Protection
Insulation Resistance: Minimum 10 MΩ at 500V DC
Dielectric Strength: 700V AC for 1 minute
Life Expectancy (L10): 70,000 Hours at 40°C Continuous Operation
Certifications: UL Recognized, CSA Certified, CE Marked, RoHS Compliant

Industrial Application and Technical Compatibility:
High heat-flux enclosed enclosures, such as variable frequency drives (VFD), servo amplifiers, industrial switchboards, and network rack chassis, require reliable forced-air dissipation through dense heat sink arrays and restrictive dust filtration. The 09225VE-24P-CT overcomes high system impedance with elevated static pressure, mitigating component hot spots and preventing thermal throttling in sealed industrial control cabinets. Verified Technical Compatibility with standard 9225 chassis cutouts enables drop-in replacement across legacy and newly deployed automation infrastructure.

Procurement and Logistics:
Condition: 100% Brand New, Unused, Factory Packaged
Lead Time: Immediate Dispatch Available for Standard Stock Orders; Direct Global B2B Shipping

09225VE-24P-CT NMB fan 24V

09225VE-24P-CT NMB fan 24V

09225VE-24P-CT NMB fan 24V

09225VE-24P-CT NMB fan 24V

09225VE-24P-CT NMB fan 24V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
