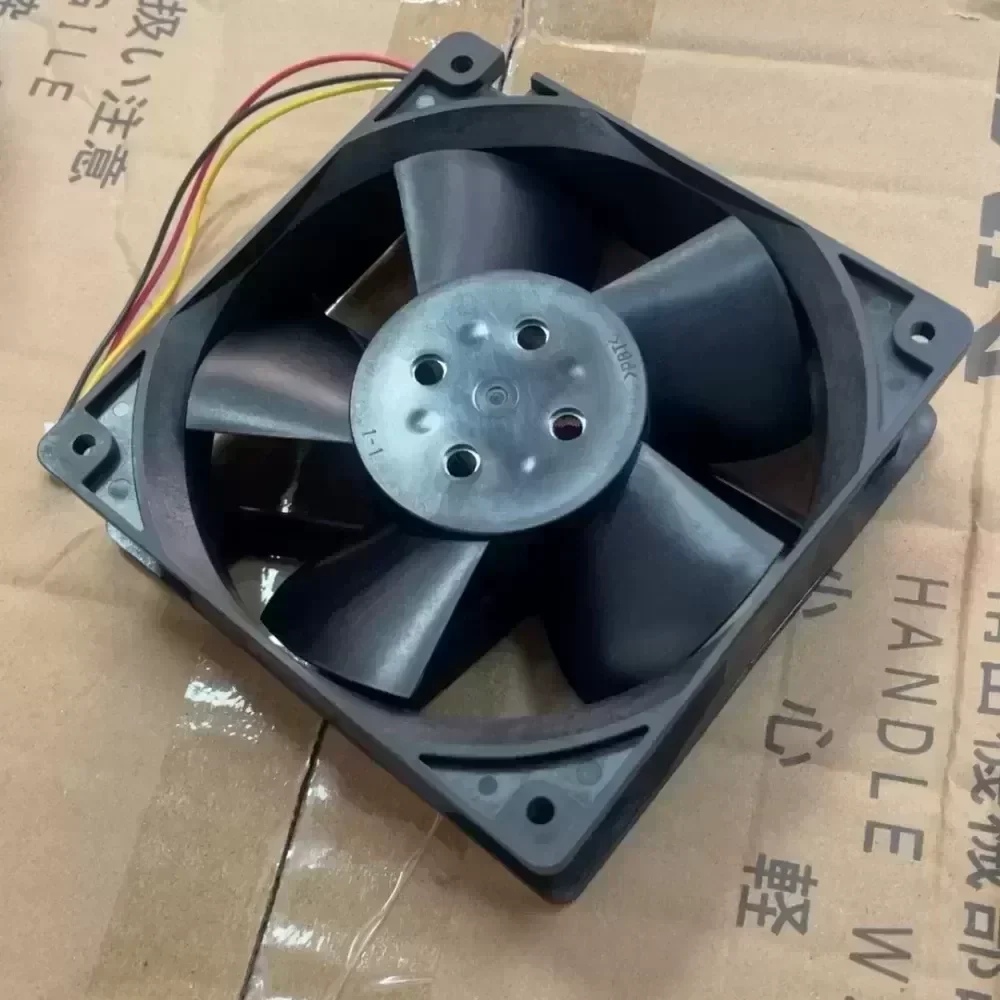

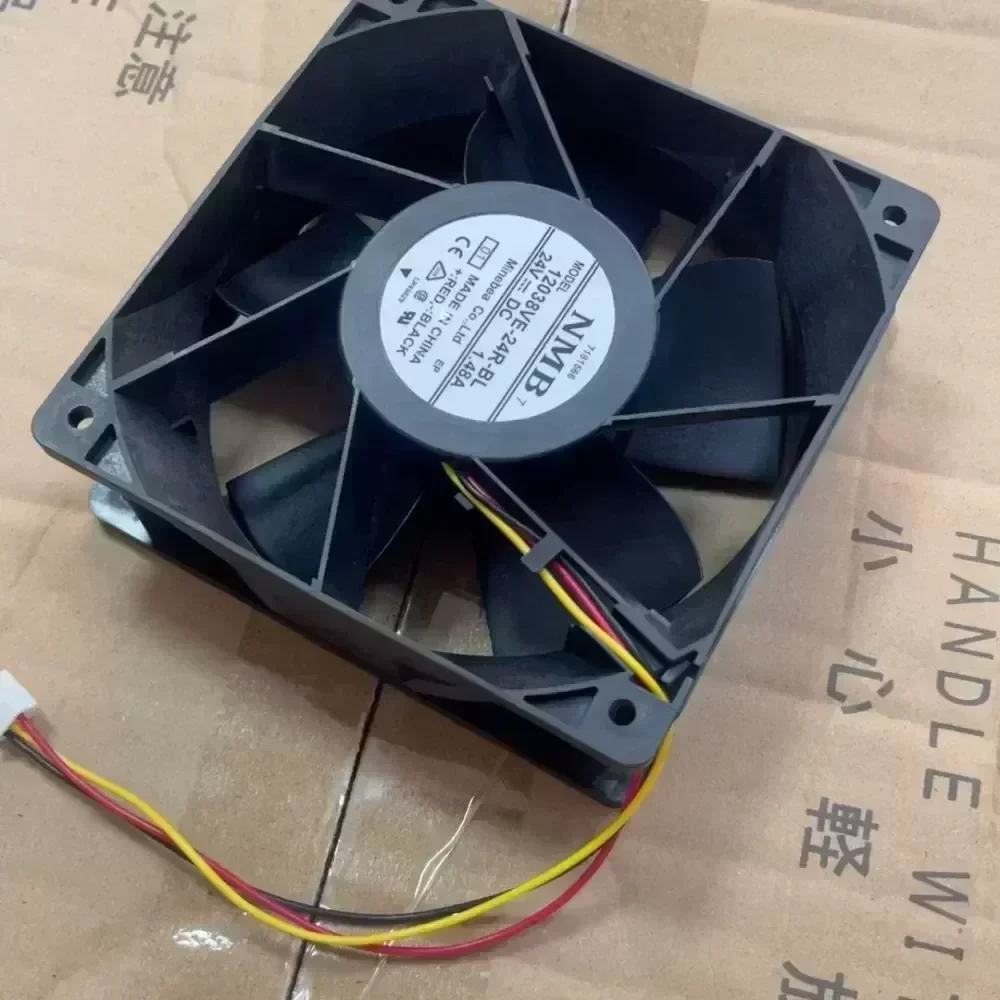

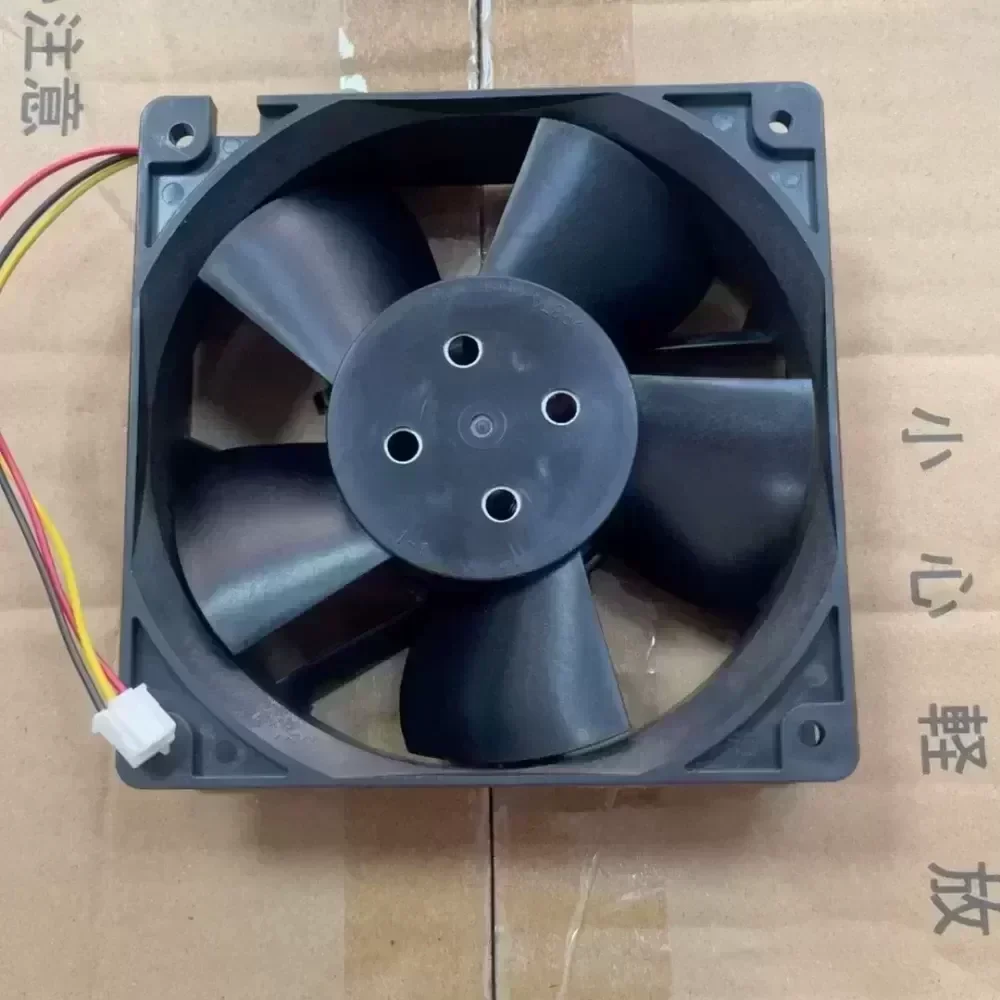

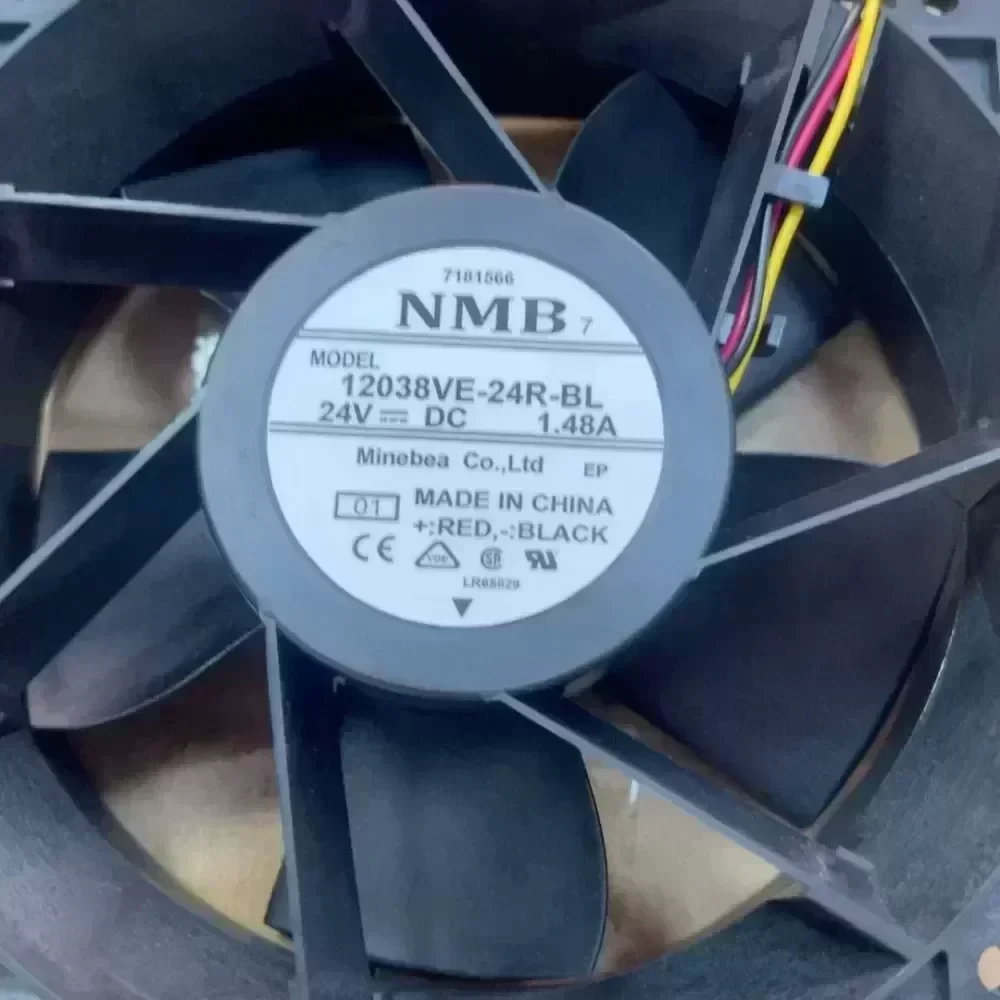

12038VE-24R-BL NMB 24V Fan
12038VE-24R-BL NMB 24V Fan
12038VE-24R-BL NMB 24V Fan
12038VE-24R-BL NMB 24V Fan
12038VE-24R-BL NMB 24V Fan

12038VE-24R-BL NMB 24V Fan

$12.86

SKU: 911706946873 Brand:

Description

The NMB 12038VE-24R-BL is a high-performance 24V DC axial cooling fan manufactured according to original engineering specifications for high-density thermal management applications. Designed with an aerodynamic 120 mm x 120 mm x 38 mm profile and a high-torque brushless DC motor, this unit delivers high static pressure and continuous airflow required for heat-critical industrial electronics.

SPECIFICATIONS
Manufacturer: NMB-MAT (MinebeaMitsumi)
Model Number: 12038VE-24R-BL
Frame Dimensions: 120 mm x 120 mm x 38 mm
Mounting Hole Spacing: 104.8 mm ±0.3 mm
Mounting Hole Diameter: Ø 4.3 mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 1.48A
Rated Power Consumption: 35.52W
Rotational Speed: 5300 RPM ±10%
Maximum Airflow: 220 CFM (6.23 m³/min)
Maximum Static Pressure: 360 Pa (1.44 in H2O)
Acoustic Noise Level: 61.0 dBA
Bearing System: Dual Precision Ball Bearings
Electrical Interface: 3-Wire Leads (+24V DC, Ground, Tachometer/FG Signal)
Frame Material: Reinforced PBT Plastic (UL 94V-0 Rated)
Impeller Material: Glass-Fiber Reinforced PBT (UL 94V-0 Rated)
Operating Temperature Range: -10°C to +70°C
Storage Temperature Range: -40°C to +75°C
Expected Service Life (L10): 70,000 Hours at 40°C
Motor Protection: Locked Rotor Auto-Restart, Polarity Protection
Insulation Resistance: Minimum 10 MΩ at 500V DC
Weight: 380 g
Certifications: CE, UL, RoHS Compliant

INDUSTRIAL APPLICATIONS & TECHNICAL COMPATIBILITY
Engineered specifically to overcome high backpressure across densely packed heatsinks, the 12038VE-24R-BL delivers essential cooling for variable frequency drives (VFDs), industrial inverter bridges, solar power converters, switchgear cabinets, and welding power supplies. The three-wire feedback interface outputs a frequency generator (FG) tachometer signal to host PLCs or drive controllers, allowing real-time RPM monitoring and immediate thermal fault mitigation.

PROCUREMENT & INTEGRATION
This unit ensures 100% technical compatibility as a drop-in replacement part for standard 12038 form-factor equipment. Minimal lead time guarantees uninterrupted facility uptime and dependable spares availability for scheduled plant maintenance cycles.

12038VE-24R-BL NMB 24V Fan

12038VE-24R-BL NMB 24V Fan

12038VE-24R-BL NMB 24V Fan

12038VE-24R-BL NMB 24V Fan

12038VE-24R-BL NMB 24V Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
