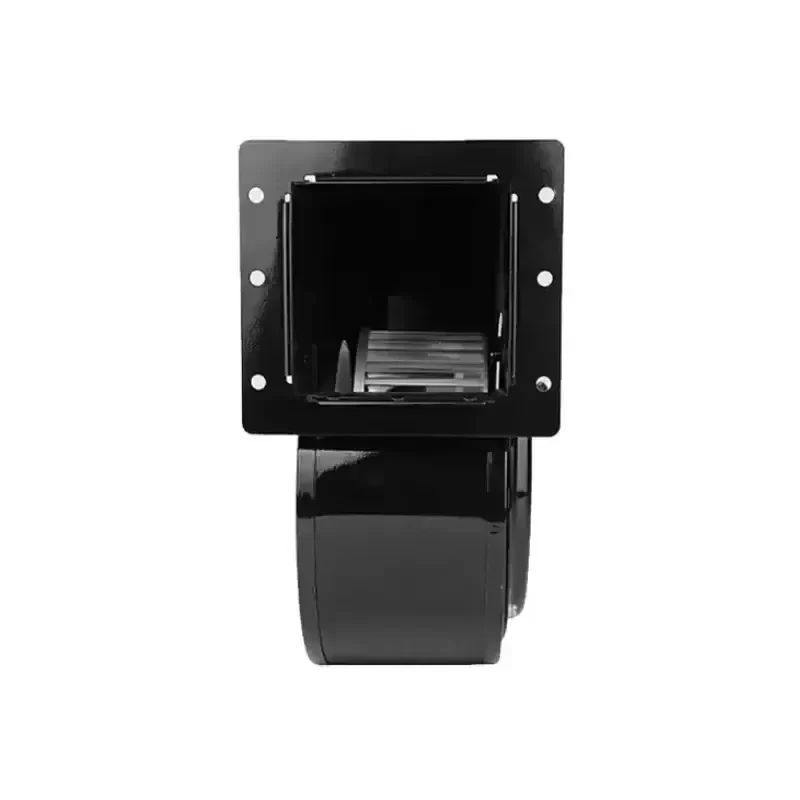

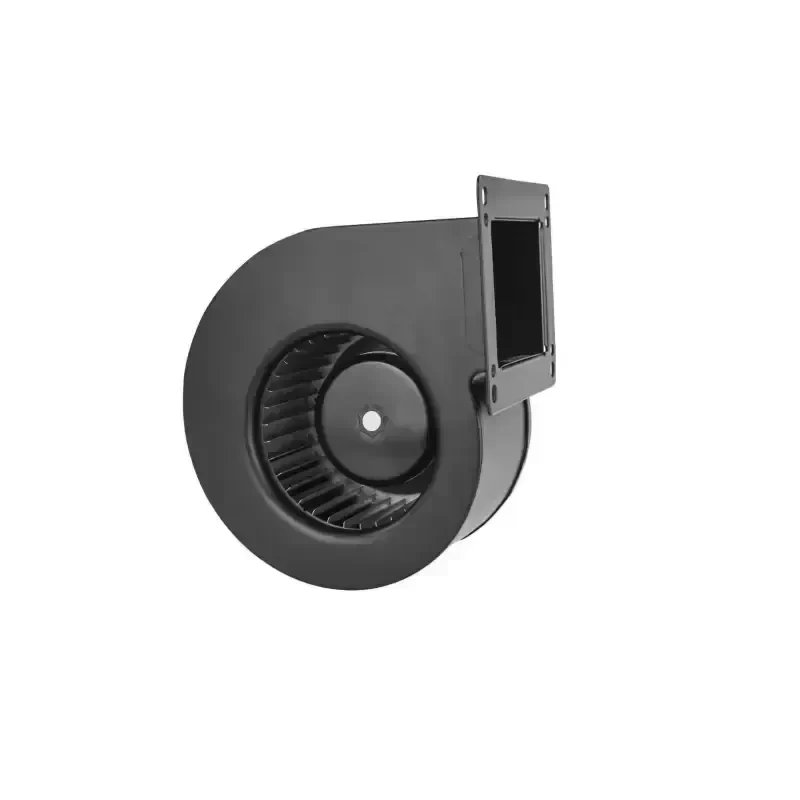

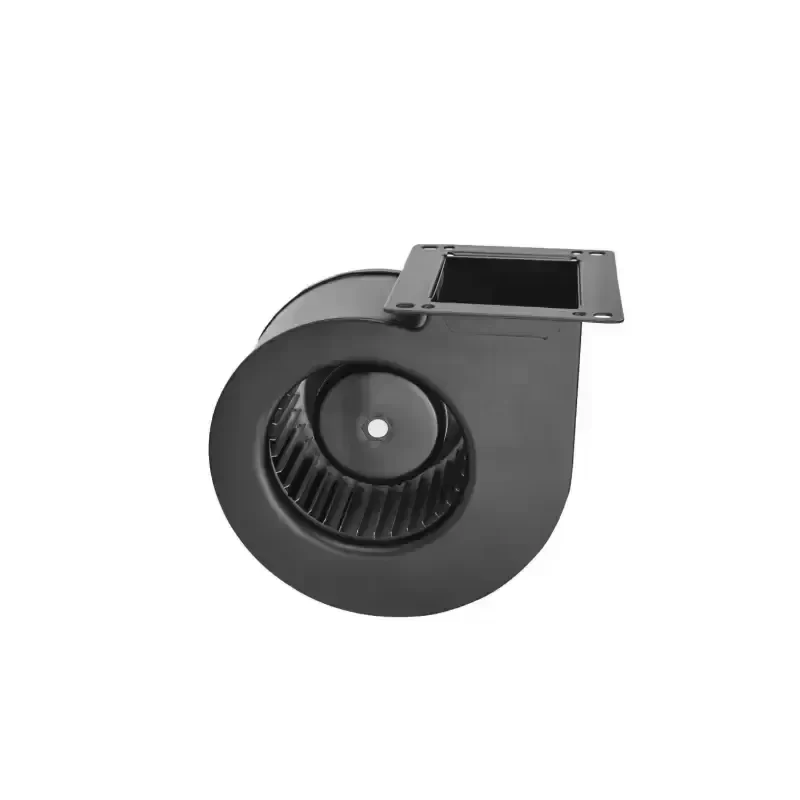

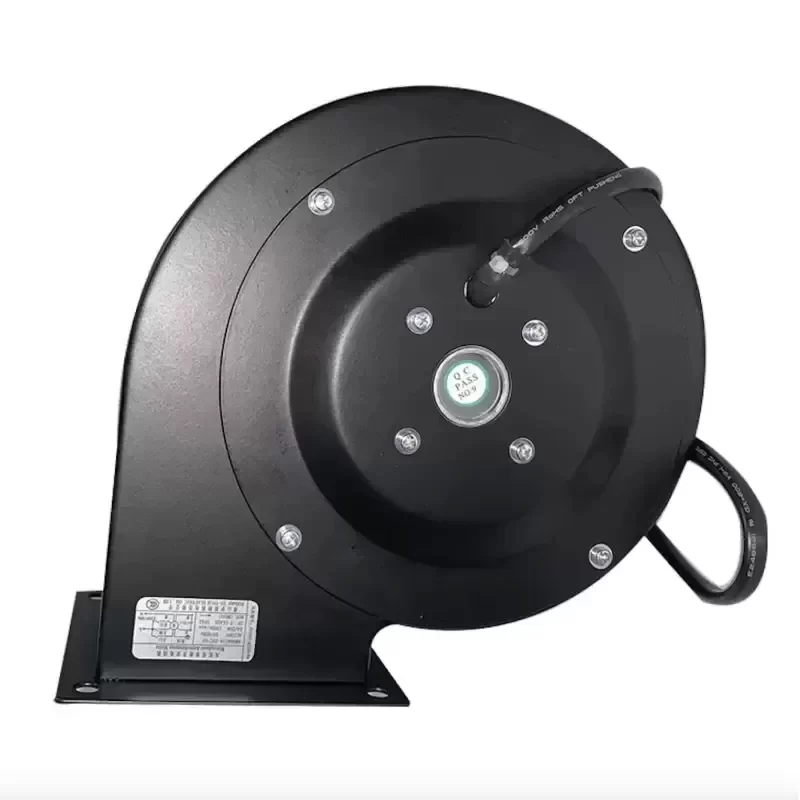

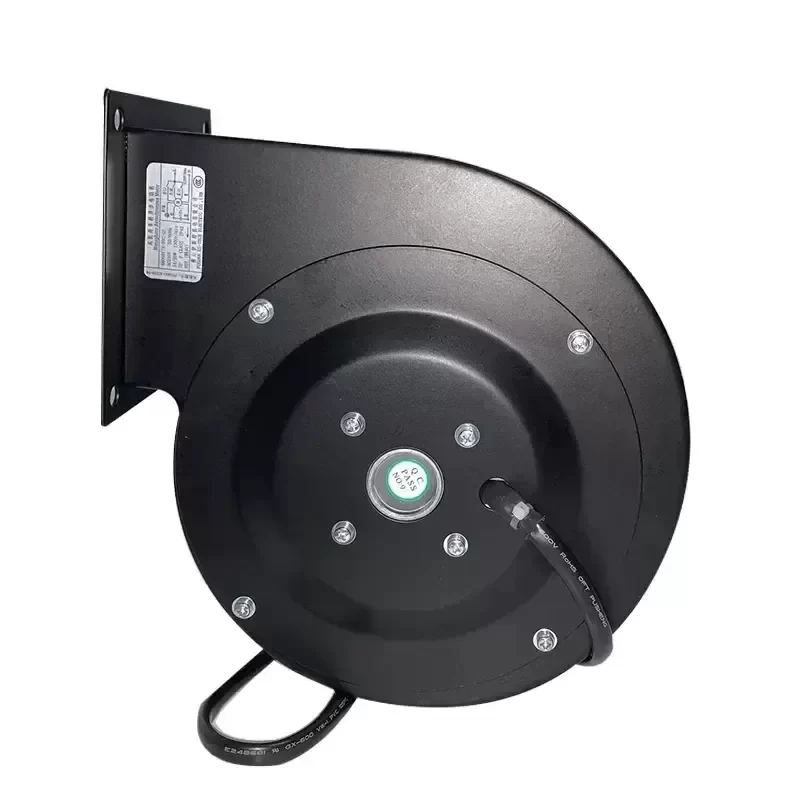

140-62mm IP54 249 Cfm 1900 Rpm DC Motor High Backward Curved Centrifugal Impeller Radial Blower Fan
140-62mm IP54 249 Cfm 1900 Rpm DC Motor High Backward Curved Centrifugal Impeller Radial Blower Fan
140-62mm IP54 249 Cfm 1900 Rpm DC Motor High Backward Curved Centrifugal Impeller Radial Blower Fan
140-62mm IP54 249 Cfm 1900 Rpm DC Motor High Backward Curved Centrifugal Impeller Radial Blower Fan
140-62mm IP54 249 Cfm 1900 Rpm DC Motor High Backward Curved Centrifugal Impeller Radial Blower Fan
140-62mm IP54 249 Cfm 1900 Rpm DC Motor High Backward Curved Centrifugal Impeller Radial Blower Fan

140-62mm IP54 249 Cfm 1900 Rpm DC Motor High Backward Curved Centrifugal Impeller Radial Blower Fan

$38.30

SKU: 1600589796588

Description

This high-performance backward curved centrifugal impeller fan is engineered for demanding industrial ventilation and thermal management systems. Driven by a highly efficient DC motor, this radial blower delivers exceptional aerodynamic performance while maintaining a compact footprint. Designed for Original Engineering integration, it ensures reliable continuous operation in restrictive enclosures requiring high static pressure and volumetric airflow.

Technical Specifications:
Impeller Diameter: Ø 140 mm
Overall Depth: 62 mm
Nominal Airflow: 249 CFM (423 m³/h)
Rated Speed: 1900 RPM ± 10%
Motor Architecture: Brushless DC (BLDC)
Nominal Voltage: 24V DC / 48V DC Options
Ingress Protection: IP54
Bearing System: Precision Dual Ball Bearing
Acoustic Noise: 62 dBA
Weight: 0.85 kg

Material and Environmental Profile:
Impeller Material: Glass-fiber reinforced plastic (PA66 + GF30%)
Operating Temperature Range: -20°C to +60°C
Storage Temperature Range: -40°C to +80°C
Dielectric Strength: 500V AC / 1 minute
Expected Lifecycle: 70,000 hours at 40°C
Certifications: CE, RoHS, UL Compliant

Industrial Application and Compatibility:
This backward curved centrifugal blower is specifically optimized for applications requiring high static pressure to overcome system resistance. It is highly suited for telecommunications cabinets, HVAC systems, server rack cooling, and industrial heat exchangers. The IP54 rating ensures robust protection against dust ingress and splashing water, making it a critical component for factory automation control panels and outdoor telecom enclosures. Technical Compatibility is guaranteed for standard 140-62mm radial blower mounting configurations, ensuring minimal Lead Time during system upgrades or maintenance cycles.

Key Attributes
Mounting: Wall Fan
Voltage: Other
Blade Material: Galvanized plate
Electric Current Type: DC
Customized support: OEM
Warranty: 1 Year
After-sales Service Provided: Video Technical Support
Model number: DG140A-D072A8-01
Place of origin: Guangdong, China
Brand name: SunxFan
Bearing: Ball bearing
Speed Control: Control input 0-5/10V or PWM
Working Temp:: -25~ +55°C
Insulation Class: B
Protection Class: IP54
Approval: CCC, CE
Voltage: DC
Warranty: 18months
Mounting: Free
After-sales service: Video technical support

Packaging and Delivery
Packaging Details: Wooden box
Selling Units: Single item

140-62mm IP54 249 Cfm 1900 Rpm DC Motor High Backward Curved Centrifugal Impeller Radial Blower Fan

140-62mm IP54 249 Cfm 1900 Rpm DC Motor High Backward Curved Centrifugal Impeller Radial Blower Fan

140-62mm IP54 249 Cfm 1900 Rpm DC Motor High Backward Curved Centrifugal Impeller Radial Blower Fan

140-62mm IP54 249 Cfm 1900 Rpm DC Motor High Backward Curved Centrifugal Impeller Radial Blower Fan

140-62mm IP54 249 Cfm 1900 Rpm DC Motor High Backward Curved Centrifugal Impeller Radial Blower Fan

140-62mm IP54 249 Cfm 1900 Rpm DC Motor High Backward Curved Centrifugal Impeller Radial Blower Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
