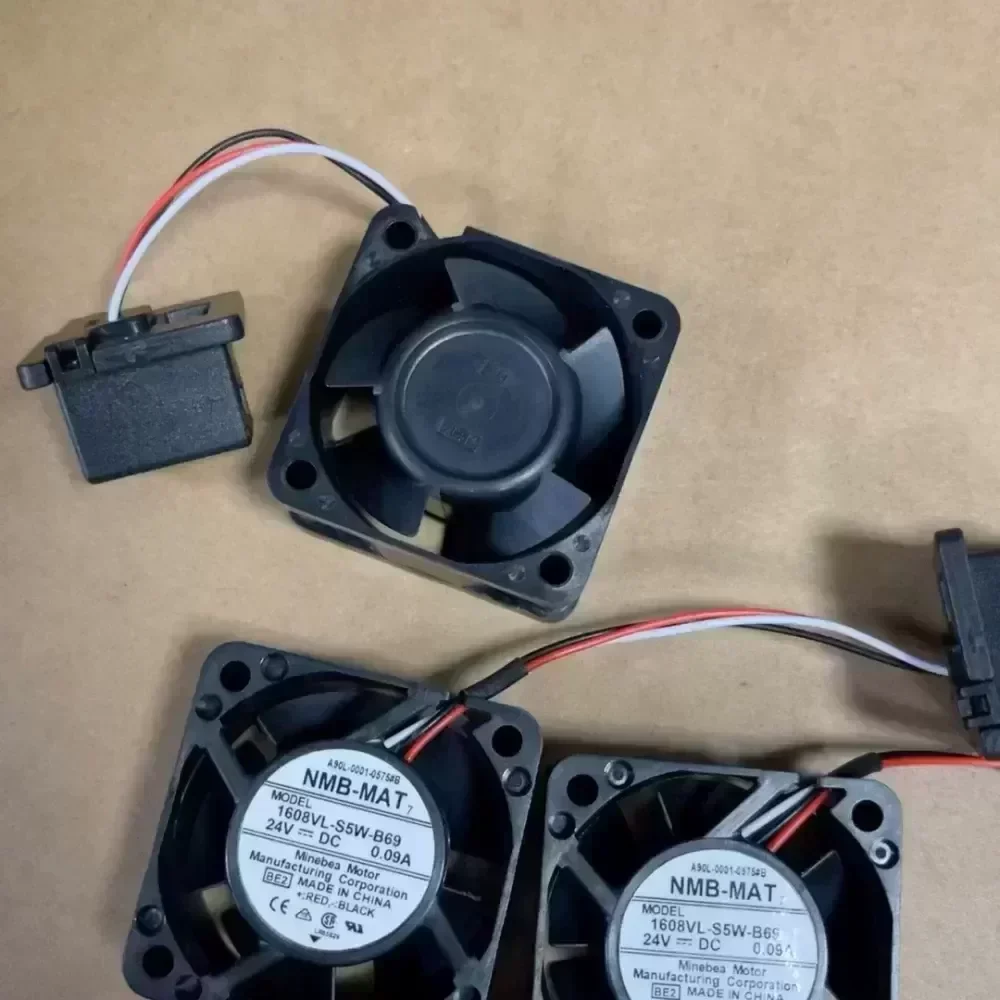

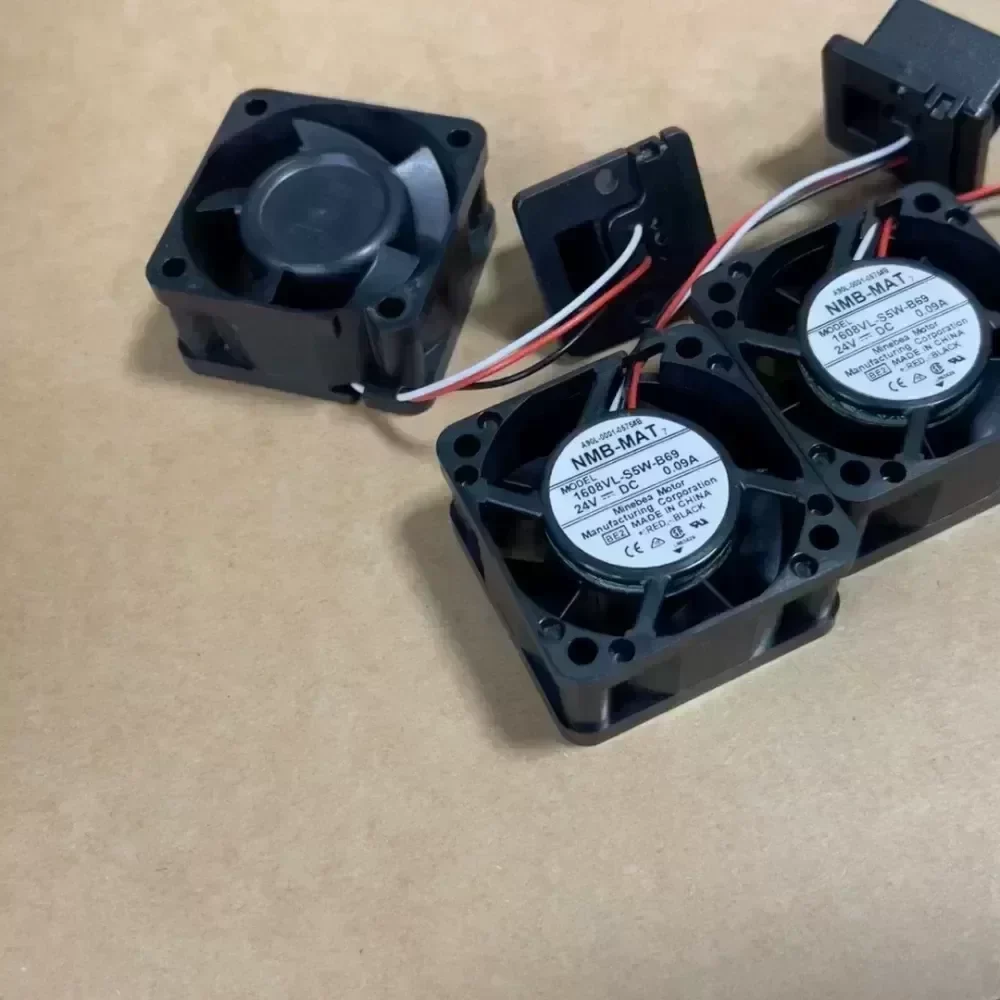

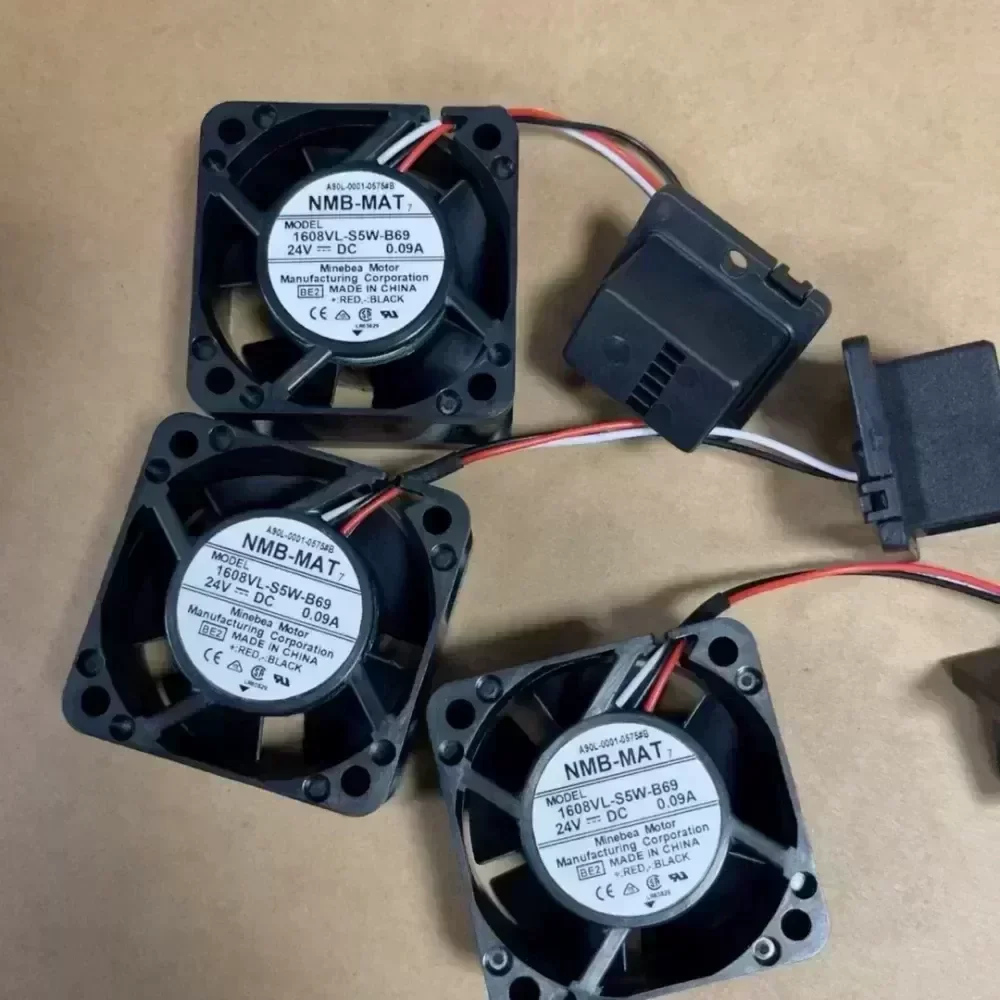

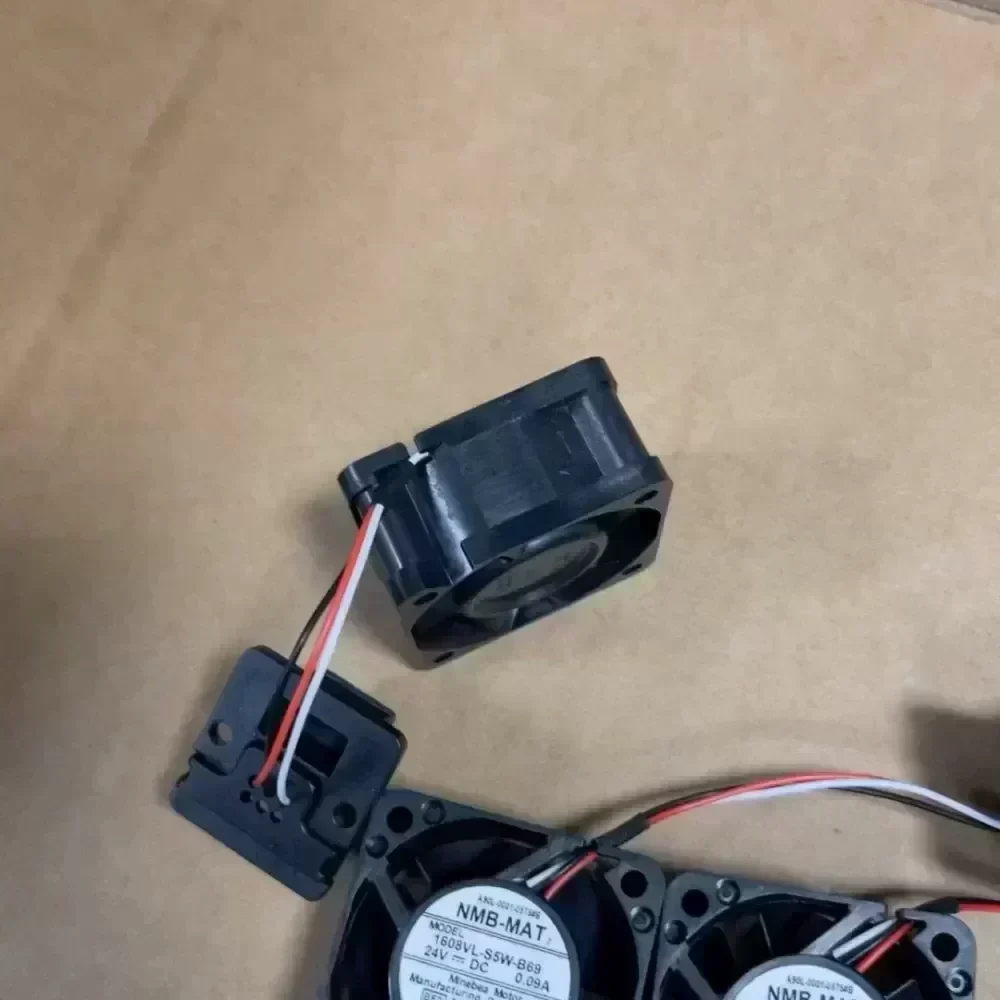

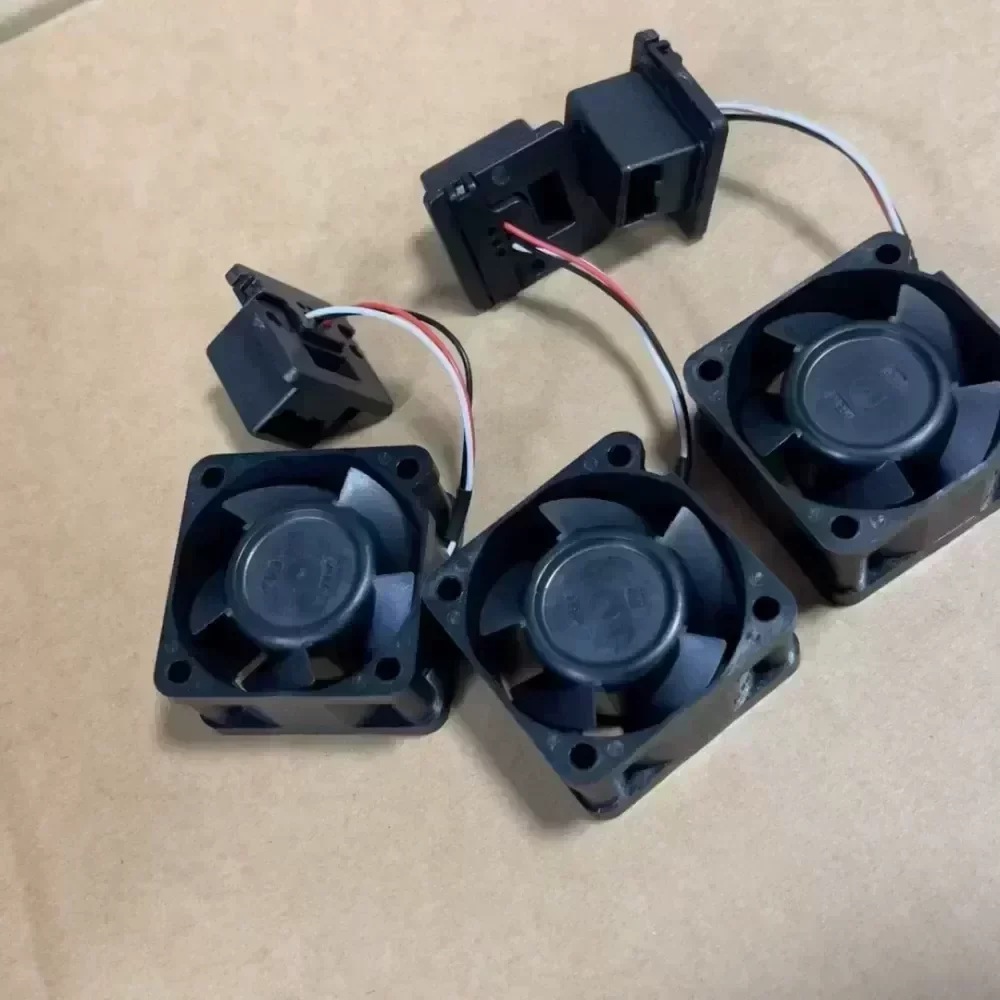

1608VL-S5W-B69 NMB-MAT1 24V fan
1608VL-S5W-B69 NMB-MAT1 24V fan
1608VL-S5W-B69 NMB-MAT1 24V fan
1608VL-S5W-B69 NMB-MAT1 24V fan
1608VL-S5W-B69 NMB-MAT1 24V fan
1608VL-S5W-B69 NMB-MAT1 24V fan

1608VL-S5W-B69 NMB-MAT1 24V fan

$11.43

SKU: 894889827279 Brand:

Description

The NMB-MAT 1608VL-S5W-B69 represents precision Original Engineering from MinebeaMitsumi (NMB Technologies), engineered specifically to deliver focused, high-static thermal management in compact industrial enclosures. Designed to satisfy rigorous Japanese manufacturing standards, this 40 x 40 x 20 mm brushless DC fan is optimized for critical electronics cooling, including automated CNC systems, industrial drives, and robotics power cabinets.

Model Breakdown and Architecture:
Series: 1608VL (40 mm frame size, 20 mm frame depth)
Voltage Class: S (24V DC nominal)
Winding / Speed Rating: 5 / B69 (High-velocity industrial specification with integrated sensor lead)
Bearing System: Dual Precision Ball Bearings for extended MTBF under continuous thermal stress

Technical Specifications:
Manufacturer: MinebeaMitsumi / NMB-MAT
Part Number: 1608VL-S5W-B69
Origin: Japan
Operating Voltage: 24V DC
Operating Voltage Range: 14.0V DC to 27.6V DC
Rated Current: 0.09 A
Rated Input Power: 2.16 W
Rotational Speed: 8,500 RPM ± 10%
Maximum Airflow: 9.53 CFM (0.27 m³/min)
Maximum Static Pressure: 78.4 Pa (0.315 in H₂O)
Acoustic Noise Level: 33.0 dBA
Bearing Type: Dual Ball Bearings
Frame Dimensions: 40 mm x 40 mm x 20 mm
Mounting Hole Pitch: 32.0 mm ± 0.3 mm
Mounting Hole Diameter: Ø 3.5 mm
Frame Material: PBT Plastic (UL94V-0 Flame Retardant)
Impeller Material: PBT Plastic (UL94V-0 Flame Retardant)
Termination: 3-Wire Leads (Power, Ground, Sensor/Tachometer signal)
Operating Temperature: -10 °C to +70 °C
Storage Temperature: -40 °C to +70 °C
Insulation Resistance: 10 MΩ minimum at 500V DC
Expected Lifetime: 70,000 Hours (L10 at 40 °C)
Weight: 40 g
Certifications: UL, CSA, VDE, RoHS Compliant

Industrial Application and Technical Compatibility:
This component offers dedicated Technical Compatibility with Fanuc CNC system power units, servo drives, operator panels, and related automation electronics. In compact industrial power modules, thermal throttling and airflow stagnation pose severe risks to semiconductor health. The high static pressure generated by the 1608VL-S5W-B69 efficiently forces cooling air through densely packed heatsinks and enclosed drive chassis, preventing localized thermal runaway and ensuring stable cycle times in automated manufacturing environments.

Condition and Supply Information:
Condition: Surplus New / Unused Original Stock
Operational Status: Factory verified, 100% electrically intact with intact lead assembly
Lead Time: Immediate dispatch available for zero-downtime maintenance and emergency replacement requirements

1608VL-S5W-B69 NMB-MAT1 24V fan

1608VL-S5W-B69 NMB-MAT1 24V fan

1608VL-S5W-B69 NMB-MAT1 24V fan

1608VL-S5W-B69 NMB-MAT1 24V fan

1608VL-S5W-B69 NMB-MAT1 24V fan

1608VL-S5W-B69 NMB-MAT1 24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
