Description

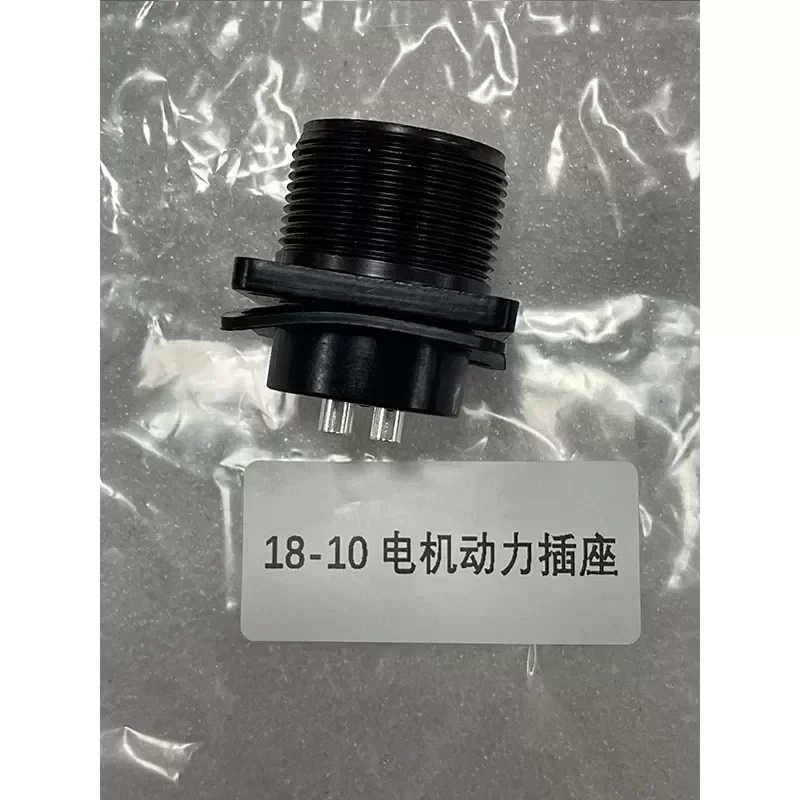

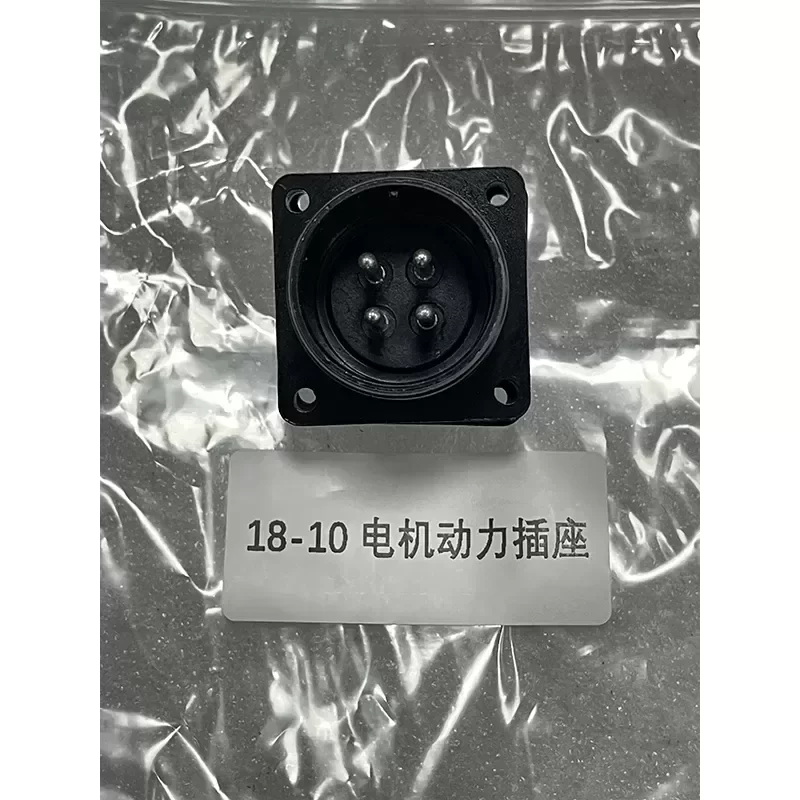

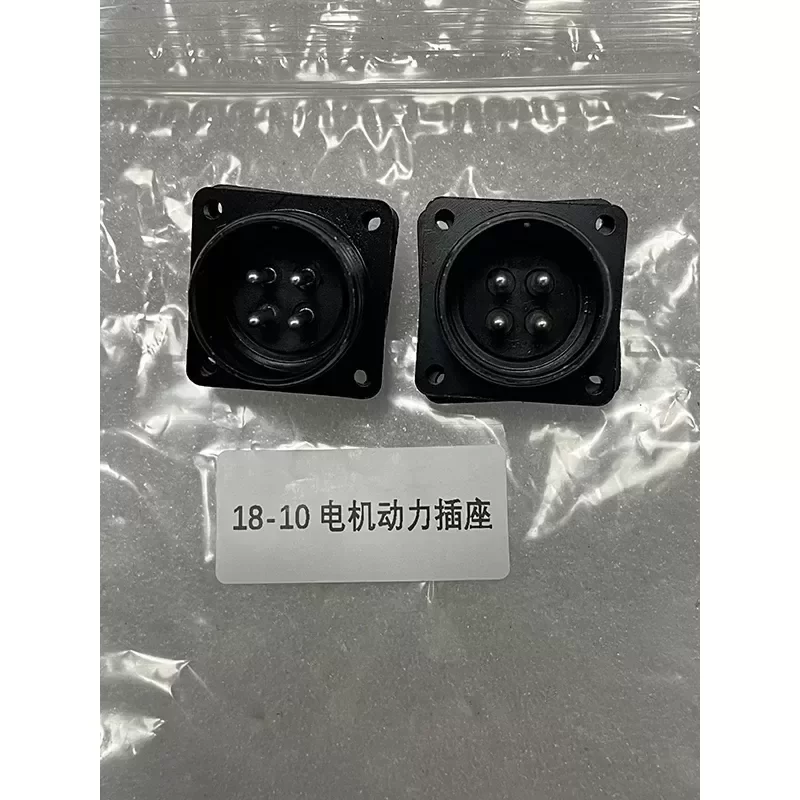

The 18-10 Motor Power Socket Module is a heavy-duty, industrial-grade connector receptacle engineered specifically for servo motor power transmission in high-vibration CNC machining environments. Manufactured in Japan to strict Original Engineering standards, this module ensures uninterrupted power delivery and phase stability for multi-axis milling and turning centers.
Technical Specifications:
Connector Type: MIL-DTL-5015 Standard Circular Receptacle
Shell Size: 18
Insert Arrangement: 18-10
Number of Contacts: 4 (Size 12)
Contact Type: Socket (Female)
Current Rating: 23A per contact
Voltage Rating: 500V AC / 700V DC
Contact Resistance: < 3.0 mΩ
Insulation Resistance: > 5000 MΩ at 500V DC
Operating Temperature: -55°C to +125°C
Ingress Protection: IP67 (when mated)
Shell Material: Aluminum Alloy
Shell Plating: RoHS Compliant Black Zinc
Contact Material: Copper Alloy with Hard Silver Plating
Termination Method: Solder Cup
Wire AWG Accommodation: 12 AWG to 14 AWG
Mating Cycles: > 500 cycles
Weight: 0.045 kg
Application Scenario:
This module is specifically designed for high-torque servo motors driving the X, Y, and Z axes on industrial CNC machining centers. The 18-10 layout provides optimal phase separation for 3-phase power plus ground, preventing arc-over during rapid deceleration and regenerative braking cycles. Its robust aluminum shell and secure threaded coupling mechanism eliminate fretting corrosion caused by continuous high-frequency machine vibration.
Technical Compatibility: Fully interchangeable with Fanuc, Yaskawa, and Mitsubishi servo motor power interfaces utilizing the standard 18-10 insert configuration.
Lead Time: Standard factory dispatch within 24 to 48 hours for in-stock Japanese origin components.
Original Engineering: Guaranteed OEM-level dimensional tolerances and electrical performance for direct drop-in replacement.
Key Attributes
Place of Origin: Japan
Model Number: 18-10 Motor power socket
Brand Name: FANUC
Certification: Ce
WARRANTY: 1 YEAR
Condition: 100% Original
Packaging and Delivery
Selling Units: Single item
