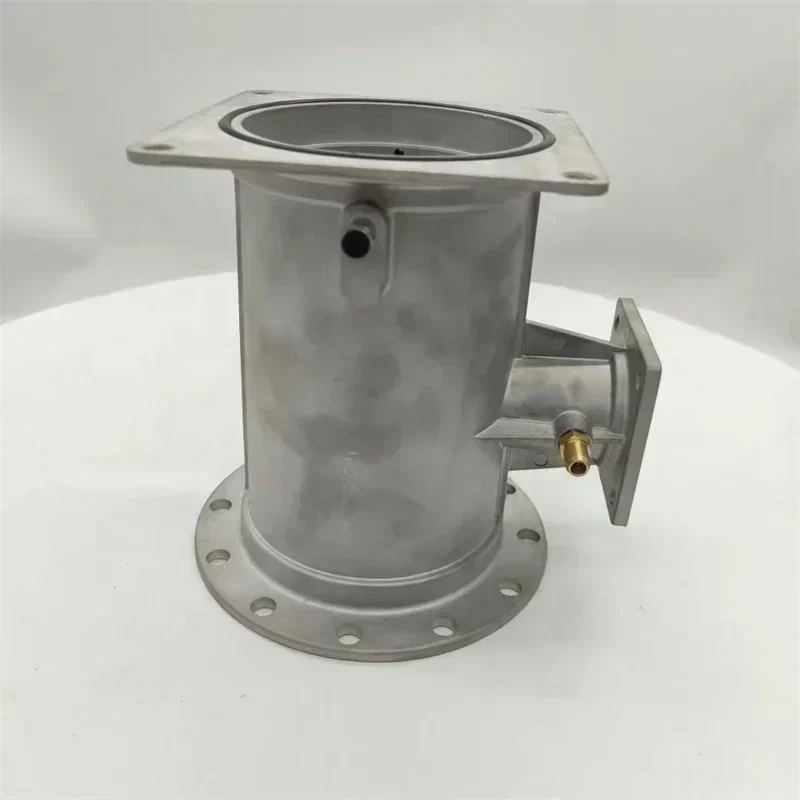

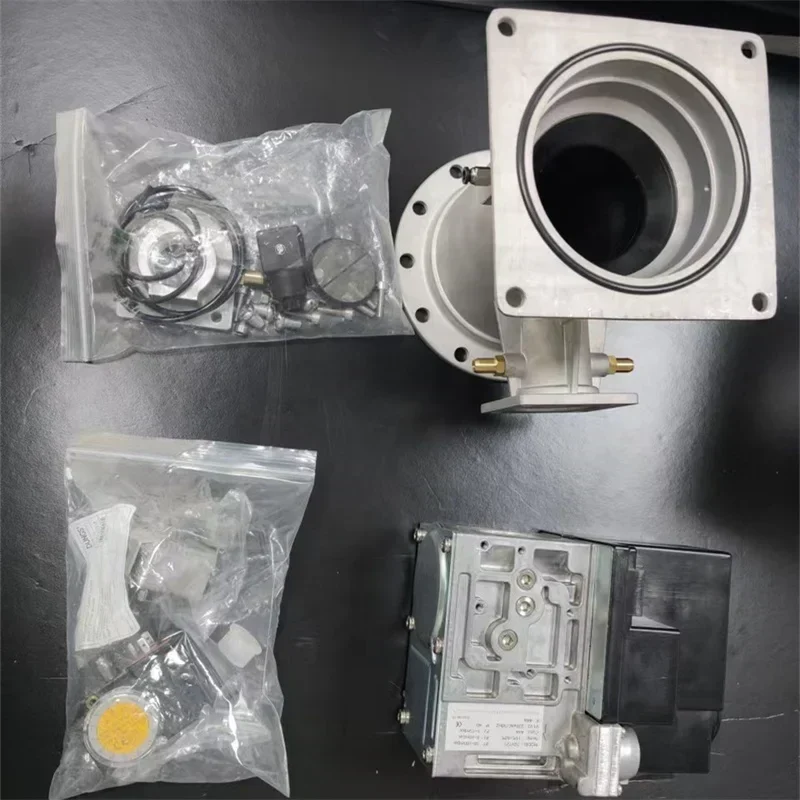

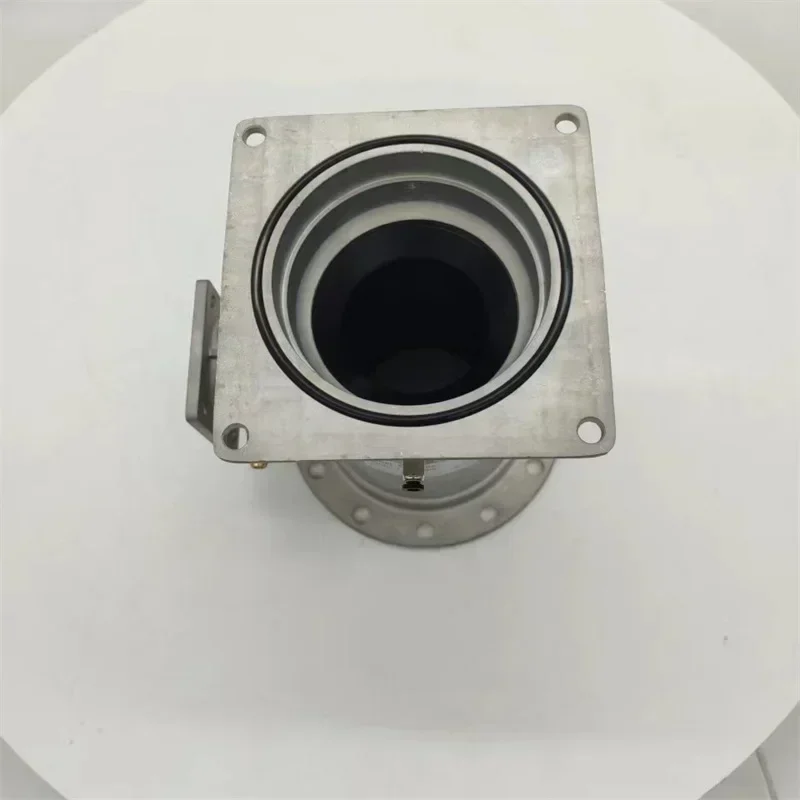

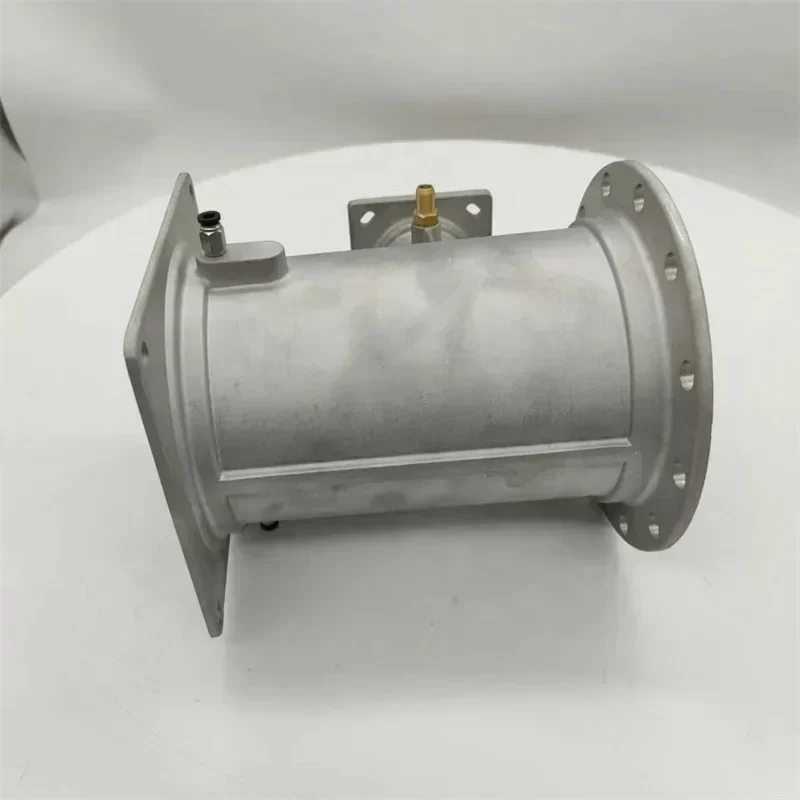

350KW Boiler TL TVM350A Venturi

Name: 350KW Boiler TL TVM350A Venturi
SKU: 1600565108557
Availability: InStock
Rating: 5 (4 reviews)

$45.00

SKU: 1600565108557

Description
Reviews (0)

Description

The TL TVM350A is a high-efficiency Venturi gas/air mixer engineered specifically for 350KW industrial and commercial boiler systems. Operating on the principle of fluid dynamics, this component ensures precise volumetric mixing of combustible gas and air, enabling optimal premix combustion and maximizing thermal efficiency in condensing boiler architectures.

Technical Specifications:
Manufacturer: TL
Model Number: TVM350A
Component Type: Premix Venturi Mixer
Thermal Capacity: 350 kW
Material Composition: Die-cast Aluminum Alloy
Operating Medium: Natural Gas / LPG and Ambient Air
Modulation Ratio: High turndown compatibility (up to 1:10)
Air Inlet Diameter: Ø 100 mm
Gas Inlet Connection: 1 inch NPT
Operating Temperature Range: -15 °C to +60 °C
Weight: 1.8 kg
Certifications: CE, EN 676

Industrial Application:
Designed for integration into 350KW commercial condensing boilers and industrial heating plants. The TVM350A solves the critical challenge of maintaining a stable air-to-gas ratio across varying load demands. By creating a precise pressure drop at the throat, it draws gas proportionally to the air flow generated by the variable speed combustion blower. This exact pneumatic synchronization ensures low NOx emissions, prevents acoustic resonance during ignition, and stabilizes the flame during low-load operation.

Lifecycle and Procurement:
Utilizing Original Engineering guarantees exact dimensional tolerances and flow characteristics, preventing the combustion instabilities often associated with aftermarket alternatives. Technical Compatibility extends to major premix burner assemblies requiring a 350kW mixing manifold. Standard Lead Time is optimized through our global distribution network to minimize critical heating system downtime and ensure rapid restoration of thermal plant operations.

Key Attributes
Mounting: Free Standing
Voltage: 230V
Blade material: /
After-sales Service Provided: Online support
Warranty: 1 Year
Customized support: OEM
Place of origin: China
Power: /
Brand name: TL
Voltage: 230V
Freqency: 50/60HZ

Packaging and Delivery
Port of dispatch: Tianjin port
Selling Units: Single item

350KW Boiler TL TVM350A Venturi

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
