$10.00

SKU: 909855263761 Brand:

Description

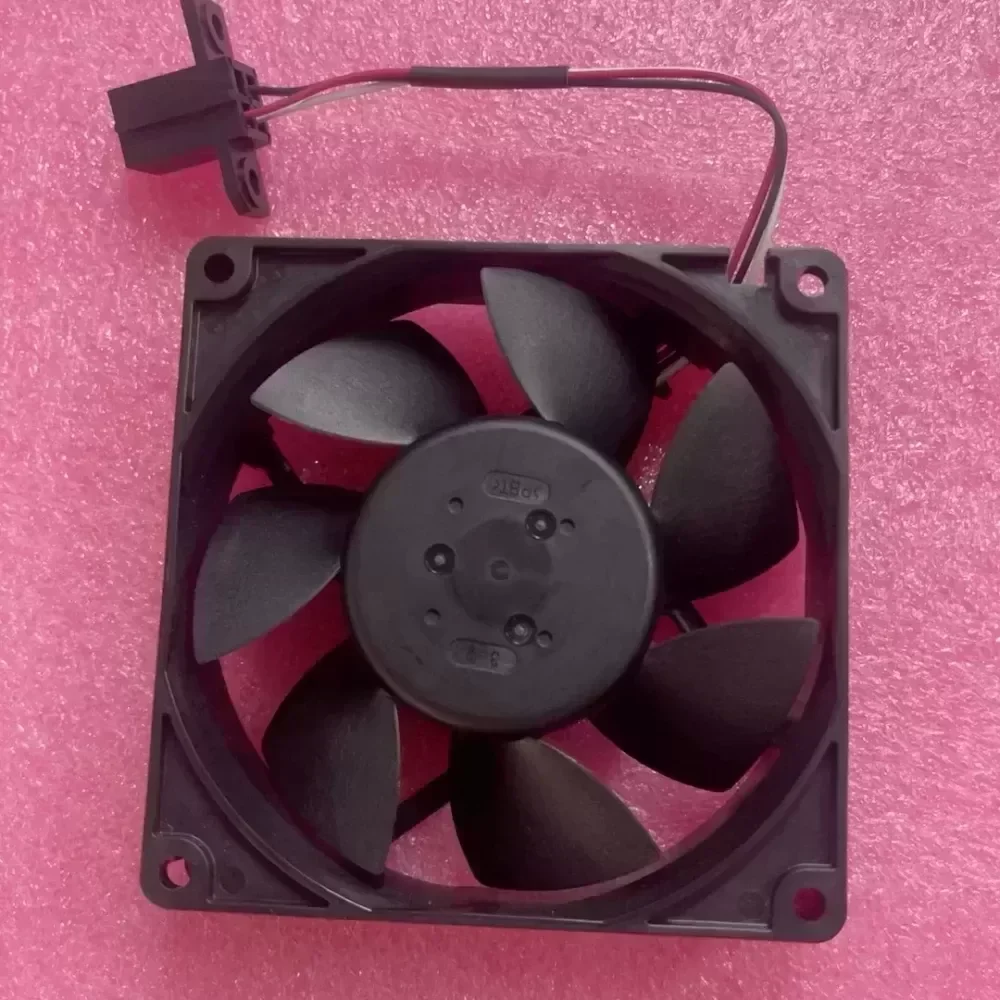

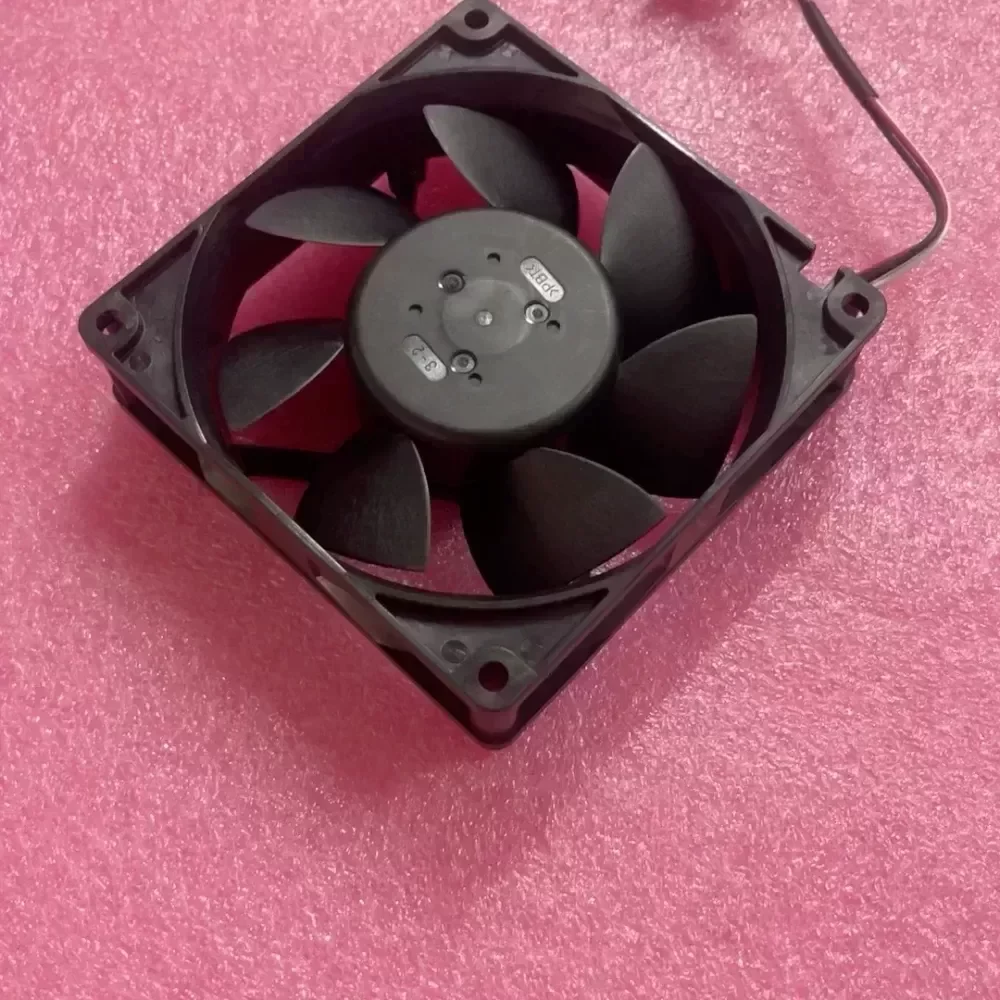

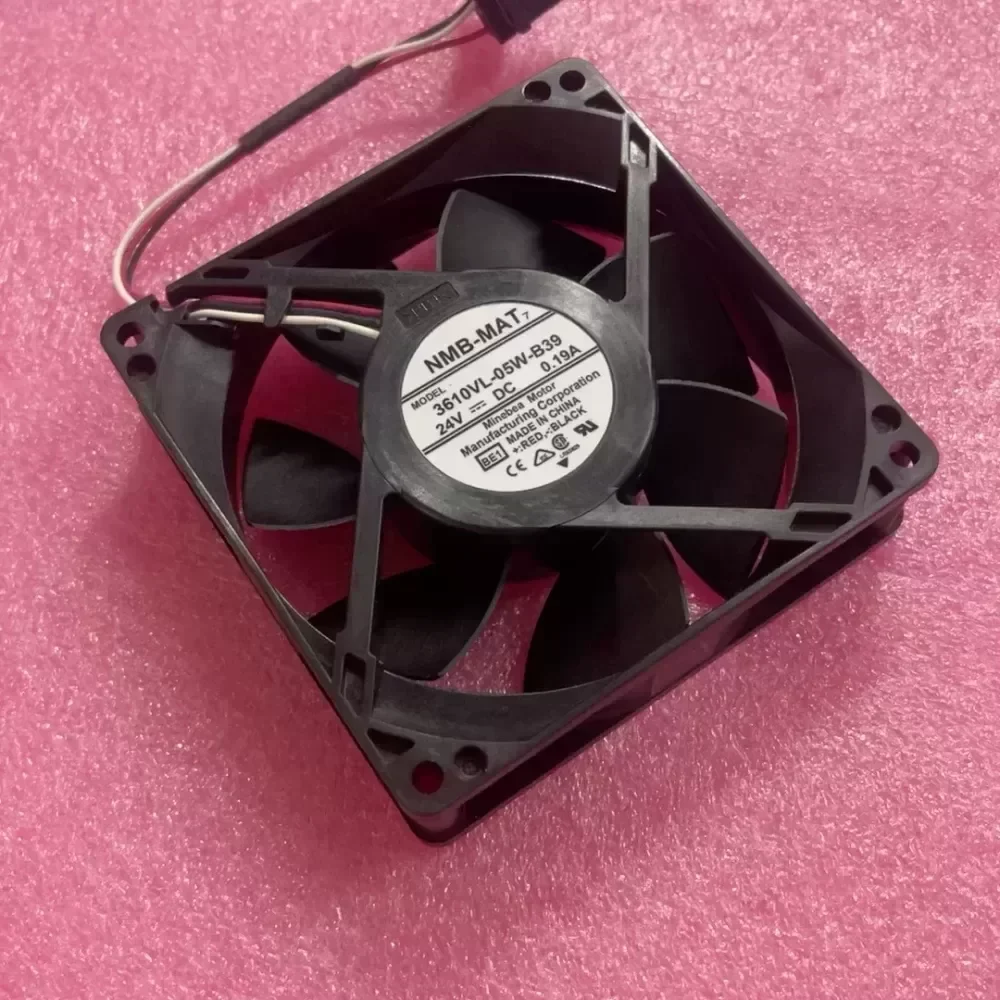

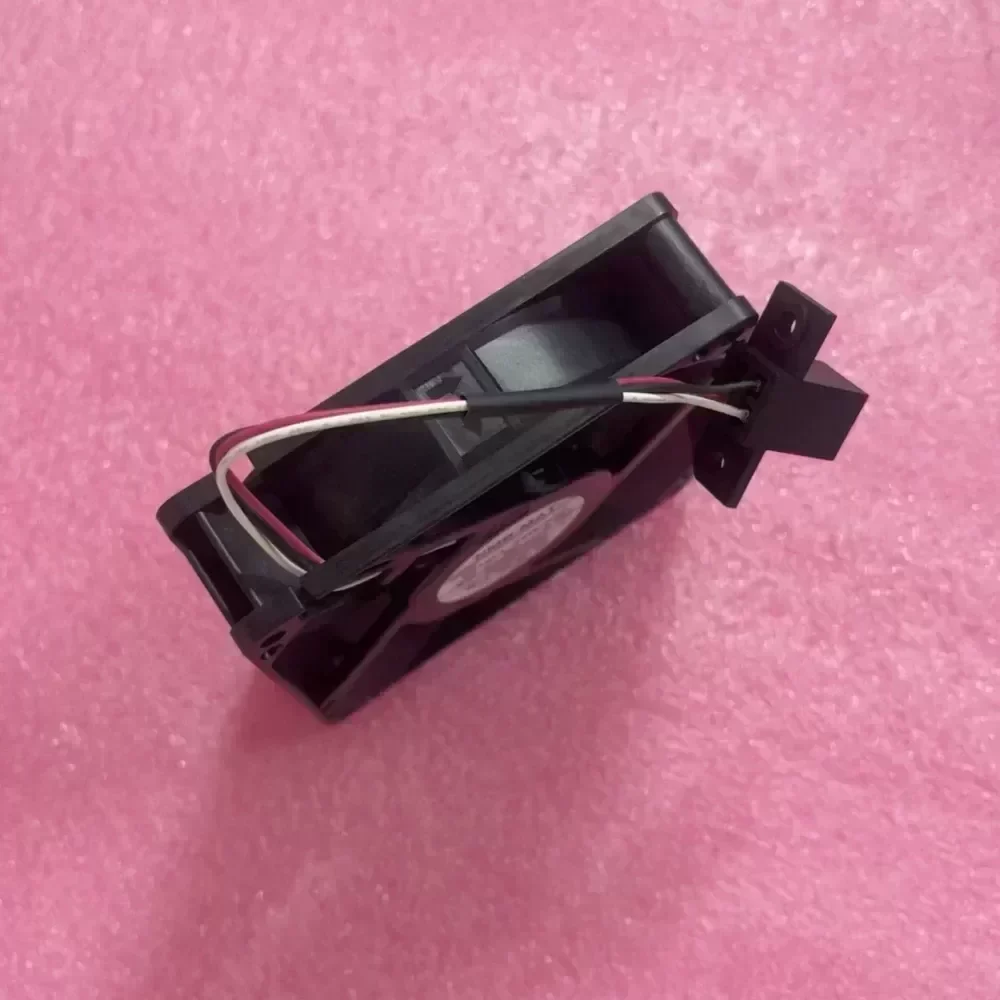

The NMB-MAT 3610VL-05W-B39 is a high-performance 24V DC axial cooling fan designed for thermal regulation in automated machinery, CNC controller cabinets, and power electronics. Built to Original Engineering specifications by MinebeaMitsumi, this component provides continuous, maintenance-free forced-air convection in demanding industrial environments.

Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Code: 3610VL-05W-B39
Frame Dimensions: 92 mm x 92 mm x 25 mm
Rated Voltage: 24 V DC
Operating Voltage Range: 14.0 V DC to 27.6 V DC
Rated Current: 0.19 A
Input Power: 4.56 W
Rotational Speed: 3200 RPM (±10%)
Max Airflow: 1.55 m³/min (54.7 CFM)
Max Static Pressure: 46.0 Pa (0.185 in H2O)
Acoustic Noise: 38.0 dBA
Bearing System: Dual Precision Ball Bearings
Frame Material: Reinforced PBT Polymer (UL94V-0)
Impeller Material: Reinforced PBT Polymer (UL94V-0)
Electrical Protection: Reverse Polarity Protection, Locked Rotor Auto-Restart
Lead Wire Interface: 3-Wire Leads with Connector (Power, Ground, Speed Sensor Output)
Operating Temperature: -10 °C to +70 °C
Storage Temperature: -40 °C to +70 °C
Life Expectancy (L10): 70,000 Hours at 25 °C
Weight: 110 g
Compliance: RoHS, UL, CSA, CE

Industrial Application & Technical Compatibility:
This unit delivers precise Technical Compatibility with Fanuc CNC drive units, servo amplifiers, and high-density industrial control enclosures where internal thermal buildup threatens processor stability. The dual ball bearing configuration maintains structural integrity and low vibration under continuous 24/7 duty cycles, ensuring operational reliability in production facilities.

Procurement & Supply Chain Parameters:
Condition: New Surplus / Unused
Packaging: Anti-Static Industrial Packaging
Lead Time: 1-2 Business Days for Immediate Dispatch
Stock Verification: Ready for immediate integration and maintenance replacement

3610VL-05W-B39 NMB-MAT fan

3610VL-05W-B39 NMB-MAT fan

3610VL-05W-B39 NMB-MAT fan

3610VL-05W-B39 NMB-MAT fan

3610VL-05W-B39 NMB-MAT fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
