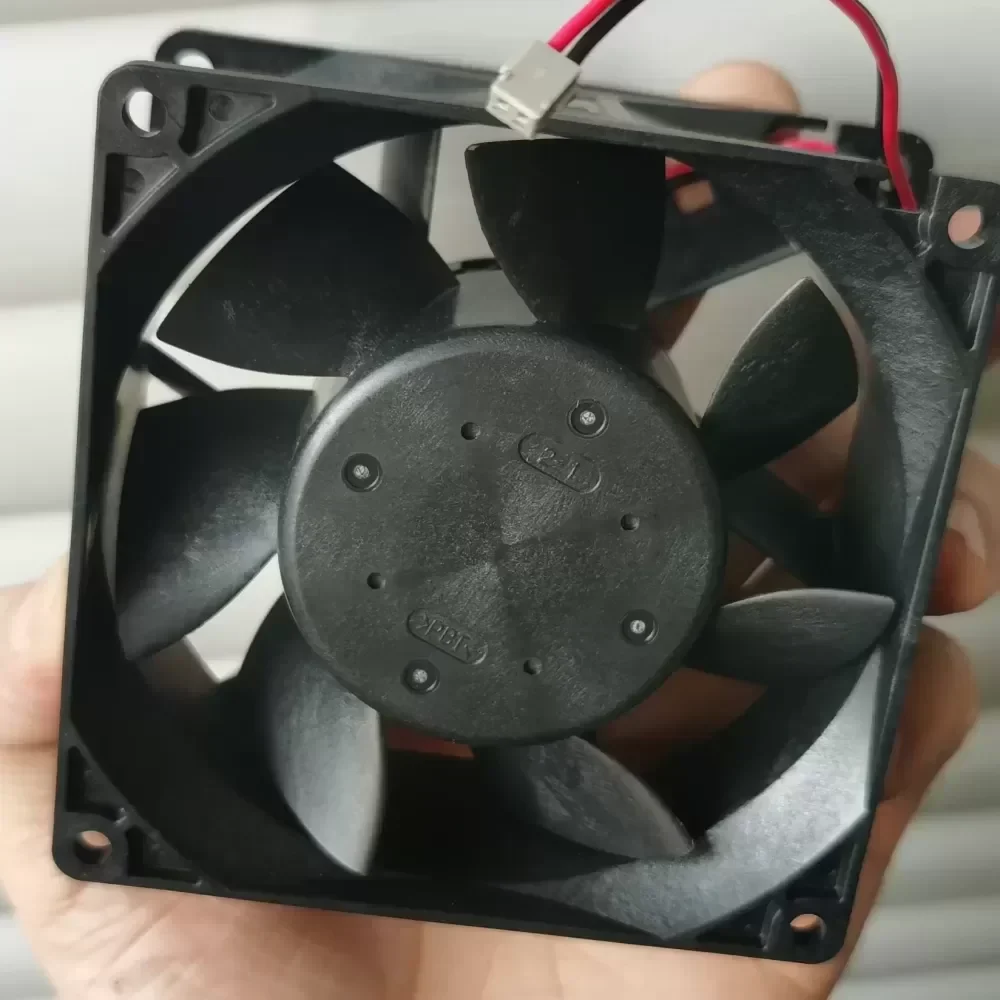

3615RL-05W-B60 NMB 9238/24V fan
3615RL-05W-B60 NMB 9238/24V fan
3615RL-05W-B60 NMB 9238/24V fan

3615RL-05W-B60 NMB 9238/24V fan

$11.43

SKU: 750571822014 Brand:

Description

The NMB 3615RL-05W-B60 is a high-performance DC axial cooling fan engineered for rigorous thermal management in industrial automation systems. Manufactured by MinebeaMitsumi, this genuine component is specifically validated for Technical Compatibility with Schneider Electric variable frequency drives (VFDs) and inverters. Built to Original Engineering specifications, it ensures optimal heat dissipation, preventing thermal throttling and extending the operational lifespan of critical power electronics. We maintain optimized inventory to ensure minimal Lead Time for facility maintenance and system integration.

Technical Specifications
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model: 3615RL-05W-B60
Equipment Type: DC Axial Fan
Frame Dimensions: 92mm x 92mm x 38mm
Nominal Voltage: 24V DC
Operating Voltage Range: 12.0V to 27.6V DC
Bearing Architecture: Precision Dual Ball Bearing
Termination Style: Lead Wires (W)
Speed Configuration: High Speed (Code 60)
Housing Material: Flammability Rating UL94V-0 Plastic
Impeller Material: Flammability Rating UL94V-0 Plastic
Operating Temperature Range: -10°C to +70°C
Weight: 170g
Acoustic Noise: 55.0 dB(A)
Maximum Airflow: 130.0 CFM (3.68 m³/min)

Industrial Application
This specific cooling fan is critical for forced-air thermal management within Schneider inverters and heavy-duty motor control centers. In continuous-duty manufacturing environments, variable frequency drives generate substantial localized heat. The 3615RL-05W-B60 utilizes its high-velocity 92x38mm profile and dual ball bearing design to deliver sustained, high-static-pressure airflow directly across the inverter heat sinks. This prevents catastrophic thermal overload, ensuring stable drive performance and minimizing unplanned downtime in mission-critical automation architectures.

3615RL-05W-B60 NMB 9238/24V fan

3615RL-05W-B60 NMB 9238/24V fan

3615RL-05W-B60 NMB 9238/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
