4114N-2H6AR ebmpapst Fan Axial Fan ebmpapst TYPE:4114N-2H6AR DC 24V
4114N-2H6AR ebmpapst Fan Axial Fan ebmpapst TYPE:4114N-2H6AR DC 24V
4114N-2H6AR ebmpapst Fan Axial Fan ebmpapst TYPE:4114N-2H6AR DC 24V
4114N-2H6AR ebmpapst Fan Axial Fan ebmpapst TYPE:4114N-2H6AR DC 24V

4114N-2H6AR ebmpapst Fan Axial Fan ebmpapst TYPE:4114N-2H6AR DC 24V

$45.00

SKU: 1600248644547 Brand:

Description

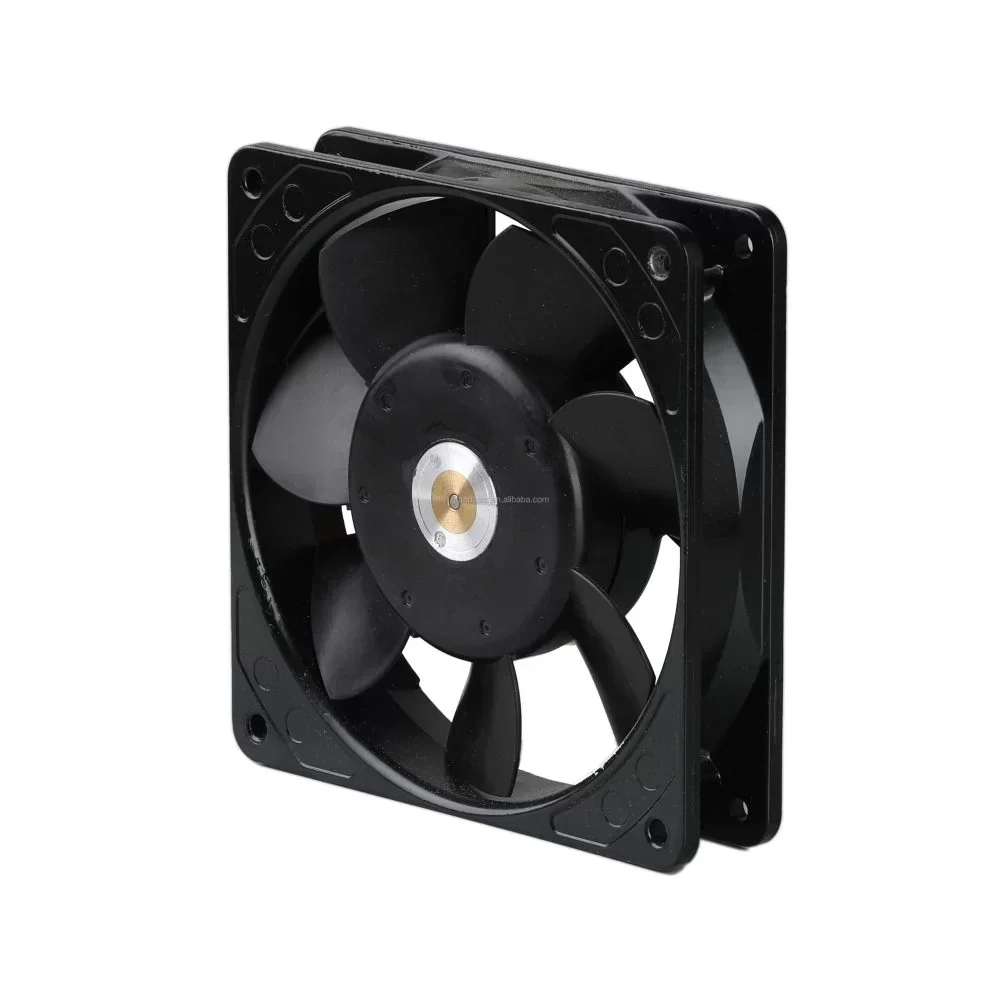

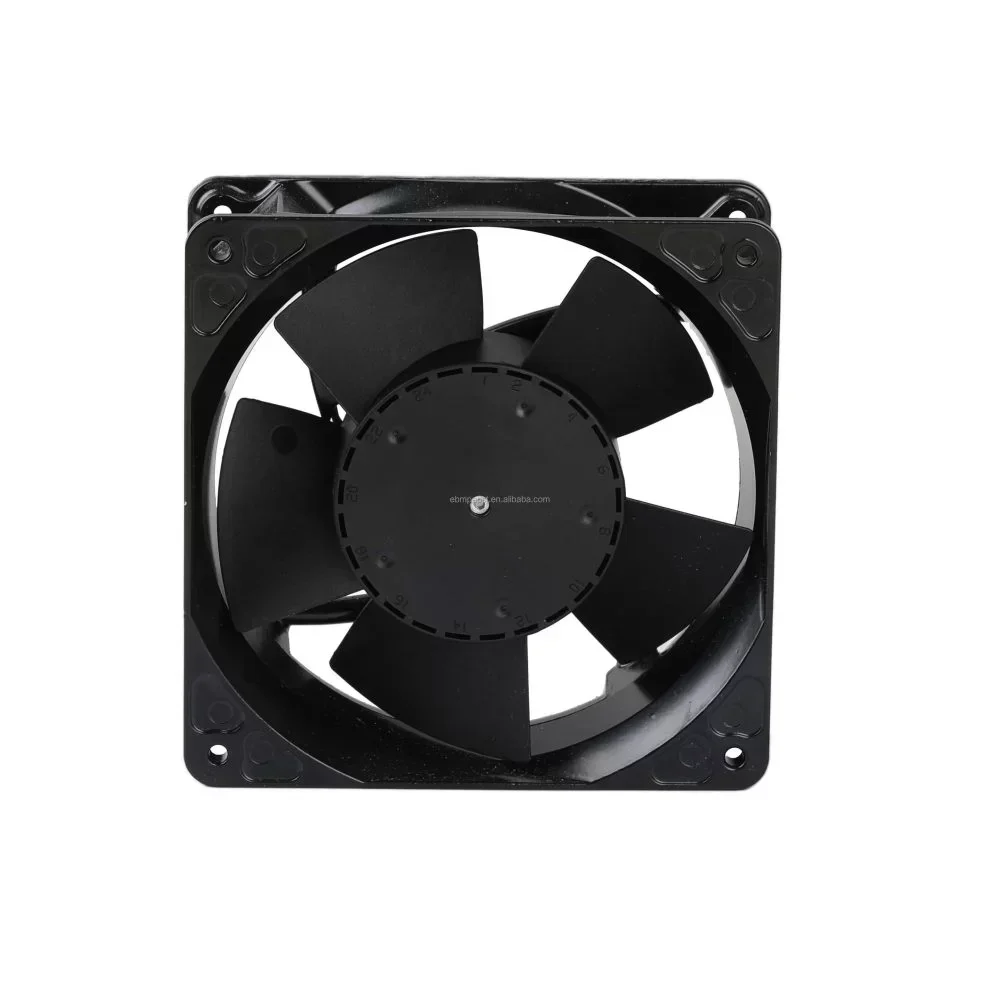

The ebm-papst 4114N-2H6AR is a high-performance DC axial fan engineered for demanding thermal management applications. Utilizing Original Engineering from ebm-papst, this compact yet powerful cooling solution delivers exceptional airflow dynamics within a standard 119mm footprint. Designed for continuous operation in harsh industrial environments, it integrates advanced motor technology with an aerodynamically optimized impeller to maximize cooling efficiency while maintaining a manageable acoustic profile.

Technical Specifications
Manufacturer: ebm-papst
Model Number: 4114N-2H6AR
Fan Type: DC Axial Fan
Dimensions: 119 x 119 x 38 mm
Nominal Voltage: 24 VDC
Operating Voltage Range: 16.0 – 30.0 VDC
Maximum Airflow: 260 m³/h
Nominal Speed: 5000 RPM
Power Consumption: 11.0 W
Acoustic Noise Level: 60 dB(A)
Bearing System: Precision Ball Bearing
Housing Material: Die-cast Aluminum
Impeller Material: Fiberglass-reinforced Plastic (PA)
Operating Temperature: -20°C to +65°C
Protection Rating: IP54
Weight: 0.390 kg

Industrial Application & Technical Compatibility
The 4114N-2H6AR is specifically designed for high-density electronic enclosures, telecommunications base stations, and industrial automation control cabinets. In these scenarios, densely packed components generate significant heat loads that require rapid dissipation to prevent thermal throttling or hardware failure. The die-cast aluminum housing provides structural rigidity against vibration, while the precision ball bearing system ensures a prolonged service life even under continuous maximum RPM operation. Its Technical Compatibility extends to complex server racks and variable speed cooling arrays, seamlessly integrating with standard 24V DC power rails.

Procurement & Lifecycle Value
Sourcing this component guarantees adherence to strict global quality standards. We ensure minimal Lead Time for this critical spare part, allowing maintenance teams to swiftly restore optimal thermal regulation in mission-critical infrastructure.

Voltage: 24V
Electric current type: DC
Mounting type: Any
Warranty: 1 Year
Blade material: Glass-fiber reinforced PA plastic
After-sales service provided: Online support
Place of origin: Hungary
Brand name: Ebmpapst
Model number: 4114N-2H6AR
Bearing Type: Ball bearing
Product name: DC Brussless Fan
Application: Industrial Equipment
Usage: Cooling System
Rated voltage: 24V
Motor: Copper Motor
Feature: Low Noise Energy Saving
Color: Black Cooling Fan
Port of dispatch: Shanghai
Selling Units: Single item
Supply Ability: 200000 boxes per Month

4114N-2H6AR ebmpapst Fan Axial Fan ebmpapst TYPE:4114N-2H6AR DC 24V

4114N-2H6AR ebmpapst Fan Axial Fan ebmpapst TYPE:4114N-2H6AR DC 24V

4114N-2H6AR ebmpapst Fan Axial Fan ebmpapst TYPE:4114N-2H6AR DC 24V

4114N-2H6AR ebmpapst Fan Axial Fan ebmpapst TYPE:4114N-2H6AR DC 24V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
