$25.71

SKU: 719707765657 Brand:

Description

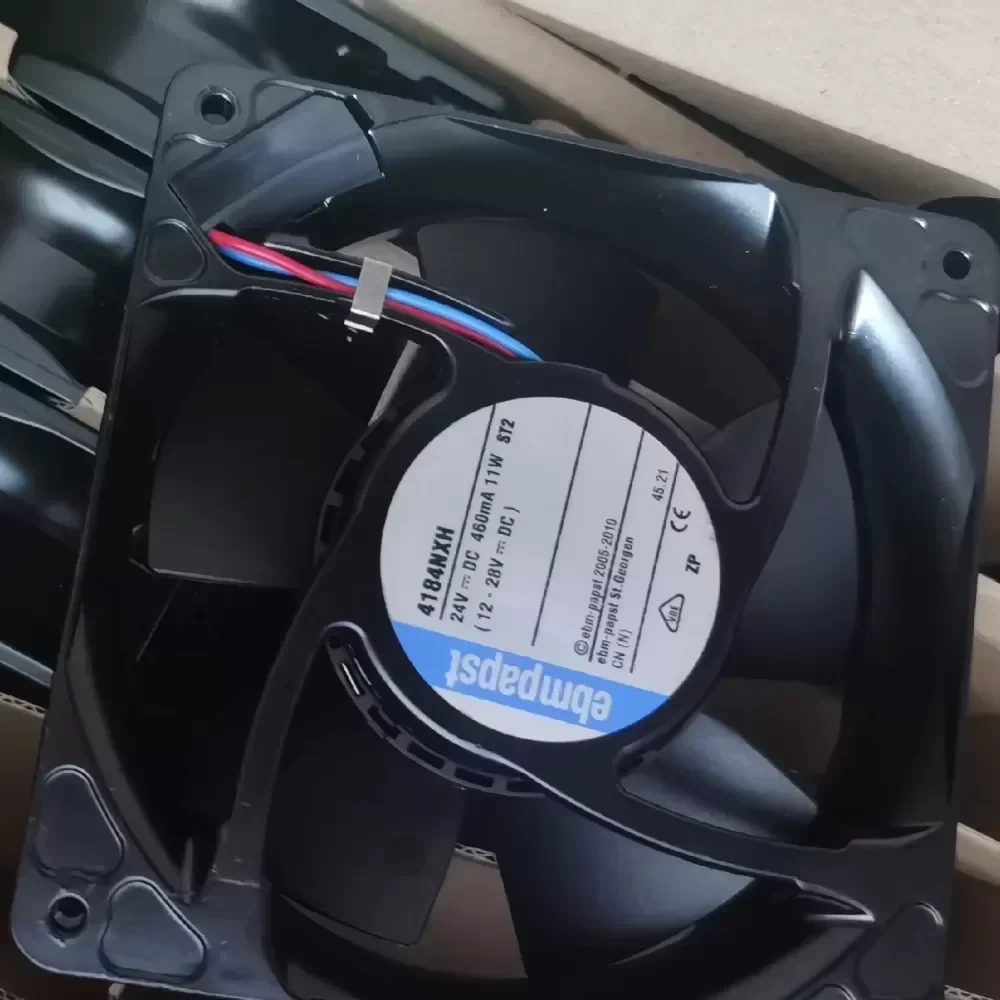

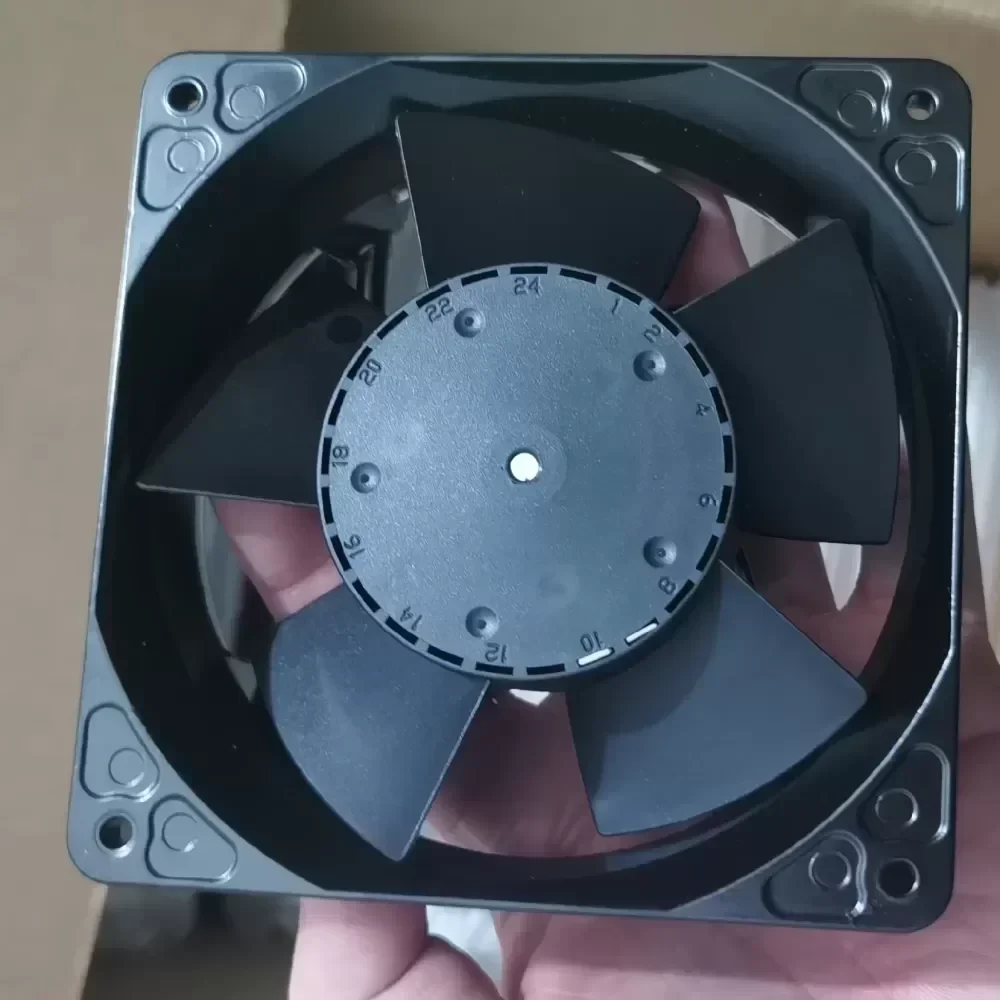

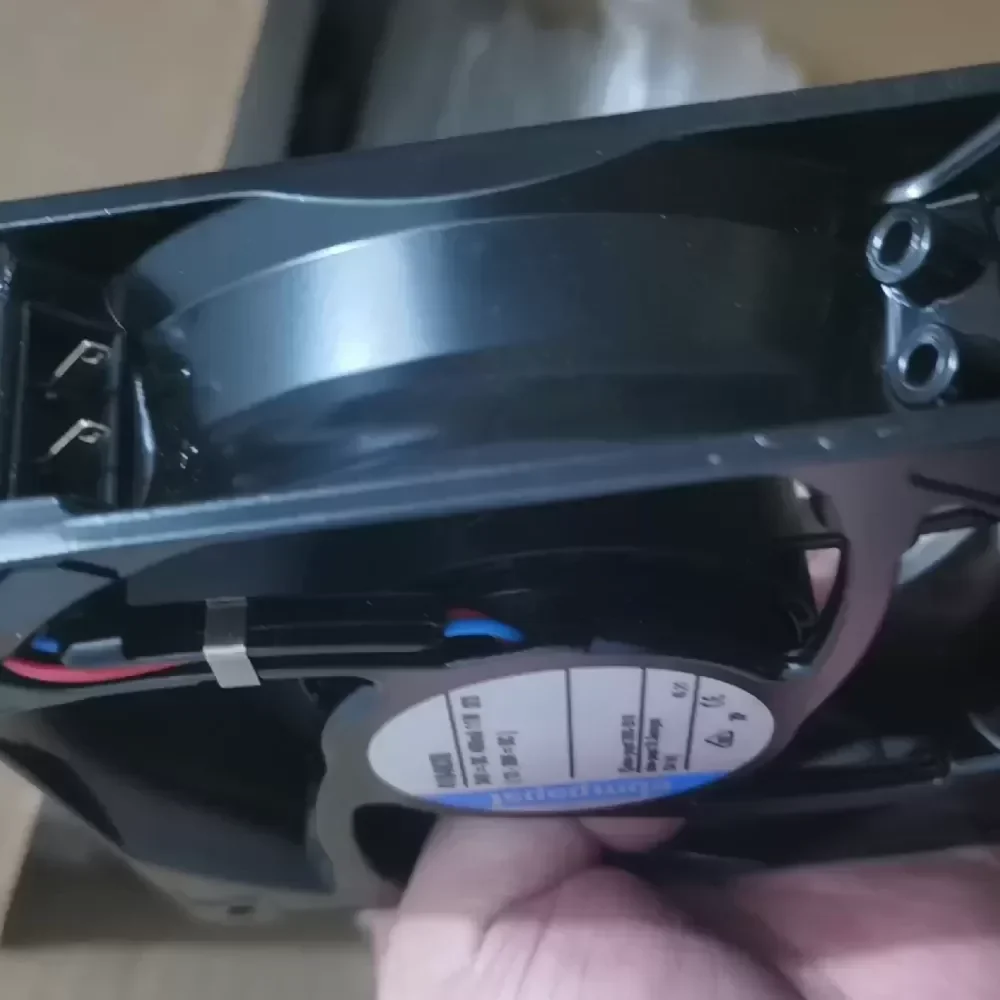

The ebm-papst 4184NXH is a high-performance DC axial fan engineered for demanding industrial thermal management applications. Designed specifically for inverter cooling, industrial chassis, and telecommunication cabinets, this 120x120x38mm cooling solution delivers exceptional airflow efficiency and long-term reliability. Utilizing Original Engineering from ebm-papst, the 4184NXH ensures optimal heat dissipation in densely packed electronic enclosures where continuous operation is critical.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: 4184NXH
Fan Type: DC Axial Fan
Nominal Voltage: 24 VDC
Operating Voltage Range: 12.0 to 31.5 VDC
Dimensions: 119 x 119 x 38 mm (Ø 120mm class)
Volumetric Airflow: 237 m³/h
Nominal Speed: 4400 RPM
Power Consumption: 11.0 W
Sound Pressure Level: 50 dB(A)
Bearing System: Precision Ball Bearing
Housing Material: Die-cast Aluminum
Impeller Material: Fiberglass-reinforced Plastic (PA)
Operating Temperature Range: -30°C to +70°C
Weight: 0.390 kg
Connection Type: Single strands AWG 22, bared and tin-plated
Motor Protection: Protection against reverse polarity and blocked rotor

Application & Integration:
The 4184NXH is purpose-built to solve critical thermal bottlenecks in 24V industrial systems. Its die-cast aluminum housing provides superior structural integrity against vibration, making it highly suitable for variable frequency drives (VFDs), solar inverters, and heavy-duty control cabinets. The precision ball bearing system guarantees an extended service life even under maximum thermal loads, preventing premature component failure in mission-critical automation networks.

Procurement & Lifecycle Value:
Guaranteed Technical Compatibility with standard 12038 mounting profiles allows for seamless drop-in replacement during maintenance cycles. We ensure optimized Lead Time for this Original Engineering component, minimizing downtime for critical infrastructure and maintaining peak operational efficiency.

4184NXH New 12038/2

4184NXH New 12038/2

4184NXH New 12038/2

4184NXH New 12038/2

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
