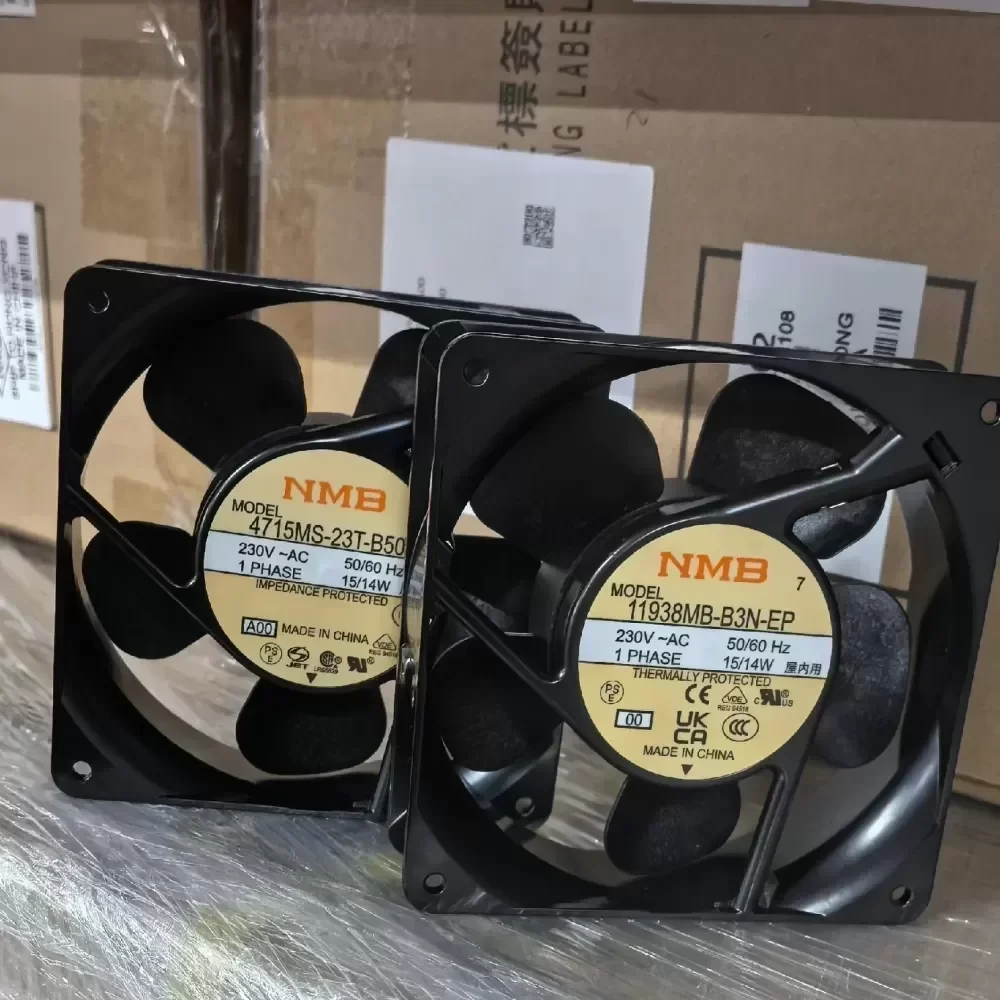

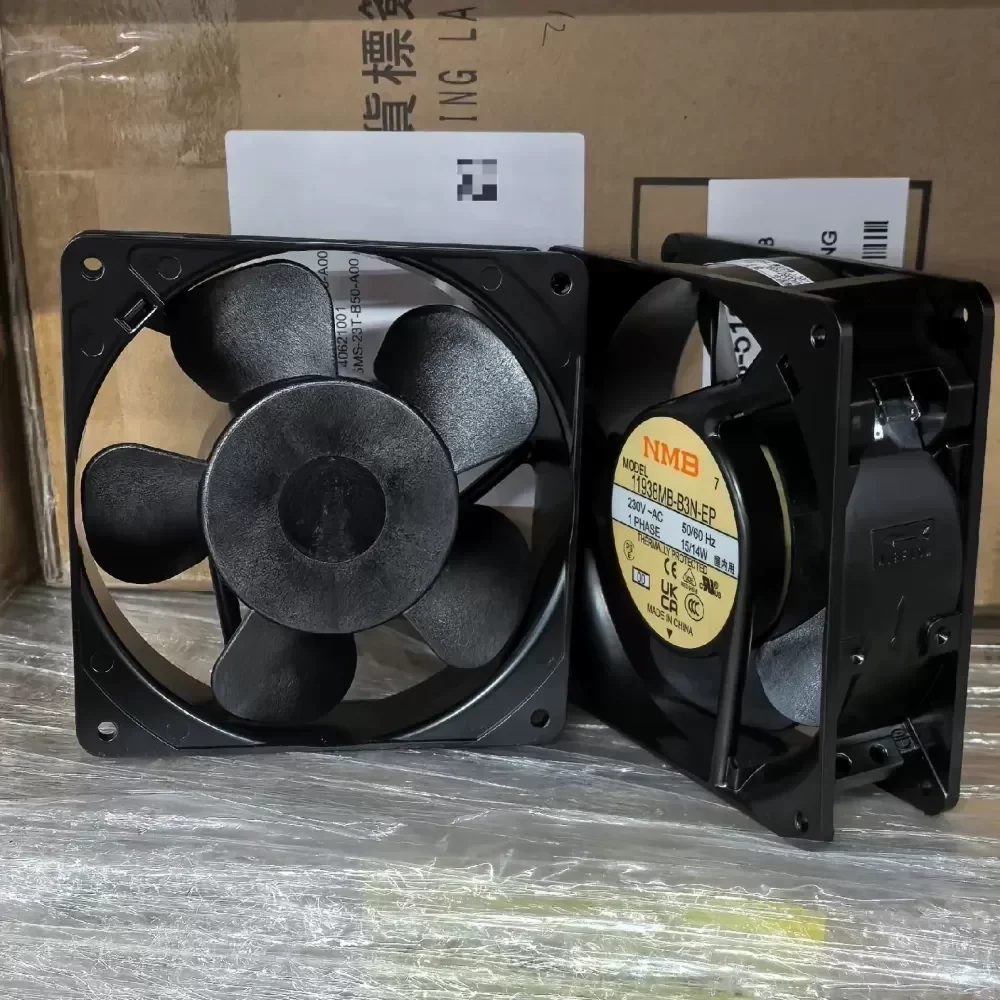

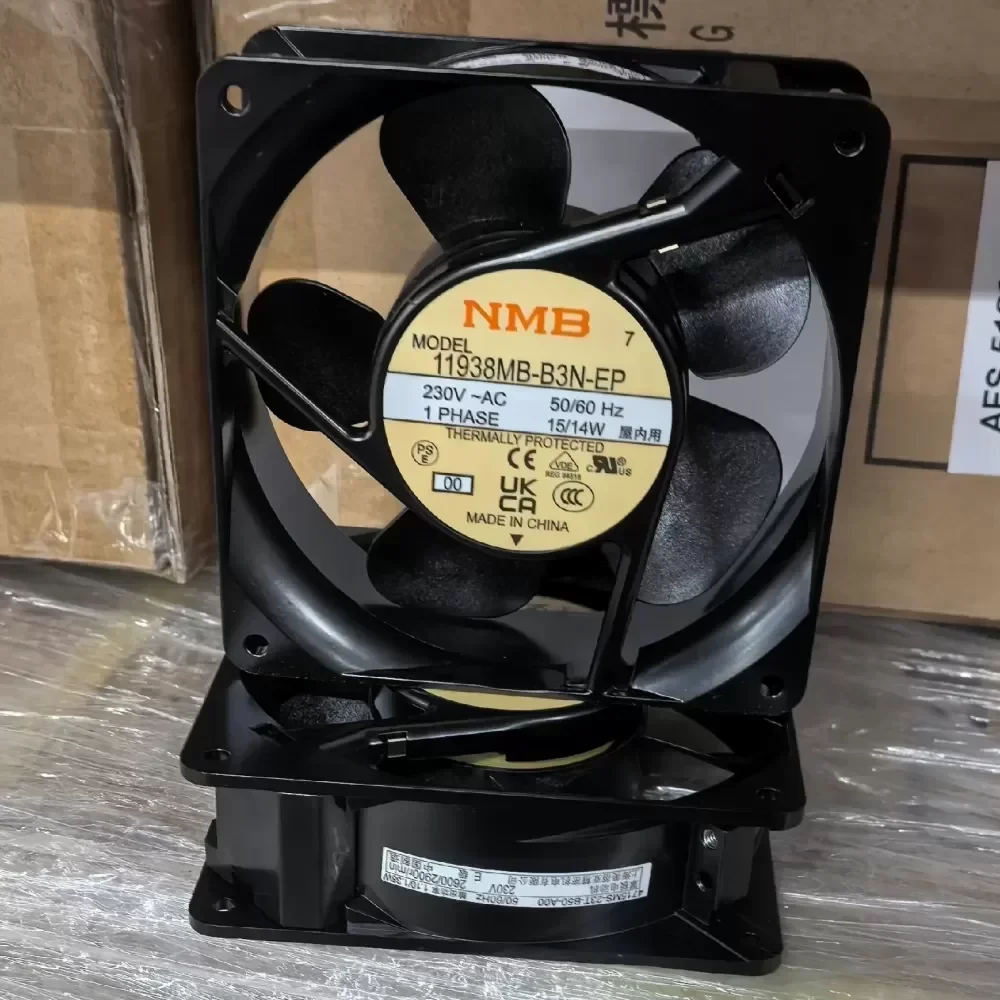

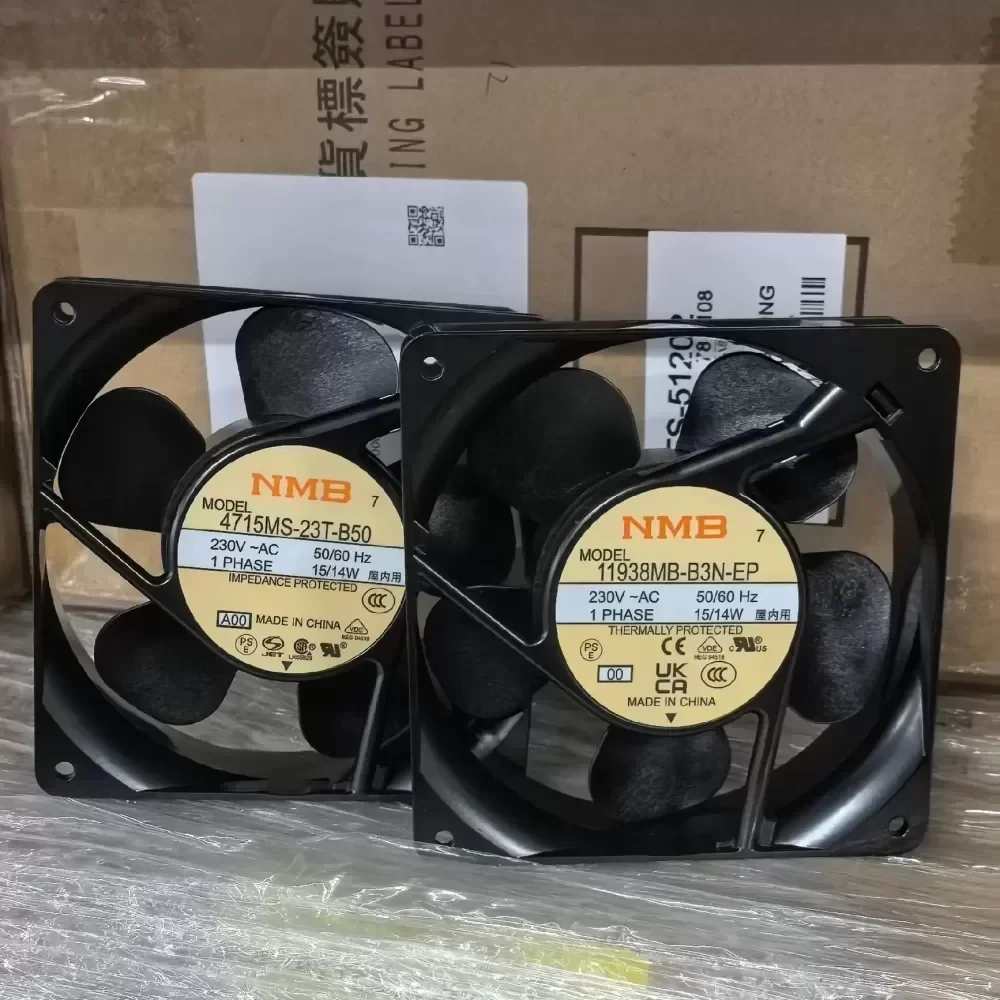

4715MS-23T-B50 NMB CNC machine fan
4715MS-23T-B50 NMB CNC machine fan
4715MS-23T-B50 NMB CNC machine fan
4715MS-23T-B50 NMB CNC machine fan
4715MS-23T-B50 NMB CNC machine fan

4715MS-23T-B50 NMB CNC machine fan

$9.29

SKU: 863762467908 Brand:

Description

The NMB-MAT 4715MS-23T-B50 is a high-performance industrial cooling solution engineered for continuous operation in demanding CNC machine tool environments and server chassis. This model represents the pinnacle of Original Engineering, utilizing a dual ball bearing system to ensure long-term rotational stability and thermal dissipation efficiency.

Technical Specifications:
Manufacturer: NMB Technologies (Minebea-Matsushita)
Model Number: 4715MS-23T-B50
Frame Size: 119mm x 119mm x 38mm (Standard 4.7-inch)
Rated Voltage: 230V AC
Frequency: 50/60 Hz
Input Power: 15.0W / 14.0W
Rated Current: 0.12A / 0.10A
Rotational Speed: 2600 RPM / 2900 RPM
Maximum Airflow: 88.2 CFM / 102.0 CFM (2.50 m³/min / 2.90 m³/min)
Static Pressure: 63.7 Pa / 85.3 Pa
Noise Level: 37 dB / 41 dB
Bearing Type: Precision Dual Ball Bearing
Termination: Faston #110 Terminals (T-Type)
Weight: 550g

Material and Environmental Ratings:
Frame Material: Aluminum Die-Cast
Impeller Material: Polycarbonate (Glass Fiber Reinforced, UL94V-0)
Insulation Resistance: 100M Ω or over with a DC500V Megger
Dielectric Withstand Voltage: AC 1800V 3s
Operating Temperature Range: -10°C to +70°C
Storage Temperature Range: -40°C to +70°C
Expected Life: 50,000 Hours (L10 at 25°C)
Safety Certifications: UL, CSA, VDE, CE

Industrial Application and Technical Compatibility:
This unit is specifically designed for the thermal management of CNC machine tool control cabinets, frequency converters, and high-density telecommunication racks. The 4715MS-23T-B50 provides the critical static pressure required to overcome resistance in tightly packed electronic enclosures. Its robust aluminum housing acts as a secondary heat sink, maintaining structural integrity under high-vibration conditions common in industrial manufacturing.

Logistics and Procurement:
Technical Compatibility: Direct replacement for standard 12038 AC axial fans.
Lead Time: Immediate stock availability for critical maintenance and repair operations (MRO).
Condition: Factory New, Original Engineering Grade.

4715MS-23T-B50 NMB CNC machine fan

4715MS-23T-B50 NMB CNC machine fan

4715MS-23T-B50 NMB CNC machine fan

4715MS-23T-B50 NMB CNC machine fan

4715MS-23T-B50 NMB CNC machine fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
