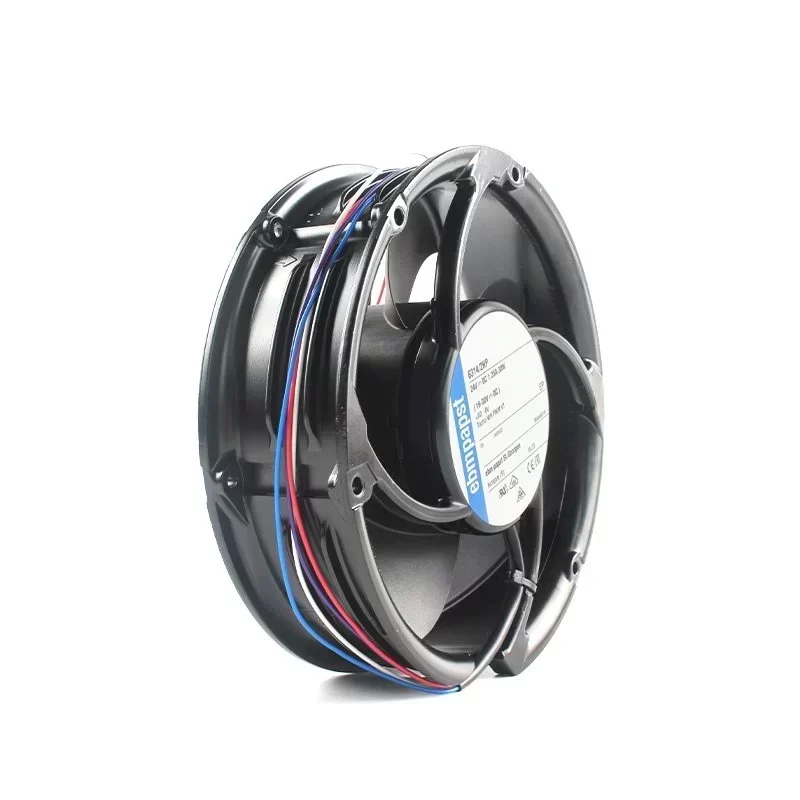

6314/2HP ebmpapst 172x51mm 24v 30W DC Axial Fan
6314/2HP ebmpapst 172x51mm 24v 30W DC Axial Fan

6314/2HP ebmpapst 172x51mm 24v 30W DC Axial Fan

$81.20

SKU: 1600911803037 Brand:

Description

The ebm-papst 6314/2HP is a high-performance DC axial cooling fan engineered for demanding thermal management applications. Featuring an integrated 3-phase electronically commutated external rotor motor, this 172x51mm round fan delivers exceptional aerodynamic efficiency and active speed regulation. Designed specifically for integration into frequency converters, power electronics, and telecommunications infrastructure, the 6314/2HP ensures optimal heat dissipation under continuous high-load conditions.

Technical Specifications
Brand: ebm-papst
Model Number: 6314/2HP
Fan Architecture: DC Axial Fan
Dimensions: Ø 172 x 51 mm
Nominal Voltage: 24 VDC
Operating Voltage Range: 16 – 30 VDC
Power Consumption: 30 W
Nominal Speed: 5000 RPM
Maximum Airflow: 600 m³/h
Acoustic Noise Level: 73 dB(A)
Control Interface: PWM (Pulse Width Modulation) speed control
Signal Output: Tachometer signal for speed monitoring
Bearing System: Precision Ball Bearing
Housing Material: Die-cast aluminum
Impeller Material: Fiberglass-reinforced plastic (PA)
Operating Temperature Range: -20°C to +65°C
Weight: 0.91 kg
Protection Class: IP20
Certifications: CE, UL, CSA, VDE

Model Decoding & Original Engineering
The 6314/2HP nomenclature indicates its specific engineering profile within the ebm-papst 6300 series. The ’14’ designates the 24 VDC nominal voltage. The ‘/2’ suffix confirms the presence of a tachometer output for closed-loop speed monitoring. The ‘HP’ classification signifies High Performance, integrating a PWM control input for dynamic speed regulation based on real-time thermal loads. This ensures exact Technical Compatibility with advanced variable frequency drives (VFDs) and industrial control cabinets requiring intelligent cooling protocols.

Industrial Application & Lifecycle Value
In high-density frequency converters and motor drive systems, thermal bottlenecks can cause catastrophic logic failures or derating. The 6314/2HP solves this critical problem by providing a massive 600 m³/h airflow within a compact 17251 form factor. Its die-cast aluminum housing prevents deformation under high thermal stress, while the PWM input allows the host system to throttle fan speed, minimizing acoustic noise and extending the bearing lifecycle during low-load states. By maintaining strict Original Engineering standards, this component guarantees seamless drop-in replacement, minimizing system downtime. Contact our procurement team to verify current Lead Time and secure authentic replacement units for your critical infrastructure.

Key Attributes
Voltage: 24v
Speed: 5000RPM
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Plastic
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: 6314/2HP
Current: 1.25A
Power: 30W
Air volume: 545m³/h
Speed: 5000RPM
Weight: 825g
Bearing Type: Ball Beaing
Operating Temperature: -20℃ to 65℃
Type: Axial Flow Fan

Packaging and Delivery
Selling Units: Single item
Single package size: 172X172X51 cm
Single gross weight: 1.000 kg

6314/2HP ebmpapst 172x51mm 24v 30W DC Axial Fan

6314/2HP ebmpapst 172x51mm 24v 30W DC Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
