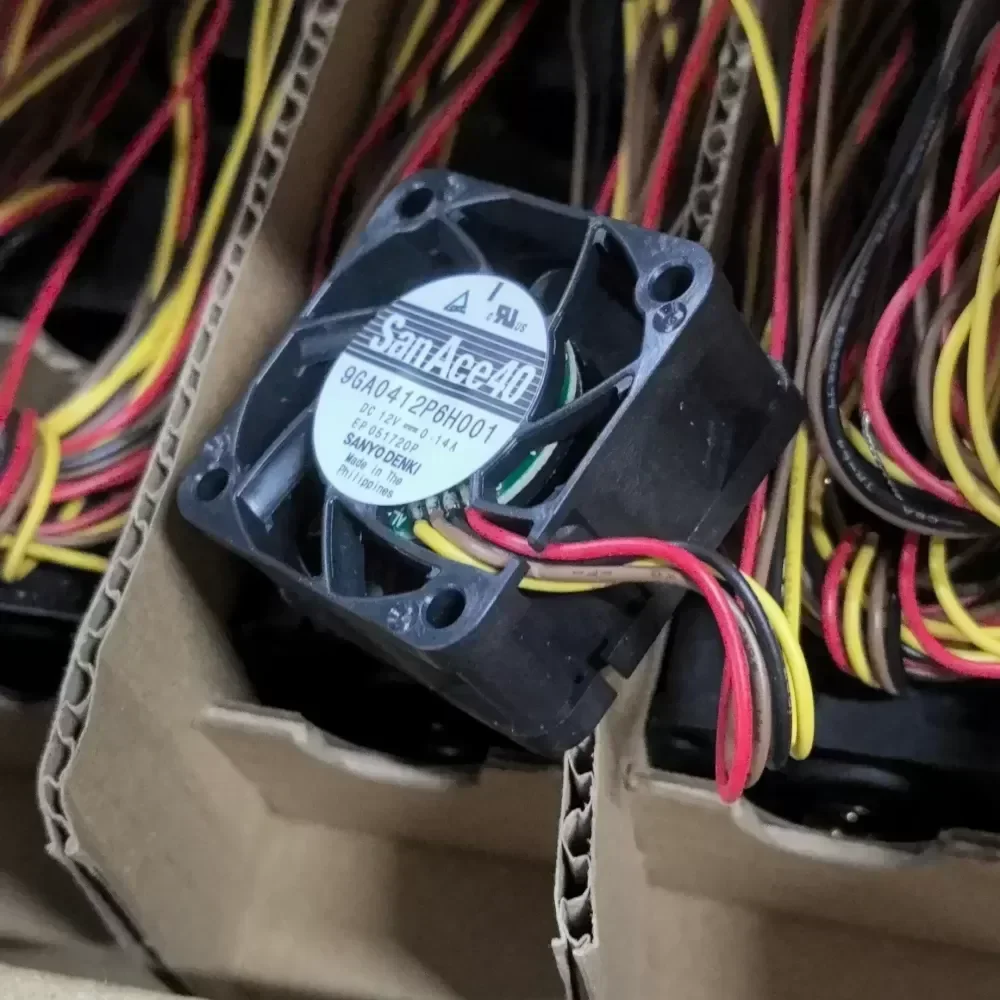

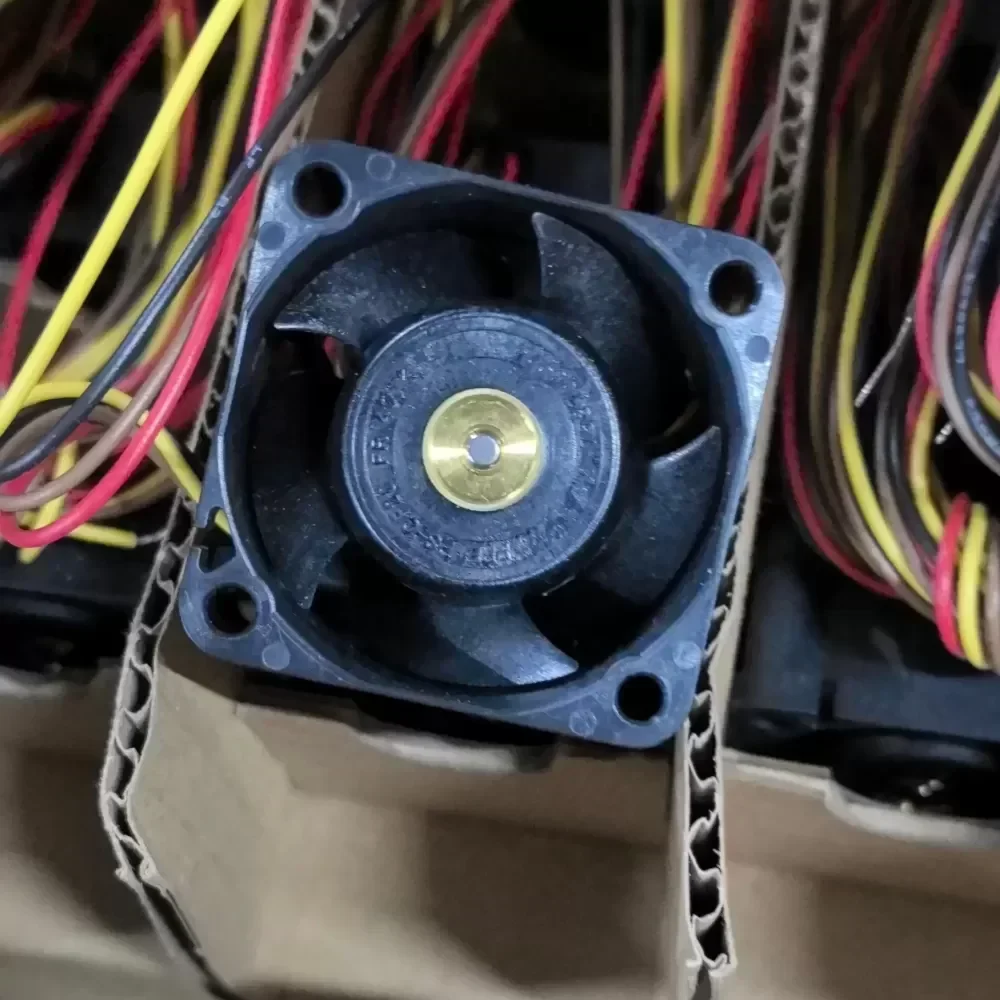

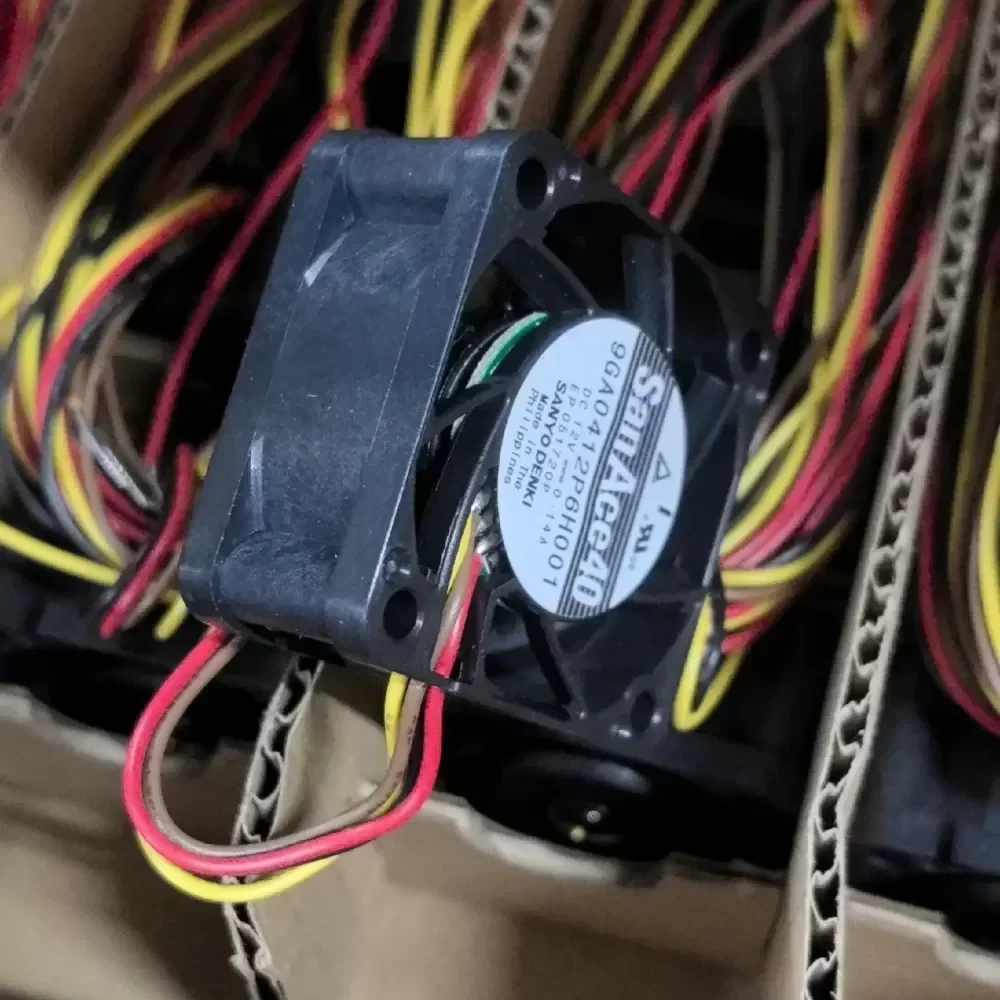

Manufacturer: Sanyo Denki
Series: San Ace 40 GA
Model Number: 9GA0412P6H001
Frame Size: 40mm x 40mm
Thickness: 28mm
Rated Voltage: 12V DC
Operating Voltage Range: 10.2V to 13.8V
Rated Current: 0.14A
Rated Input: 1.68W
Rated Speed: 11500 RPM
Max Airflow: 0.37 m³/min (13.1 CFM)
Max Static Pressure: 120 Pa (0.482 inchH2O)
Noise Level: 42 dB(A)
Bearing Type: Dual Ball Bearing
Interface: 4-wire (VCC, GND, Tachometer, PWM Control)
Lead Wire Length: 300mm
Material Frame: Plastics (Flammability UL 94V-0)
Material Impeller: Plastics (Flammability UL 94V-0)
Operating Temperature: -20°C to +70°C
Expected Life: 40000 Hours at 60°C
Weight: 53g
Origin: Philippines (Sanyo Denki Original Engineering)
Certifications: UL, CSA, TÜV, RoHS
Industrial Application and Integration:
The Sanyo Denki 9GA0412P6H001 is a high-performance cooling solution engineered for high-density industrial environments. This San Ace 40 model utilizes Original Engineering to deliver high static pressure and reliable airflow in restricted spaces such as 1U servers, telecommunications switching equipment, and medical diagnostic devices. The 4-wire PWM control allows for precise thermal management, reducing energy consumption and acoustic noise during low-load operations. Technical Compatibility is guaranteed for systems requiring standard 4028 footprints with advanced speed feedback. Optimized for long-term reliability, this component ensures minimal Lead Time for critical maintenance and OEM integration.
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
Fans Maintenance and upkeep
1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;
2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.
3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;
4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
