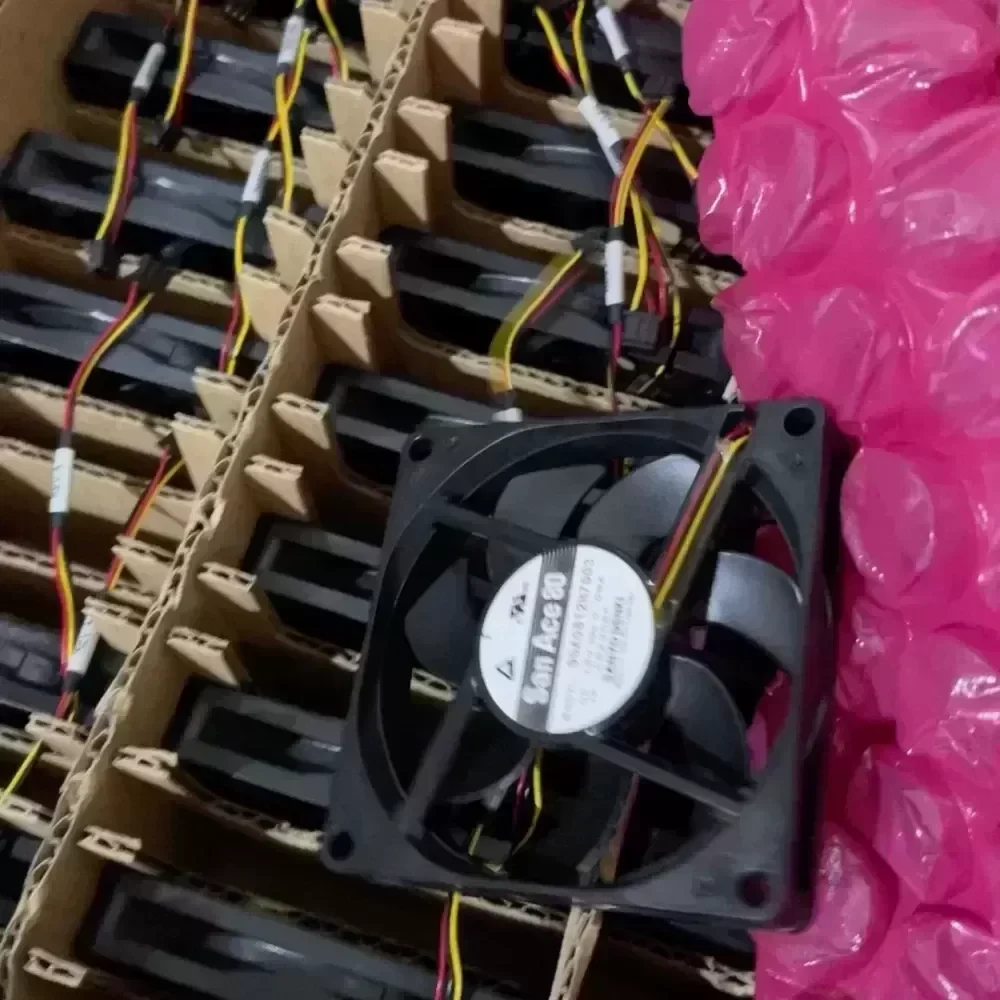

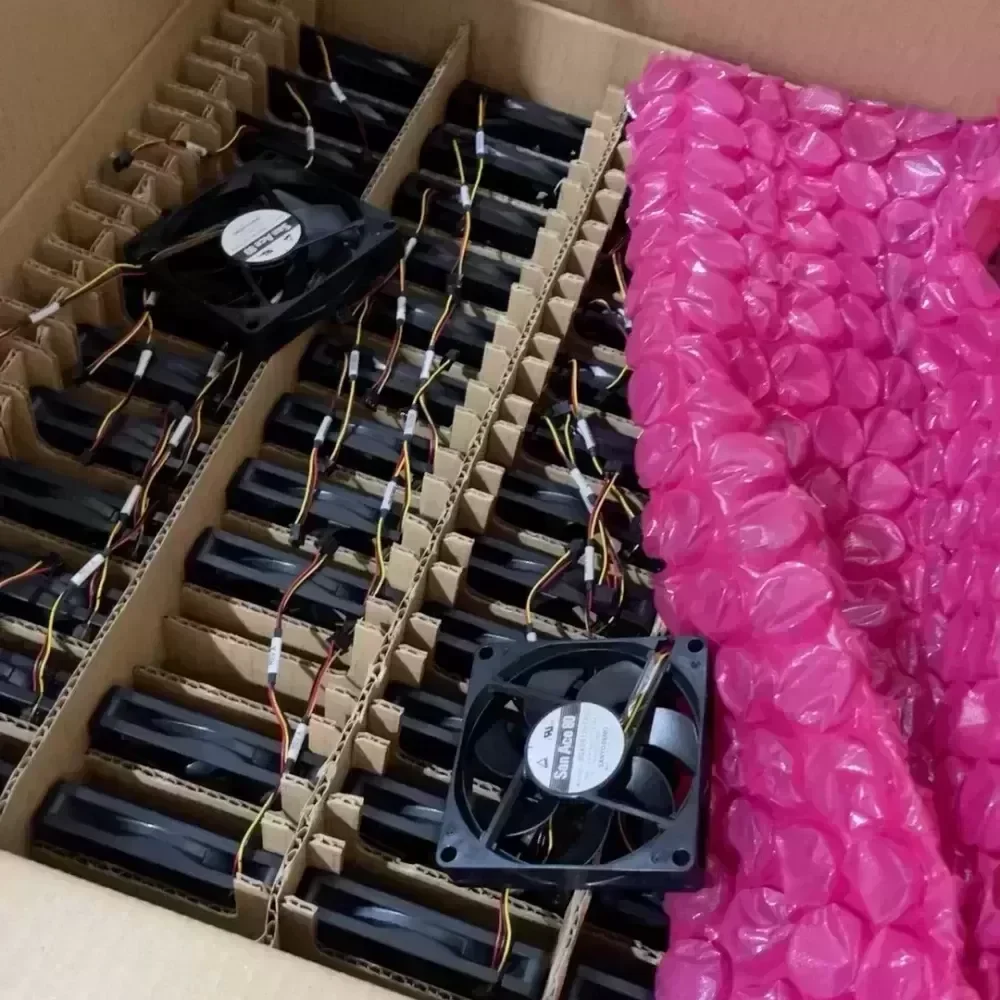

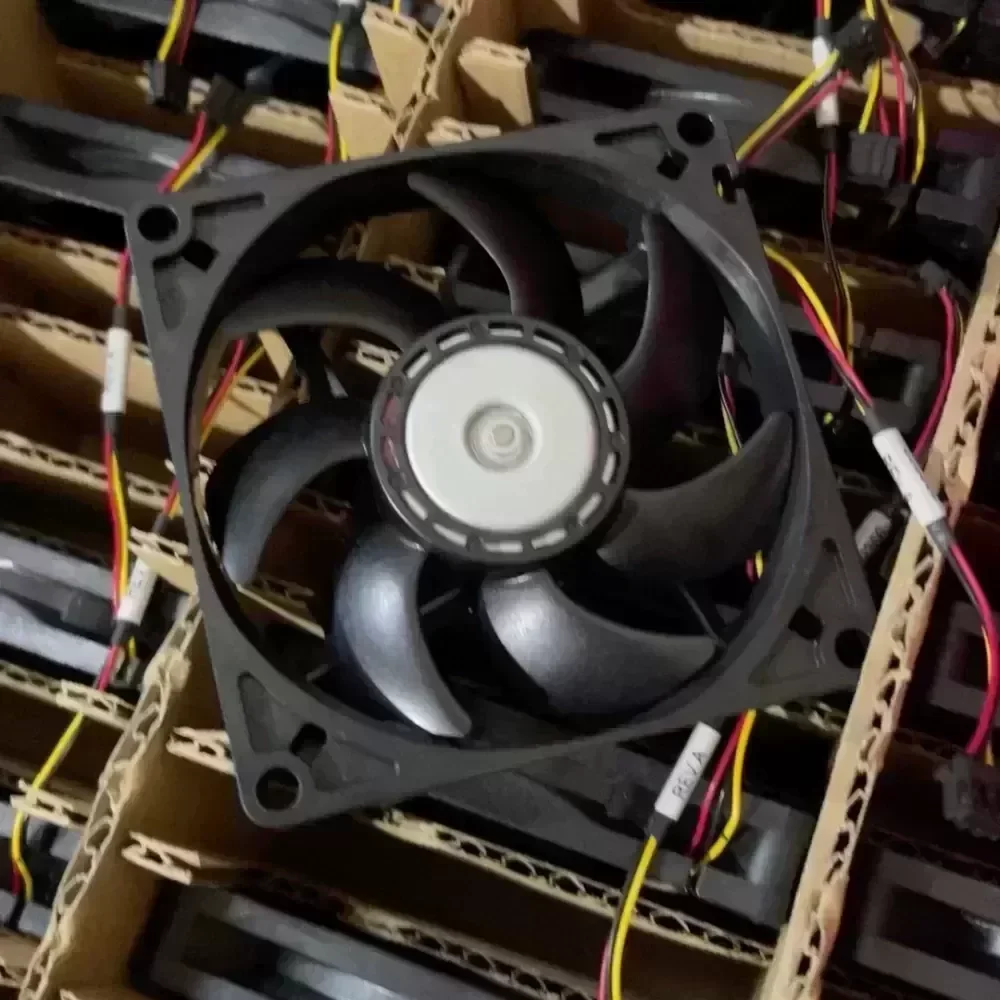

This component represents Sanyo Denki Original Engineering in high-efficiency thermal management. The 9GA0812H7003 is a low power consumption axial fan engineered for high-density industrial and telecom environments where space and energy budgets are highly restricted.
Technical Specifications:
Manufacturer: Sanyo Denki
Series: San Ace 80 (9GA Type)
Model Number: 9GA0812H7003
Frame Dimensions: 80 mm x 80 mm x 15 mm
Rated Voltage: 12 V DC
Operating Voltage Range: 7.0 V to 13.8 V DC
Rated Current: 0.09 A
Rated Input: 1.08 W
Rated Speed: 3400 RPM
Max Airflow: 0.88 m³/min
Max Static Pressure: 34 Pa
Noise Level: 29 dB(A)
Bearing Type: Dual Ball Bearing
Expected Life: 40000 Hours at 60 °C
Weight: 58 g
Origin: Philippines
Application and Technical Compatibility:
Optimized for server chassis, telecommunications switches, and medical imaging systems where a 15mm low-profile design is required to fit slim enclosures. The dual ball bearing system ensures continuous operating reliability in vertical or horizontal alignments. Technical Compatibility includes legacy integration with standard industrial 12V operating buses and pulse-monitoring control units.
Supply and Logistics:
Standard Lead Time: Inquire for volume packaging and immediate shipment details.
Condition: New Original
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
Fans Maintenance and upkeep
1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;
2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.
3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;
4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
