Description

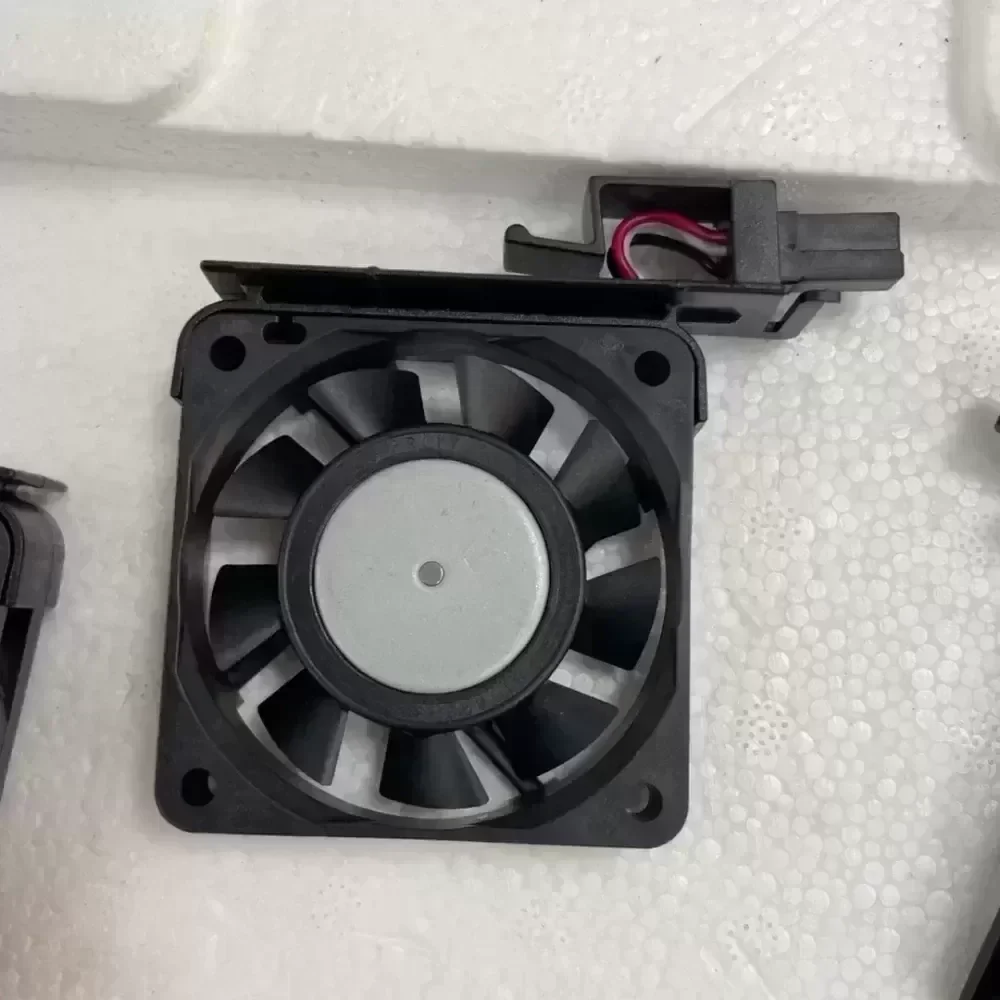

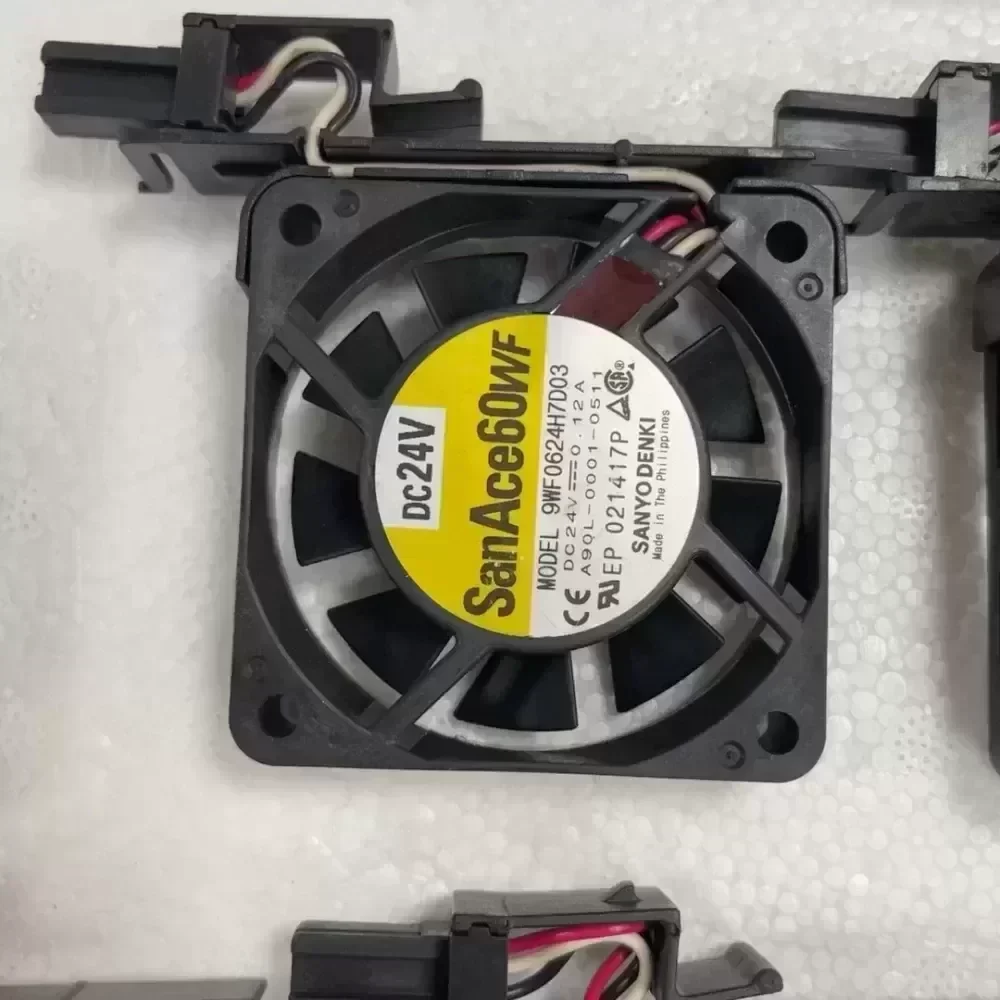

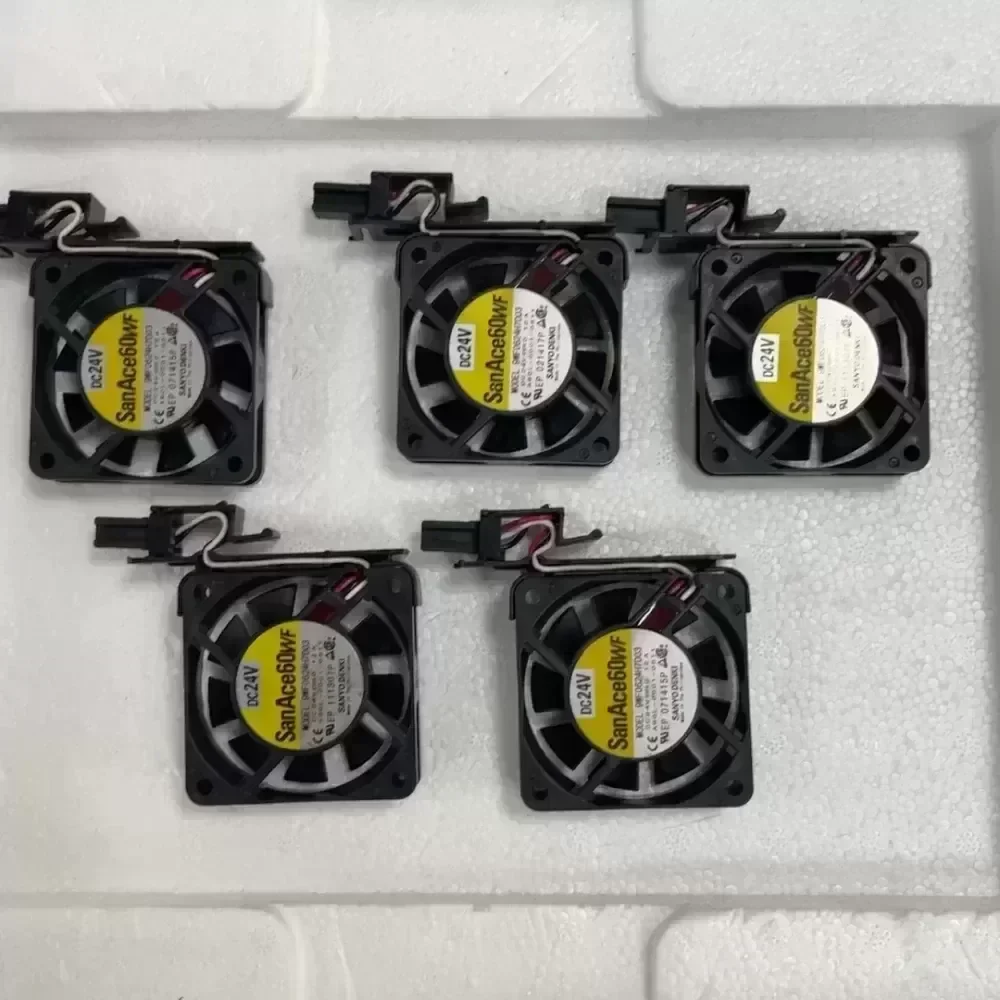

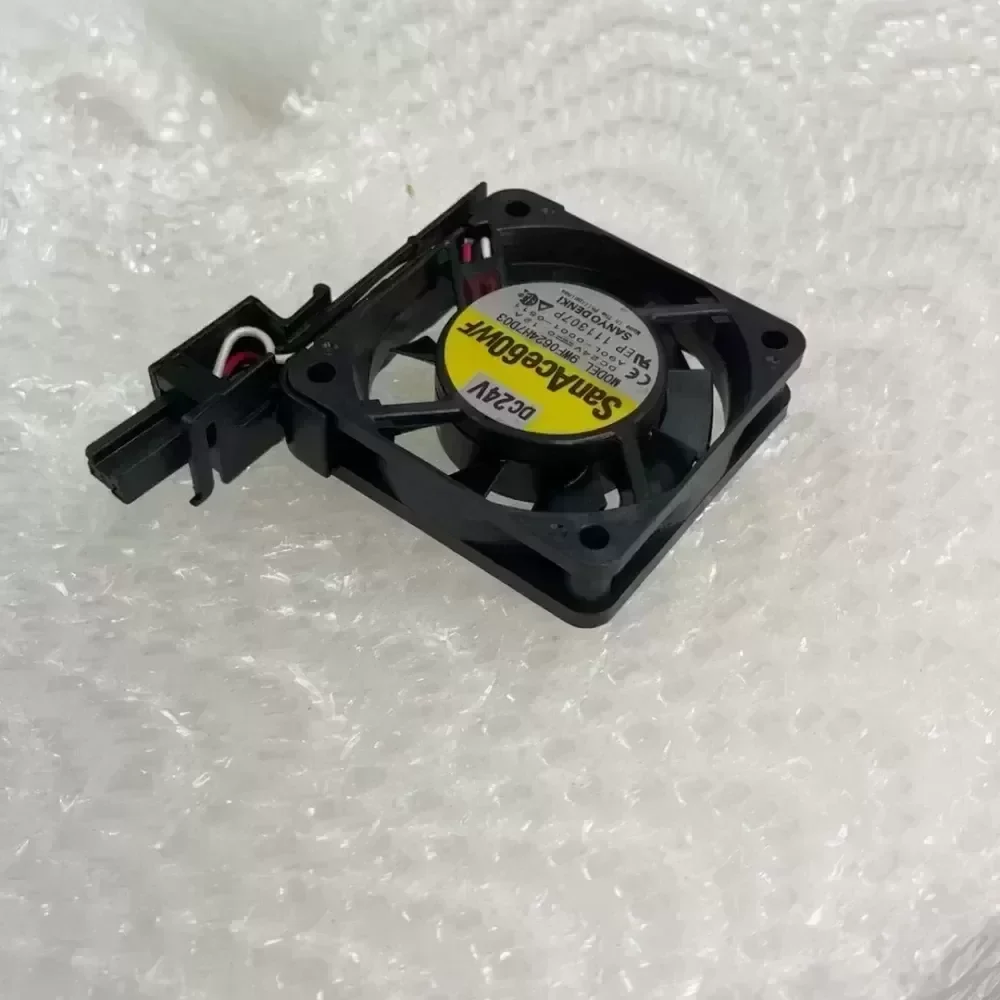

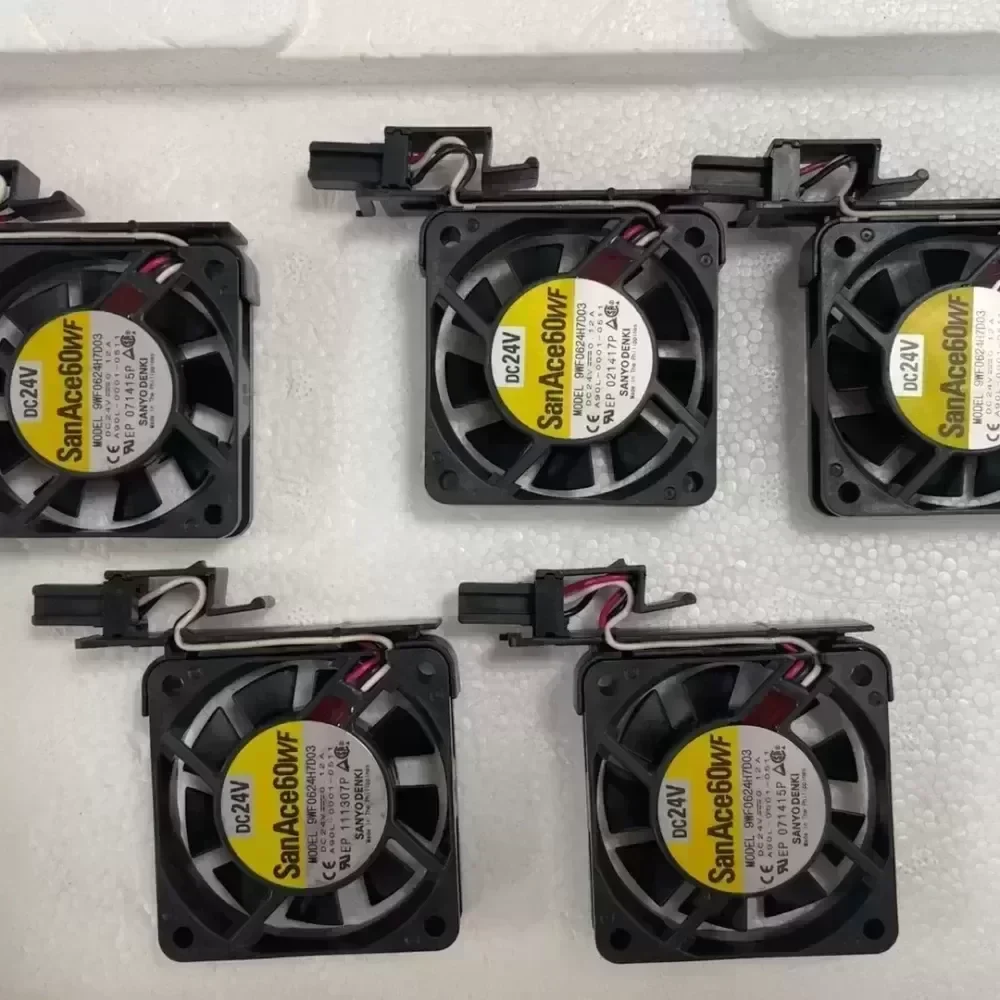

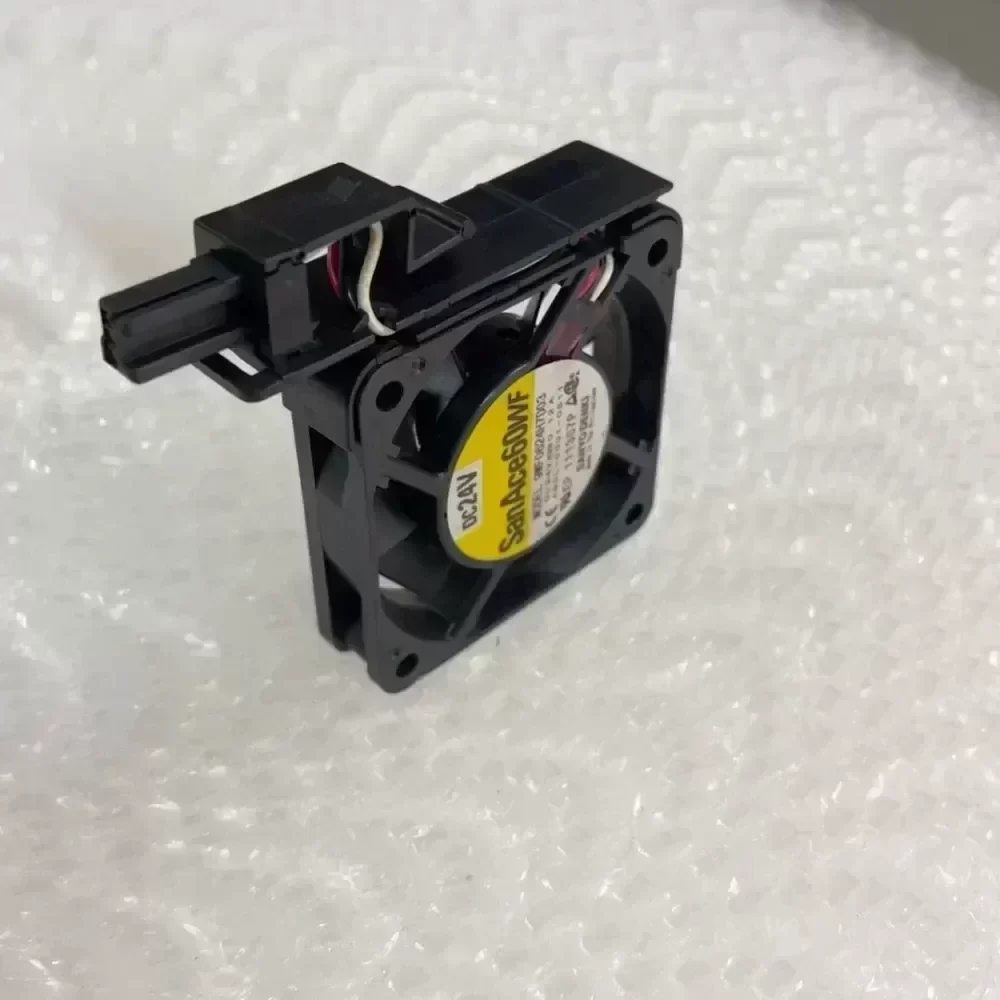

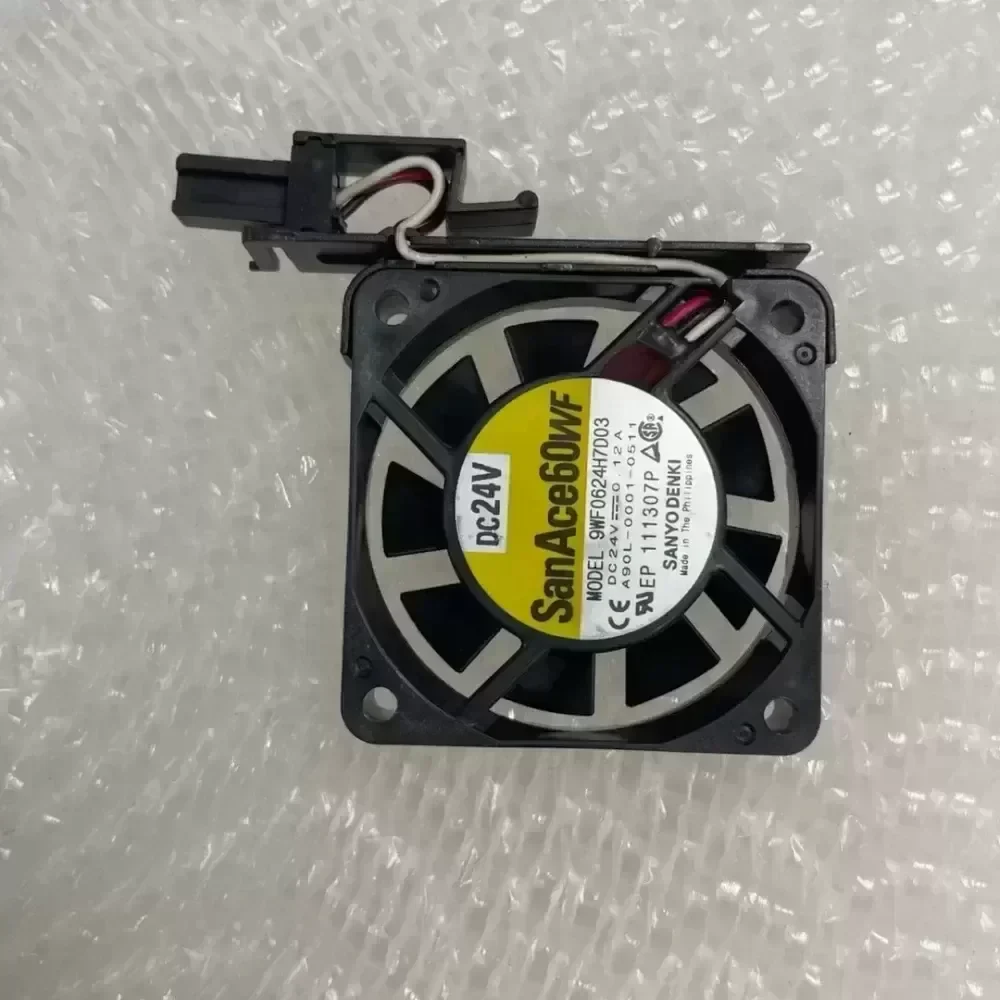

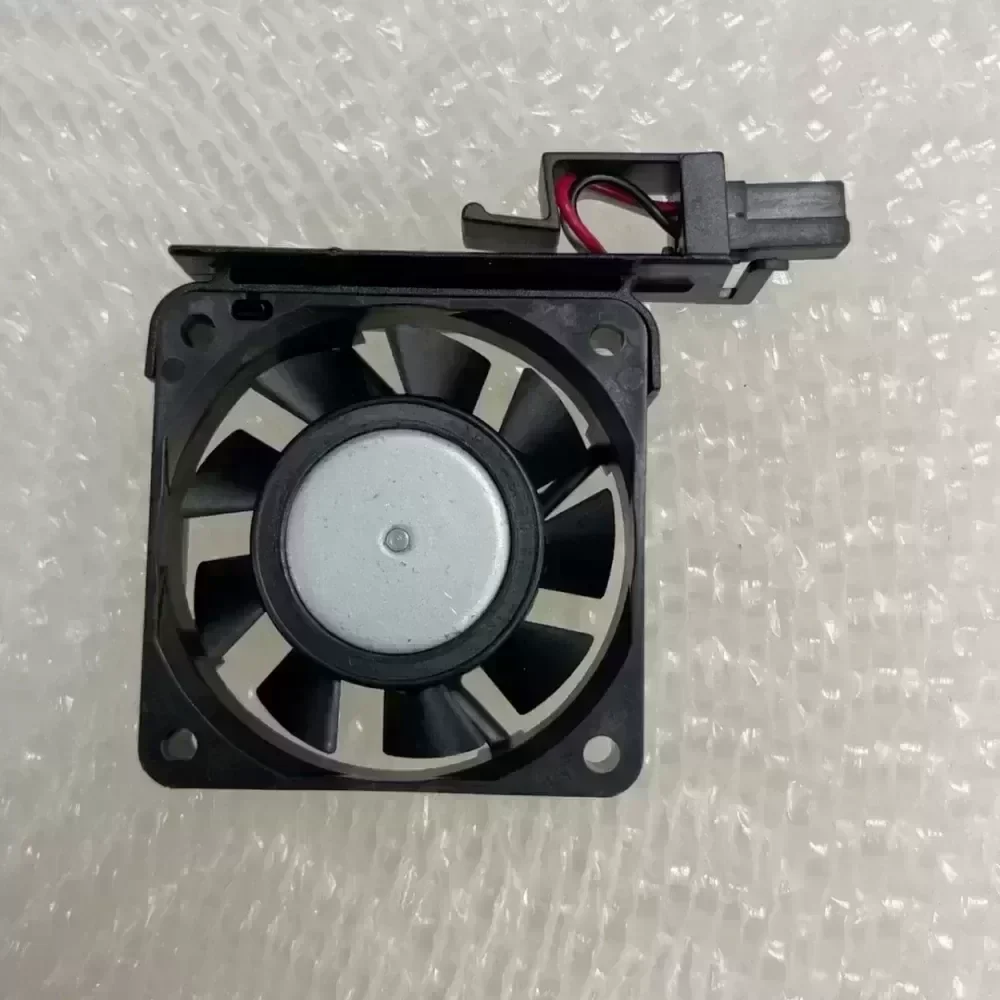

The Sanyo Denki 9WF0624H7D03 is a high-reliability, oil-proof cooling fan engineered specifically for demanding industrial environments. Designed with Original Engineering standards, this unit features a specialized mounting bracket and connector assembly optimized for direct integration into Fanuc drive systems and Fanuc 31i-B host controllers. The oil-proof design ensures continuous thermal regulation in environments exposed to oil mist and cutting fluids, preventing premature component failure.
Technical Specifications:
Manufacturer: Sanyo Denki
Brand: San Ace 60WF
Model Number: 9WF0624H7D03
Part Compatibility: Fanuc Drive Systems
Rated Voltage: 24 V DC
Operating Voltage Range: 20.4 V to 27.6 V DC
Rated Current: 0.12 A
Rated Input: 2.88 W
Rated Speed: 6500 RPM
Maximum Airflow: 0.53 m³/min
Maximum Static Pressure: 70 Pa
Frame Size: 60 mm x 60 mm x 15 mm
Bearing Type: Dual Ball Bearing
Frame Material: Plastics (UL 94V-0)
Impeller Material: Plastics (UL 94V-0)
Environmental Protection: Oil Proof (WF Series)
Operating Temperature: -20 °C to +70 °C
Expected Life: 40,000 Hours at 60 °C
Sensor Type: Locked Rotor Sensor / Pulse Sensor (Fanuc Custom D03)
Weight: 75 g
Industrial Application and Technical Compatibility:
In CNC machining centers and automated production line environments, Fanuc 31i-B host systems and associated servo drives generate significant thermal loads. Standard cooling fans fail rapidly when exposed to airborne oil mist and fine particulates. The 9WF0624H7D03 solves this critical vulnerability through its specialized oil-resistant winding encapsulation and robust dual ball bearing system. Its precise Technical Compatibility with Fanuc drive chassis ensures seamless physical mounting and electrical handshake via the pre-installed bracket and OEM-spec connector.
Procurement and Logistics:
Condition: New, unused inventory clearance.
Lead Time: In stock for immediate dispatch.
Testing: 100% functional test verified prior to shipment.
