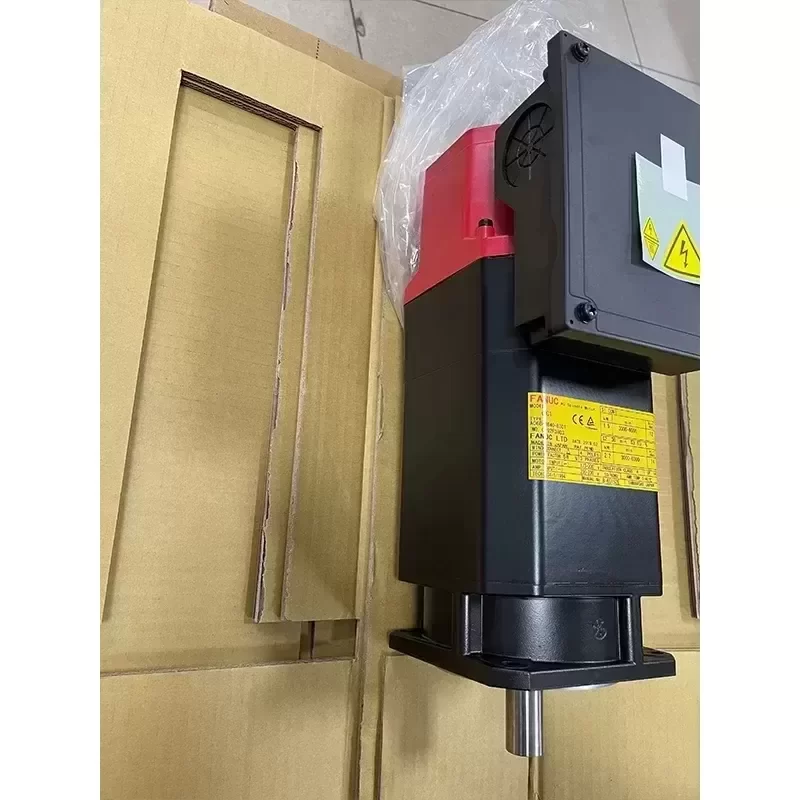

A06B-0840-B301 FANUC CNC AC Servo Motor-Ethernet Communication

$100.00

SKU: 10000025988446 Brand:

Description

The FANUC A06B-0840-B301 is a high-performance, precision AC motor engineered for integration with FANUC CNC systems and Alpha / Alpha-i drive amplifiers. Built under rigorous Original Engineering standards in Japan, this unit delivers exceptional dynamic response, wide constant-power speed regulation, and thermal stability required for demanding metal-cutting, milling, and precision turning operations.

TECHNICAL SPECIFICATIONS
Manufacturer: FANUC Corporation
Model Code: A06B-0840-B301
Origin: Made in Japan
Product Category: CNC AC Spindle / Servo Drive Motor
Rated Output (Continuous): 3.7 kW
Rated Output (30-Minute Rating): 5.5 kW
Base Operating Speed: 1500 RPM
Maximum Speed: 10000 RPM
Rated Continuous Torque: 23.5 Nm
Input Voltage: 200 to 230 VAC (3-Phase, 50/60 Hz)
Rated Stator Current: 17.5 A
Insulation Class: Class F (155°C)
Enclosure Rating: IP54 (Main Frame), IP65 (Terminal/Seal)

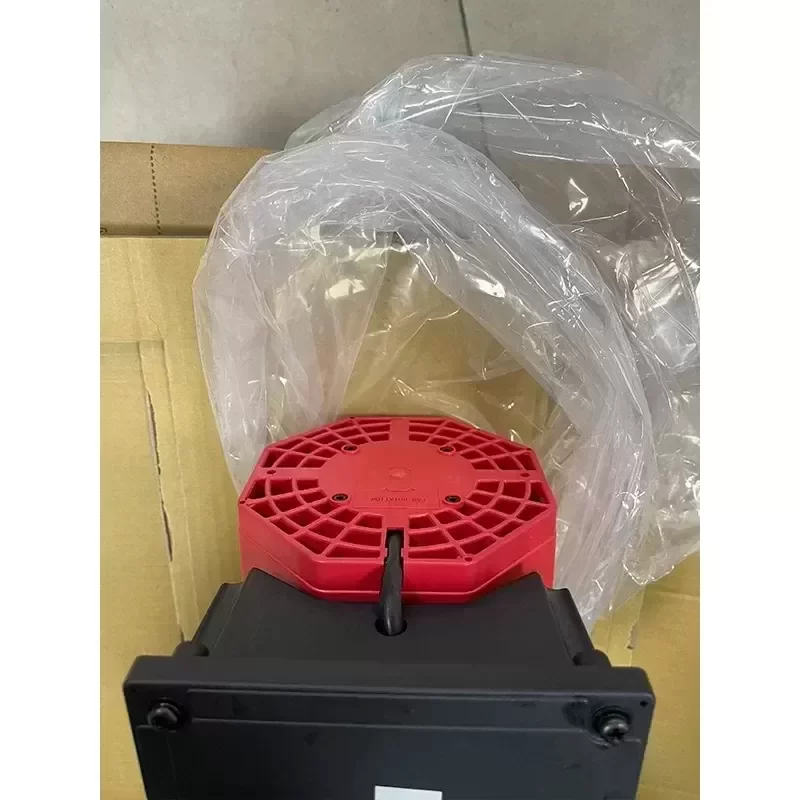

Cooling Method: External Forced-Air Cooling Blower (AC 200V / 220V)
Shaft Configuration: Straight Shaft with Standard Metric Keyway
Feedback Sensor: Integrated FANUC High-Resolution Pulse Coder / Magnetic Sensor
Mounting Configuration: Flange Mount (IM B5 Standard)
Operating Ambient Temperature: 0°C to +40°C
Operating Relative Humidity: 5% to 95% (Non-condensing)
Weight: 28.5 kg

SYSTEM ARCHITECTURE & TECHNICAL COMPATIBILITY
Drive System Compatibility: FANUC Alpha Series SPM / SVM and Alpha-i Series Spindle Modules (e.g., A06B-6088, A06B-6102, A06B-6111 series)
CNC Controller Compatibility: FANUC Series 0i-TD/MD, 16i/18i/21i, and 30i/31i/32i-Model B
Communication Protocol: Interfaced via proprietary FANUC High-Speed Serial Link (FSSB) through the matched drive unit with Ethernet CNC monitoring bridge support
Sensor Feedback Interface: Direct feedback loop for rigid tapping synchronization, spindle orientation (C-axis positioning), and dynamic speed control

CRITICAL INDUSTRIAL APPLICATION SCENARIO
This unit is specifically deployed in multi-axis CNC machining centers and high-speed CNC lathes requiring synchronized spindle acceleration, high-speed contour milling, and rigid tapping cycles. The precise thermal dissipation from the built-in blower and high-resolution positioning feedback resolve micro-vibration issues and thermal drift during continuous 24/7 cutting operations, ensuring part dimension repeatability in aerospace, automotive tooling, and precision mold manufacturing.

AVAILABILITY & LOGISTICS
Condition: 100% Genuine OEM / Certified Functional Refurbished
Lead Time: In-stock units dispatch within 24 to 48 hours; custom allocations quoted upon request
Testing & Quality Assurance: Rigorously dynamometer-tested for winding insulation, encoder signal fidelity, and vibration threshold compliance

Key Attributes
Place of Origin: Japan
Brand Name: Fanuc
Communication Interface: Ethernet
Condition: 100% Original Brand

Packaging and Delivery
Selling Units: Single item

A06B-0840-B301 FANUC CNC AC Servo Motor-Ethernet Communication

A06B-0840-B301 FANUC CNC AC Servo Motor-Ethernet Communication

A06B-0840-B301 FANUC CNC AC Servo Motor-Ethernet Communication

A06B-0840-B301 FANUC CNC AC Servo Motor-Ethernet Communication

A06B-0840-B301 FANUC CNC AC Servo Motor-Ethernet Communication
