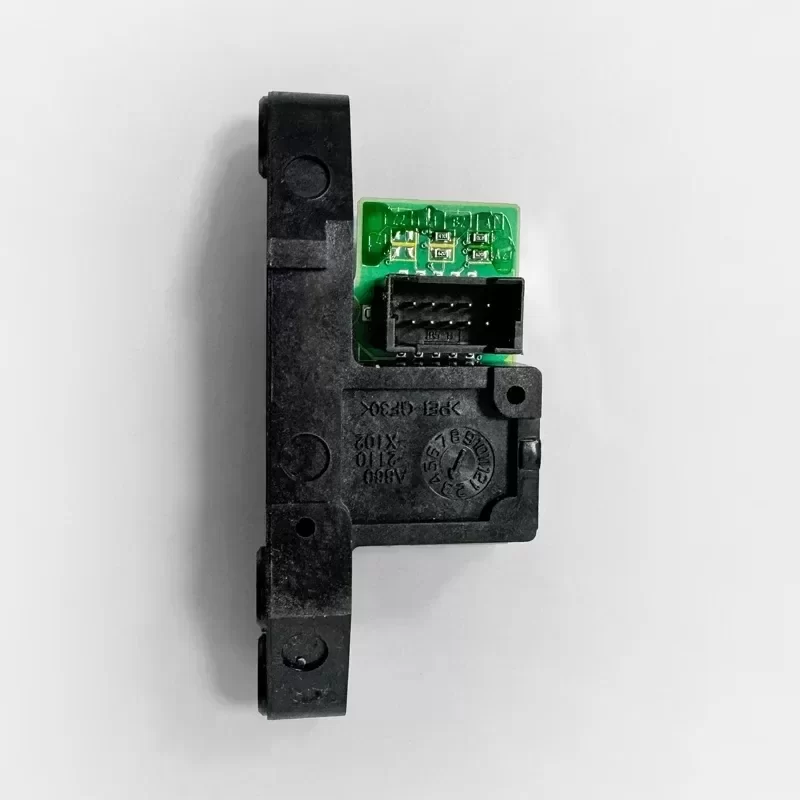

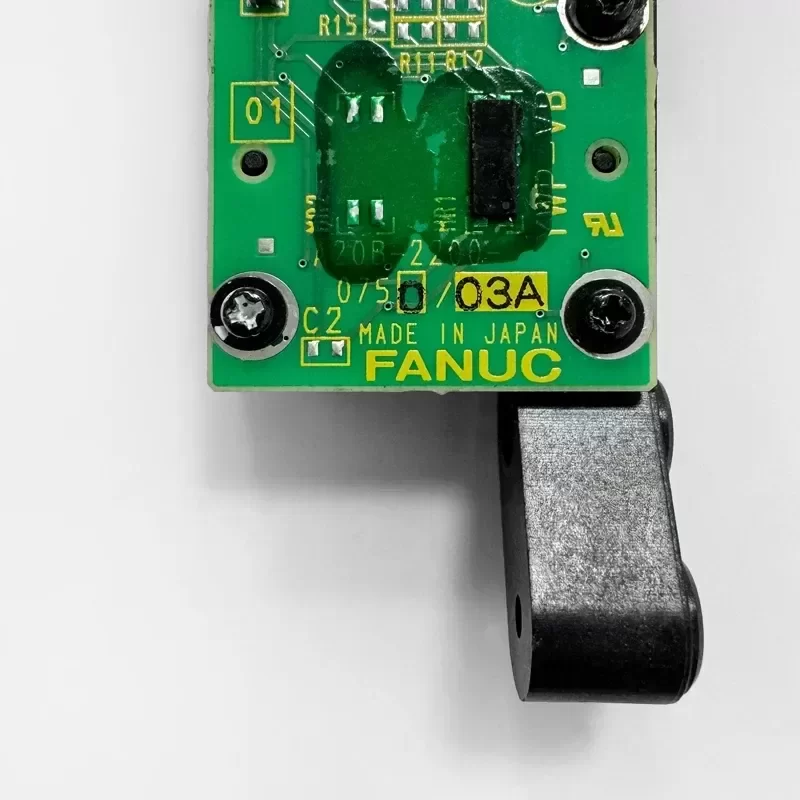

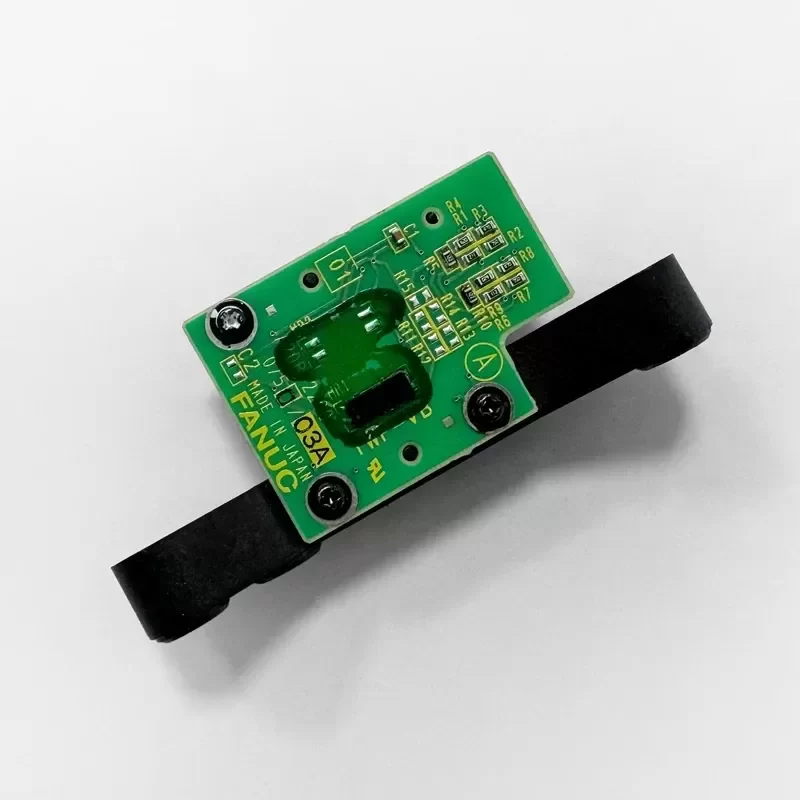

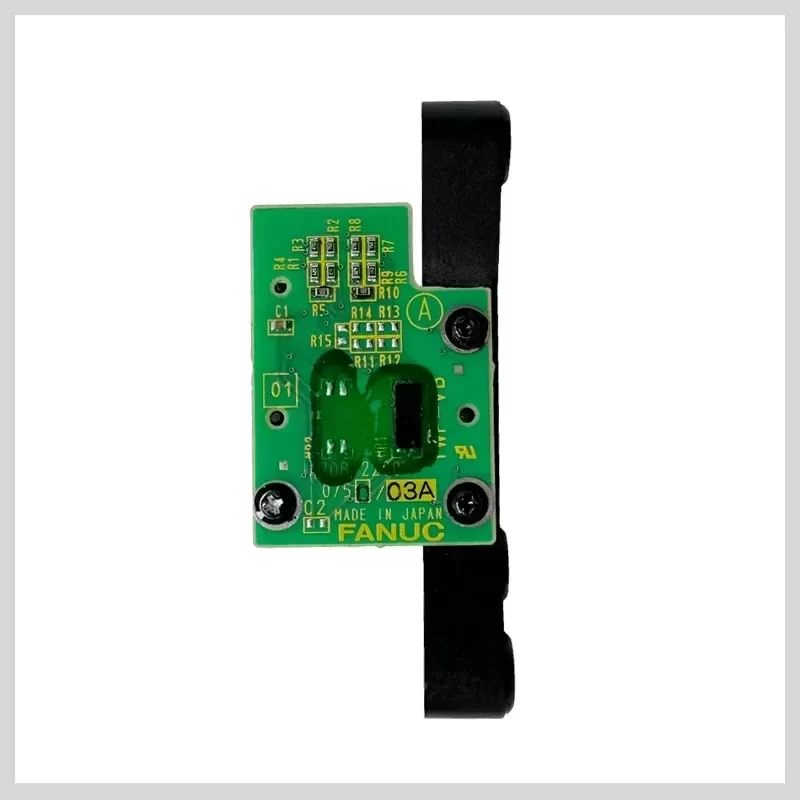

A20B-2200-0750 Fanuc encoder sensor

Description

The FANUC A20B-2200-0750 is a high-precision spindle encoder sensor board engineered for rigorous CNC machining environments. As a critical feedback component within closed-loop control systems, this sensor ensures accurate rotational speed and positional data transmission to the CNC drive. Designed for seamless Technical Compatibility with FANUC Alpha and Alpha i series AC spindle motors, it guarantees optimal torque control and surface finish quality during high-speed milling and turning operations.

Technical Specifications

Manufacturer: FANUC
Model Number: A20B-2200-0750
Component Type: Spindle Motor Encoder Sensor Board
Feedback Mechanism: High-Resolution Magnetic Sensing
Operating Voltage: 5V DC ± 5%
Signal Output: Quadrature A/B Phase with Reference Z Index
Operating Temperature Range: 0°C to 60°C
Storage Temperature: -20°C to 85°C
Relative Humidity: 10% to 90% non-condensing
Weight: 0.12 kg
Dimensions: 85mm x 65mm x 15mm
Mounting Configuration: Direct stator mount via precision standoffs
Connection Interface: Multi-pin locking header
Condition: Brand New Original Equipment

Industrial Application

This encoder sensor is specifically deployed in heavy-duty CNC lathes and multi-axis machining centers where exact spindle orientation and rigid tapping are mandatory. By providing real-time, high-fidelity RPM feedback, the A20B-2200-0750 eliminates following errors and spindle drift, solving critical synchronization problems in complex threading, gear hobbing, and contouring cycles.

Lifecycle and Procurement

Manufactured to strict Original Engineering standards, this OEM sensor restores factory-level precision to aging machine tools. Replacing degraded feedback sensors with this exact match prevents catastrophic drive faults and minimizes costly unplanned downtime. With an optimized supply chain, we offer an immediate Lead Time for this brand new, in-stock component, ensuring your production facility resumes operations without delay.

Key Attributes
Mounting Type: Direct mount
Model Number: A20B-2200-0750
Brand Name: FANUC
Usage: Serial Pulse Coder for CNC machine tools
Description: 100% original
Type: Pulsecoder
Place of Origin: Japan
Theory: Optical signal
Description: Pulse encoder
Product name: A20B-2200-0750 Fanuc Serial Pulse Coder
Condition: 100% original
Quality: 100% Strictly Tested
Payment term: All terms are accepted
Warranty: 12 Months
Service: One-stop Service
Shipping term: All terms are accepted
MOQ: 1Piece
Package: With Carton Package
Lead time: In stock

Packaging and Delivery
Selling Units: Single item
