$19.29

SKU: 684732280715 Brand:

Description

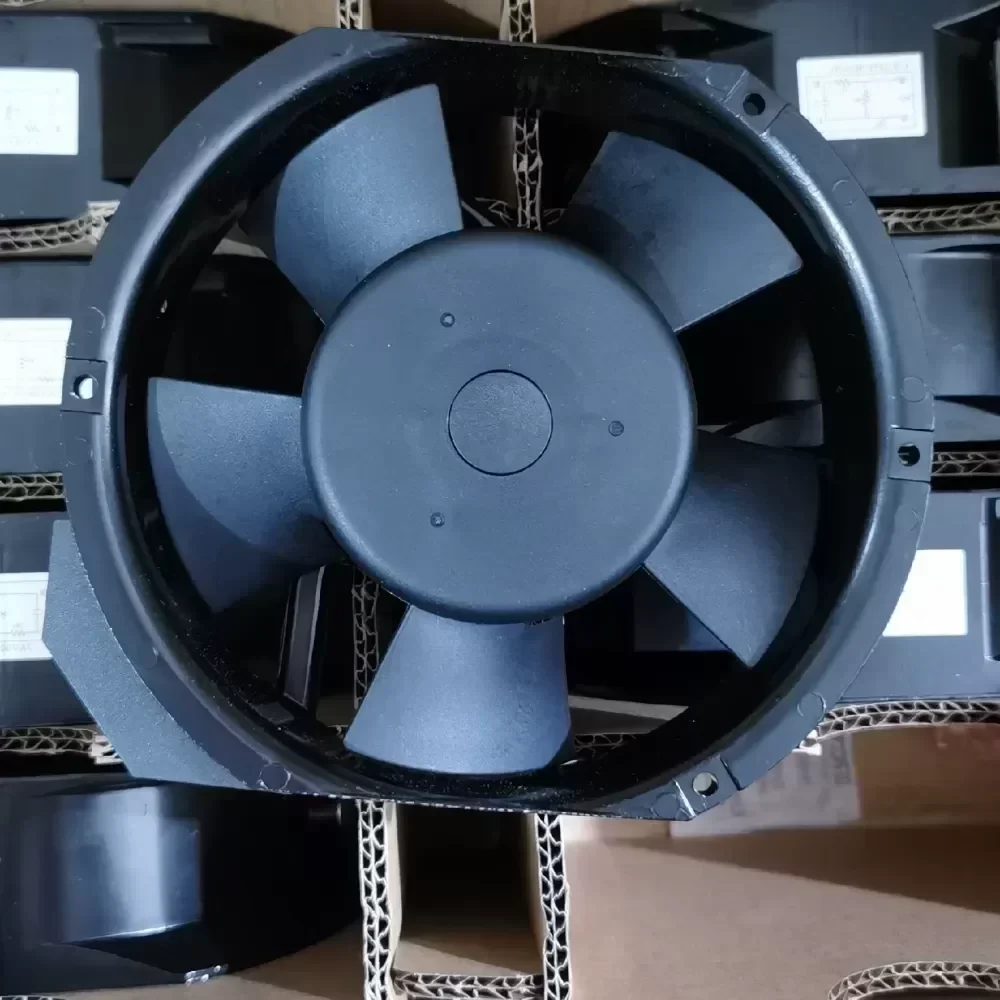

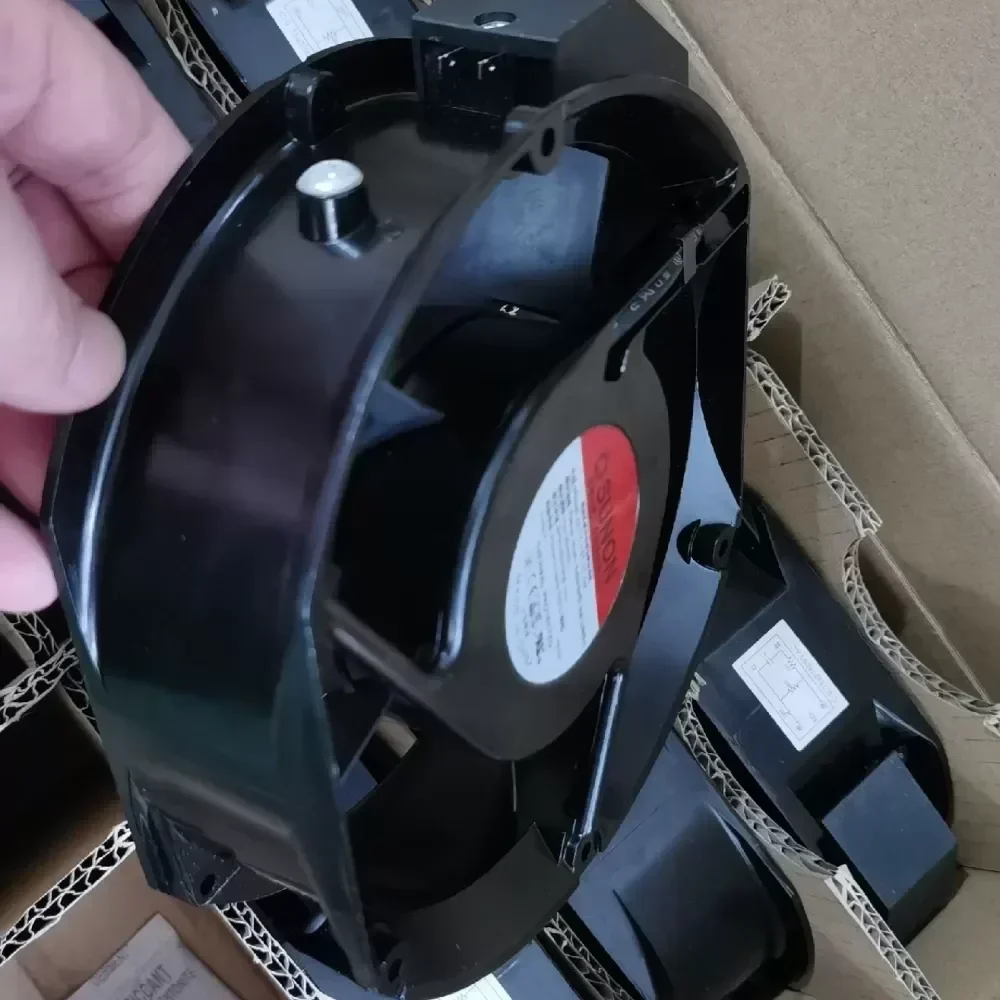

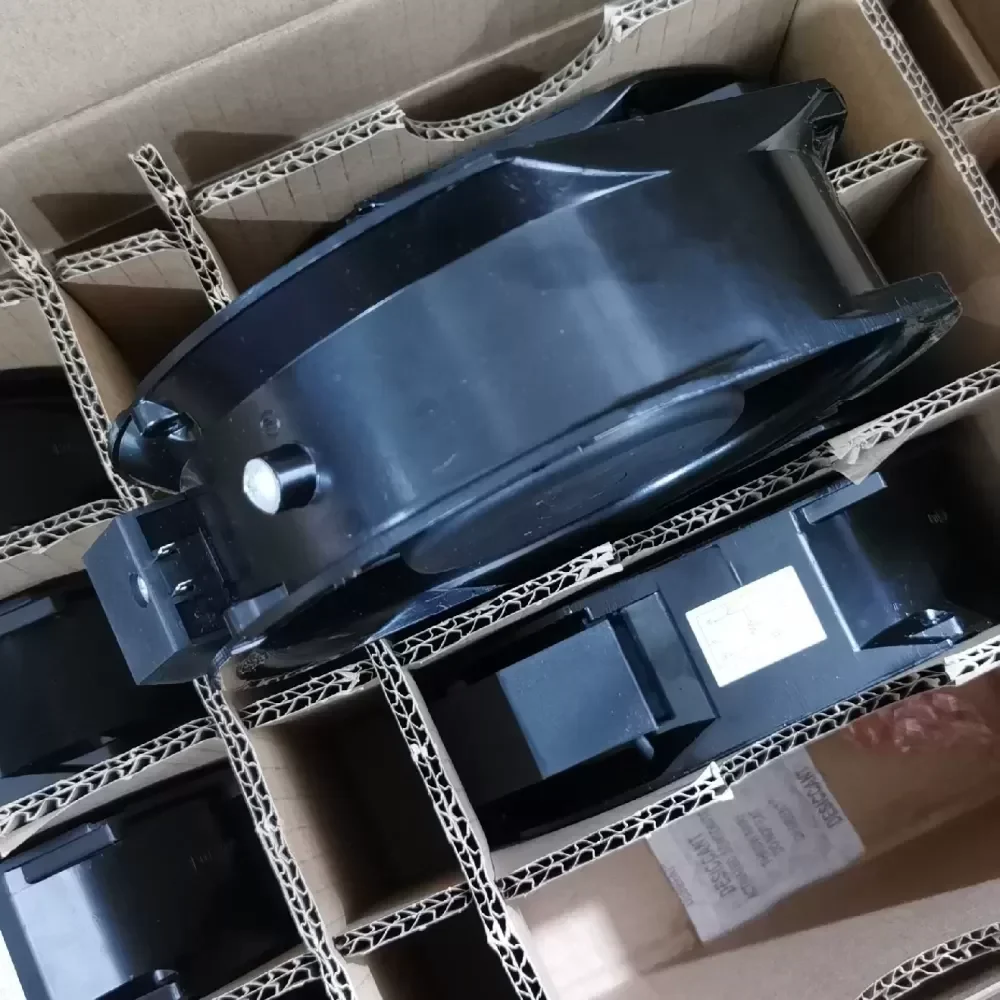

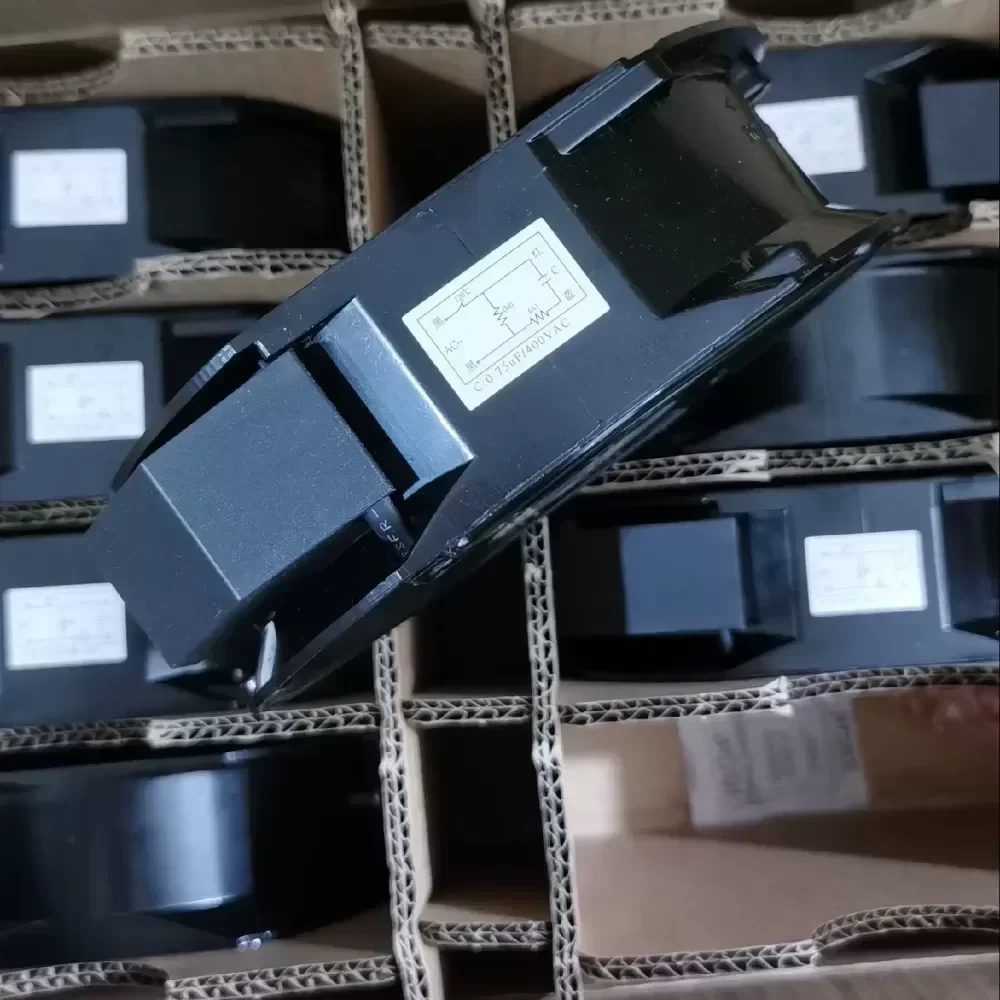

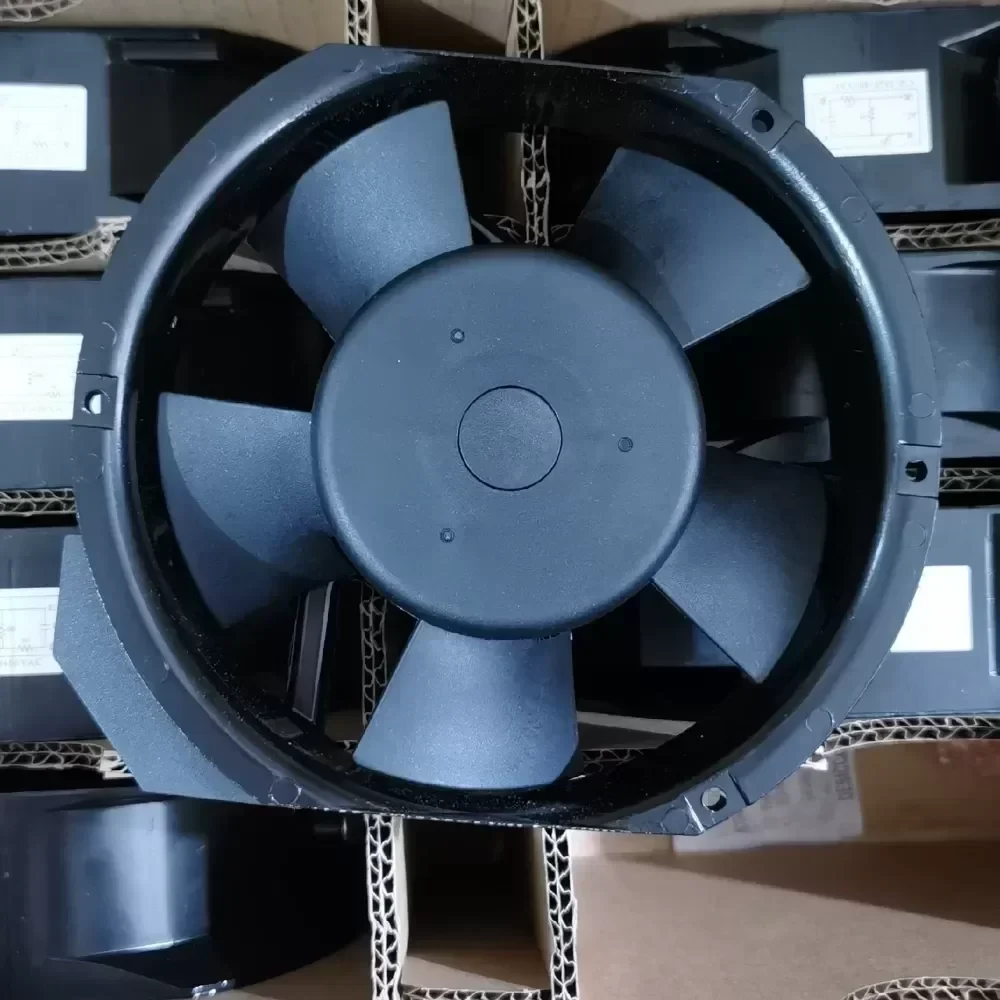

The SUNON A2175-HBT TC.GN is a high-performance industrial AC axial fan engineered for mission-critical thermal management. Manufactured by SUNON, this capacitive axial flow fan is designed to deliver exceptional airflow and static pressure in densely packed electronic enclosures. Leveraging Original Engineering principles, this unit ensures maximum Technical Compatibility with high-power inverter chassis, control panels, and industrial automation cabinets. With optimized Lead Time availability, it serves as a reliable replacement or OEM integration component for continuous-duty cooling.

Model Decoding: A2175-HBT TC.GN

A: AC Fan Series
2: 220-240 VAC Input Voltage
17: Ø172mm Frame Size (172 x 150 mm)
5: 51mm Frame Thickness
H: High Speed Motor Configuration
B: Precision Ball Bearing System
T: Terminal Connection Type
TC: Thermal Cutout Motor Protection
GN: RoHS Compliant / Green Design

Technical Specifications

Brand: SUNON
Model: A2175-HBT TC.GN
Fan Type: AC Axial Fan (Capacitor Motor)
Dimensions: 172 x 150 x 51 mm
Rated Voltage: 220-240 VAC
Operating Frequency: 50/60 Hz
Power Consumption: 25.0 / 26.0 W
Rotational Speed: 2800 / 3200 RPM ±10%
Maximum Airflow: 203 / 239 CFM (5.74 / 6.76 m³/min)
Static Pressure: 0.62 / 0.69 Inch-H2O
Acoustic Noise: 51 / 58 dB(A)
Bearing Type: Dual Ball Bearing
Termination: Quick Connect Terminals
Frame Material: Die-cast Aluminum Alloy
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Weight: 908 g
Protection: Impedance Protected / Thermal Cutout
Certifications: UL, CUL, TUV, CE, RoHS

Industrial Application

The A2175-HBT TC.GN is specifically engineered for high-heat dissipation in industrial variable frequency drives (VFDs), solar inverters, and CNC machinery control cabinets. In these environments, localized heat buildup can cause catastrophic semiconductor failure. The die-cast aluminum frame prevents deformation under thermal stress, while the precision ball bearing system guarantees a prolonged lifecycle exceeding 50,000 hours in continuous 24/7 operation. The integrated thermal cutout ensures the motor shuts down safely during extreme over-temperature events, protecting both the fan and the surrounding capital equipment.

A2175-HBT TC.GN SUNON 1725/220V axial fan

A2175-HBT TC.GN SUNON 1725/220V axial fan

A2175-HBT TC.GN SUNON 1725/220V axial fan

A2175-HBT TC.GN SUNON 1725/220V axial fan

A2175-HBT TC.GN SUNON 1725/220V axial fan

A2175-HBT TC.GN SUNON 1725/220V axial fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
