Description

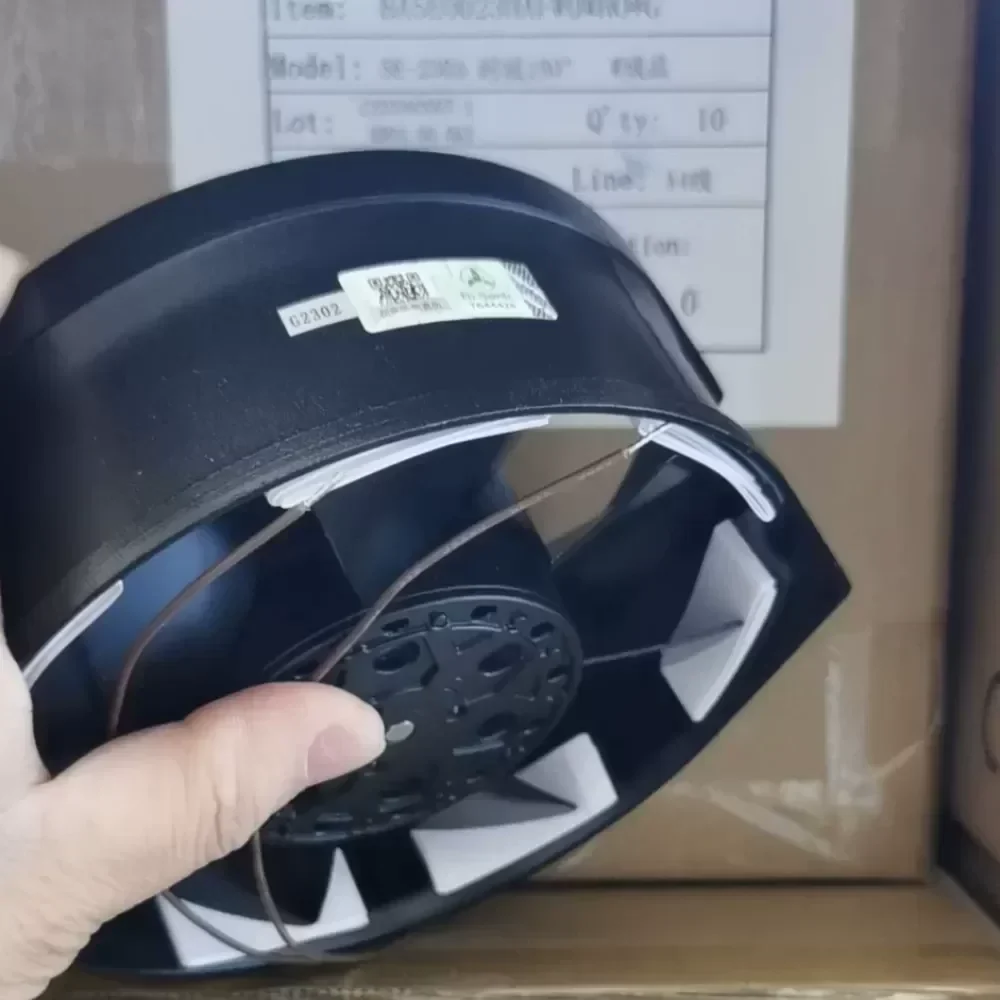

Manufacturer: Bairui (Taiwan)
Model: 5E-230B
Product Type: High-Temperature Industrial Axial Flow Cooling Fan

Technical Specifications:
Dimensions: 172mm x 150mm x 55mm (17055 Frame Size)
Rated Voltage: 230V AC
Frequency: 50/60 Hz
Input Power: 38W / 40W
Rated Current: 0.22A
Speed: 2700 / 3000 RPM
Airflow: 190 / 235 CFM
Static Pressure: 0.63 / 0.79 Inch-H2O
Noise Level: 52 / 58 dB(A)
Bearing Type: Dual High-Precision Ball Bearings
Frame Material: Die-cast Aluminum Alloy (Black Coating)
Impeller Material: All-Metal Steel Blades
Insulation Class: Class F (High Temperature Resistance)
Operating Temperature Range: -20°C to +85°C
Connection: Terminal Type (Lead wires optional)
Weight: 950g
Certifications: CE, RoHS, UL Recognized

Industrial Application and Engineering Value:
The Bairui 5E-230B is engineered for high-thermal environments where standard plastic-blade fans fail due to structural deformation. The all-metal construction ensures dimensional stability and heat dissipation efficiency in continuous duty cycles. This model is specifically designed for Uninterruptible Power Supply (UPS) systems, industrial control cabinets, and high-density server racks. Its high-temperature resistance makes it critical for maintaining system uptime in environments with elevated ambient temperatures.

Technical Compatibility and Maintenance:
This unit serves as a direct replacement for standard 17055 form-factor fans in heavy-duty machinery. The dual-ball bearing system provides a service life exceeding 50,000 hours at rated temperatures. Original Engineering standards ensure precise balance and minimal vibration, protecting sensitive electronic components from mechanical resonance.

Logistics and Quality Assurance:
Product Status: Original Authentic Product
Warranty: 12-Month Manufacturer Warranty
Lead Time: Standard industrial availability applies
Condition: New, Factory Sealed

All-metal Bi-Sonic 5E-230B resistant fan Axial Fan 1

All-metal Bi-Sonic 5E-230B resistant fan Axial Fan 1

All-metal Bi-Sonic 5E-230B resistant fan Axial Fan 1

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
