$3.14

SKU: 676834018590 Brand:

Description

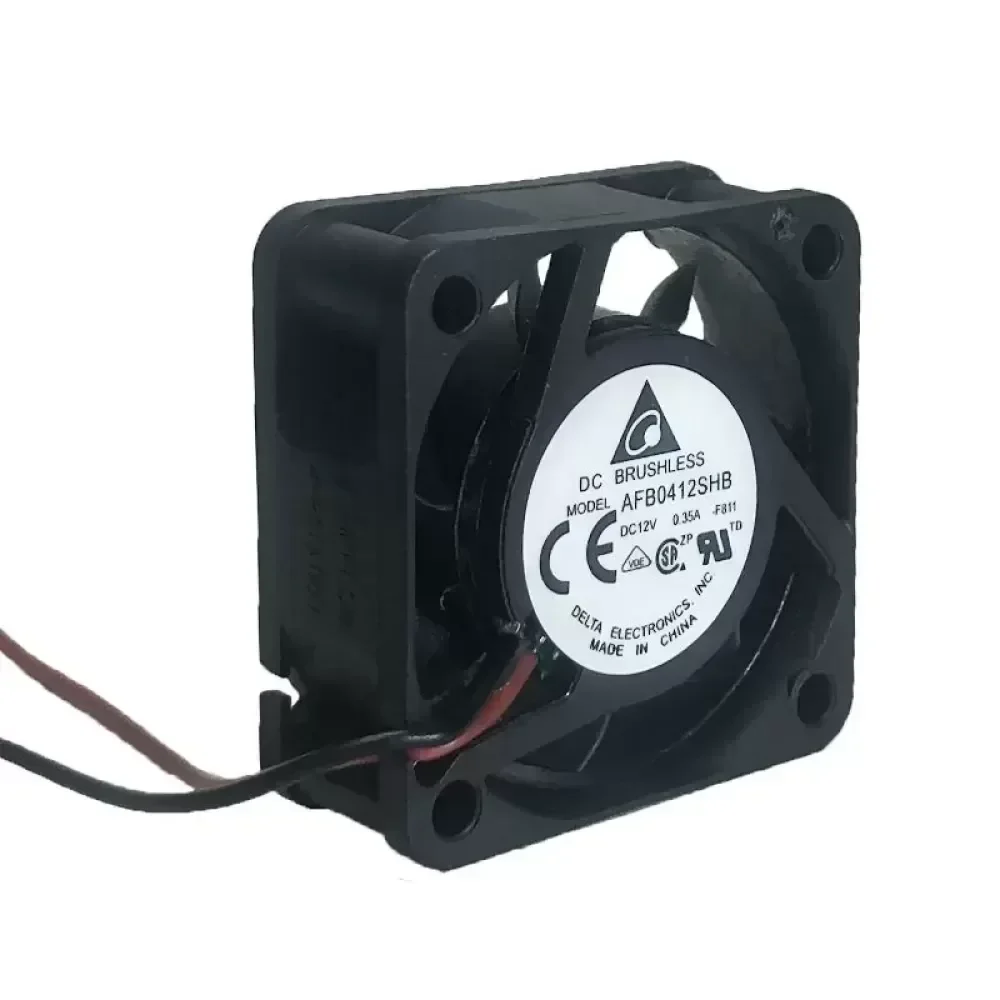

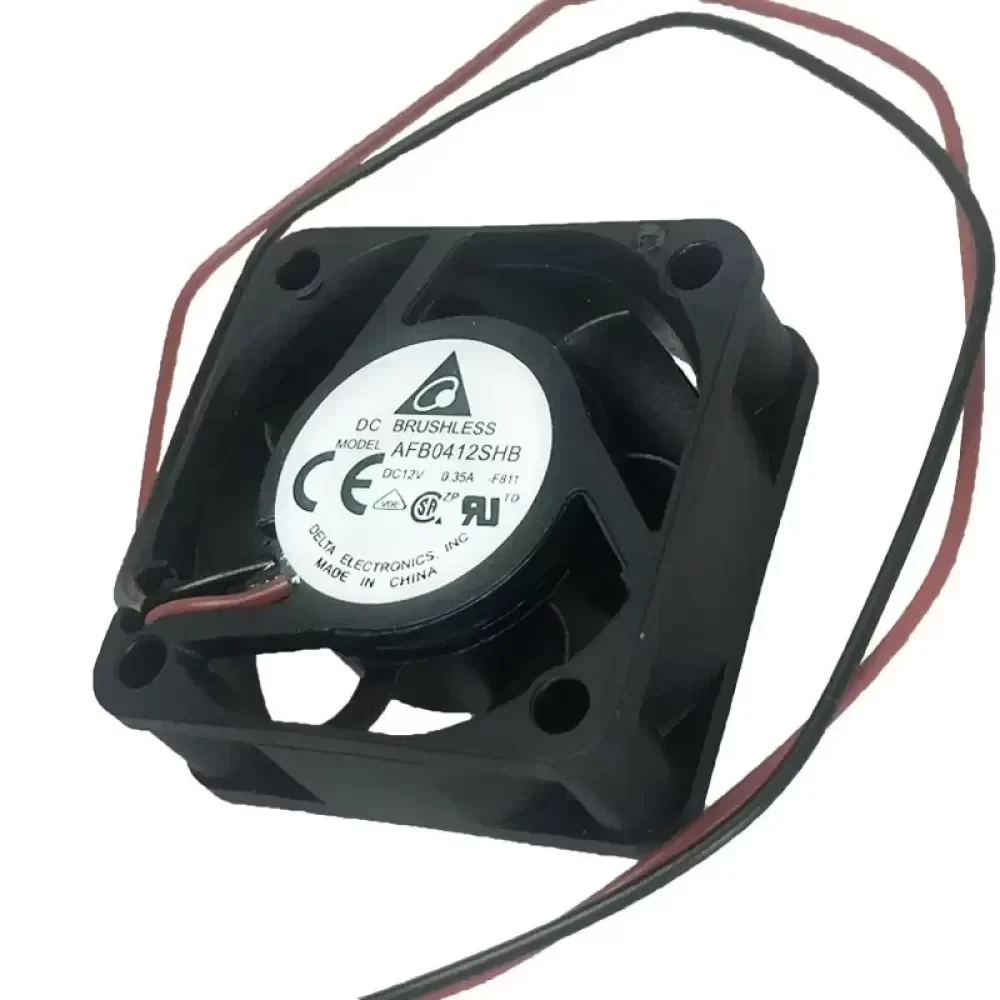

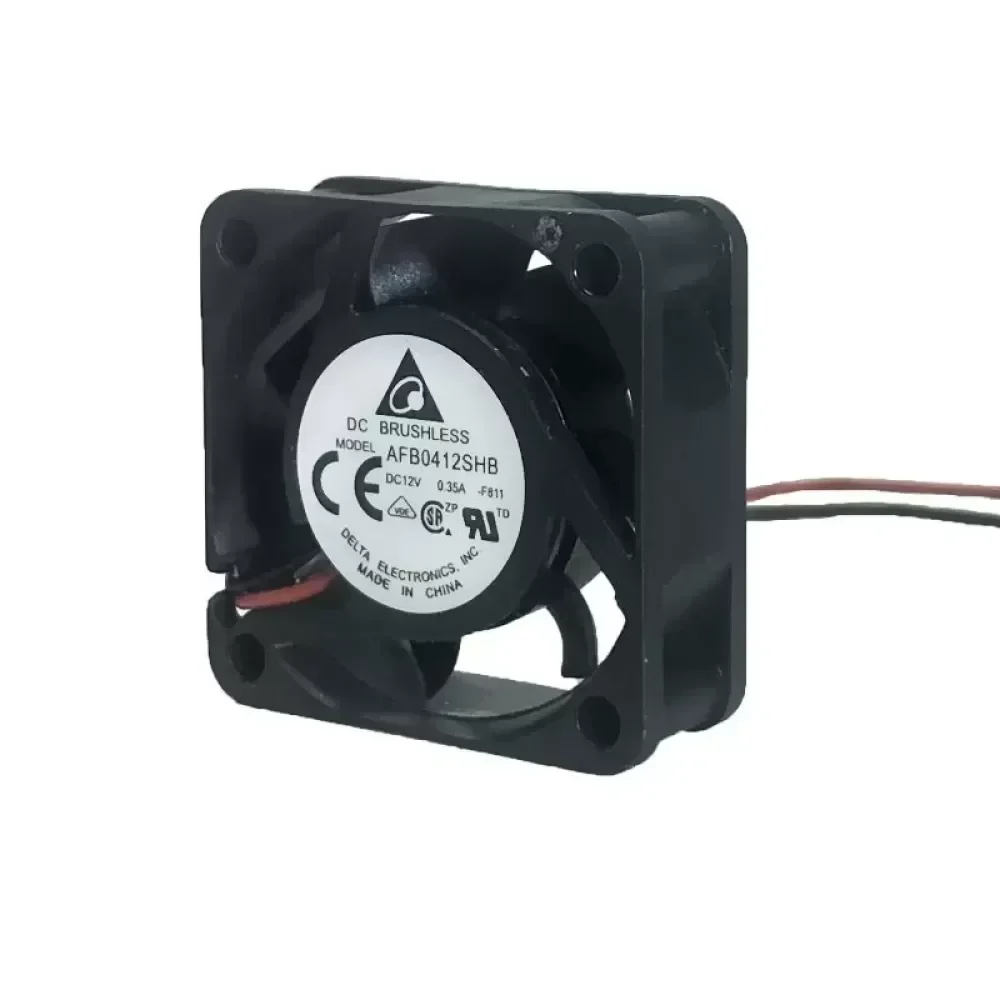

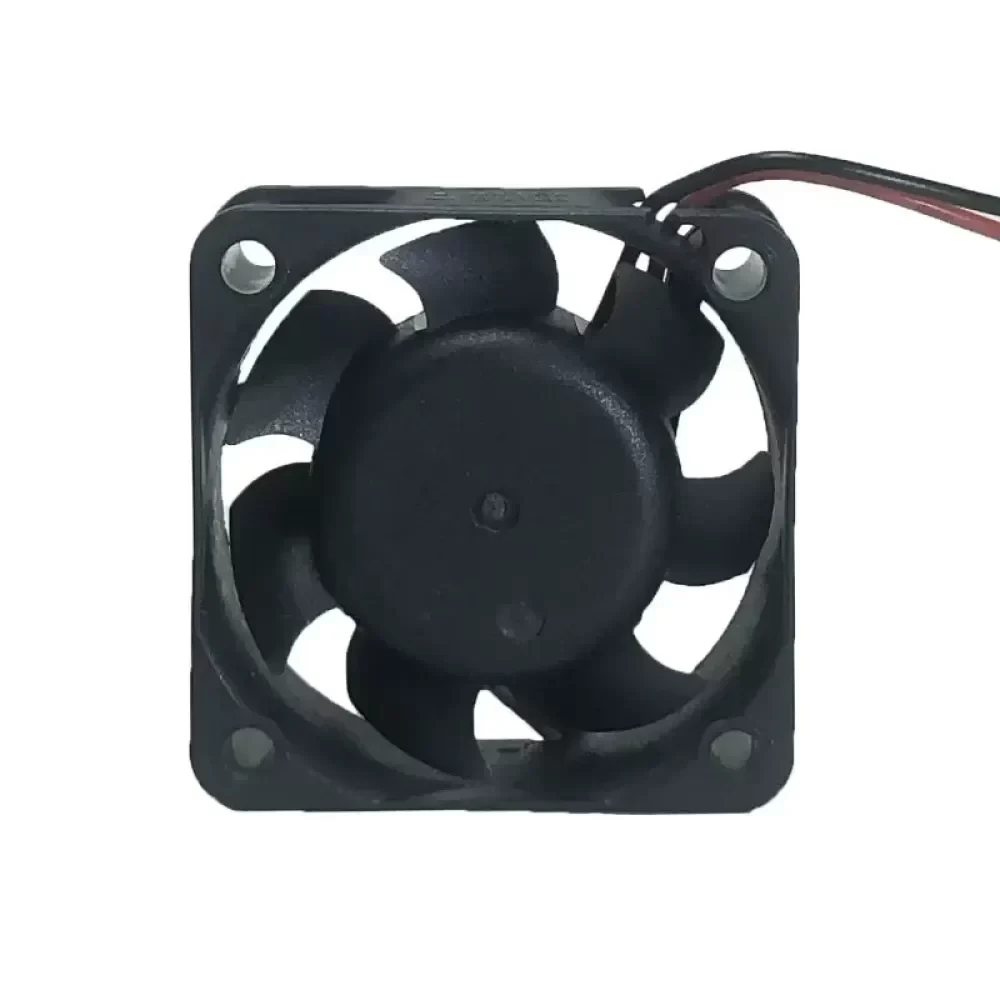

Engineered for high-density thermal management, the Delta AFB0412SHB is a premium 40mm x 40mm x 15mm DC axial fan designed to deliver exceptional airflow in space-constrained industrial environments. Utilizing Original Engineering from Delta Electronics, this component ensures seamless Technical Compatibility with a wide array of OEM equipment, providing critical cooling for continuous-duty applications. The integration of a precision dual ball bearing system guarantees extended operational longevity and stable acoustic performance under demanding thermal loads.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: AFB0412SHB
Frame Dimensions: 40 x 40 x 15 mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Rated Current: 0.35 A
Input Power: 4.20 W
Nominal Speed: 11000 RPM ± 10%
Maximum Airflow: 14.83 CFM (0.420 m³/min)
Maximum Static Pressure: 15.3 mmH2O
Acoustic Noise: 41.5 dB(A)
Bearing Type: Dual Ball Bearing (Rolling Ball)
Operating Temperature Range: -10°C to +70°C
Life Expectancy: 70,000 hours at 40°C
Weight: 25.0 g
Housing Material: Plastic UL 94V-0
Impeller Material: Plastic UL 94V-0
Certifications: CE, CSA, UL, RoHS

Industrial Applications:
The AFB0412SHB is specifically deployed in 1U rackmount servers, telecommunications switching equipment, compact industrial power supplies, and embedded automation controllers. Its high static pressure capabilities make it ideal for forcing air through densely packed heat sinks and restrictive chassis designs where standard cooling solutions fail to prevent thermal throttling.

Procurement and Lifecycle Value:
Supplied as a brand new, original component, this fan includes a comprehensive one-year warranty. Our optimized supply chain ensures a minimized Lead Time, allowing facility managers and maintenance engineers to rapidly replace failing thermal components and restore critical infrastructure to peak operational efficiency.

Delta AFB0412SHB 4015/12V ball 4cm heat dissipation

Delta AFB0412SHB 4015/12V ball 4cm heat dissipation

Delta AFB0412SHB 4015/12V ball 4cm heat dissipation

Delta AFB0412SHB 4015/12V ball 4cm heat dissipation

Delta AFB0412SHB 4015/12V ball 4cm heat dissipation

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
