$5.11

SKU: 1601525528072 Brand:

Description

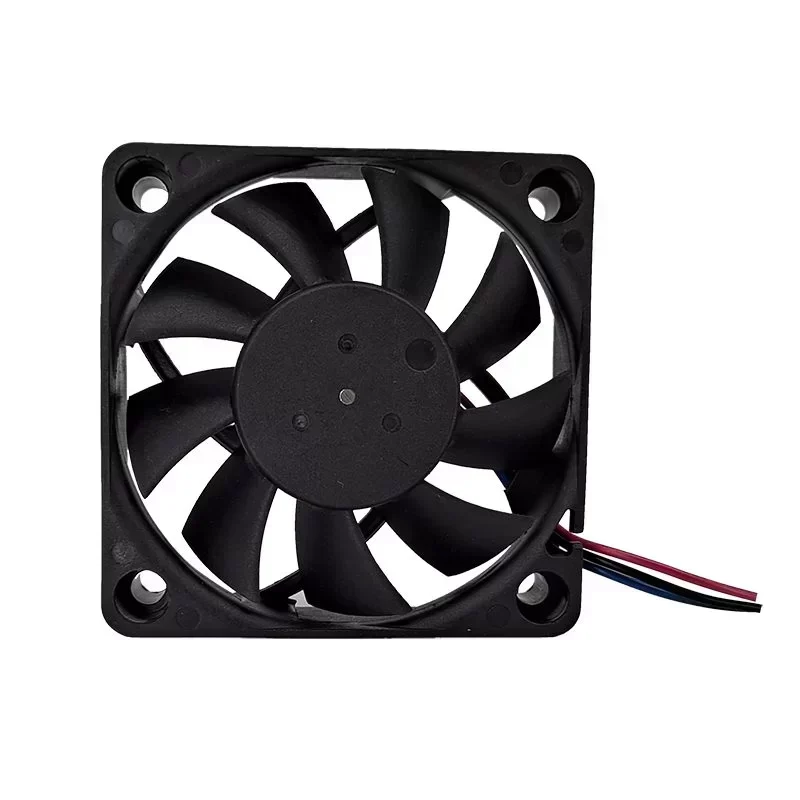

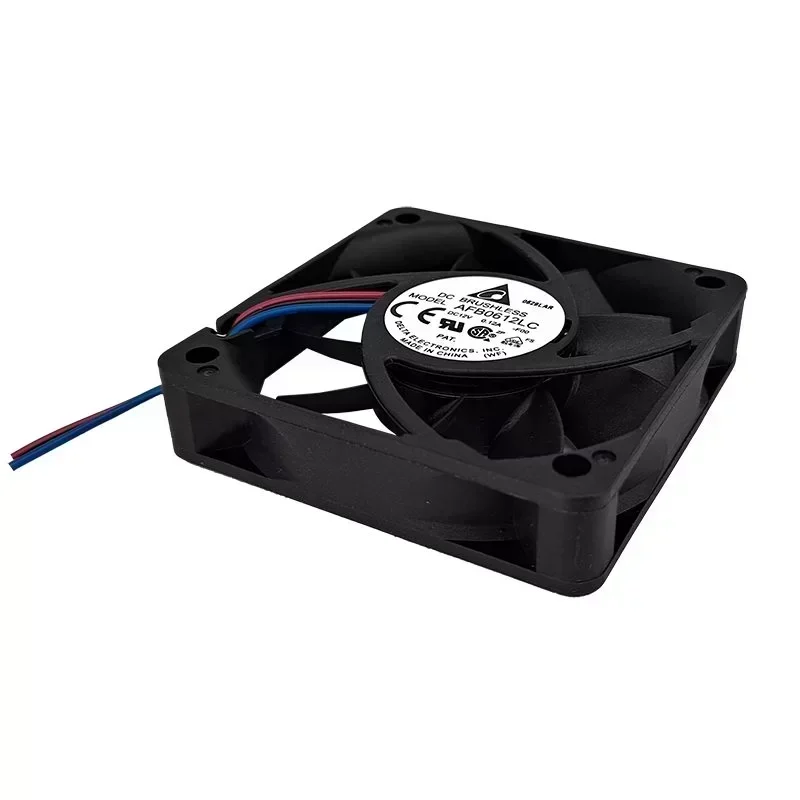

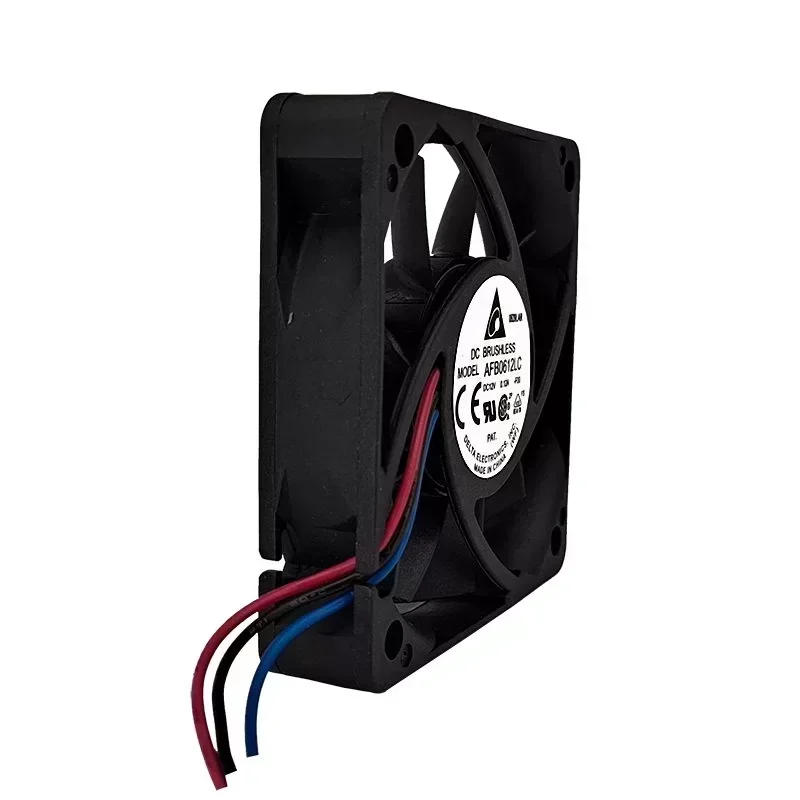

The Delta AFB0612LC-F00 is a high-reliability, low-profile 60x60x13mm DC axial fan engineered for precise thermal management in space-constrained B2B applications. Built with Delta’s industry-leading dual ball bearing system, this component is designed for continuous, maintenance-free operation in demanding industrial environments. Its integrated F00 tachometer output provides critical real-time speed feedback, ensuring system controllers can actively monitor fan health and prevent thermal runaway in sensitive electronics.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: AFB0612LC-F00
Frame Dimensions: 60 x 60 x 13 mm
Bearing Type: Dual Ball Bearing
Rated Voltage: 12 VDC
Operating Voltage Range: 5.0 to 13.8 VDC
Rated Current: 0.08 A
Maximum Current: 0.12 A
Rated Input Power: 0.96 W
Rated Speed: 3000 RPM
Maximum Air Flow: 15.4 CFM (0.436 m³/min)
Maximum Static Pressure: 1.70 mmH2O (0.067 inH2O)
Acoustic Noise: 23.5 dBA
Sensor Signal: F00 (Frequency Generator / Tachometer Output)
Wire Configuration: 3-Wire (Lead wires UL 1007 AWG 28)
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature Range: -10°C to +70°C
Life Expectancy L10: 70,000 Hours at 40°C
Weight: 34 g
Safety Approvals: UL, CUL, TUV, CE, RoHS Compliant

Industrial Application and Problem Solving:
In modern compact control panels, telecommunication enclosures, and specialized roof-mounted AC units, space is at a premium. Standard 25mm thick fans often fail to fit within these tight physical envelopes, while lower-quality fans compromise on lifespan and static pressure. The AFB0612LC-F00 solves this critical design bottleneck with its ultra-slim 13mm profile without sacrificing industrial-grade durability. Its dual ball bearing construction allows for mounting in any orientation (free-standing or panel-mounted) and ensures reliable operation under continuous thermal stress up to +70°C. The F00 speed sensor output is vital for automated PLC systems, enabling predictive maintenance protocols and immediate fault detection to protect high-value internal circuitry.

Procurement and Technical Compatibility:
When sourcing replacement parts or designing new systems, verifying Technical Compatibility is essential to maintaining system integrity. The Delta AFB0612LC-F00 represents the Original Engineering standard for 12V DC compact cooling, guaranteeing exact electrical and mechanical drop-in replacement. We maintain optimized inventory levels to minimize Lead Time for critical production line maintenance, preventing costly operational downtime. Contact our engineering support team to verify compatibility with your existing control systems and to secure bulk pricing.

Key Attributes
Voltage: 12 V
Material: Plastic
Speed: 3 000 RPM
Mounting type: Free Standing
Type: Axial flow fan
Warranty: 1 years
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: Delta
Model number: AFB0612LC-F00
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Core Components: Motor, PLC, Bearing, Engine
Noise: 24dBA
Current: 0.12A
Specification: 60*60*13mm
Weight: 33.5g

Packaging and Delivery
Selling Units: Single item

Delta AFB0612LC-F00 3000RPM 12V DC 0.12A 60x60x13mm Plastic Blade 15.4CFM Roof AC Axial Flow

Delta AFB0612LC-F00 3000RPM 12V DC 0.12A 60x60x13mm Plastic Blade 15.4CFM Roof AC Axial Flow

Delta AFB0612LC-F00 3000RPM 12V DC 0.12A 60x60x13mm Plastic Blade 15.4CFM Roof AC Axial Flow

Delta AFB0612LC-F00 3000RPM 12V DC 0.12A 60x60x13mm Plastic Blade 15.4CFM Roof AC Axial Flow

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
