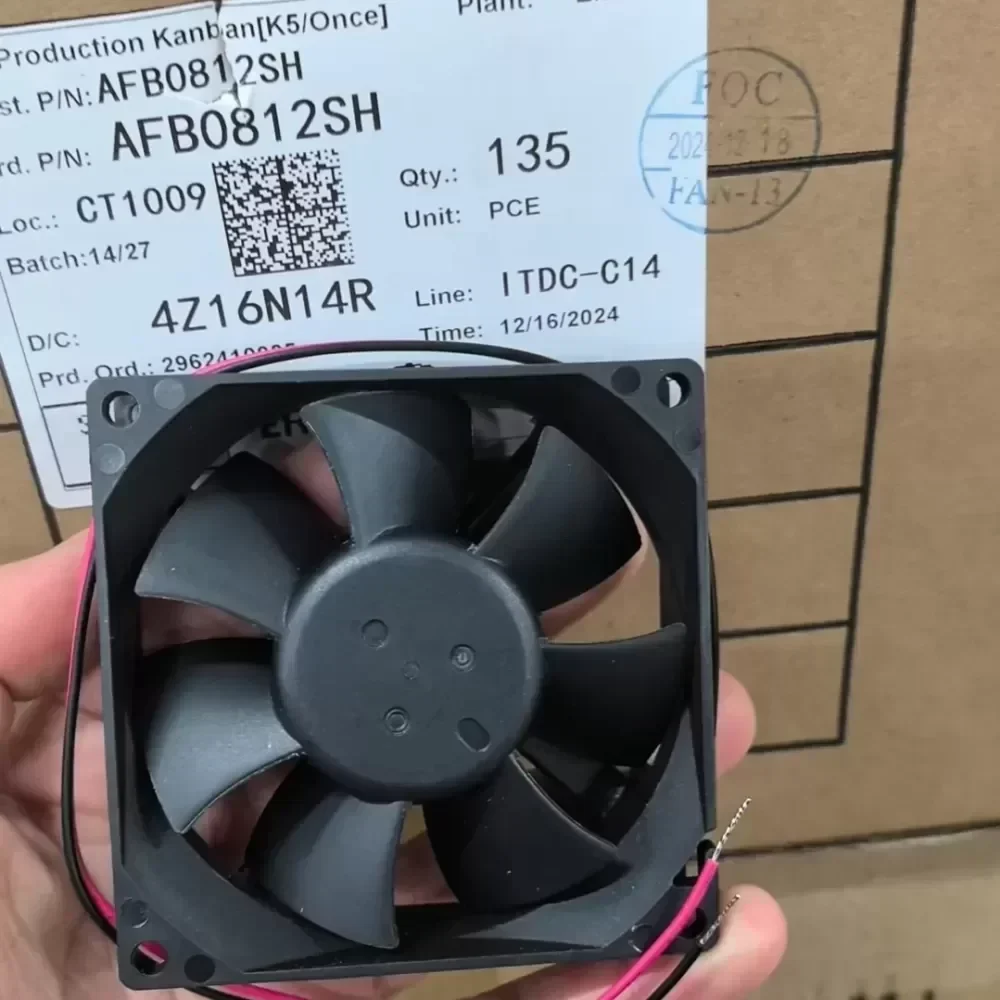

Delta AFB0812SH fan DC 12V
Delta AFB0812SH fan DC 12V

Delta AFB0812SH fan DC 12V

$4.00

SKU: 886687818407 Brand:

Description

The Delta Electronics AFB0812SH is a high-performance DC axial cooling fan engineered for continuous thermal management in demanding industrial and telecommunications equipment. Utilizing Original Engineering principles, this compact yet powerful unit delivers exceptional airflow and static pressure, ensuring Technical Compatibility with a wide range of high-density electronic enclosures, server chassis, and automated control cabinets. Designed with a robust dual ball bearing system, the AFB0812SH guarantees extended operational longevity and reliable heat dissipation under continuous load conditions.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: AFB0812SH
Frame Dimensions: 80 x 80 x 25 mm
Nominal Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Input Current: 0.51A
Input Power: 6.12W
Nominal Speed: 4000 RPM ± 10%
Maximum Airflow: 46.62 CFM (1.320 m³/min)
Maximum Static Pressure: 6.78 mmH2O
Acoustic Noise: 40.0 dB(A)
Bearing Type: Dual Ball Bearing
Housing Material: Plastic UL 94V-0
Impeller Material: Plastic UL 94V-0
Weight: 80 g
Operating Temperature: -10°C to 60°C
Country of Origin: China

Application Scenario:
The AFB0812SH is specifically deployed in densely packed industrial control panels, edge computing servers, and power supply units where localized heat generation threatens system stability. Its high static pressure capability allows it to force ambient air through restrictive heatsinks and tightly spaced components, preventing thermal throttling and extending the mean time between failures of critical microprocessors and power conversion circuitry.

Procurement and Lifecycle:
This component is supplied as new, unused inventory to ensure maximum lifecycle value. Standard Lead Time applies for bulk industrial procurement. The optimized acoustic profile combined with high volumetric efficiency makes it an ideal replacement or OEM integration part for thermal management systems requiring strict adherence to operational temperature thresholds.

Delta AFB0812SH fan DC 12V

Delta AFB0812SH fan DC 12V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
