$6.50

SKU: 1601636625691 Brand:

Description

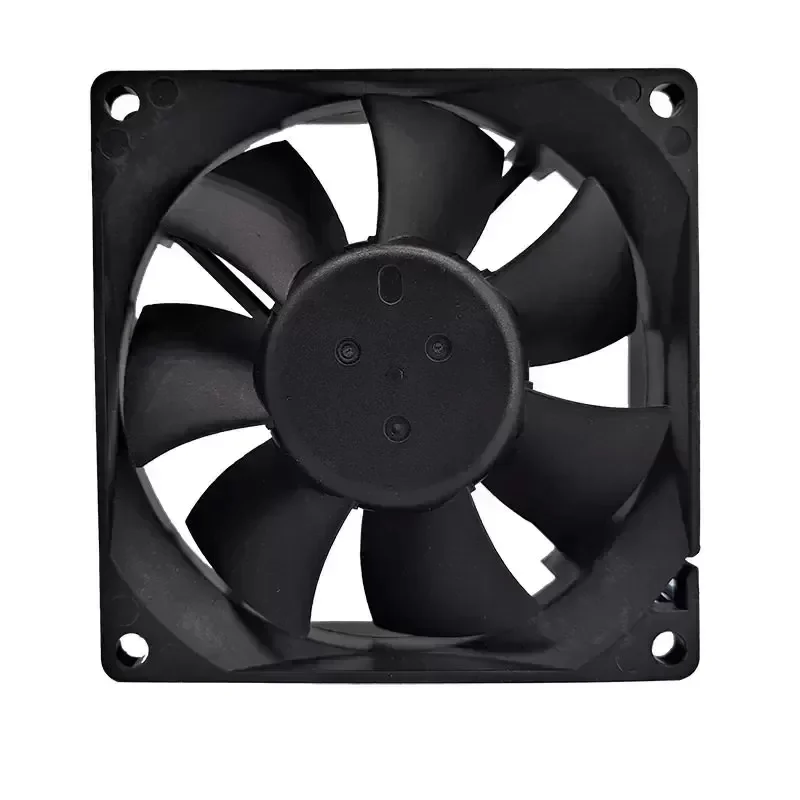

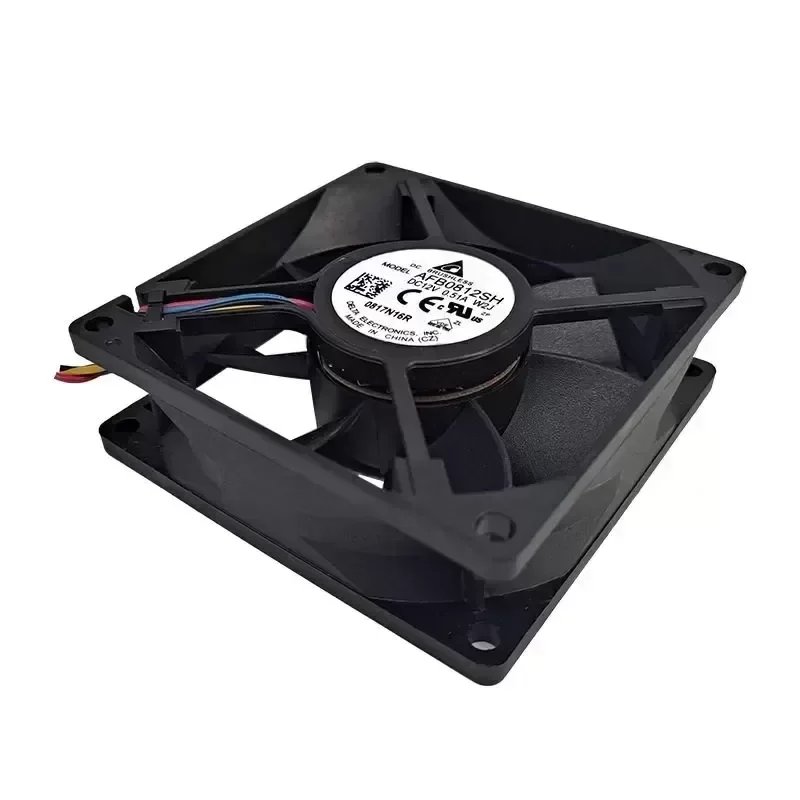

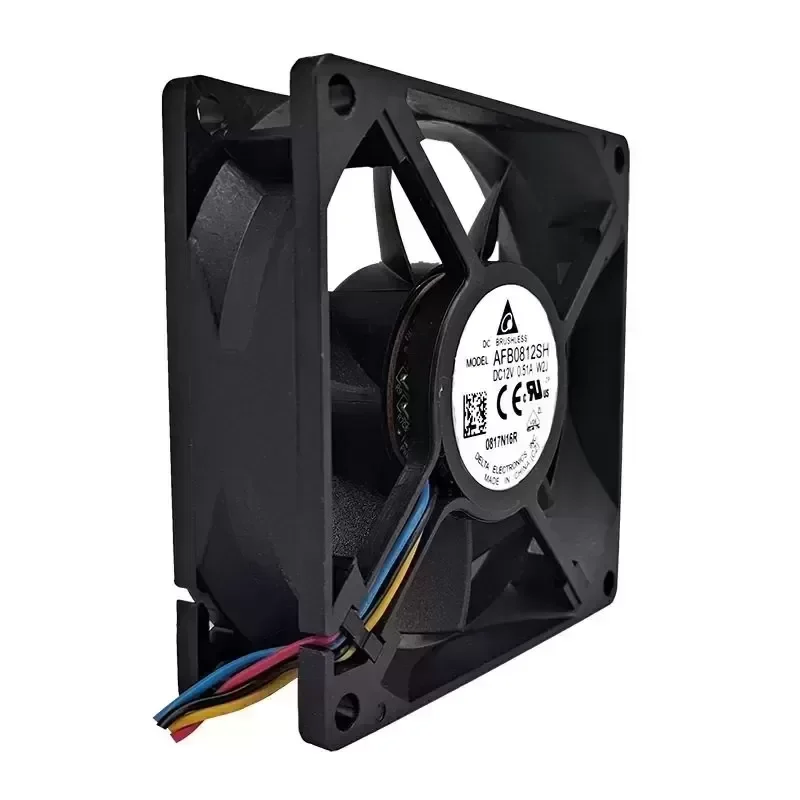

Delta Electronics AFB0812SH-W2J is a high-performance 80x80x25 mm brushless DC axial cooling fan engineered for continuous thermal management in high-density electronics, industrial automation cabinets, power supply modules, and specialized ventilation assemblies. Featuring precision dual ball bearings and aerodynamically balanced impeller geometry, this unit provides high static pressure capable of overcoming severe airflow impedance in tightly packed enclosures.

Technical Specifications:
Manufacturer: Delta Electronics
Model Series: AFB0812SH-W2J
Product Category: DC Axial Flow Fan
Outer Frame Dimensions: 80 mm x 80 mm x 25.4 mm (Mounting Hole Spacing: 71.5 mm ±0.3 mm, Hole Diameter: Ø 4.5 mm)
Rated Operating Voltage: 12 VDC
Operating Voltage Range: 7.0 VDC to 13.8 VDC
Rated Current: 0.51 A (0.60 A Maximum)
Rated Input Power: 6.12 W
Rotational Speed: 4000 RPM (±10%)
Maximum Airflow: 46.62 CFM (1.320 m³/min)
Maximum Static Pressure: 6.78 mmH2O (0.267 inH2O / 66.49 Pa)
Acoustic Sound Level: 40.0 dB(A)
Bearing Architecture: Dual Precision Ball Bearings
Motor Configuration: 4-Pole Brushless DC with Internal Commutation
Frame Material: Glass-Fiber Reinforced Thermoplastic (UL 94V-0 PBT)
Impeller Material: Glass-Fiber Reinforced Thermoplastic (UL 94V-0 PBT)
Electrical Termination: Multi-Conductor UL 1007 Lead Wires
Operating Temperature Range: -10°C to +70°C
Storage Temperature Range: -40°C to +75°C
Expected Service Life (L10): 70,000 Operating Hours at 40°C
Insulation Resistance: 10 Megaohms minimum at 500 VDC between frame and (+) terminal
Dielectric Strength: 500 VAC for 1 minute at 50/60 Hz
Integrated Protection: Polarity Protection, Locked Rotor Auto-Restart
Weight: 80.0 g
Certifications: UL, cUL, TÜV, CE, RoHS Compliant

Industrial Application & Problem Resolution:
In automated industrial environments, switchgear cabinets, and forced-air exhaust applications, thermal build-up combined with dense internal component layouts creates high backpressure that degrades standard ventilation fans. The Delta AFB0812SH-W2J addresses this challenge by delivering a focused, high-pressure airflow profile that penetrates restricted heatsink fins, dust filtration barriers, and internal ducting. The precision dual ball bearing configuration allows arbitrary mounting orientations (horizontal, vertical, or inverted) without degradation of lubricant or reduction in operational lifespan.

Procurement & Engineering Integration:
Technical Compatibility: Standard 80 mm frame dimensions ensure straightforward drop-in integration with industry-standard cutouts and legacy chassis.
Original Engineering: Manufactured to strict factory tolerances under Delta Electronics IATF 16949 and ISO 9001 certified production standards, ensuring consistent electrical characteristics and long-term reliability.
Supply Chain & Lead Time: Standard distribution stock and structured batch replenishment options are maintained to optimize Lead Time for original equipment manufacturers and maintenance operations.

Key Attributes
Voltage: 12v
Speed: 4000RPM
Mounting type: Free Standing
Type: Dc fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM, ODM, OBM
After-sales service provided: Online support
Place of origin: Guangdong, China
Brand name: Delta
Model number: AFB0812SH-W2J
Type: Axial Flow Fan

Packaging and Delivery
Selling Units: Single item

Delta AFB0812SH-W2J 12V DC Ball Bearing Axial Fan

Delta AFB0812SH-W2J 12V DC Ball Bearing Axial Fan

Delta AFB0812SH-W2J 12V DC Ball Bearing Axial Fan

Delta AFB0812SH-W2J 12V DC Ball Bearing Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
