Delta DVP06XA-S2 Analog InputOutput PLC Dedicated Controllers & PAC

Description

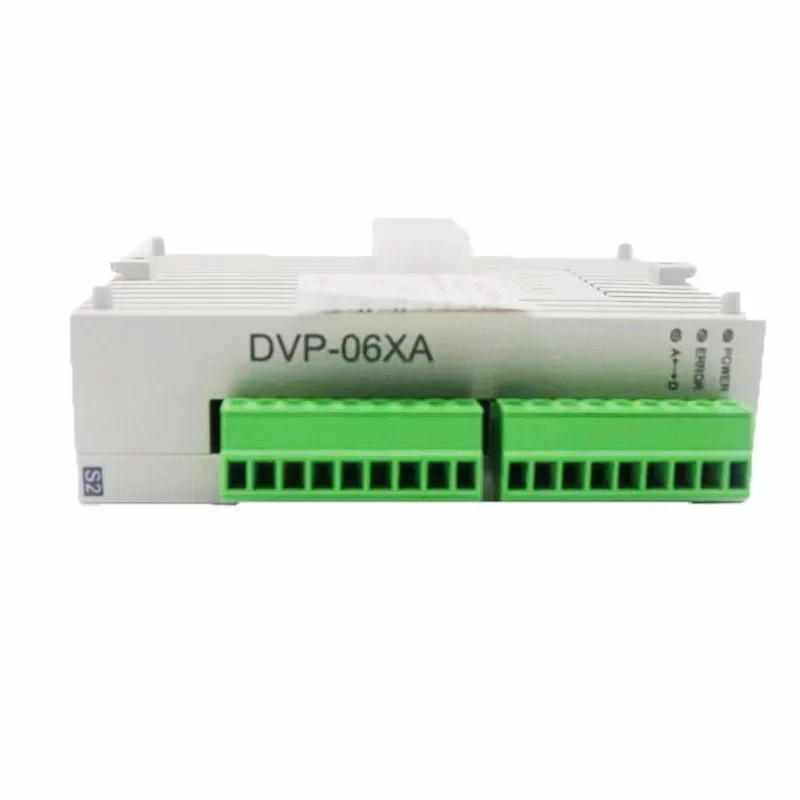

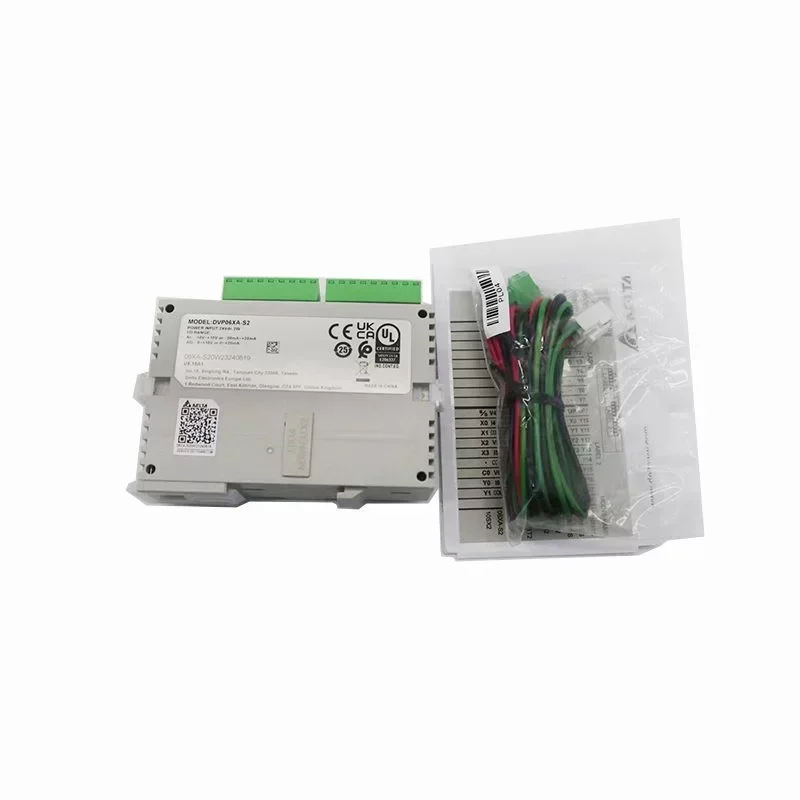

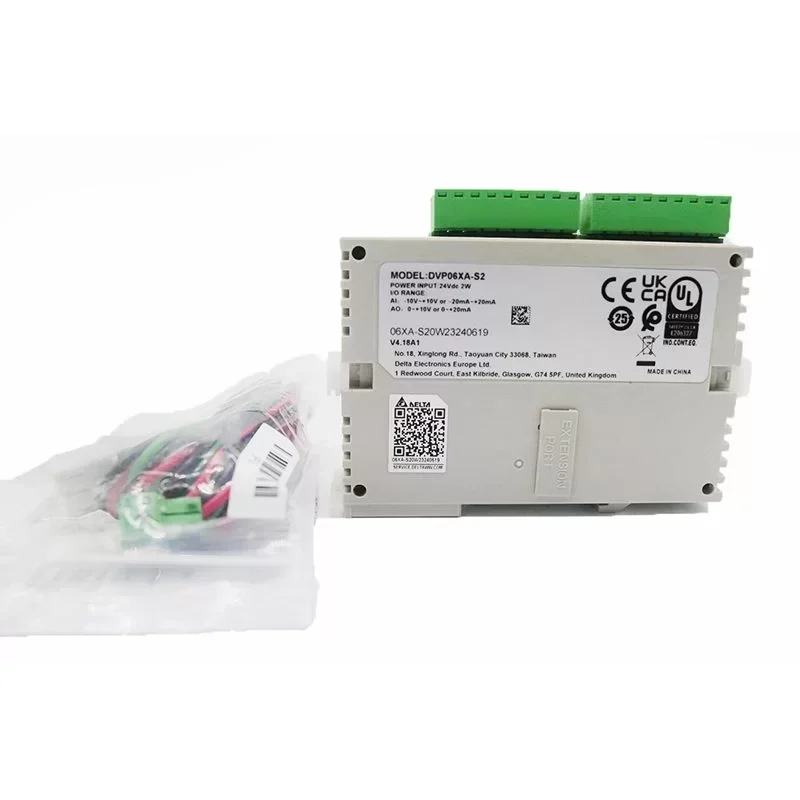

The Delta DVP06XA-S2 is a high-performance mixed analog input/output expansion module engineered for the DVP-S slim series programmable logic controllers. Designed to bridge the gap between digital processing and real-world analog signals, this module delivers precise data acquisition and control for complex automation architectures.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: DVP06XA-S2
Product Type: Analog I/O Expansion Module
Total Channels: 6 (4 Analog Inputs, 2 Analog Outputs)
Analog Input Range: -10V to +10V DC, -20mA to +20mA DC
Analog Output Range: 0V to 10V DC, 0mA to 20mA DC, 4mA to 20mA DC
Resolution (Voltage): 12-bit (2.5mV / 1.25mV)
Resolution (Current): 11-bit Input / 12-bit Output
Overall Accuracy: ±0.5% of full scale at 25°C
Power Supply Voltage: 24V DC (20.4V to 28.8V DC)
Power Consumption: 2W Max
Isolation Method: Optocoupler isolation between digital and analog circuits
Mounting Type: 35mm DIN Rail
Operating Temperature: 0°C to 55°C
Storage Temperature: -25°C to 70°C
Weight: 0.15 kg

Industrial Application:
The DVP06XA-S2 is critical for closed-loop control systems requiring simultaneous monitoring and actuation. In fluid processing and HVAC environments, the 4 analog inputs continuously read pressure, temperature, and flow transmitter data (4-20mA), while the 2 analog outputs provide real-time speed reference signals (0-10V) to Variable Frequency Drives (VFDs) or proportional valves for precise process regulation.

Lifecycle and Integration:
Original Engineering guarantees seamless integration with Delta DVP-SS2, SA2, SE, SX2, and SV2 host PLCs via the standard right-side extension bus. Our optimized supply chain ensures minimal Lead Time for this critical component, maximizing system uptime and reducing maintenance delays. Technical Compatibility is assured for both legacy system upgrades and new control panel builds, providing a robust, long-term solution for analog signal processing.

Key Attributes
Place of Origin: Taiwan, China
Brand Name: Delta
Communication Interface: Modubus
Type: PLC
Condition: 100%new 100%Original
Package: Original Packaging
Series: DVP-S
MOQ: 1PCS
Quality: 100% Original 100% Brand
Delivery time: 3-7 Days
Application: Electronic Equipment
Warranty: 1year

Packaging and Delivery
Selling Units: Single item
