Description

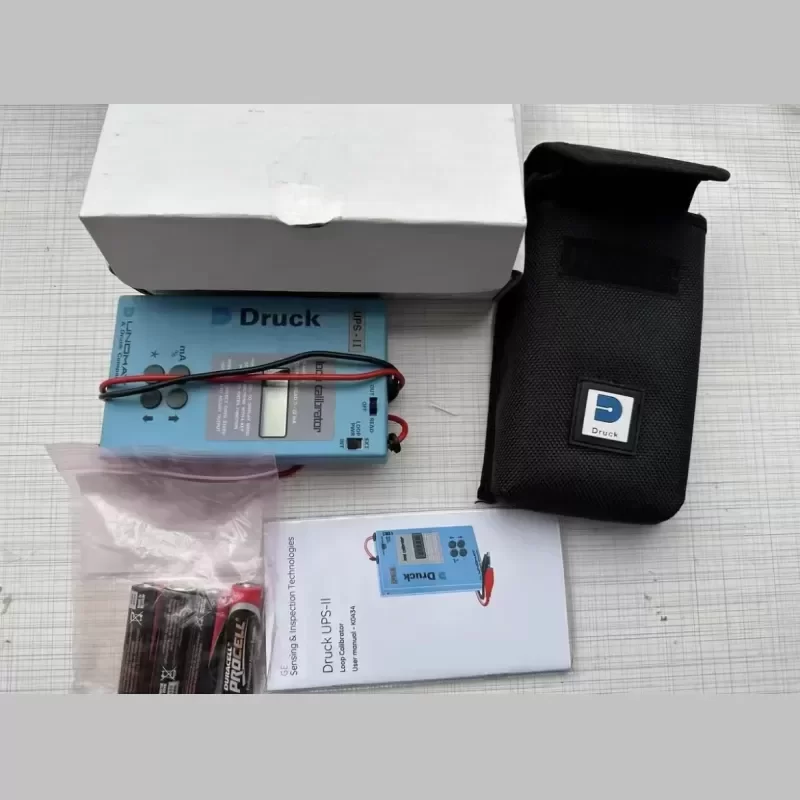

The Druck UPS-II and UPS-III are industry-standard loop calibrators designed for precision testing, maintenance, and calibration of process control loops. Engineered for high accuracy and rugged field use, these handheld devices provide essential sourcing, simulation, and measurement capabilities for 4-20 mA loops, transmitters, and control valves. The UPS-III represents the evolution of the UPS-II, offering enhanced accuracy and integrated HART communication support.
Technical Specifications:
Device Type: Handheld Loop Calibrator
Measurement Range (Current): 0 to 24 mA
Measurement Range (Voltage): 0 to 60 VDC
Source and Simulate Range: 0 to 24 mA
Accuracy: ±0.01% of reading
Resolution: 0.001 mA
Loop Power Supply: 24 VDC
HART Compatibility: Integrated 220 Ohm loop resistor (UPS-III)
Operating Temperature: -10°C to 50°C
Display: High-contrast graphic LCD
Weight: 275g
Dimensions: 90 mm x 140 mm x 42 mm
Industrial Application:
These calibrators are critical for instrumentation technicians operating in petrochemical, power generation, and water treatment facilities. The integrated valve test functions and auto-stepping capabilities allow for rapid diagnostics of proportional valves, PLC analog inputs, and DCS systems, ensuring minimal downtime during routine maintenance or commissioning phases.
Procurement and Lifecycle:
Backed by Original Engineering standards, the Druck UPS series ensures long-term reliability in harsh industrial environments. We verify Technical Compatibility with your existing plant infrastructure to ensure seamless integration. Contact our technical team for current Lead Time and availability for both UPS-II legacy replacements and UPS-III system upgrades.
Key Attributes
Place of origin: U.K.
Customized support: OEM, ODM
Power: Electronic
Brand name: Druck
Warranty: 1 years
Model number: UPS-III
Product name: Druck
Model: UPS-III
Battery Life: 75 hours in read mode
Auto Power Dowm: 30 minutes after last key press
Low Battery Warning: Battery symbol displayed
Open Loop: Flashes "Open loop"
Housing Material: High impact ABS
Display: LCD
Electrical Terminals: Gold plated, 4mm sockets
Packaging and Delivery
Packaging Details: Cardboard box
Port of dispatch: Shenzhen, China
Selling Units: Single item
