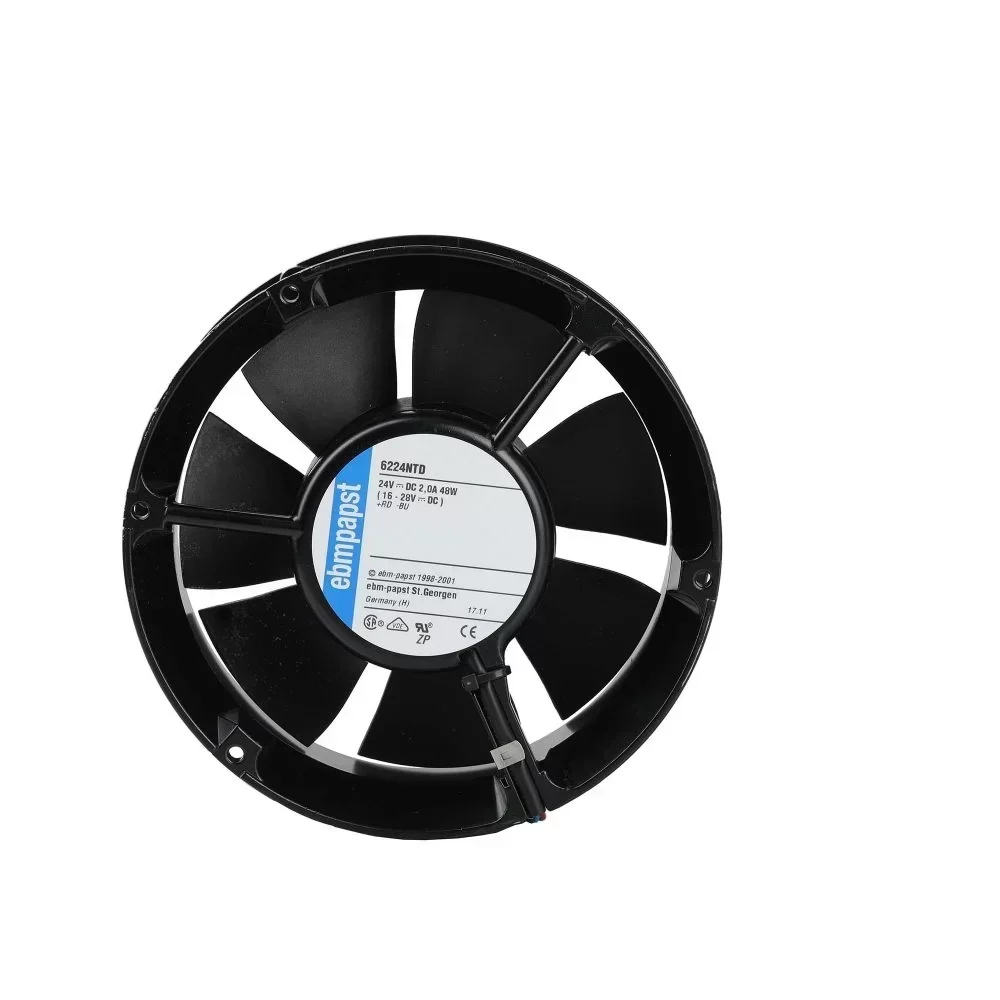

ebmpapst 6224N Axial Fan Electric Power Source 24V DC ebmpapst Type
ebmpapst 6224N Axial Fan Electric Power Source 24V DC ebmpapst Type

ebmpapst 6224N Axial Fan Electric Power Source 24V DC ebmpapst Type

$65.00

SKU: 1600246963740 Brand:

Description

The ebmpapst 6224N represents the pinnacle of Original Engineering in compact, high-efficiency thermal management. Engineered specifically for harsh industrial deployment, this heavy-duty DC axial fan offers uncompromising reliability in continuous-duty applications where system failure is not an option. Designed as a direct drop-in replacement or system-level integration component, the model ensures absolute Technical Compatibility with standard 24V industrial supply buses.

TECHNICAL SPECIFICATIONS
Manufacturer: ebmpapst
Model Number: 6224N
Voltage Nominal: 24 VDC
Voltage Range: 12.0 VDC to 28.0 VDC
Power Consumption: 18.0 W
Airflow Capacity: 350 m³/h
Nominal Speed: 3400 RPM
Sound Pressure Level: 57 dB(A)
Bearing System: Maintenance-Free Precision Dual Ball Bearings
Dimensions: 172 x 150 x 51 mm (Oval configuration)
Weight: 0.82 kg
Housing Material: Die-cast Aluminum
Impeller Material: Fiberglass-reinforced plastic (PA)
Direction of Airflow: Exhaust over struts
Direction of Rotation: Counter-clockwise looking at rotor
Electrical Connection: 2 single strands AWG 22, TR 64, bared and tin-plated
Motor Protection: Reverse polarity and locked-rotor protection
Approvals: VDE, CSA, UL, CE Compliance
Service Life L10 (40 °C): 80000 hours
Service Life L10 (Maximum Temp): 42500 hours
Operating Temperature Range: -20 °C to 72 °C

CRITICAL APPLICATION SOLVING
In high-density automation control enclosures and variable frequency drive (VFD) cabinets, localized heat accumulation leads to premature semiconductor degradation and unplanned system downtime. The 6224N axial fan solves this critical failure vector by delivering high-volume volumetric airflow under elevated static pressure conditions. Its rigid die-cast aluminum housing prevents resonance-induced vibrational fatigue, making it highly suitable for close-tolerance machine mounting. By maintaining the junction temperatures of high-power IGBTs within safety margins, the fan secures optimal system MTBF.

PROCUREMENT AND LOGISTICS OPTIMIZATION
Minimize system downtime and integrate reliable cooling pathways with high-durability thermal components. Please contact our distribution division to verify current batch Lead Time, quantity discounts, and global freight availability for immediate supply chain integration.

Voltage: 24V
Mounting type: Any
Type: Duct Axial Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Fiberglass-reinforced PA plastic
Bearing type: Ball Bearing
After-sales service provided: Online support
Place of origin: Hungary
Brand name: Ebmpapst
Model number: 6224N
Product name: Ebmpapst axial fan
Bearing Type: Ball bearings
Color: Black
Weight: 0.820 kg
Application: Industrial Equipment
Fan type: Aixal Fan
Usage: Air Cooling System
Keyword: Square Exhaust Fan
Motor Type: DC Copper Motor
Selling Units: Single item
Single package size: 25X25X10 cm
Single gross weight: 1.500 kg

ebmpapst 6224N Axial Fan Electric Power Source 24V DC ebmpapst Type

ebmpapst 6224N Axial Fan Electric Power Source 24V DC ebmpapst Type

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
