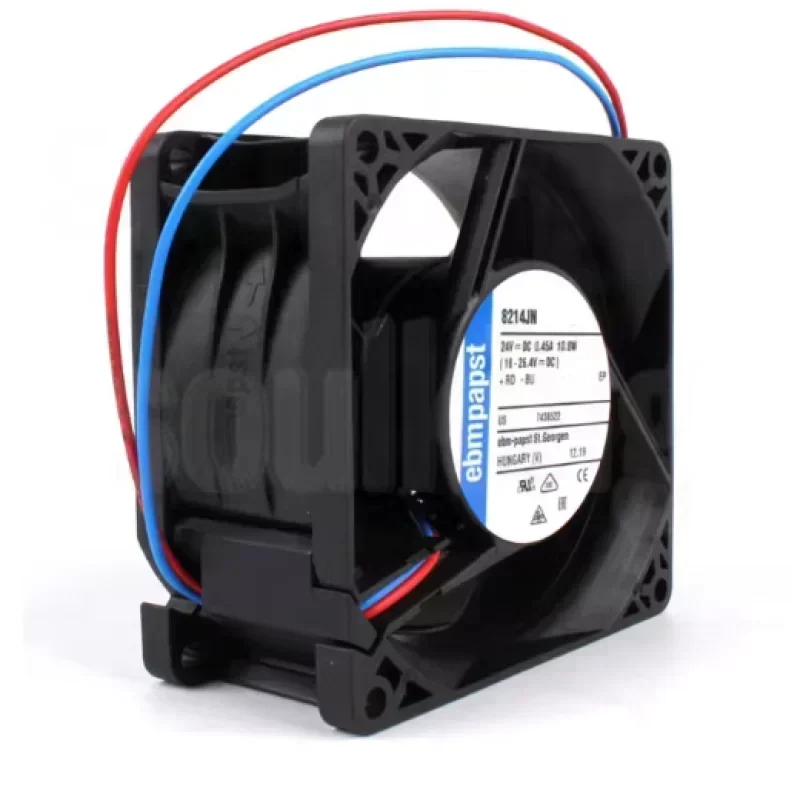

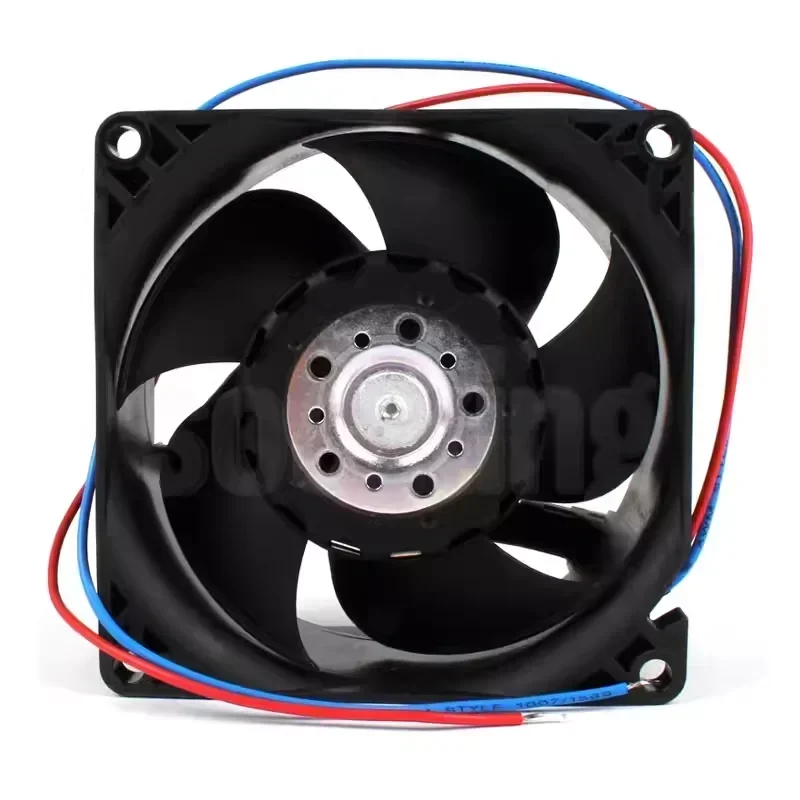

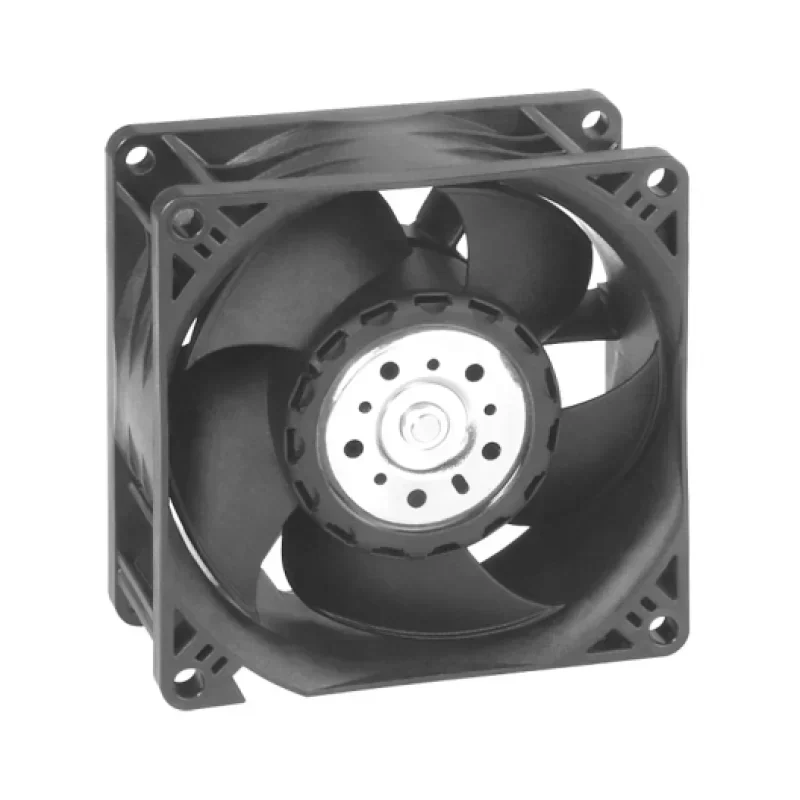

Ebmpapst 8214JN 80x80x38 24V DC 10.8W 8400RPM Axial Fan
Ebmpapst 8214JN 80x80x38 24V DC 10.8W 8400RPM Axial Fan
Ebmpapst 8214JN 80x80x38 24V DC 10.8W 8400RPM Axial Fan
Ebmpapst 8214JN 80x80x38 24V DC 10.8W 8400RPM Axial Fan

Ebmpapst 8214JN 80x80x38 24V DC 10.8W 8400RPM Axial Fan

$58.30

SKU: 1601155409049 Brand:

Description

The ebm-papst 8214JN is a high-performance DC axial compact fan engineered for demanding thermal management applications. Designed with Original Engineering standards, this 80x80x38mm cooling unit delivers exceptional airflow dynamics for densely packed electronic enclosures. The integration of a precision ball bearing system ensures an extended service life and reliable operation under continuous thermal loads.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: 8214JN
Dimensions: 80 x 80 x 38 mm
Nominal Voltage: 24V DC
Operating Voltage Range: 12V to 27.6V DC
Power Consumption: 10.8 W
Nominal Speed: 8400 RPM
Maximum Airflow: 132 m³/h
Acoustic Noise Level: 55 dB(A)
Bearing System: Precision Ball Bearing
Housing Material: Fiberglass-reinforced plastic (PBTP)
Impeller Material: Fiberglass-reinforced plastic (PA)
Weight: 0.160 kg
Operating Temperature Range: -20°C to +70°C
Motor Protection: Protection against reverse polarity and blocked rotor

Engineering and Design Features:
The 8214JN utilizes an electronically commutated external rotor motor, providing high efficiency and precise speed control. The aerodynamic design of the impeller blades maximizes static pressure capabilities, making it highly effective in systems with significant airflow resistance. The robust ball bearing configuration minimizes friction and wear, translating to superior Technical Compatibility across various industrial platforms.

Application Scenario:
This axial fan is specifically optimized for Electric Cabinet Cooling in industrial automation environments. In motor control centers and PLC enclosures where variable frequency drives (VFDs) and power supplies generate concentrated heat, the 8214JN rapidly dissipates thermal energy. Its high 8400 RPM speed and 38mm depth allow it to push air through restrictive dust filters and densely routed wiring, preventing thermal throttling and hardware failure in mission-critical control systems.

Procurement Information:
We ensure a streamlined supply chain to minimize Lead Time for critical maintenance and system upgrades. This component guarantees exact Technical Compatibility with existing 24V DC infrastructure, ensuring seamless integration and immediate restoration of optimal cooling performance.

Key Attributes
Voltage: 24V
Electric current type: DC
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Plastic
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: 8214JN
Type: Axial Fan
Nominal voltage: 24V
Bearing Type: Ball Bearing
Power consumption: 10.8W
Air volume: 132m³/h
Current: 0.45A
Speed: 8400RPM
Temperature: -20~70℃
Housing Material: Plastic
Termination: Lead Wires

Packaging and Delivery
Selling Units: Single item
Single package size: 8.5X8.5X3.9 cm
Single gross weight: 0.200 kg

Ebmpapst 8214JN 80x80x38 24V DC 10.8W 8400RPM Axial Fan

Ebmpapst 8214JN 80x80x38 24V DC 10.8W 8400RPM Axial Fan

Ebmpapst 8214JN 80x80x38 24V DC 10.8W 8400RPM Axial Fan

Ebmpapst 8214JN 80x80x38 24V DC 10.8W 8400RPM Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
