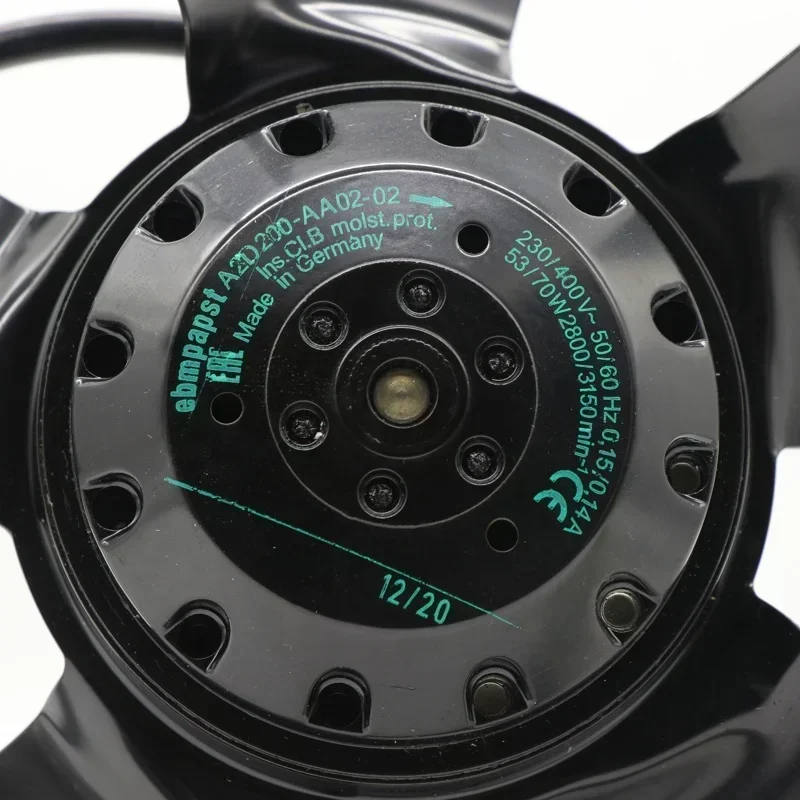

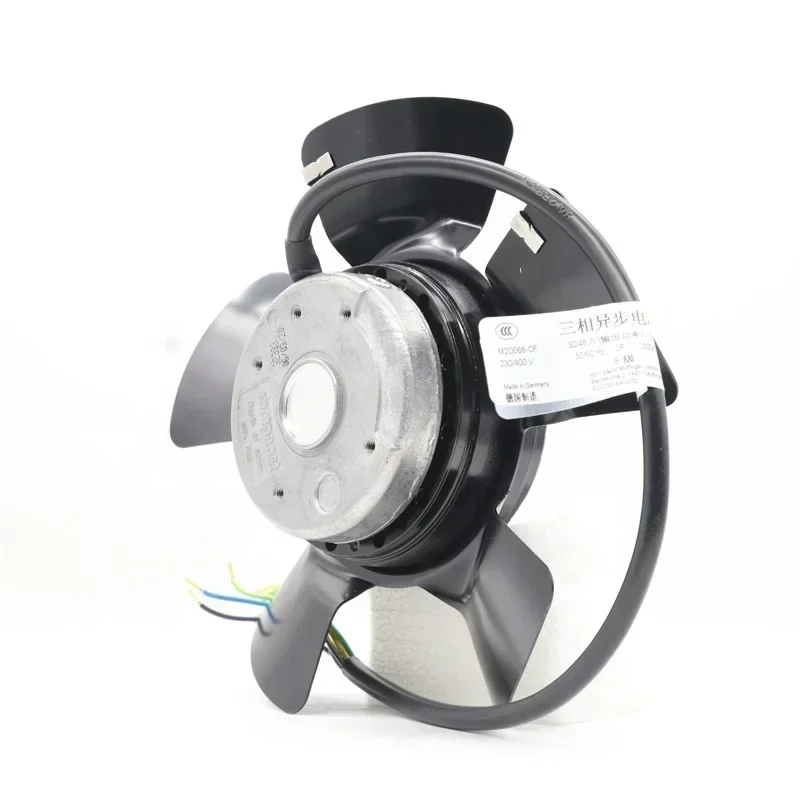

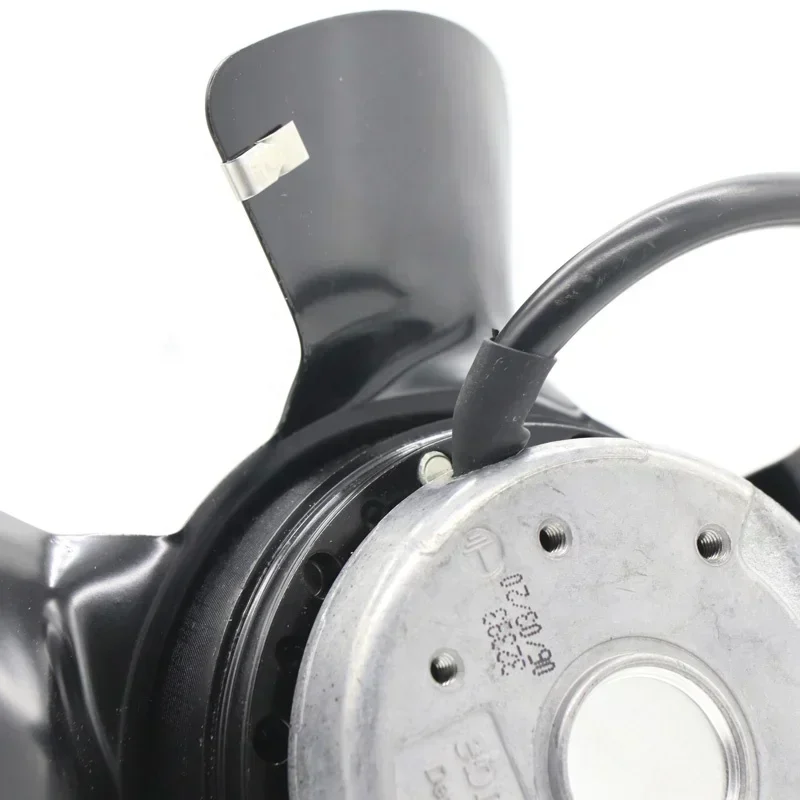

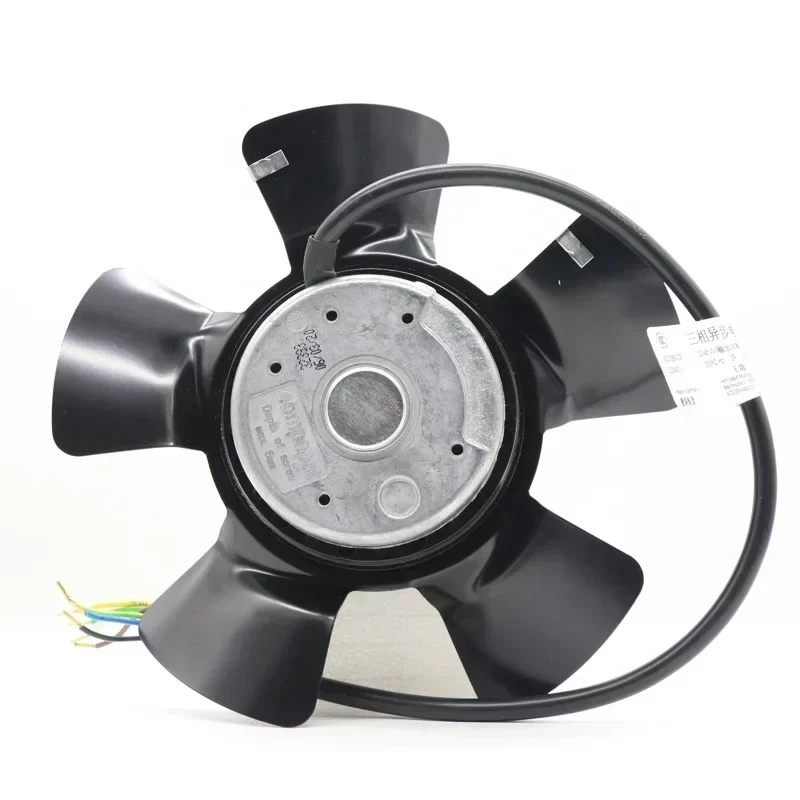

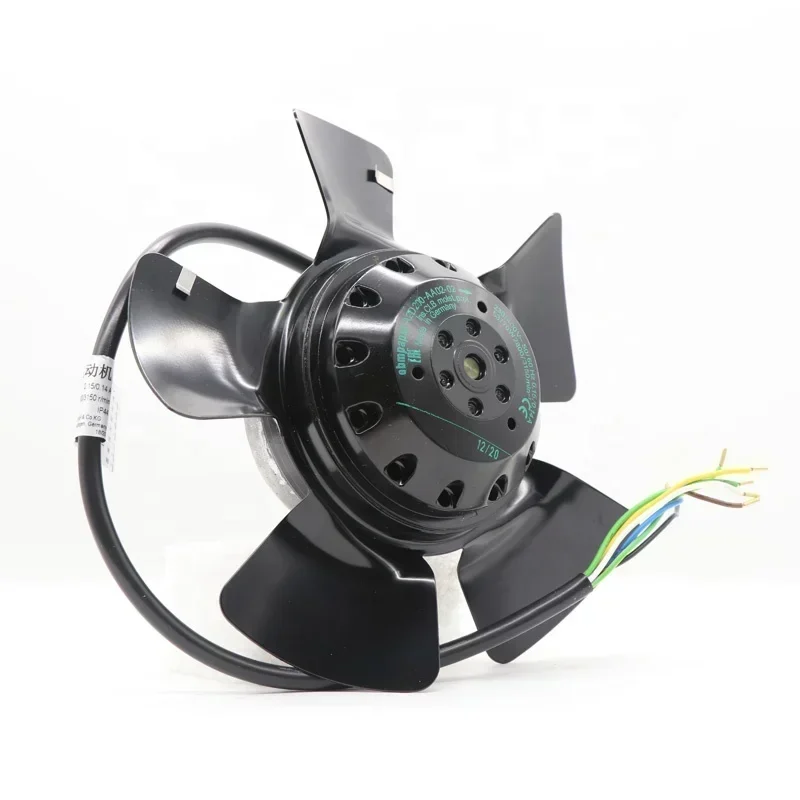

ebmpapst A2D200-AA02-02 230V/400V AC 53W 200mm 2800RPM Siemens Motor Axial Fan

$152.00

SKU: 62044392134 Brand: ,

Description

The ebm-papst A2D200-AA02-02 is a high-performance 200 mm 3-phase axial cooling fan engineered for critical thermal dissipation in industrial automation systems, variable frequency drives, and Siemens motor inverter cabinets. Built with a compact external rotor motor and precision-balanced steel blades, this unit delivers high static pressure and continuous volumetric airflow in constrained power electronics enclosures.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: A2D200-AA02-02
Fan Type: 3-Phase AC Axial Fan
Nominal Impeller Diameter: Ø 200 mm
Motor Type: 2-Pole AC External Rotor Motor (M2D068 Series)
Phase: 3~
Nominal Voltage: 230 / 400 VAC (Delta / Star connection)
Frequency: 50 / 60 Hz
Nominal Speed (50 Hz): 2800 RPM
Nominal Speed (60 Hz): 3150 RPM
Power Consumption (50 Hz): 53 W
Power Consumption (60 Hz): 70 W
Current Draw (230 V Δ / 400 V Y): 0.28 A / 0.16 A
Maximum Airflow Volume: 880 m³/h (50 Hz) / 990 m³/h (60 Hz)
Direction of Air Flow: Air exhaust over struts (Direction ‘V’)
Direction of Rotation: Counter-clockwise seen on rotor
Bearing Type: Maintenance-free dual precision ball bearings
Blade Material: Sheet steel, coated in black
Rotor Surface: Coated in black
Number of Blades: 9
Ingress Protection: IP44
Insulation Class: Class B
Operating Temperature Range: -25 °C to +70 °C
Motor Protection: Integrated thermal overload protector
Weight: 1.50 kg
Certifications and Conformity: CE, UL, CSA, EAC, VDE, RoHS

Application & Engineering Scenario:
The A2D200-AA02-02 is specifically engineered to mitigate thermal throttling in high-duty Siemens Sinamics and Masterdrives inverter modules, cabinet heatsinks, and industrial UPS units. The 3-phase dual-voltage configuration facilitates direct electrical integration into industrial power buses without auxiliary step-down transformers, sustaining continuous heat extraction across wide ambient temperature profiles.

Procurement & Integration:
Designed to exact OEM specifications, this unit ensures Original Engineering standards and 100% mechanical Technical Compatibility with existing inverter chassis mountings. Contact technical sales to confirm project inventory, bulk pricing, and standard Lead Time for global delivery.

Key Attributes
Voltage: 230 V
Mounting type: Free Standing
Type: Ac axial fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: ODM, OEM
After-sales service provided: Online support
Model number: A2D200-AA02-02
Product name: Ebmpapst EC centrifugal fan - RadiCal
Nominal voltage: 230V/400V
Bearing Type: Ball Bearing
Power consumption: 53W
Current: 0.3 A
Frequency: 50~60Hz
Fan Size: 200mm
Speed Control: 2800 (r/min)
Noise: 70dB(A)
Applicable Industries: Hotels

Packaging and Delivery
Selling Units: Single item
Single package size: 37X37X25 cm
Single gross weight: 68.000 kg

ebmpapst A2D200-AA02-02 230V/400V AC 53W 200mm 2800RPM Siemens Motor Axial Fan

ebmpapst A2D200-AA02-02 230V/400V AC 53W 200mm 2800RPM Siemens Motor Axial Fan

ebmpapst A2D200-AA02-02 230V/400V AC 53W 200mm 2800RPM Siemens Motor Axial Fan

ebmpapst A2D200-AA02-02 230V/400V AC 53W 200mm 2800RPM Siemens Motor Axial Fan

ebmpapst A2D200-AA02-02 230V/400V AC 53W 200mm 2800RPM Siemens Motor Axial Fan

ebmpapst A2D200-AA02-02 230V/400V AC 53W 200mm 2800RPM Siemens Motor Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
