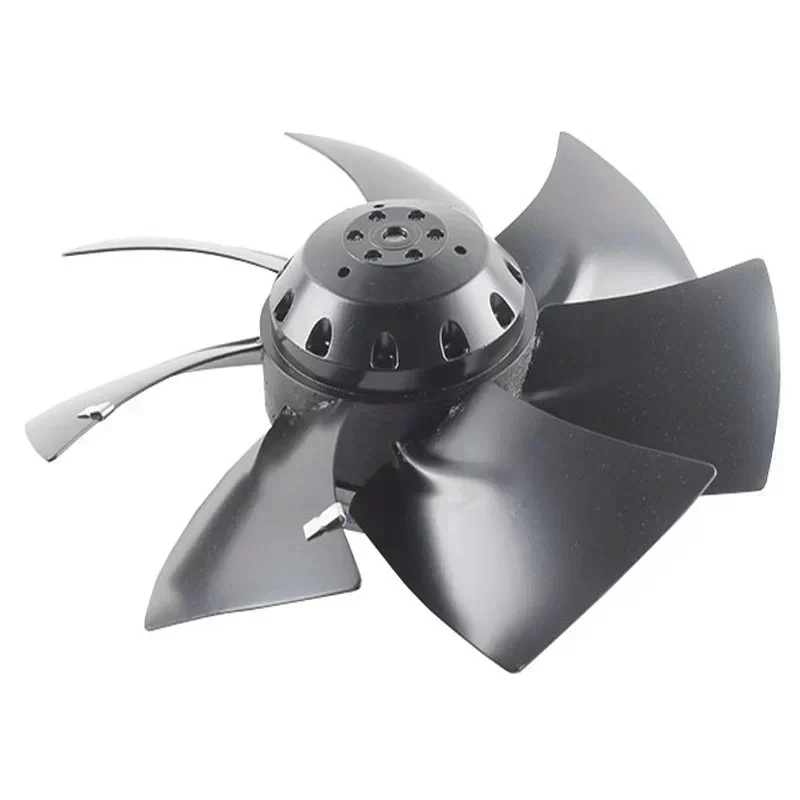

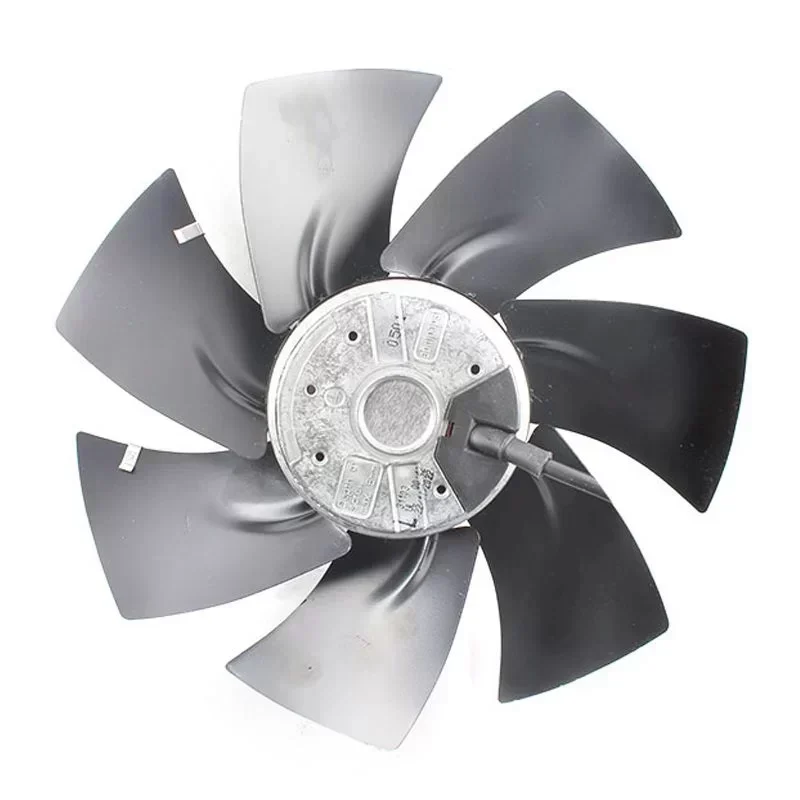

Ebmpapst A2E250-AL06-01 250mm 50Hz 230V 115W 890RPM Axial Fan
Ebmpapst A2E250-AL06-01 250mm 50Hz 230V 115W 890RPM Axial Fan
Ebmpapst A2E250-AL06-01 250mm 50Hz 230V 115W 890RPM Axial Fan
Ebmpapst A2E250-AL06-01 250mm 50Hz 230V 115W 890RPM Axial Fan
Ebmpapst A2E250-AL06-01 250mm 50Hz 230V 115W 890RPM Axial Fan

Ebmpapst A2E250-AL06-01 250mm 50Hz 230V 115W 890RPM Axial Fan

$192.00

SKU: 1601214465249 Brand:

Description

The ebm-papst A2E250-AL06-01 is a high-performance AC axial fan engineered for demanding industrial thermal management applications. Utilizing an advanced outer rotor motor design, this unit ensures optimal aerodynamic efficiency and compact integration within restricted installation spaces.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: A2E250-AL06-01
Fan Architecture: Outer Rotor Axial Fan
Impeller Diameter: Ø 250 mm
Nominal Voltage: 230 VAC
Frequency: 50 Hz
Power Consumption: 115 W
Nominal Speed: 890 RPM
Blade Material: Stainless Steel
Motor Type: Single-phase AC motor
Protection Rating: IP44
Insulation Class: F
Bearing System: High-precision ball bearings
Operating Temperature Range: -25 °C to +60 °C
Weight: 2.1 kg

Application & Integration:
This specific fan is purpose-built for the active cooling of frequency converters and variable speed drives. The stainless steel blade construction provides superior corrosion resistance, making it highly suitable for harsh industrial environments where airborne particulates or moisture may be present. The outer rotor configuration allows the motor to be directly integrated into the impeller hub, minimizing the axial depth and maximizing airflow dynamics.

Procurement & Lifecycle Value:
Maintaining Technical Compatibility is critical for the continuous operation of drive cabinets. This unit represents Original Engineering from ebm-papst, ensuring exact aerodynamic and electrical matching with existing factory infrastructure. Standardized mounting dimensions facilitate rapid replacement, minimizing downtime. Please consult your supplier regarding current Lead Time and availability to ensure uninterrupted maintenance schedules.

Key Attributes
Electric current type: AC
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Stainless Steel
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: A2E250-AL06-01
Voltage: 230V
Size: 250mm
Air flow: 1820m³/h
Current: 0.51A
Power: 115W

Packaging and Delivery
Selling Units: Single item
Single package size: 25.1X25.1X7.2 cm
Single gross weight: 2.000 kg

Ebmpapst A2E250-AL06-01 250mm 50Hz 230V 115W 890RPM Axial Fan

Ebmpapst A2E250-AL06-01 250mm 50Hz 230V 115W 890RPM Axial Fan

Ebmpapst A2E250-AL06-01 250mm 50Hz 230V 115W 890RPM Axial Fan

Ebmpapst A2E250-AL06-01 250mm 50Hz 230V 115W 890RPM Axial Fan

Ebmpapst A2E250-AL06-01 250mm 50Hz 230V 115W 890RPM Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
