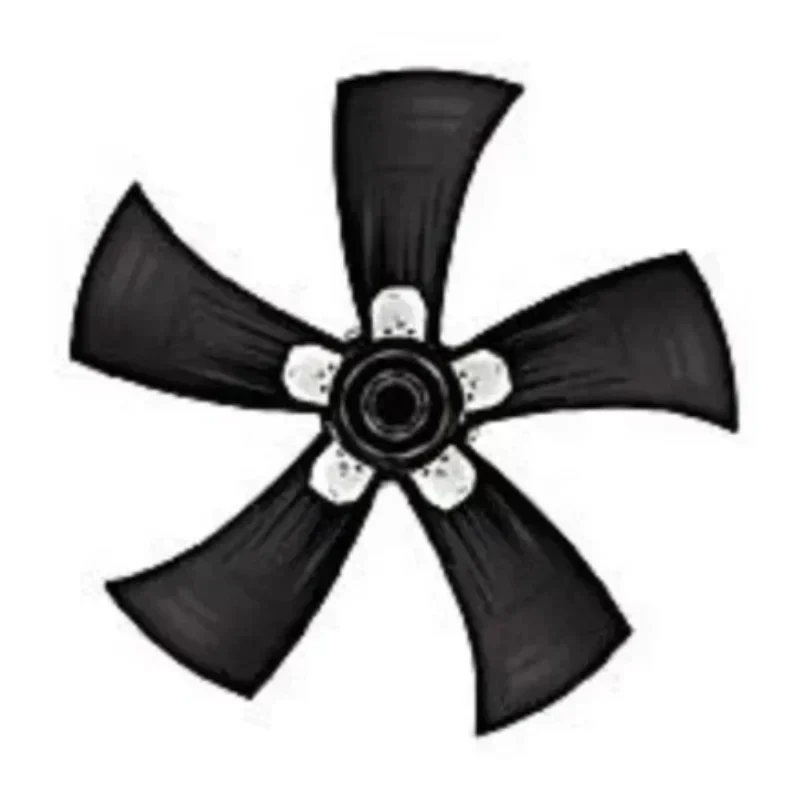

ebmpapst A3G910-AV02-02 380/480V AC 910mm 4.4A 2880W 1000RPM Container Axial Fan A3G910-AV02-01
ebmpapst A3G910-AV02-02 380/480V AC 910mm 4.4A 2880W 1000RPM Container Axial Fan A3G910-AV02-01
ebmpapst A3G910-AV02-02 380/480V AC 910mm 4.4A 2880W 1000RPM Container Axial Fan A3G910-AV02-01

ebmpapst A3G910-AV02-02 380/480V AC 910mm 4.4A 2880W 1000RPM Container Axial Fan A3G910-AV02-01

$1,882.40

SKU: 62545699771 Brand:

Description

The ebm-papst A3G910-AV02-02 is a heavy-duty, high-efficiency axial cooling fan engineered for demanding industrial ventilation and container cooling applications. Utilizing advanced GreenTech EC (Electronically Commutated) motor technology, this unit accepts a 3-phase AC power input while delivering the superior efficiency and variable speed control of a DC motor. Designed as a direct replacement and technical upgrade for the A3G910-AV02-01, it ensures seamless Technical Compatibility with existing thermal management architectures.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: A3G910-AV02-02 (Compatible with A3G910-AV02-01)
Technology: GreenTech EC Axial Fan

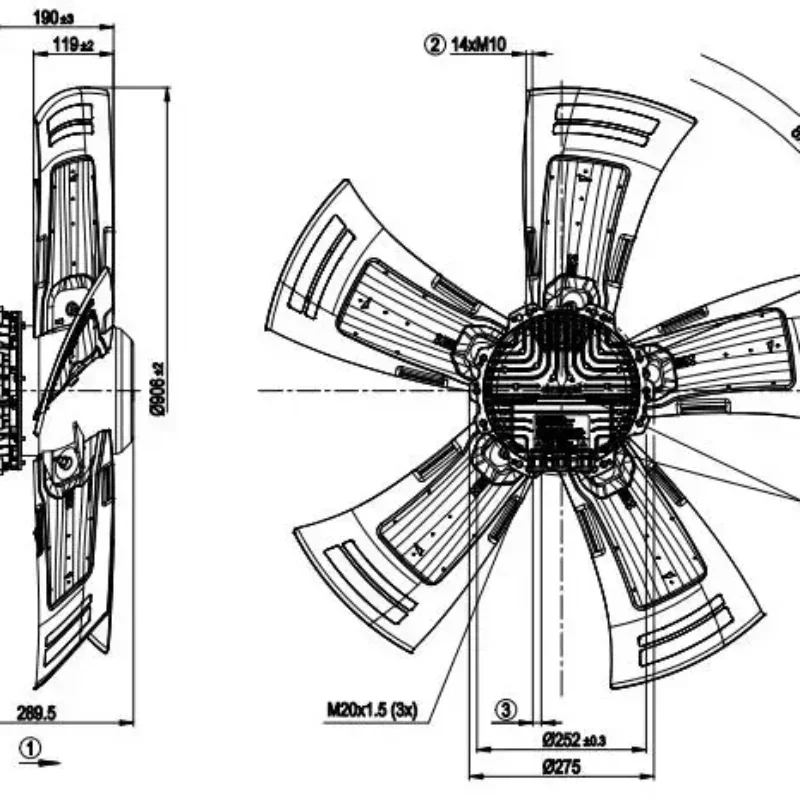

Impeller Diameter: Ø 910 mm
Operating Voltage: 380 – 480 VAC (3-Phase)
Mains Frequency: 50/60 Hz
Power Consumption: 2880 W
Nominal Current: 4.4 A
Rated Speed: 1000 RPM
Bearing System: Maintenance-free Ball Bearing
Motor Protection: Integrated thermal overload protector
Protection Rating: IP54
Insulation Class: F
Operating Temperature Range: -25°C to +60°C

Industrial Application:
This Ø 910 mm axial fan is specifically engineered for high-capacity container cooling, industrial refrigeration plants, and large-scale HVAC/R systems. The aerodynamic blade design combined with the 2880W EC motor allows for massive volumetric airflow (m³/h) against high static pressures. The integrated commutation electronics provide precise speed modulation, which is critical for maintaining strict temperature tolerances in refrigerated shipping containers or sensitive data center cooling arrays.

Procurement and Lifecycle Value:
Sourced through Original Engineering channels, the A3G910-AV02-02 guarantees maximum operational uptime and energy savings. The robust ball bearing system ensures an extended service life even in continuous-duty 24/7 environments. Please consult our technical sales team for current Lead Time and global shipping logistics to integrate this critical cooling component into your maintenance schedule.

Key Attributes
Voltage: 380/480V
Mounting type: Free Standing
Type: Ac axial fan
Warranty: 1 Year
Power Source: Electric
Blade material: Cast Iron
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: A3G910-AV02-02
Size: 910mm
Current: 4.4A
Power: 2880W
Speed: 1000RPM
Bearing Type: Ball Bearing
Weight: 31.8KG

Packaging and Delivery
Selling Units: Single item
Single package size: 105X105X33 cm
Single gross weight: 68.000 kg

ebmpapst A3G910-AV02-02 380/480V AC 910mm 4.4A 2880W 1000RPM Container Axial Fan A3G910-AV02-01

ebmpapst A3G910-AV02-02 380/480V AC 910mm 4.4A 2880W 1000RPM Container Axial Fan A3G910-AV02-01

ebmpapst A3G910-AV02-02 380/480V AC 910mm 4.4A 2880W 1000RPM Container Axial Fan A3G910-AV02-01

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
