$442.00

SKU: 1600219748098 Brand:

Description

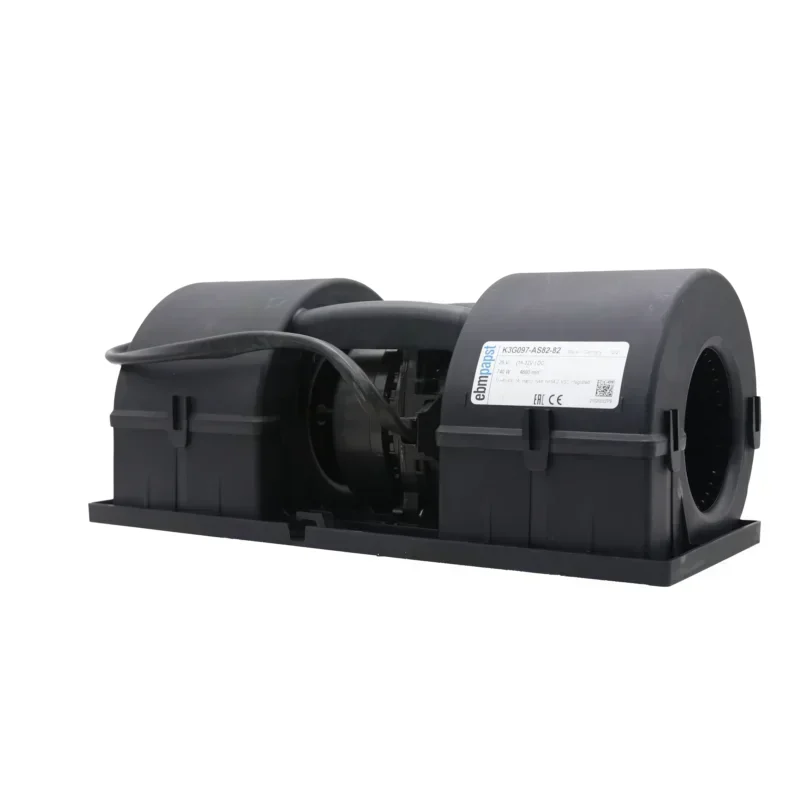

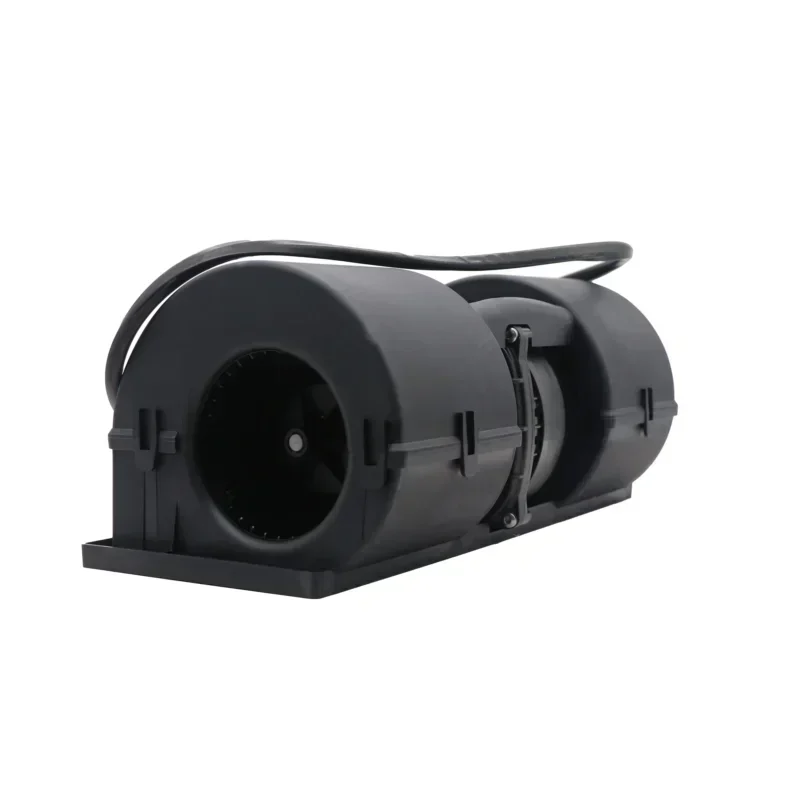

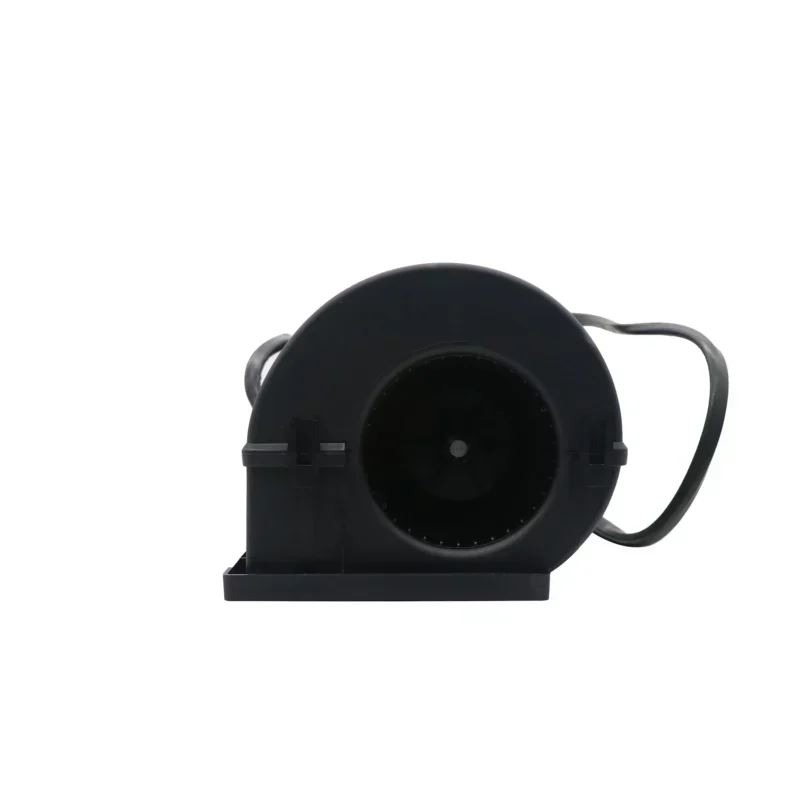

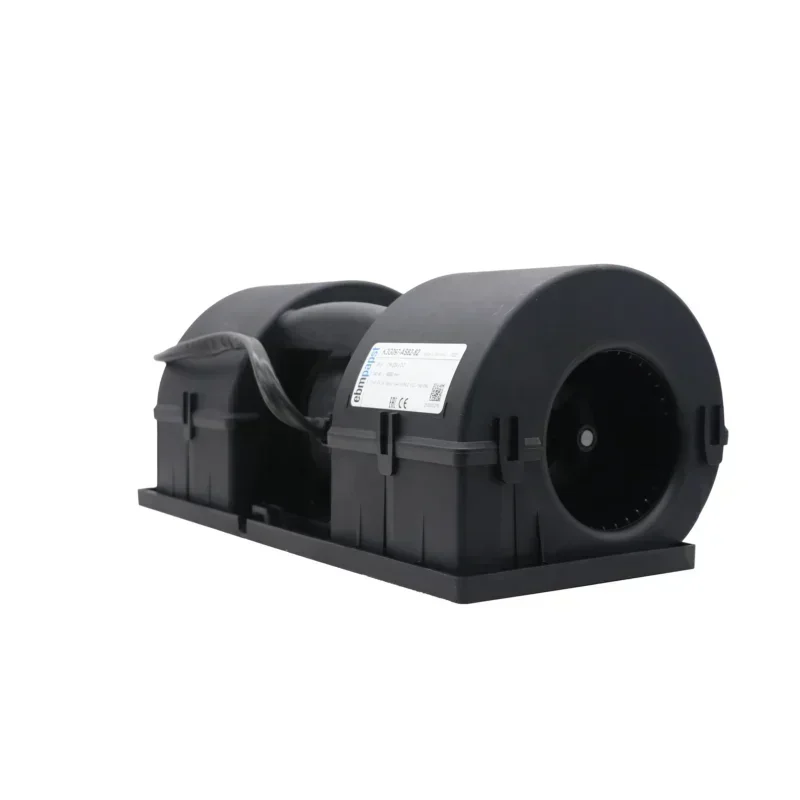

The ebm-papst K3G097-AS82-82 is an engineered EC centrifugal fan designed specifically for demanding mobile HVAC applications, particularly in bus and coach evaporator systems. Utilizing state-of-the-art brushless DC (EC) technology, this high-efficiency blower delivers superior thermal management with reduced power consumption. This model is highly compatible with alternative variants such as K3G097-BK34-65 and K3G097-AK28-75, ensuring seamless Technical Compatibility across various vehicle climate control platforms.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: K3G097-AS82-82
Compatible Models: K3G097-BK34-65, K3G097-AK28-75
Motor Type: EC (Electronically Commutated) Brushless DC Motor
Nominal Voltage: 24 VDC
Voltage Range: 16 VDC to 32 VDC
Power Input: 740 W
Speed: 4650 RPM
Current Draw: 30.8 A
Airflow Capacity: Up to 1250 m³/h
Direction of Rotation: Clockwise, viewed toward rotor
Type of Protection: IP24KB (Moisture and salt spray resistant for automotive environments)
Insulation Class: F
Bearing Type: Maintenance-free ball bearings
Operating Temperature Range: -40 °C to +70 °C
Control Input: 0-10 VDC / PWM speed control signal
Impeller Material: High-performance composite PA plastic
Housing Material: Die-cast aluminum / sheet steel
Weight: 3.8 kg
Certifications: CE, E1 (ECE R10 automotive approval)

Industrial Application and Critical Problem Solving:
In transit bus and coach HVAC systems, maintaining consistent cabin airflow under varying passenger loads and external ambient temperatures is critical. Standard brushed DC fans suffer from rapid brush wear, high thermal output, and inefficient power draw, leading to premature system failures. The ebm-papst K3G097-AS82-82 solves this operational bottleneck. Its integrated EC controller dynamically adjusts the fan speed via PWM or 0-10V signals to match real-time cooling demands, drastically reducing energy consumption on the vehicle’s 24V electrical bus. The robust IP24KB-rated construction protects the internal electronics from condensation and humidity inherent in evaporator environments, preventing short circuits and ensuring continuous operation.

Procurement and Lifecycle Value:
By choosing Original Engineering components from ebm-papst, fleet operators and industrial HVAC OEMs guarantee optimal system integration, maximum uptime, and reduced lifecycle costs. Contact our sales engineering team to verify exact mounting dimensions, electrical connection configurations, and current Lead Time for volume orders.

Key Attributes
Voltage: 24 V
Blade Material: Stainless Steel
Type: Centrifugal fan
Nominal voltage: 26V
Bearing Type: Ball Bearing
Power consumption: 740 (w)
Current: 28 (A)
Speed: 4650 (r/min)
Weight: 1 kg
Type of protection: IP 24 KM

Packaging and Delivery
Selling Units: Single item

ebmpapst K3G097-AS82-82 24V DC 740W 4650RPM K3G097-BK34-65 K3G097-AK28-75 EC Bus Evaporator Fan

ebmpapst K3G097-AS82-82 24V DC 740W 4650RPM K3G097-BK34-65 K3G097-AK28-75 EC Bus Evaporator Fan

ebmpapst K3G097-AS82-82 24V DC 740W 4650RPM K3G097-BK34-65 K3G097-AK28-75 EC Bus Evaporator Fan

ebmpapst K3G097-AS82-82 24V DC 740W 4650RPM K3G097-BK34-65 K3G097-AK28-75 EC Bus Evaporator Fan

ebmpapst K3G097-AS82-82 24V DC 740W 4650RPM K3G097-BK34-65 K3G097-AK28-75 EC Bus Evaporator Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
