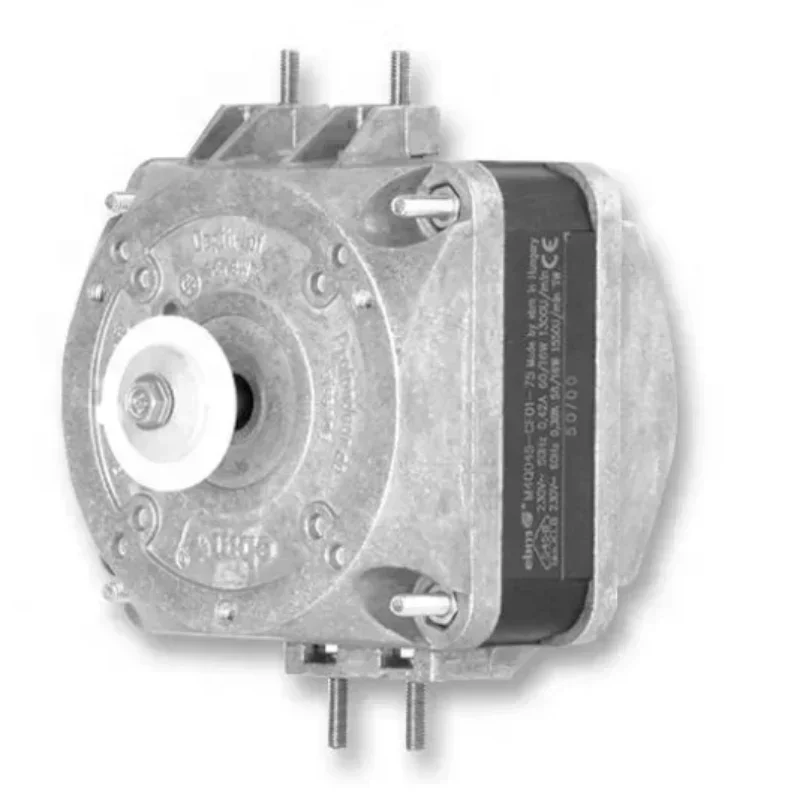

ebmpapst M4Q045-CF01-04 230V AC 0.36A 1550RPM 16W Sleeve Bearing Refrigeration Equipment Shaded-Pole Motor Fan
ebmpapst M4Q045-CF01-04 230V AC 0.36A 1550RPM 16W Sleeve Bearing Refrigeration Equipment Shaded-Pole Motor Fan

ebmpapst M4Q045-CF01-04 230V AC 0.36A 1550RPM 16W Sleeve Bearing Refrigeration Equipment Shaded-Pole Motor Fan

$22.00

SKU: 1600524567936 Brand:

Description

The ebm-papst M4Q045-CF01-04 is an industrial-grade shaded-pole AC motor engineered specifically for continuous-duty cooling applications in commercial refrigeration and ventilation systems. Utilizing original engineering from ebm-papst, this Q-motor design provides a highly reliable, maintenance-free drive solution for axial fan blades in evaporators, condensers, and refrigerated display cases.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: M4Q045-CF01-04
Motor Type: Shaded-pole motor (Q-motor)
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Current Draw: 0.36 A
Power Output: 16 W
Power Input: 60 W
Nominal Speed: 1550 RPM (at 50 Hz) / 1900 RPM (at 60 Hz)
Bearing Type: Calotte sleeve bearing with lifetime lubrication
Direction of Rotation: Counterclockwise (viewed from shaft end)
Insulation Class: B
Protection Class: IP20
Operating Temperature Range: -30 °C to +40 °C
Weight: 1.5 kg
Electrical Connection: 3-wire cable, open ends
Certifications: CE, VDE, EAC

Application and Technical Compatibility:
This motor is optimized for integration into commercial refrigeration equipment, cold rooms, and supermarket display cabinets. The sleeve bearing system is designed to handle low-temperature environments down to -30 °C without lubricant degradation, preventing premature bearing failure. The motor’s mounting configuration ensures seamless technical compatibility with standard ebm-papst wall rings and guard grilles. For procurement planning, please contact our sales department to verify current lead time and bulk availability.

Key Attributes
Voltage: 230(V)
Mounting type: Free Standing
Type: MOTOR
Warranty: 1 Year
Power Source: Electric
Blade material: Cast Iron
Bearing type: Sleeve Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: M4Q045-CF01-04
Frequency: 50/60Hz
Power: 16W
Speed: 1300/1550RPM
Current: 0.42/0.36A
Bearing Type: Sleeve bearing
Weight: 1.3kg
Type: Axial Flow Fan

Packaging and Delivery
Selling Units: Single item
Single package size: 32X32X25 cm
Single gross weight: 2.500 kg

ebmpapst M4Q045-CF01-04 230V AC 0.36A 1550RPM 16W Sleeve Bearing Refrigeration Equipment Shaded-Pole Motor Fan

ebmpapst M4Q045-CF01-04 230V AC 0.36A 1550RPM 16W Sleeve Bearing Refrigeration Equipment Shaded-Pole Motor Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
