ebmpapst R2E225-RA92-23 230V 2600rpm 225w Fan AC Fan
ebmpapst R2E225-RA92-23 230V 2600rpm 225w Fan AC Fan
ebmpapst R2E225-RA92-23 230V 2600rpm 225w Fan AC Fan

ebmpapst R2E225-RA92-23 230V 2600rpm 225w Fan AC Fan

$49.00

SKU: 1601454497178Brand:

Description

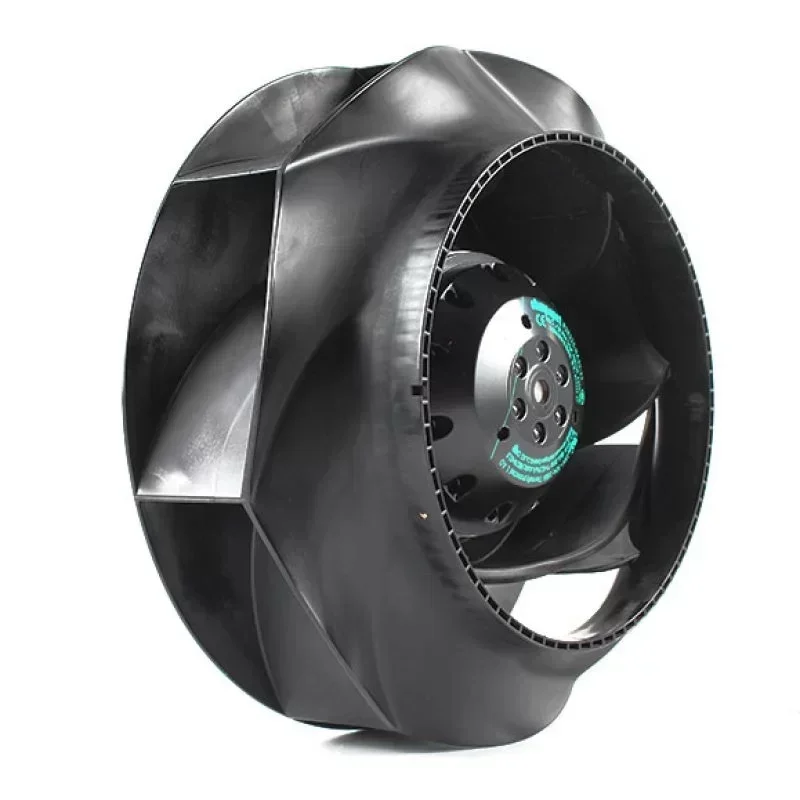

The ebmpapst R2E225-RA92-23 is a high-performance, backward-curved AC centrifugal fan engineered for demanding thermal management applications. Featuring Original Engineering design principles, this single-inlet fan utilizes a maintenance-free ball bearing system to ensure long-term operational reliability in continuous-duty environments. The aerodynamic impeller geometry is optimized to deliver high air flow rates against high static pressure, making it ideal for server enclosures, control cabinets, and ventilation systems.

Technical Specifications:

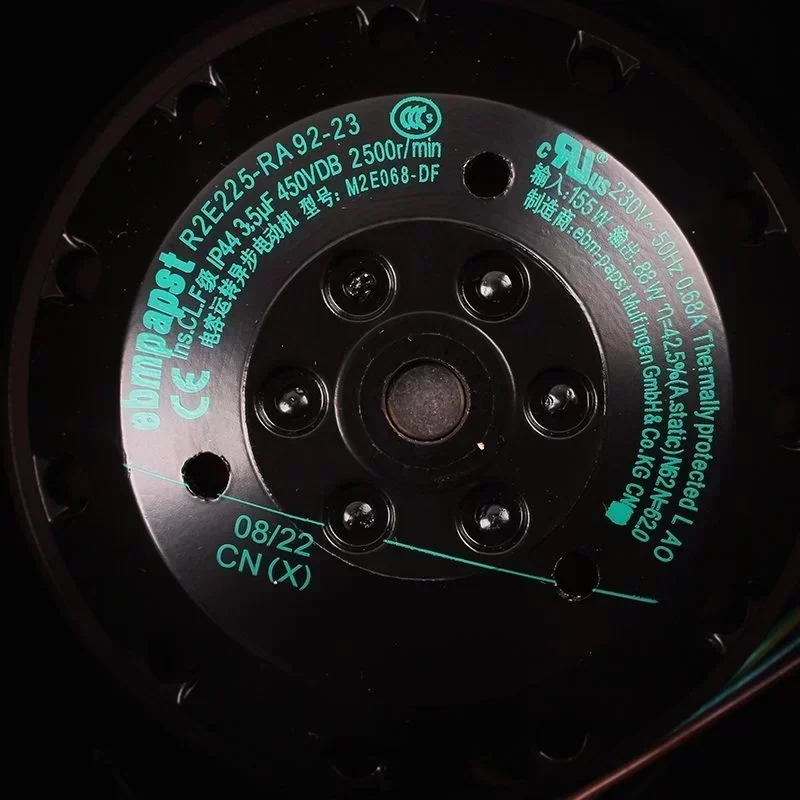

Manufacturer: ebmpapst
Model Number: R2E225-RA92-23
Motor Type: M2E068-DF
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Speed: 2600 rpm (50 Hz) / 2700 rpm (60 Hz)
Power Consumption: 220 W (50 Hz) / 225 W (60 Hz)
Current Draw: 0.98 A (50 Hz) / 1.0 A (60 Hz)
Required Capacitor: 6.0 µF / 450 VDB
Air Flow Rate: 1200 m³/h
Impeller Diameter: Ø 225 mm
Bearing Type: Maintenance-free ball bearings
Insulation Class: F
Degree of Protection: IP44
Weight: 2.0 kg
Impeller Material: PA plastic, fiberglass-reinforced
Direction of Rotation: Clockwise, viewed toward rotor
Number of Blades: 7

Technical Compatibility and Industrial Application:
This unit features direct Technical Compatibility with standard industrial cabinet ventilation systems, HVAC air conditioning units, and electronic cooling racks. Its robust construction allows it to operate efficiently within an ambient temperature range of -25 °C to +55 °C. In industrial automation, the R2E225-RA92-23 solves critical heat dissipation issues in sealed control panels, preventing component degradation due to thermal stress.

Procurement and Lead Time:
For system integration and maintenance cycles, please contact sales to confirm current Lead Time and bulk availability.

Key Attributes
Voltage: 230 V
Blade Material: Aluminum Alloy
Speed: 2600RPM
Type: Backward Curved Blade Radial Fan
Customized support: OEM, ODM
After-sales Service Provided: Online support
Warranty: 1 Year
Place of origin: Germany
Brand name: Ebmpapst
Model number: R2E225-RA92-23
Type: R2E225-RA92-23
Voltage: 230v
Frequency: 60hz
Speed: 2600rpm
Power input: 225w
Current draw: 0.95A
Min. ambient temperature: -25℃
Max. ambient temperature: 65℃
Motor bearing: Ball bearing
Warranty: 1 year

Packaging and Delivery
Selling Units: Single item
Single package size: 27.5X27.5X19 cm
Single gross weight: 3.500 kg

ebmpapst R2E225-RA92-23 230V 2600rpm 225w Fan AC Fan

ebmpapst R2E225-RA92-23 230V 2600rpm 225w Fan AC Fan

ebmpapst R2E225-RA92-23 230V 2600rpm 225w Fan AC Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
