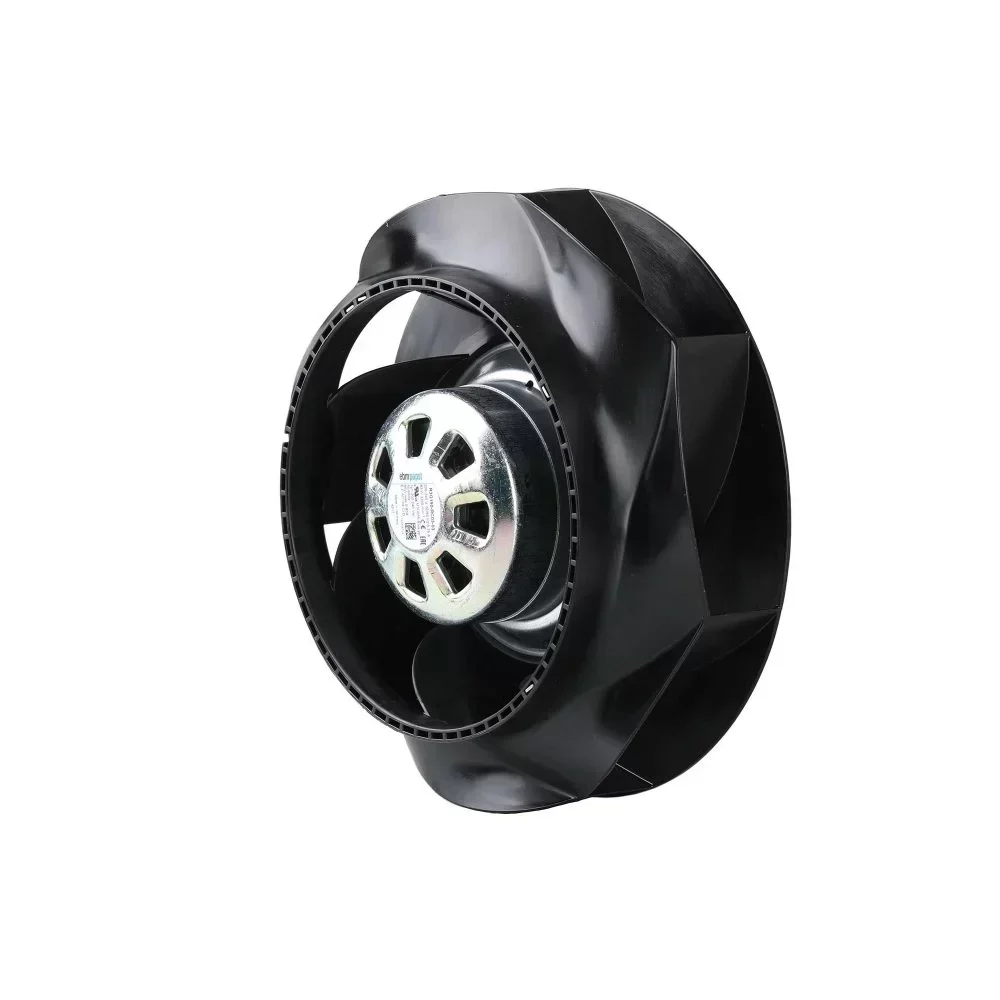

ebmpapst R3G190-RC05-03 Centrifugal Fan with Plastic Blades 230V Voltage ebmpapst Type
ebmpapst R3G190-RC05-03 Centrifugal Fan with Plastic Blades 230V Voltage ebmpapst Type
ebmpapst R3G190-RC05-03 Centrifugal Fan with Plastic Blades 230V Voltage ebmpapst Type

ebmpapst R3G190-RC05-03 Centrifugal Fan with Plastic Blades 230V Voltage ebmpapst Type

$173.00

SKU: 60827353915 Brand:

Description

The ebm-papst R3G190-RC05-03 is a high-efficiency EC centrifugal fan featuring a backward-curved motorized impeller design. Engineered for Original Engineering precision, this unit provides optimal aerodynamic performance and acoustic efficiency for demanding industrial ventilation and cooling systems. With guaranteed Technical Compatibility for direct integration into existing ebm-papst architectures, this fan ensures minimal downtime and optimized Lead Time for critical maintenance cycles.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: R3G190-RC05-03
Fan Type: Centrifugal, Backward Curved, Single Inlet
Motor Technology: Electronically Commutated (EC)
Nominal Voltage: 230 VAC (200-240 VAC)
Frequency: 50/60 Hz
Impeller Diameter: Ø 190 mm
Nominal Speed: 3200 RPM
Power Consumption: 85 W
Max Airflow: 680 m³/h
Control Interface: 0-10V / PWM
Protection Class: IP54
Insulation Class: B
Motor Bearings: Maintenance-free Ball Bearings

Material & Environmental Data:
Impeller Material: PA plastic, fiberglass-reinforced
Rotor Surface: Thick-film passivated
Operating Temperature Range: -25°C to +60°C
Weight: 1.4 kg
Certifications: CE, UL, CSA, EAC

Application Scenario:
The R3G190-RC05-03 is specifically designed for precision climate control in IT server racks, telecommunications base stations, and compact heat exchangers. Its backward-curved plastic blades prevent dust accumulation while maintaining high static pressure, solving the critical problem of thermal throttling in densely packed electronic enclosures where space is limited and continuous, variable-speed airflow is mandatory.

Mounting: Any
Voltage: 230V
Blade Material: Plastic
Warranty: 1 Year
After-sales Service Provided: Online support
Model number: R3G190-RC05-03
Place of origin: Germany
Brand name: Ebmpapst
Product name: Ebmpapst centrifugal fan
Motor: R3G190-RC05-03
Size: 190 mm
Color: Black
Bearing: Ball Bearng
Weight: 1.1kg
Frequency: 50/60HZ
Certification: CCC
Type: Centrifugal Fan
Selling Units: Single item
Single package size: 20X20X12 cm
Single gross weight: 1.500 kg

ebmpapst R3G190-RC05-03 Centrifugal Fan with Plastic Blades 230V Voltage ebmpapst Type

ebmpapst R3G190-RC05-03 Centrifugal Fan with Plastic Blades 230V Voltage ebmpapst Type

ebmpapst R3G190-RC05-03 Centrifugal Fan with Plastic Blades 230V Voltage ebmpapst Type

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
