$1,498.00

SKU: 1600855845495 Brand:

Description

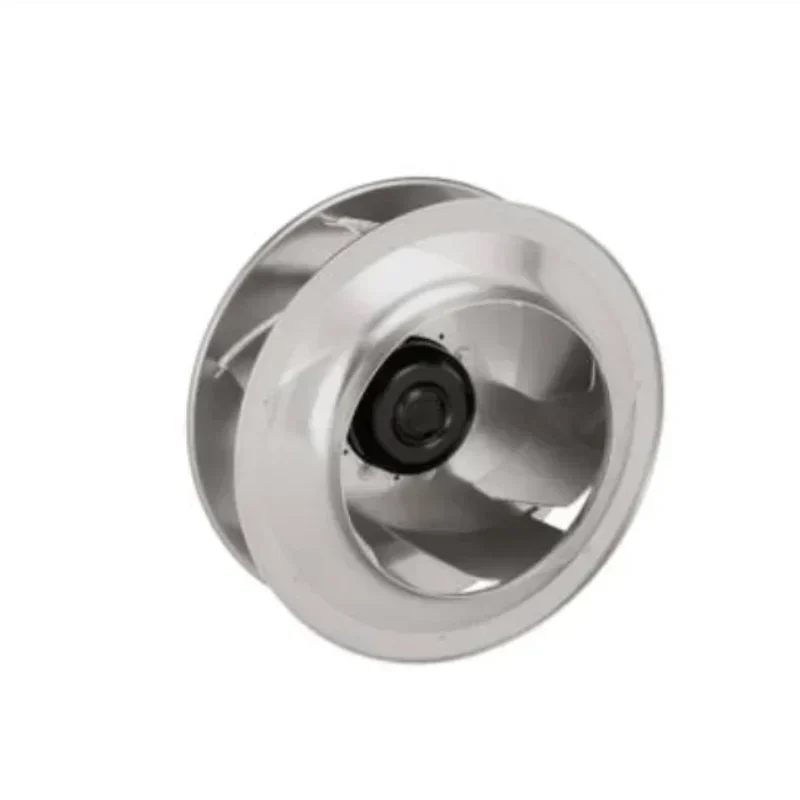

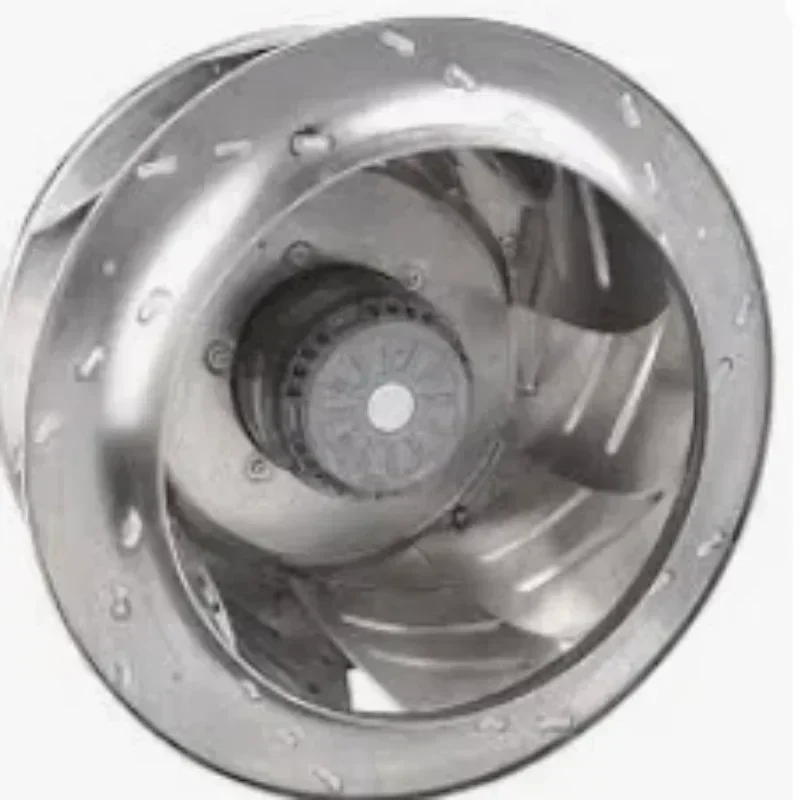

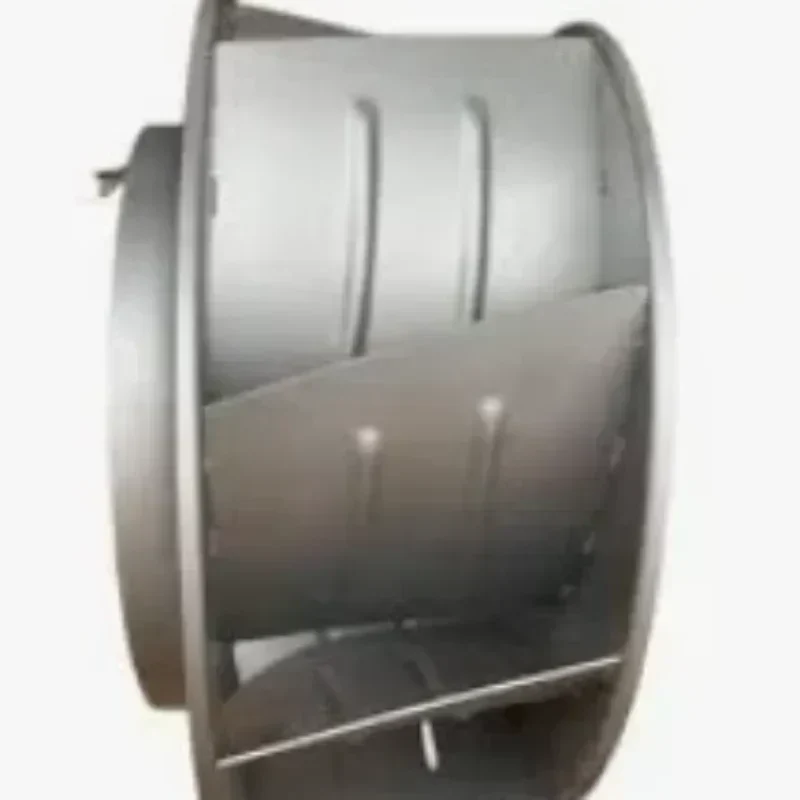

The ebm-papst R3G450-AQ24-01 is a high-performance EC centrifugal fan engineered specifically for demanding Air Handling Units (AHU) and industrial HVAC applications. Featuring a backward-curved 450mm impeller and driven by the advanced M3G150-FF electronically commutated motor, this unit delivers exceptional aerodynamic efficiency and precise airflow control.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: R3G450-AQ24-01
Motor Model: M3G150-FF
Fan Type: EC Centrifugal Fan (Backward Curved)
Nominal Voltage: 400V AC (3-phase, 380-480V)
Power Consumption: 2730W
Nominal Current: 4.2A
Impeller Diameter: Ø 450mm
Bearing System: High-precision Ball Bearing
Degree of Protection: IP54
Insulation Class: F
Motor Protection: Locked-rotor and thermal overload protection
Operating Temperature Range: -25°C to +60°C
Weight: 24.5 kg

Engineering & Design Features:
Equipped with integrated control electronics, the R3G450-AQ24-01 allows for seamless 0-10V or MODBUS speed control, ensuring optimal energy utilization under varying load conditions. The IP54 rating guarantees robust protection against dust and water ingress, making it suitable for harsh industrial environments. The dynamically balanced aluminum impeller minimizes acoustic noise and vibration, extending the operational lifespan of the ball bearing system.

Industrial Applications:
This centrifugal cooling fan is critical for Air Handling Units (AHU), data center cooling infrastructure, cleanroom ventilation, and large-scale heat exchangers. Its precise airflow modulation solves the challenge of maintaining strict environmental parameters while minimizing energy consumption in continuous-duty cycles.

Procurement & Lifecycle Value:
Guaranteed Original Engineering directly from the manufacturer. Please contact our technical sales team to verify Technical Compatibility with your existing HVAC infrastructure, request dimensional drawings, and confirm current Lead Time for project planning.

Key Attributes
Mounting: Free Standing
Voltage: 400V
Blade Material: Aluminium sheet
Customized support: OEM, ODM
Warranty: 1 Year
After-sales Service Provided: Online support
Model number: R3G450-AQ24-01
Place of origin: Germany
Brand name: Ebmpapst
Motor: M3G150-FF
Bearing Type: Ball Bearing
Current: 4.2A
Frequency: 50~60Hz
Degree of protection: IP54
Power: 2730W
Weight: 20.42 kg
Size: 450 mm
Electronics housing material: Die-cast aluminum
Direction of rotation: Clockwise, seen on rotor

Packaging and Delivery
Selling Units: Single item
Single package size: 65X65X45 cm
Single gross weight: 68.000 kg

ebmpapst R3G450-AQ24-01 400V AC 2730W 4.2A M3G150-FF 450mm IP54 AHU Air Handling Unit Centrifugal Fan

ebmpapst R3G450-AQ24-01 400V AC 2730W 4.2A M3G150-FF 450mm IP54 AHU Air Handling Unit Centrifugal Fan

ebmpapst R3G450-AQ24-01 400V AC 2730W 4.2A M3G150-FF 450mm IP54 AHU Air Handling Unit Centrifugal Fan

ebmpapst R3G450-AQ24-01 400V AC 2730W 4.2A M3G150-FF 450mm IP54 AHU Air Handling Unit Centrifugal Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
