Description

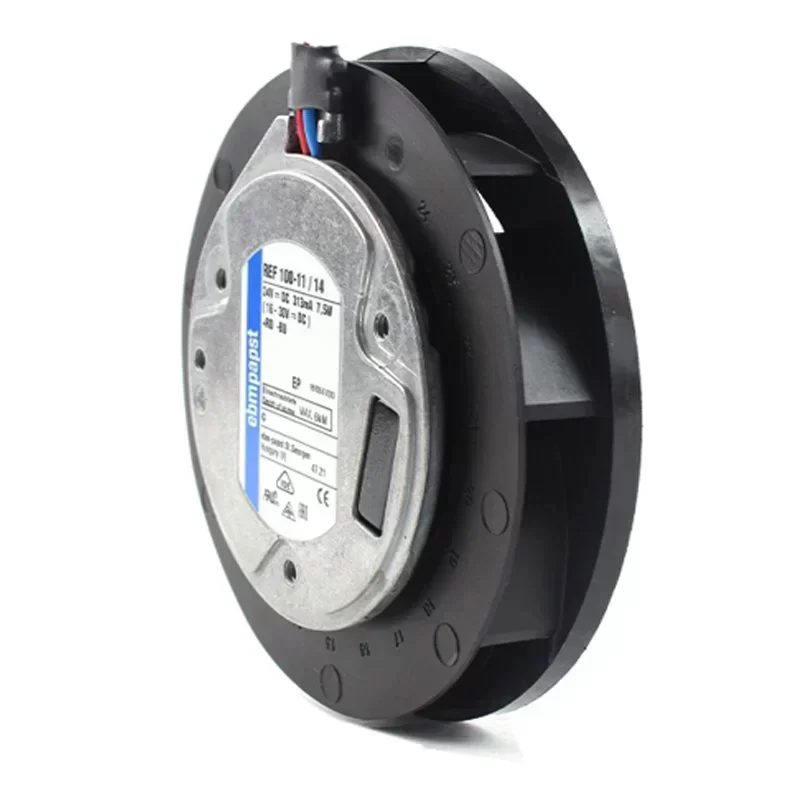

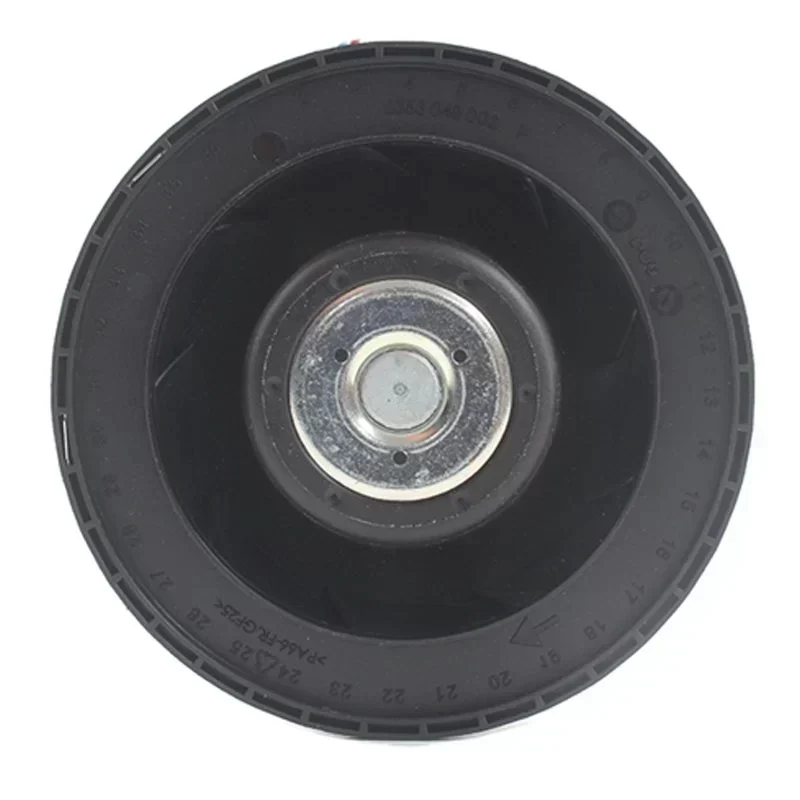

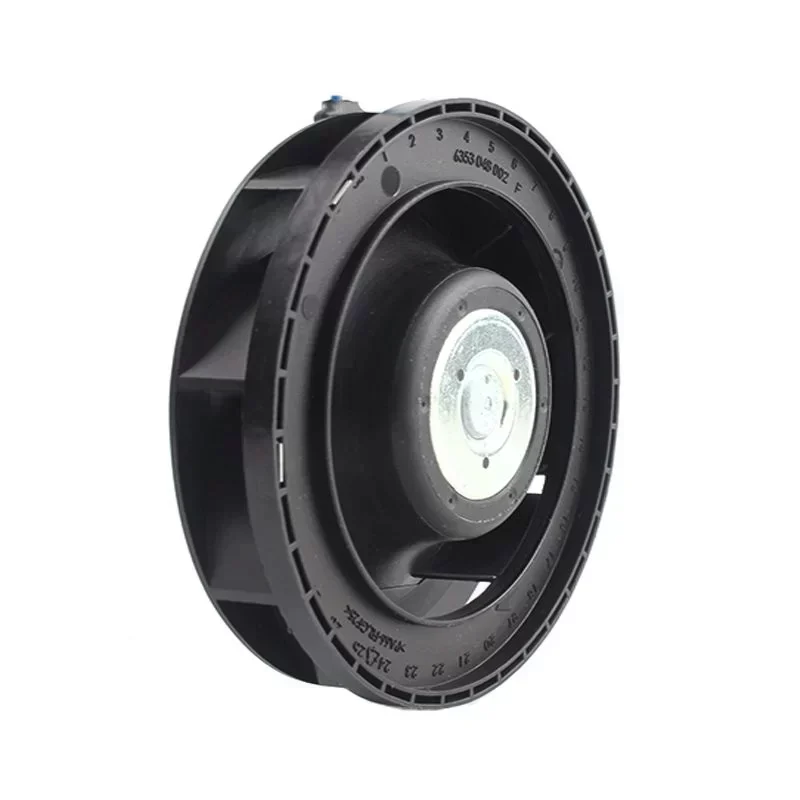

The ebmpapst REF100-11/14 is a precision-engineered DC Centrifugal Fan designed for Air Purification and Thermal Management. This Radial Blower offers robust performance in critical automation and HVAC environments.
REF100-11/14 Key Features
- Industrial Grade: Constructed with a durable metal housing and glass-fiber reinforced plastic impeller for extended operational life.
- High Performance: Delivers high static pressure and airflow efficiency with a power consumption of 7.5W.
- Connectivity: Features standard flying lead termination for seamless integration into DC power circuits.
- Reliability: Equipped with maintenance-free ball bearings ensuring a high L10 life expectancy under continuous operation.
Technical Specifications for REF100-11/14
Comprehensive engineering data for verification:
| Part Number | REF100-11/14 |
| Manufacturer | ebmpapst |
| Product Type | Centrifugal Fan / Radial Blower |
| Nominal Voltage | 24 VDC |
| Voltage Range | 12 – 28 VDC |
| Power Consumption | 7.5 W |
| Current Draw | 0.31 A (Approx.) |
| Impeller Diameter | 100 mm |
| Bearing System | Ball Bearing |
| Motor Type | Brushless DC Motor (BLDC) |
| Rotational Speed | 4800 RPM (Nominal) |
| Airflow Direction | Radial / Centrifugal |
| Operating Temperature | -20°C to +70°C |
| Housing Material | Die-Cast Metal / Galvanized Steel |
| Impeller Material | PA Plastic (Glass-fiber reinforced) |
| Electrical Connection | 2-Wire Leads (AWG 24) |
| Motor Protection | Locked-rotor protection / Reverse Polarity |
| Noise Level | 52 dBA |
| Weight | 0.45 kg |
| Country of Origin | Germany |
Industrial Applications
Frequently deployed in Medical Air Filtration, Electronics Cabinet Cooling, and Compact Ventilation Systems. This unit is critical for controlling thermal buildup in high-density enclosures.
Installation & Quality Assurance
This REF100-11/14 is a genuine spare part. Please refer to the official ebmpapst manual for wiring diagrams and firmware configuration.
Key Attributes
Mounting: Free Standing
Voltage: 24V
Blade Material: Plastic
Electric Current Type: DC
Customized support: OEM, ODM
Warranty: 1 Year
After-sales Service Provided: Online support
Model number: REF100-11/14
Place of origin: Germany
Brand name: Ebmpapst
Size: 100mm
Voltage: 24V
Power: 7.5W
Speed: 5400RPM

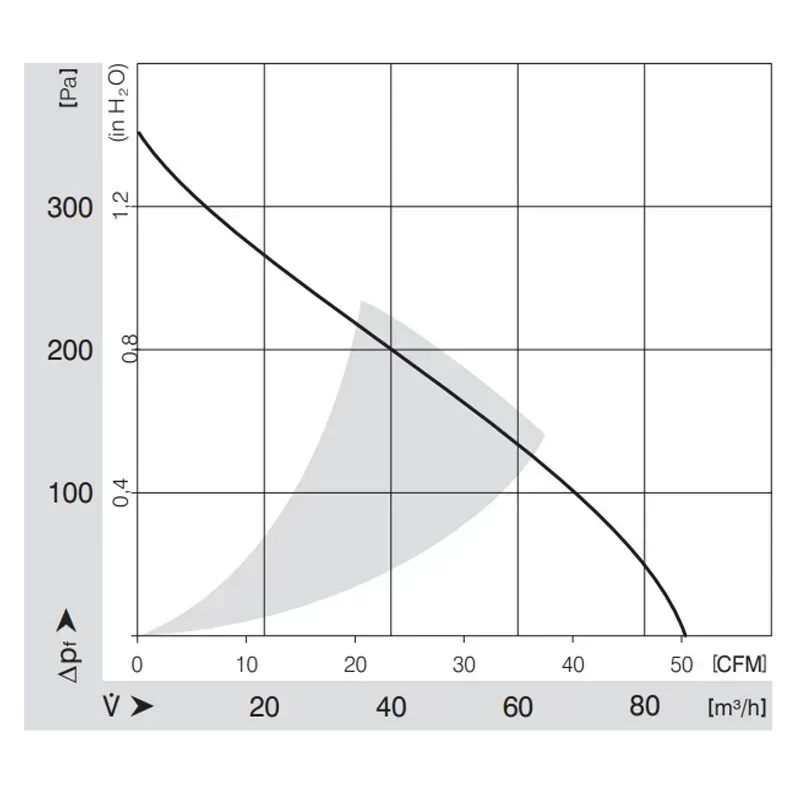

Air Flow: 86m³/h
Packaging and Delivery
Selling Units: Single item
Single package size: 10.4X10.4X2.5 cm
Single gross weight: 0.160 kg
