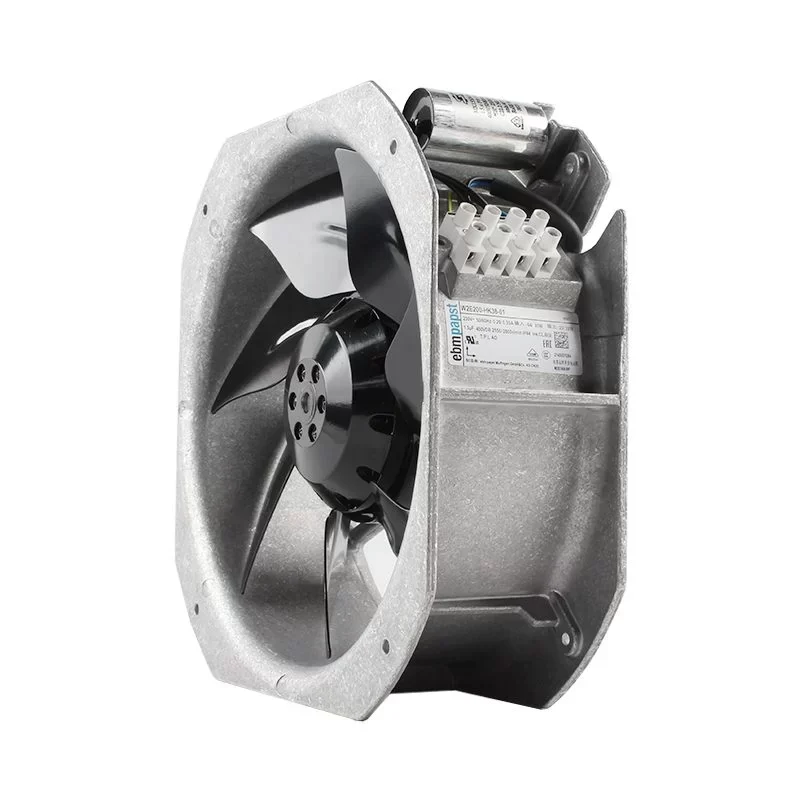

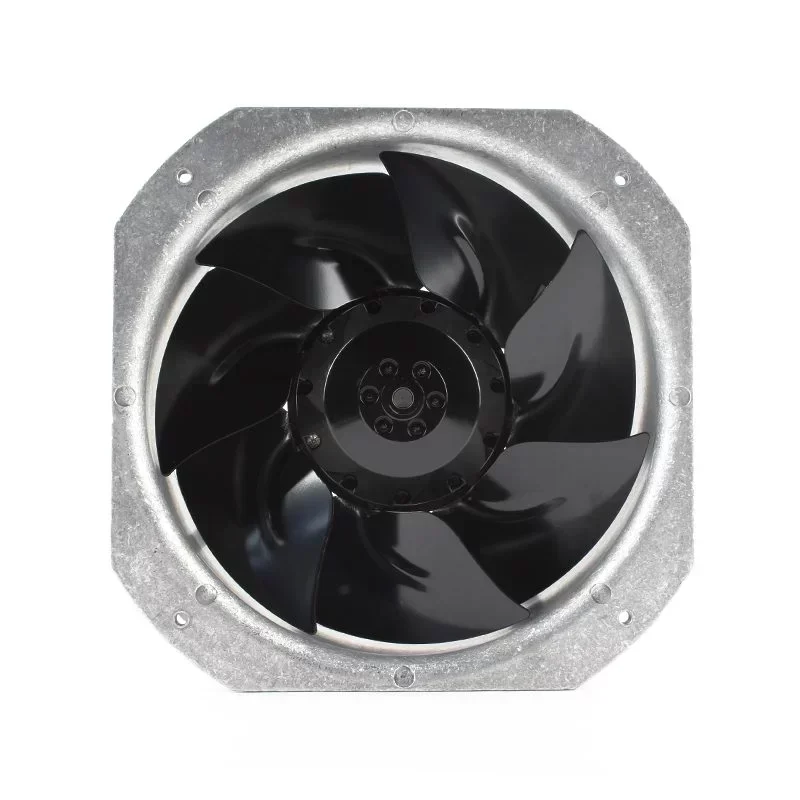

Ebmpapst W2E200-HK38-01 80W 2800rpm 230V Axial Fan
Ebmpapst W2E200-HK38-01 80W 2800rpm 230V Axial Fan
Ebmpapst W2E200-HK38-01 80W 2800rpm 230V Axial Fan

Ebmpapst W2E200-HK38-01 80W 2800rpm 230V Axial Fan

$39.60

SKU: 1601430654068 Brand:

Description

The Ebmpapst W2E200-HK38-01 is a high-performance thermal management solution utilizing Original Engineering to deliver high static pressure and efficient airflow. The external rotor motor design allows for a compact footprint while maintaining high torque and low vibration levels. This unit is specifically optimized for Technical Compatibility with industrial drying tunnels, heat exchangers, and high-density electrical enclosures where consistent heat dissipation is critical for component longevity.

Manufacturer: Ebmpapst
Model Number: W2E200-HK38-01
Motor Designation: M2E068-CF
Product Category: AC Axial Fan

ELECTRICAL PARAMETERS
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Power Consumption: 64 / 80 W
Speed: 2800 / 3150 min⁻¹
Current Draw: 0.29 / 0.35 A
Capacitor Requirement: 1.5 µF / 450 VDB
Motor Type: 1-phase 2-pole external rotor motor
Insulation Class: B
Protection Class: IP20

MECHANICAL & MATERIAL SPECIFICATIONS
Airflow Volume: 925 / 1030 m³/h
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Bearing Type: Maintenance-free ball bearings
Housing Material: Die-cast aluminum, coated in black
Impeller Material: Sheet steel, painted black
Number of Blades: 7
Weight: 2.1 kg
Dimensions: 225 x 225 x 80 mm

ENVIRONMENTAL & OPERATIONAL LIMITS
Operating Temperature Range: -25 °C to +60 °C
Max. Permissible Ambient Motor Temp: +80 °C
Approvals: EN 60335-1, CE, VDE, UL, CSA

INDUSTRIAL APPLICATION SCENARIO
In industrial drying and heating equipment, the W2E200-HK38-01 serves as a primary air circulation component. Its robust die-cast aluminum housing resists thermal expansion, ensuring blade-to-housing clearances remain within tolerance during high-temperature operation. The integration of maintenance-free ball bearings allows for continuous 24/7 operation in harsh process environments, minimizing unplanned maintenance cycles. Global Lead Time for this model is subject to regional stock levels; technical procurement teams should verify current availability for large-scale system integration.

Key Attributes
Voltage: 230 V
Material: Aluminum Alloy
Speed: 2800 RPM
Mounting type: Other
Type: Ac axial fan
Warranty: 1 Year
Power Source: Electric
Blade material: Aluminum Alloy
Bearing type: Balling bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: W2E200-HK38-01
Type: W2E200-HK38-01
Voltage: 230V
Frequency: 60Hz
Speed: 2800rpm
Power: 80W
Motor: M2E068-BF
Capacitor standard: P0(CE)
Warranty: 1 year
After-sales Service Provided: Online support
Size: 32X36X34 cm

Packaging and Delivery
Selling Units: Single item
Single package size: 27.5X27.5X19 cm
Single gross weight: 3.000 kg

Ebmpapst W2E200-HK38-01 80W 2800rpm 230V Axial Fan

Ebmpapst W2E200-HK38-01 80W 2800rpm 230V Axial Fan

Ebmpapst W2E200-HK38-01 80W 2800rpm 230V Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
