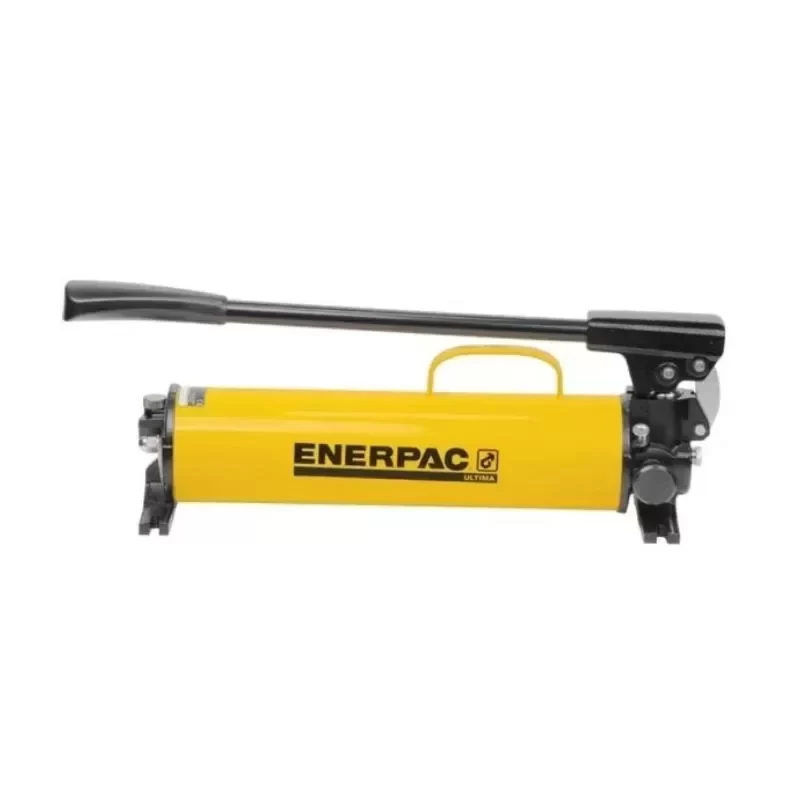

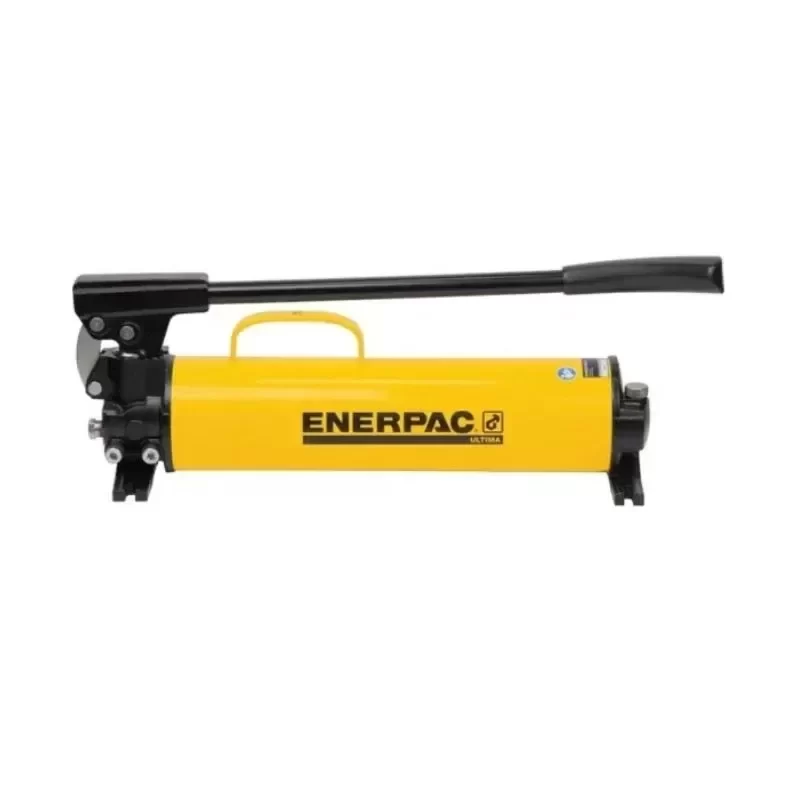

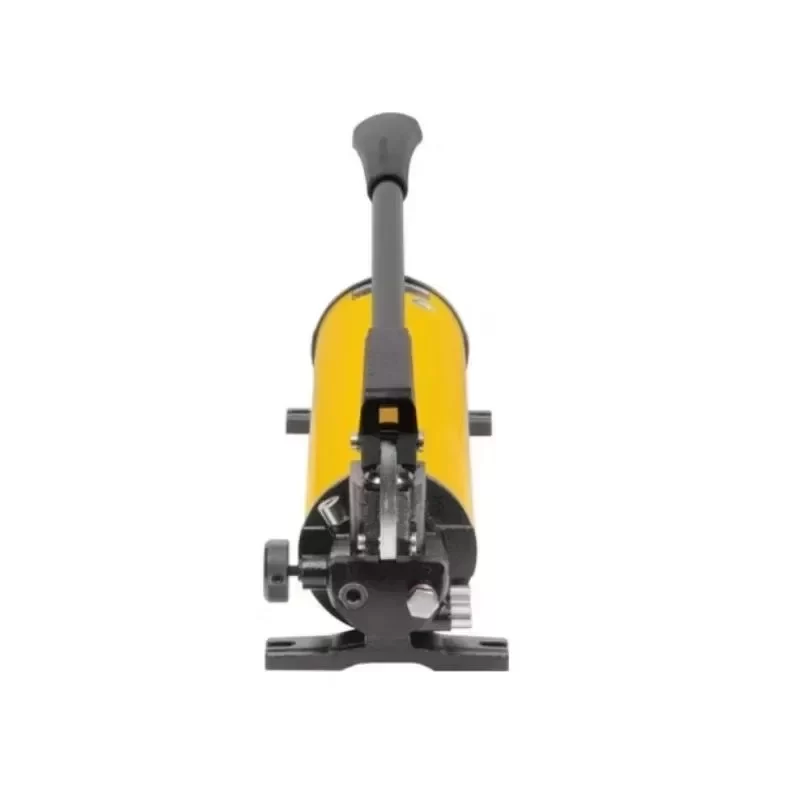

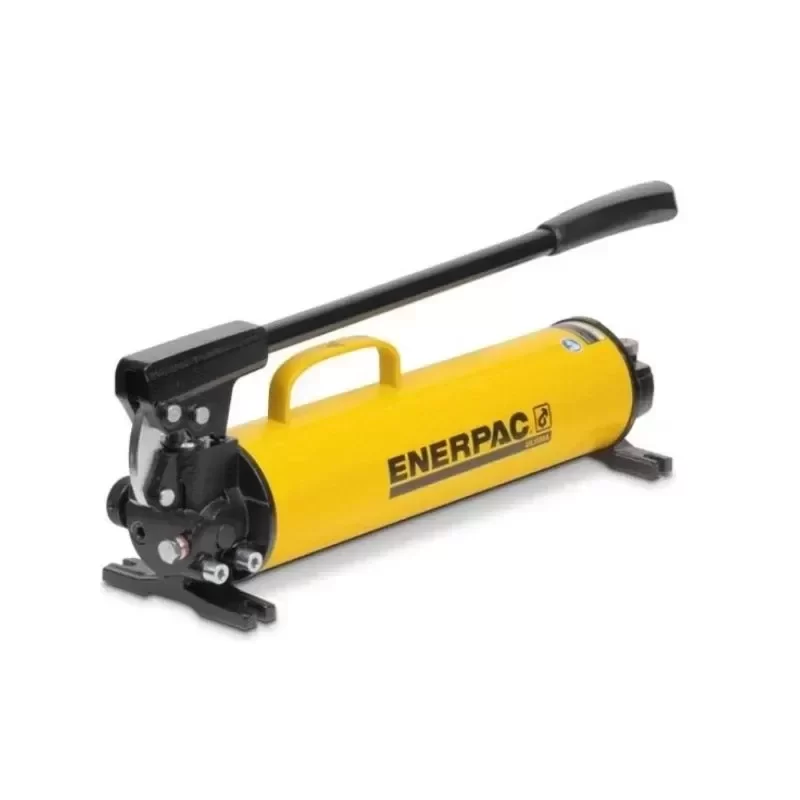

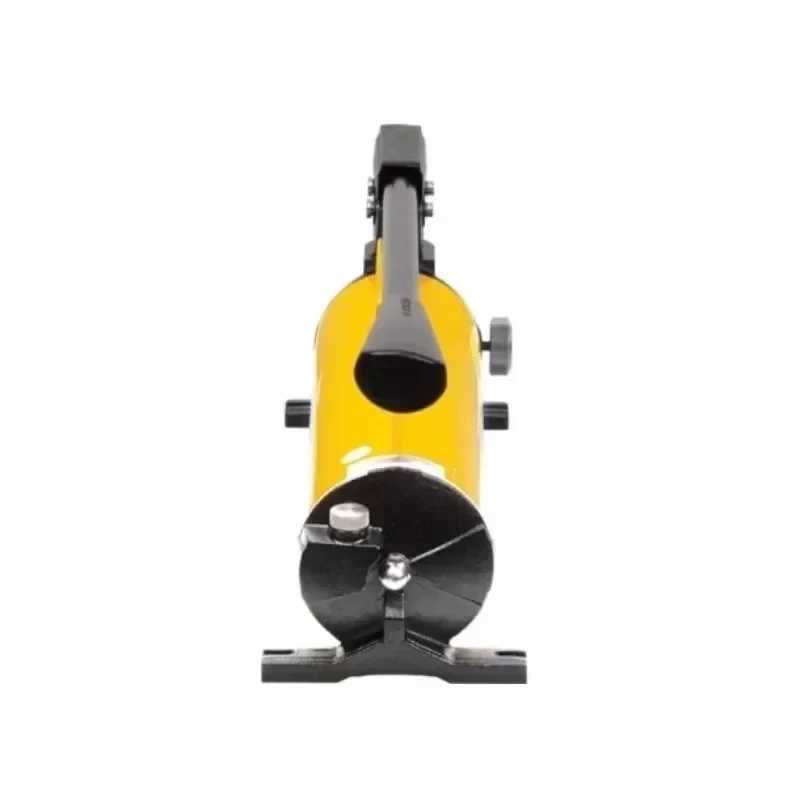

Enerpac P80 Two-Speed ULTIMA Steel Hydraulic Hand Pump with Electronic Power

Description

Enerpac P80 Two-Speed ULTIMA Steel Hydraulic Hand Pump

TECHNICAL PROFILE
Brand: Enerpac
Model: P80
Pump Type: Two-Speed Manual Hydraulic
Reservoir Material: High-Strength Alloy Steel
Maximum Operating Pressure Stage 1: 25 bar
Maximum Operating Pressure Stage 2: 700 bar
Usable Oil Capacity: 2200 cm³
Oil Displacement Stage 1: 16.39 cm³ per stroke
Oil Displacement Stage 2: 2.46 cm³ per stroke
Maximum Handle Effort: 35.4 kg
Stroke Length: 25.4 mm
Outlet Port Thread: 3/8-18 NPTF
Valve Configuration: 3-way, 2-position manual bypass
Weight: 11.1 kg
Certifications: ISO 9001, ASME B30.1
Technical Compatibility: Optimized for single-acting cylinders and compatible with electronic pressure transducers for digital monitoring

SYSTEM ARCHITECTURE AND ORIGINAL ENGINEERING
The Enerpac P80 is engineered with a dual-stage displacement mechanism designed to optimize operational efficiency. The first stage delivers high-flow output at low pressure to rapidly advance the cylinder plunger. Upon contact with the load, the pump automatically bypasses to the second stage, shifting to high-pressure, low-flow displacement to minimize operator fatigue and maximize force output. The rugged steel reservoir provides structural rigidity and thermal dissipation under high-cycle conditions. This unit features integrated mounting holes and an ergonomic handle design that reduces operator stroke fatigue by up to 78 percent compared to single-speed alternatives. To support modern digital workflows, the pump head accommodates electronic pressure transducers, enabling real-time data logging and electronic power monitoring integration.

CRITICAL INDUSTRIAL APPLICATION SCENARIO
In remote structural engineering environments, such as bridge post-tensioning or heavy infrastructure lifting, access to reliable electrical power is often restricted. The Enerpac P80 solves this critical challenge by combining manual hydraulic reliability with electronic data precision. Operators utilize the P80 to actuate single-acting high-tonnage cylinders while an inline electronic transducer monitors exact pressure thresholds. The high-capacity steel reservoir ensures sufficient oil volume to drive multiple cylinders simultaneously, while the dual-stage system allows rapid positioning before high-pressure calibration begins. This setup guarantees precise, documented load application without relying on external power grids.

PROCUREMENT AND LOGISTICS
This product is manufactured to exact OEM standards, ensuring long-term operational life and minimal maintenance overhead. Contact our sales department to verify current Lead Time, global shipping options, and custom system integration packages.

Key Attributes
Type: Hydraulic hand pump
Accuracy: 2%
Place of origin: China
Customized support: No
Power: 134
Protection Class: IP65
Voltage: Other
Logo/graphic design: 3D Printing
Brand name: ENERPAC
Warranty: 1 years
Maximum Operating Pressure (psi): 10,000
Pressure Rating (psi) 1st Stage: 500
Pump Type: Two Speed
Maximum Flow at Rated Pressure: 15 in3/stroke
Weight (lbs): 23.6
Power: Electronic

Packaging and Delivery
Selling Units: Single item
Single package size: 43X21X15 cm
Single gross weight: 12.000 kg
