Description

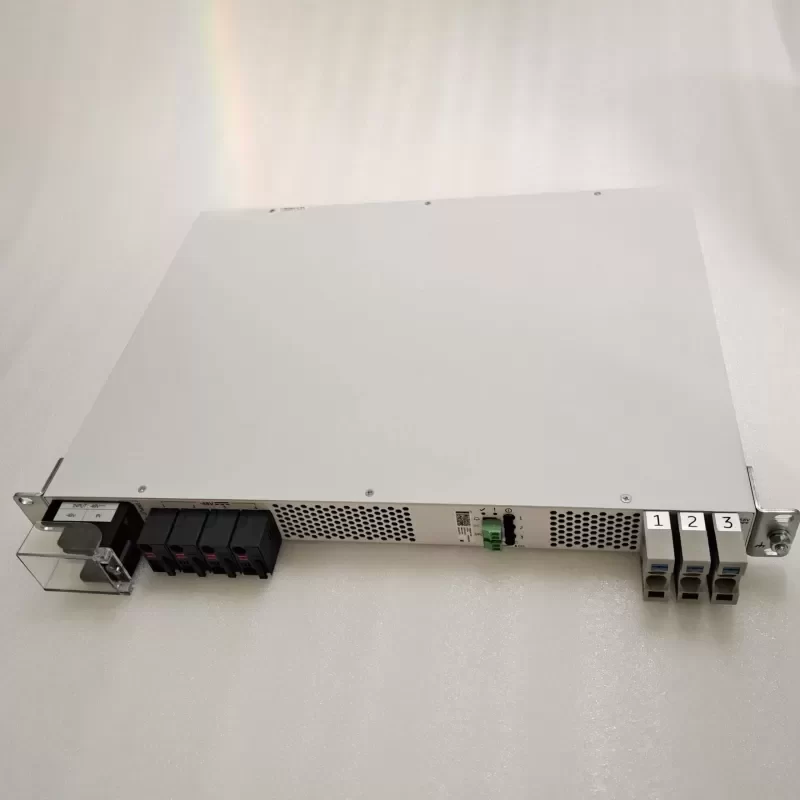

The Ericsson PDU 02 03 (Product Number: BMG 907 159/1) is a high-precision Power Distribution Unit engineered specifically for the RBS 6000 series base station cabinets. This unit serves as the primary electrical interface, providing robust circuit protection and DC power distribution to critical radio frequency (RF) and digital processing modules.
Technical Specifications:
Manufacturer: Ericsson
Model: PDU 02 03
Part Number: BMG 907 159/1
Input Voltage Range: -40V DC to -57V DC
Nominal Voltage: -48V DC
Input Current Maximum: 200A
Output Channels: 12-way distribution configuration
Circuit Protection: Integrated hydraulic-magnetic circuit breakers
Breaker Ratings: Configurable per load requirements (typically 10A to 30A per channel)
Form Factor: 1U Rack Mountable / Cabinet Integrated
Dimensions: 445mm x 44mm x 250mm
Weight: 3.8 kg
Material Composition: Galvanized steel chassis with high-conductivity copper busbars
Operating Temperature: -33°C to +55°C
Storage Temperature: -40°C to +70°C
Relative Humidity: 5% to 95% non-condensing
Environmental Rating: IP20
Certifications: CE, RoHS Compliant, UL Listed, NEBS Level 3
Technical Compatibility and Integration:
The BMG 907 159/1 is designed for seamless integration within Ericsson RBS 6101, 6102, and 6201 macro site enclosures. It utilizes standardized terminal blocks for secure DC connectivity, ensuring minimal voltage drop across the distribution network. This unit is essential for maintaining Original Engineering standards during site upgrades or maintenance cycles.
Industrial Application Scenario:
In high-capacity LTE and 5G telecommunications infrastructure, power stability is critical to prevent site downtime. The PDU 02 03 solves the problem of erratic power delivery by providing isolated circuit protection. If a single Remote Radio Unit (RRU) experiences a short circuit, the PDU 02 03 trips only the affected branch, preserving the operational integrity of the remaining network elements.
Logistics and Lifecycle:
Condition: New / Refurbished available
Lead Time: Typically 3-5 business days for standard global shipping
Lifecycle Status: Active support for legacy and current RBS deployments
Key Attributes
Model Number: PDU 02 03 BMG 907 159/1
Place of Origin: Guangxi, China
Brand Name: Ericsson
Condition: Un Used
Gross weight: 8.50kg
External dimension: 60mm*49mm*13mm
Stock quantit: 337pieces
Qty Available: 2000pieces
Packaging and Delivery
Selling Units: Single item
