Description

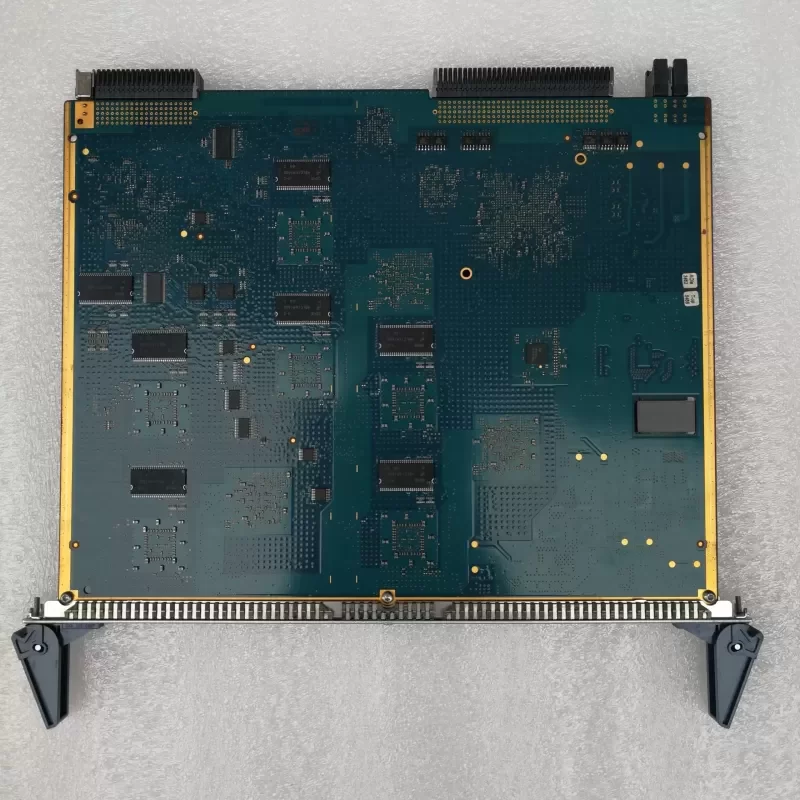

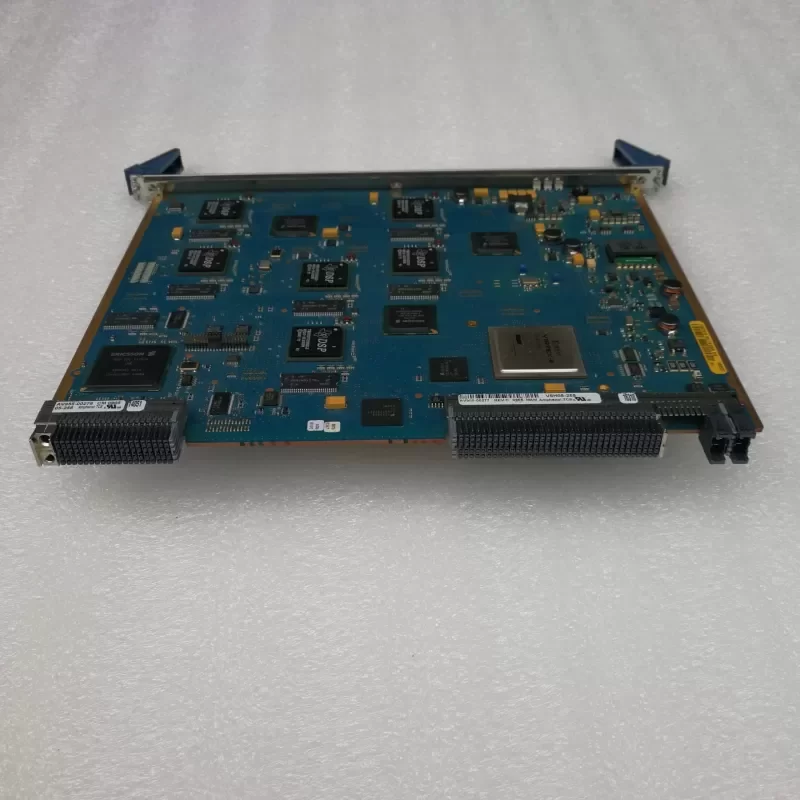

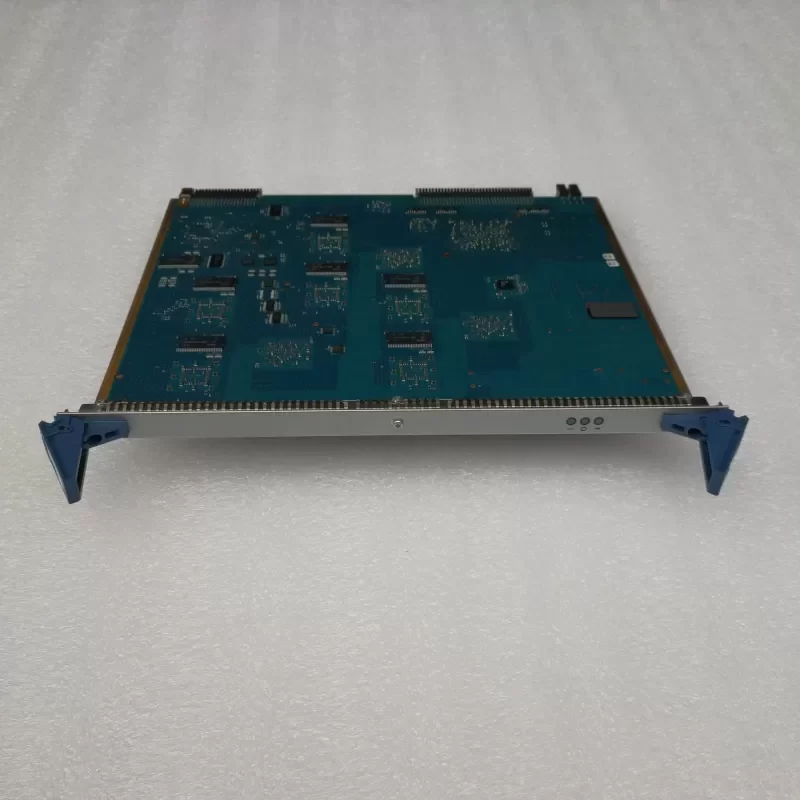

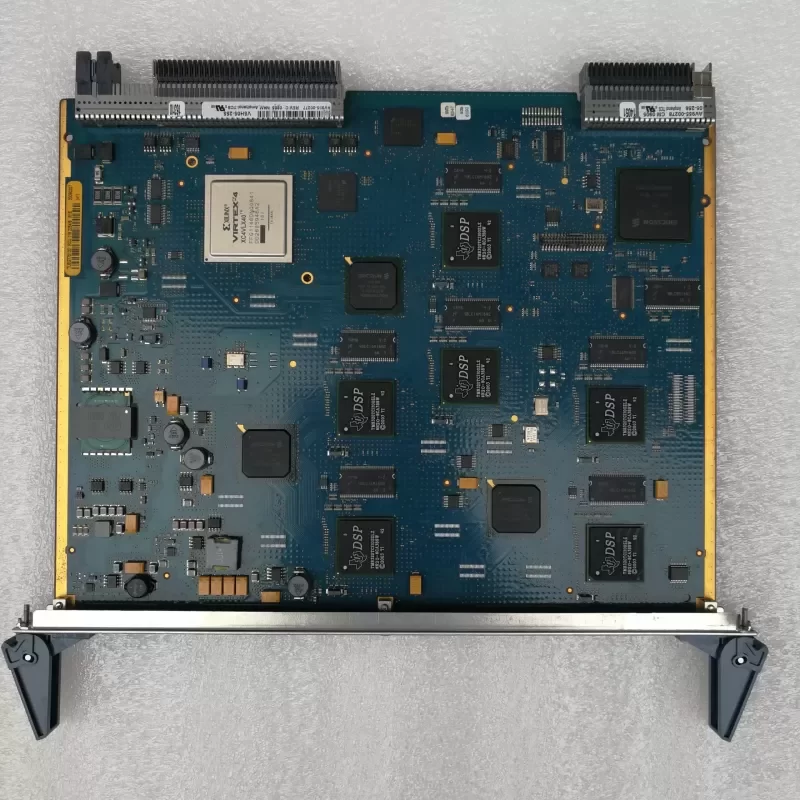

The Ericsson ROJ 119 2254/6 (TX6HS-06) is an OEM transmitter processing module engineered specifically for the Ericsson RBS 3418 Main-Remote WCDMA/HSPA base station architecture. As a critical component in the radio access network (RAN), this unit manages high-speed downlink packet access (HSDPA) transmission protocols, ensuring high-fidelity signal processing and seamless optical baseband interfacing with Remote Radio Units (RRU).
TECHNICAL SPECIFICATIONS
Manufacturer: Ericsson
Part Number: ROJ 119 2254/6
Model Designation: TX6HS-06
Equipment Series: RBS 3000 (Specifically RBS 3418 NodeB)
Function: High-Speed Transmitter / Baseband Processing Board
Network Compatibility: WCDMA / HSPA
Interface Type: CPRI (Common Public Radio Interface) via Optical Fiber
Operating Temperature: -5°C to +45°C (Standard Indoor MU Environment)
Input Voltage: -48 VDC (via Main Unit backplane)
Weight: ± 1.2 kg
Compliance: 3GPP Release 6 standard compliant, CE, RoHS
SYSTEM ARCHITECTURE & INTEGRATION
Designed for the distributed architecture of the RBS 3418, the TX6HS-06 board slots directly into the Main Unit (MU) chassis. It operates in tandem with the Control Base Unit (CBU) to process baseband signals before routing them via CPRI optical links to the remote radio heads. This modular design allows for scalable capacity upgrades and targeted maintenance.
INDUSTRIAL APPLICATION
In high-density urban telecommunications environments, network operators rely on the RBS 3418 to distribute baseband processing away from the antenna site. The ROJ 119 2254/6 module solves critical capacity bottlenecks by enabling multi-carrier high-speed transmission. When a legacy TX board experiences hardware degradation, integrating this replacement ensures immediate restoration of cell site throughput without requiring a complete NodeB overhaul.
PROCUREMENT & LIFECYCLE DATA
Original Engineering: 100% authentic Ericsson OEM component.
Technical Compatibility: Fully verified for plug-and-play integration within Ericsson RBS 3418 Main Units. Requires standard Ericsson OSS-RC provisioning post-installation.
Lead Time: Optimized for rapid global deployment to minimize critical network downtime.
Key Attributes
Brand Name: ERICSSON
Place of Origin: Hubei, China
Model Number: ROJ 119 2254/6 TX6HS-06
Condition: Used
Version: R1E
Qty ln Stock: 1pieces
Qty Available: 50pieces
Packaging and Delivery
Selling Units: Single item
