Description

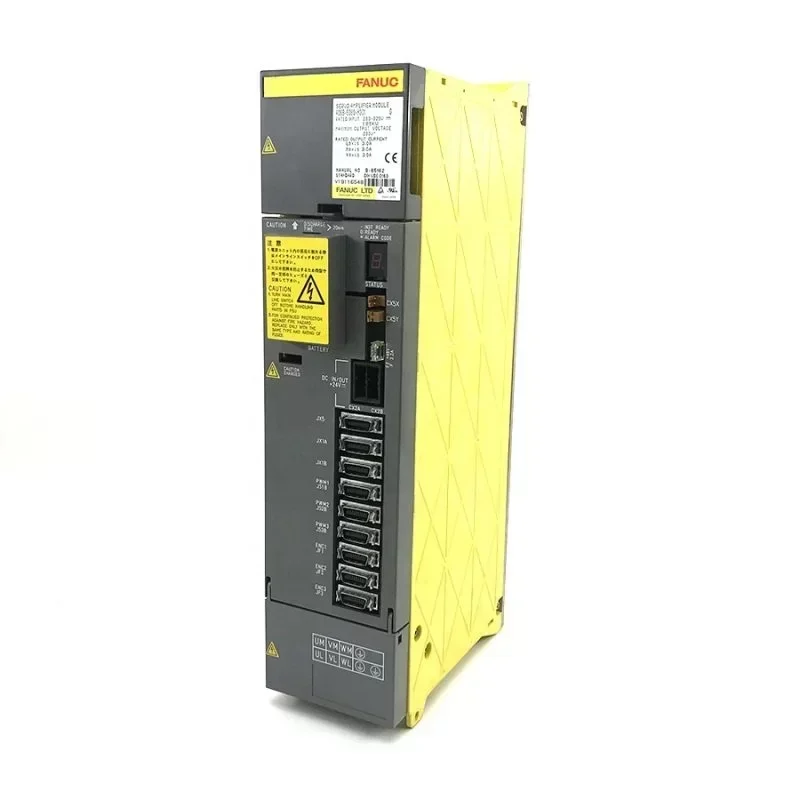

The Fanuc A06B-6080-H301 is a high-precision, three-axis Alpha Series Servo Amplifier Module (SVM3) engineered for integrated multi-axis CNC machine tool configurations. Built upon Fanuc Original Engineering standards, this modular unit drives three independent servo axes (L-axis, M-axis, N-axis) from a centralized common DC bus architecture, minimizing electrical footprint and optimizing thermal dissipation within the primary enclosure.
TECHNICAL SPECIFICATIONS
Manufacturer: Fanuc Corporation

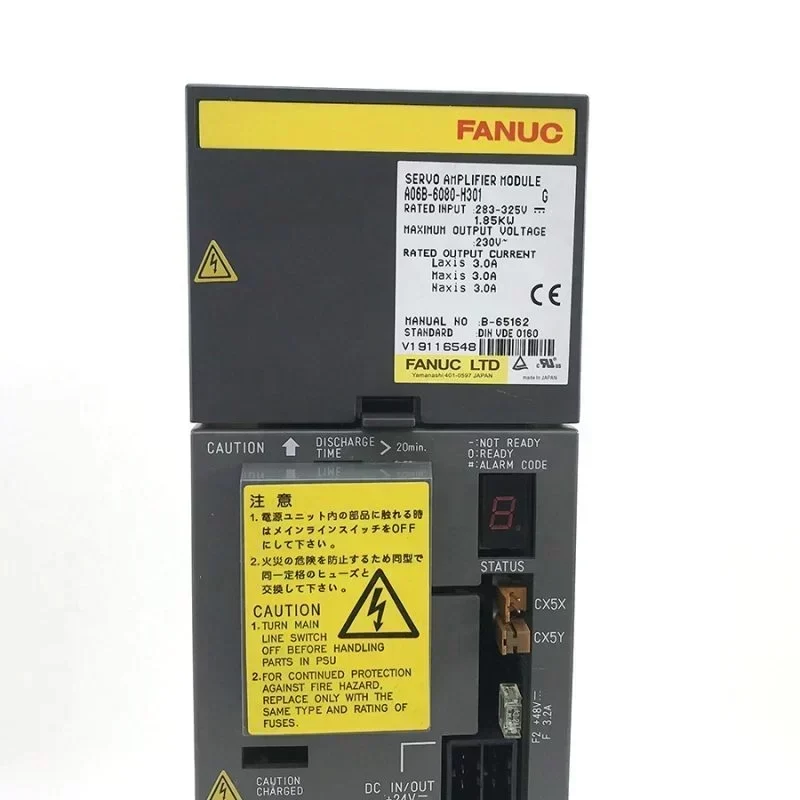

Part Number: A06B-6080-H301
Module Type: Alpha Series SVM3-12/12/12
Axis Configuration: 3 Axes (L, M, N)
Rated DC Bus Input: 283 VDC to 325 VDC
Rated Control Power Input: 200 VAC to 240 VAC (-15%, +10%), Single Phase, 50/60 Hz
Rated Output Current (L-Axis): 3.0 A continuous / 12 A peak
Rated Output Current (M-Axis): 3.0 A continuous / 12 A peak
Rated Output Current (N-Axis): 3.0 A continuous / 12 A peak

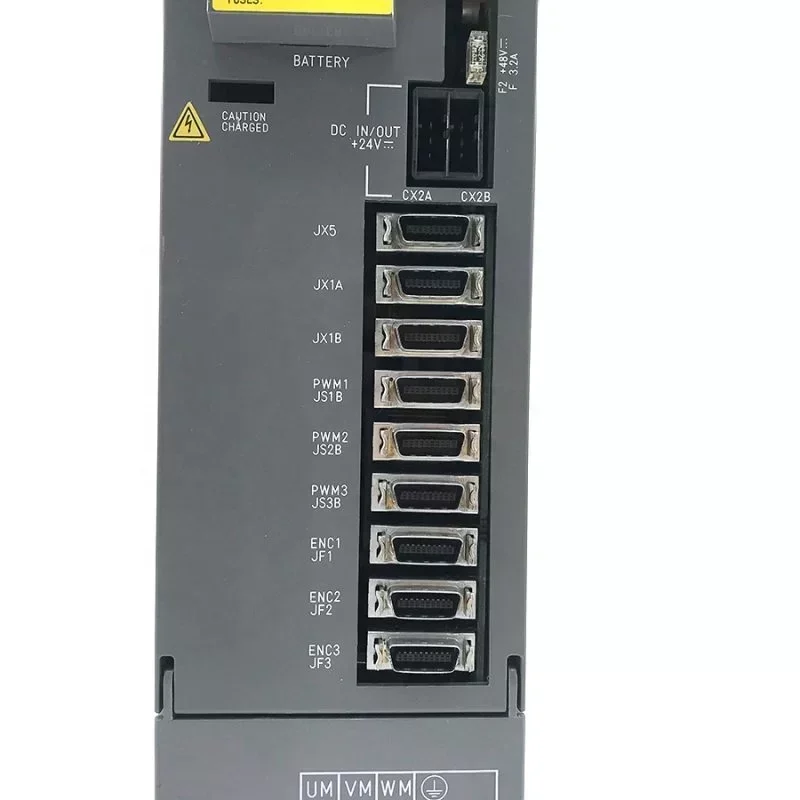

Feedback Interface: Serial Pulse Coder A/B Support
Cooling Method: Forced Air Convection with External Heat Sink Flange
Operating Ambient Temperature: 0 °C to 55 °C
Storage Temperature: -20 °C to 60 °C
Ambient Humidity: 10% to 90% RH (Non-condensing)
Enclosure Rating: IP00 (Open Chassis / Inside Industrial Enclosure IP54 required)
Weight: 4.8 kg
External Dimensions: 380 mm (H) x 90 mm (W) x 305 mm (D)
Mounting Style: Panel Mount / Modular Alpha Drive Rack
Standards & Compliance: UL508C, CSA C22.2, CE Mark compliant
TECHNICAL COMPATIBILITY & SYSTEM INTEGRATION
The A06B-6080-H301 requires shared DC bus power provided by an upstream Alpha Power Supply Module (PSM, series A06B-6081 or A06B-6077). Technical Compatibility extends to Fanuc Alpha series servo motors across frame sizes Alpha 1/3000, Alpha 2/3000, and Alpha C series configurations. Command signals are processed through standard Fanuc Alpha PWM interface connections directly from the Fanuc 16, 18, 21, or 0-series CNC controllers.
CRITICAL INDUSTRIAL APPLICATION
Engineered specifically for compact multi-axis machining centers, tool turrets, pick-and-place auxiliary gantry systems, and complex wire EDM units where synchronized, low-inertia three-axis motion is non-negotiable. Utilizing a single three-in-one amplifier reduces cabinet wiring by 60%, resolves cabinet thermal concentration, and prevents synchronization drift across interdependent mechanical axes.
LIFECYCLE VALUE & LOGISTICS
Procuring factory-original hardware guarantees factory calibration tolerances, dynamic braking consistency, and firmware compatibility with legacy Alpha architecture. Verified functional stock ready for deployment reduces critical machine downtime. Contact sales engineering for current Lead Time and emergency dispatch options.
Key Attributes
Application: Industrial Equipment, Cnc Machine, Electric Power Transmission, Electronic Equipment
Material: Plastic
Motor Type: Servo, AC, DC
Place of Origin: Japan
Model Number: A06B-6080-H301
Brand Name: FANUC
Product Name: Drive
Condition: Original new
Warranty: 12 Months
Stock: Available
Shipping terms: All terms are accepted
Payment terms: All terms are accepted
Lead Time: 3-5Days
Delivery Time: 5-7 Days
Package: Carton packing
MOQ: 1 Piece
Packaging and Delivery
Selling Units: Single item
Single package size: 30X18X18 cm
Single gross weight: 2.000 kg
