$8.57

SKU: 675991420681 Brand:

Description

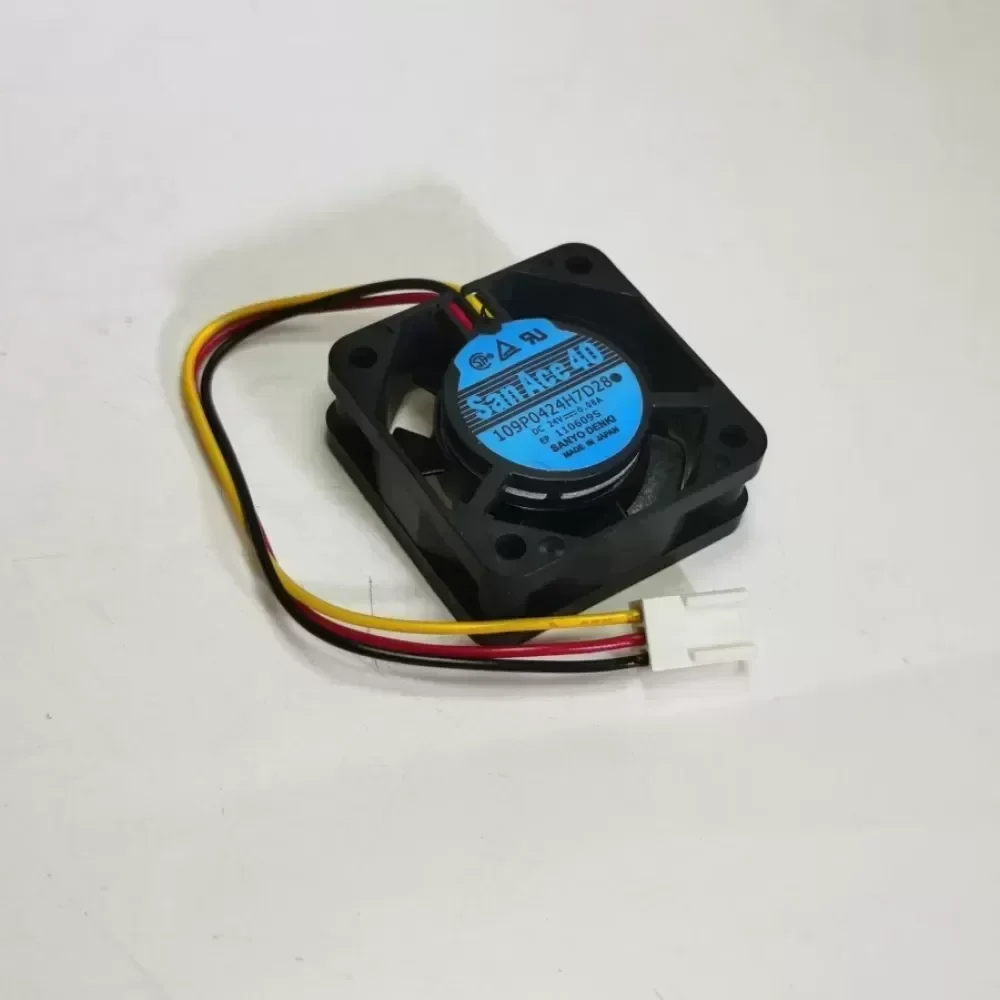

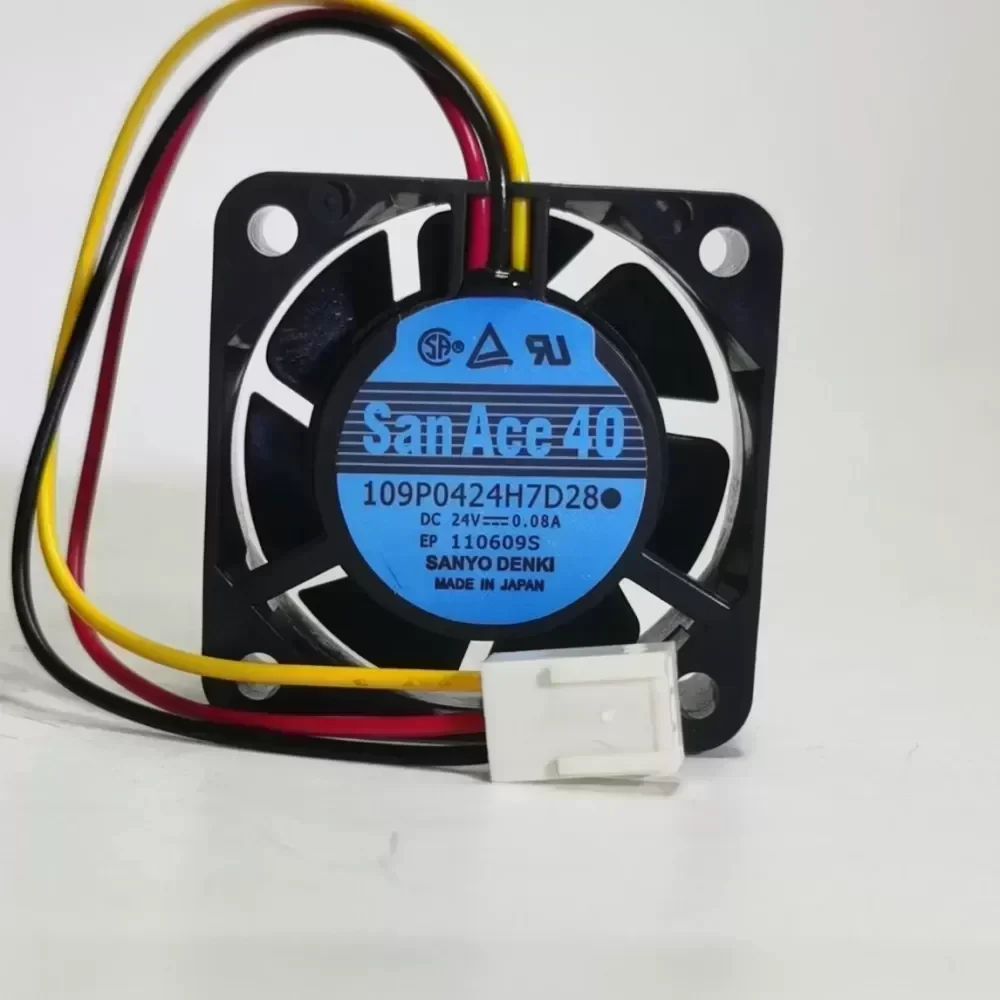

Manufacturer: Sanyo Denki (San Ace 40 Series)
Brand Compatibility: Fanuc CNC Systems
Model Number: 109P0424H7D23
Part Category: Industrial DC Axial Fan / Machine Tool Spare Part

Technical Parameters:
Rated Voltage: 24V DC
Operating Voltage Range: 20.4V to 27.6V
Rated Current: 0.08A
Rated Input Power: 1.92W
Rated Speed: 7700 RPM
Maximum Airflow: 0.18 m³/min (6.36 CFM)
Maximum Static Pressure: 52.0 Pa (0.209 inchH2O)
Noise Level: 28 dB(A)
Frame Size: 40mm x 40mm x 15mm
Weight: 40g
Bearing Type: Dual Ball Bearing
Expected Life: 40,000 Hours at 60°C (60,000 Hours at 40°C)
Sensor Type: Pulse Sensor (Tachometer Output)
Termination: 3-Pin Lead Wire with Dedicated Fanuc Connector
Material Frame: Plastics (Flammability: UL 94V-0)
Material Impeller: Plastics (Flammability: UL 94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -30°C to +70°C

Industrial Application and Logic:
The Fanuc 109P0424H7D23 is a high-precision thermal management component specifically engineered for the internal cooling of Fanuc Alpha Series Power Supplies, Servo Amplifiers, and Control Units. In high-density CNC environments, heat dissipation is critical to prevent thermal throttling and component degradation. This Sanyo Denki manufactured unit provides the exact static pressure required to navigate the internal airflow resistance of compact electronic enclosures.

Technical Compatibility and Reliability:
As an Original Engineering component, this fan ensures seamless Technical Compatibility with Fanuc hardware monitoring systems, preventing ‘Fan Alarm’ errors that lead to machine downtime. The dual ball bearing design is optimized for 24/7 continuous operation in industrial environments characterized by high ambient temperatures and vibration.

Inventory and Support:
Condition: New Original Imported
Warranty: 12 Months
Lead Time: Immediate Dispatch Available
Quality Assurance: 100% Authentic Sanyo Denki / Fanuc certified part.

Fanuc original fan 109P0424H7D23 4015/24V

Fanuc original fan 109P0424H7D23 4015/24V

Fanuc original fan 109P0424H7D23 4015/24V

Fanuc original fan 109P0424H7D23 4015/24V

Fanuc original fan 109P0424H7D23 4015/24V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
