Description
The A05B-2650-C040 serves as the critical hardware backbone for the Fanuc R-30iB Mate Plus controller series. This backplane facilitates the high-speed data exchange between the main CPU and peripheral control cards, ensuring synchronized motion control and real-time logic execution. It is engineered for Original Engineering integrity, maintaining the precise signal timing required for 6-axis robotic interpolation.

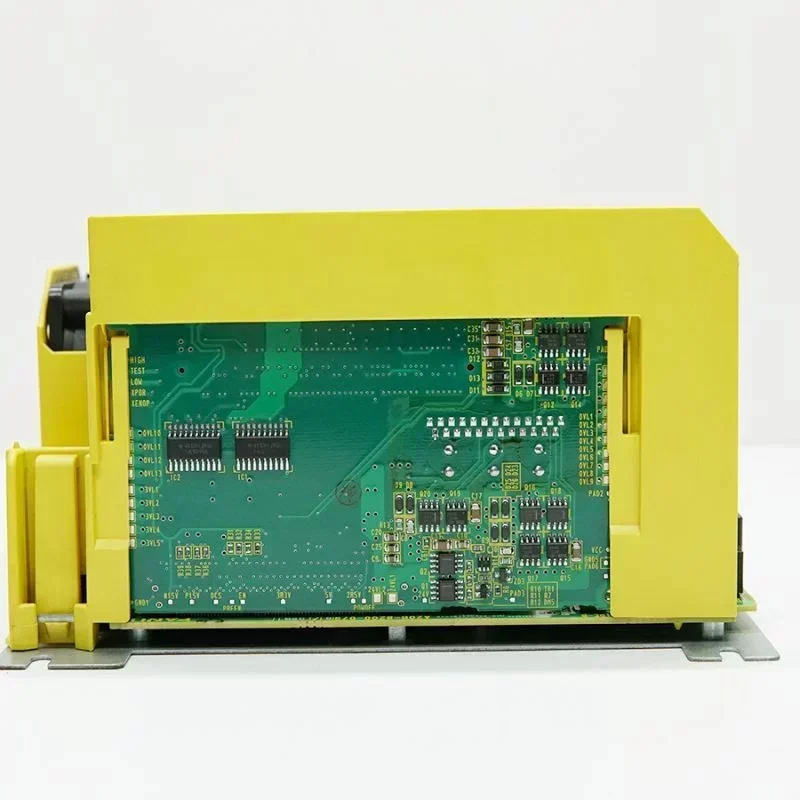

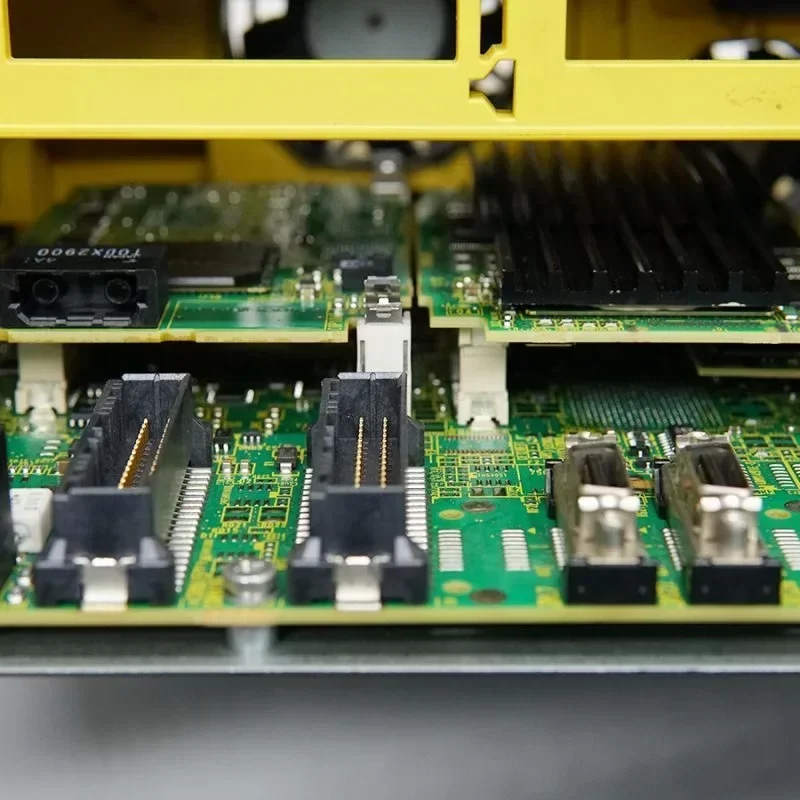

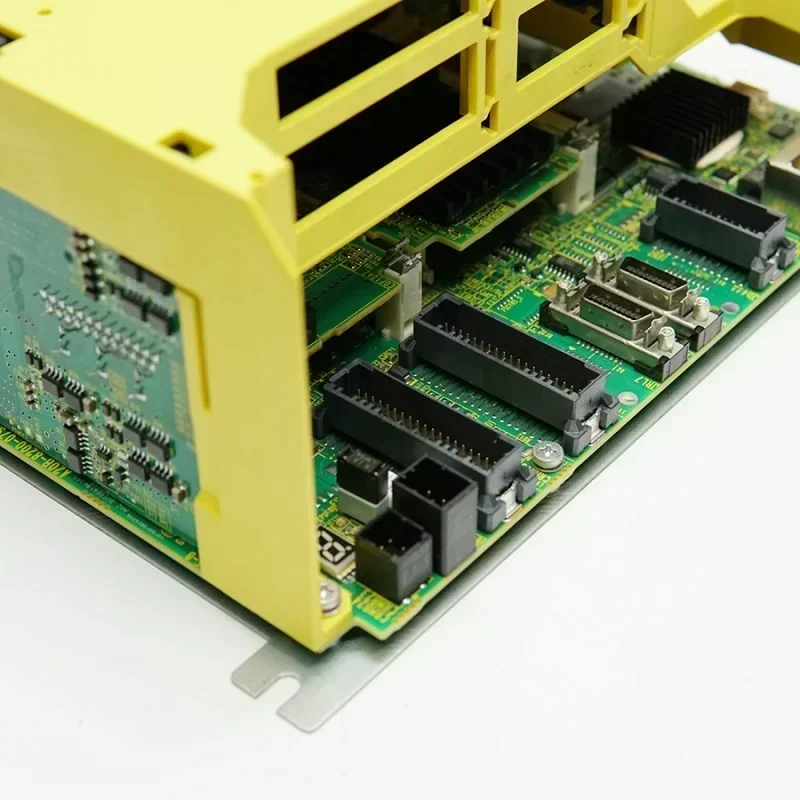

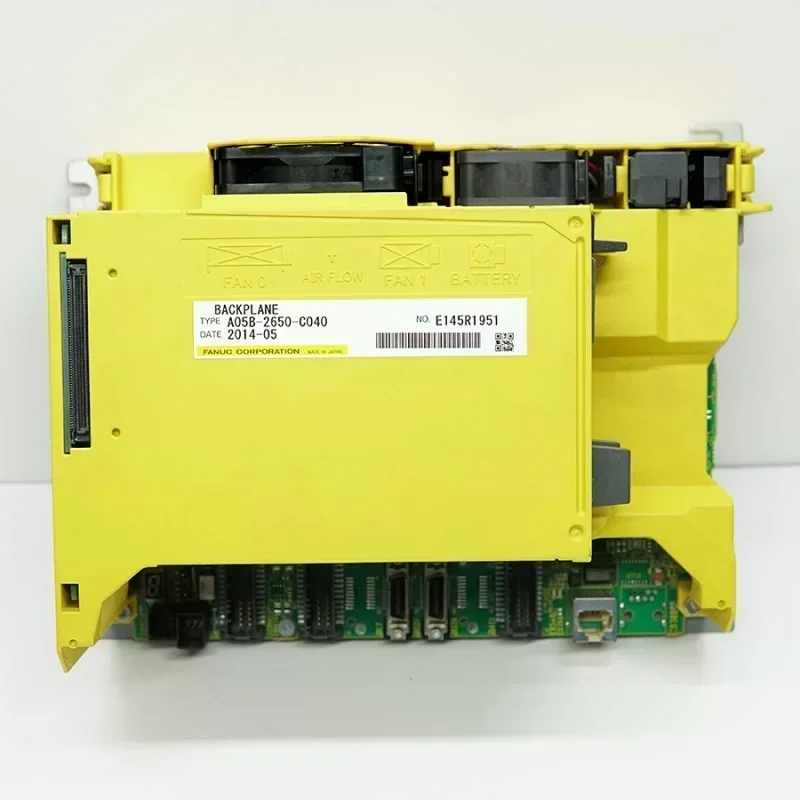

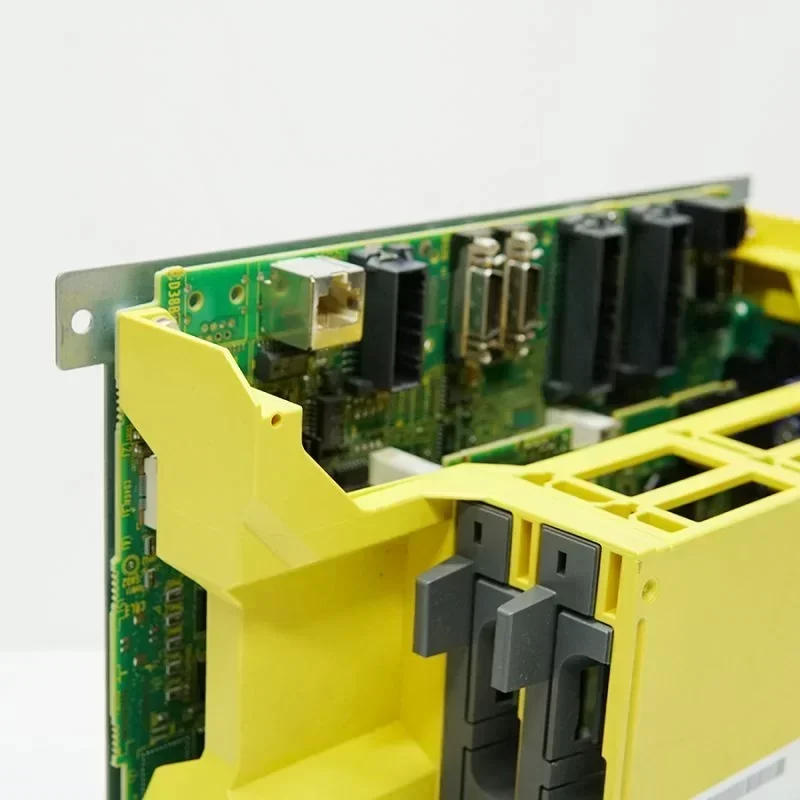

Fanuc R-30iB Mate Plus Backplane A05B-2650-C040
Product Identification
Manufacturer: Fanuc Corporation
Model Number: A05B-2650-C040
Component Type: Main System Backplane / Base Unit
Controller Compatibility: R-30iB Mate Plus Series
System Architecture: High-speed internal bus communication interface
Technical Parameters
Input Voltage: 24V DC (Internal Bus Power)
Slot Configuration: Multi-slot interface for CPU, I/O, and Servo Control modules
Communication Protocol: Proprietary Fanuc High-Speed Serial Bus
Mounting Type: Rack-mount within the R-30iB Mate Plus cabinet
Material Composition: Multi-layer PCB with industrial-grade solder masking and anti-corrosion coating
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Humidity Rating: 5% to 95% RH (non-condensing)
Weight: 0.85 kg
Dimensions: 210mm x 145mm x 35mm
Industrial Application
This component is essential for CNC-integrated robotic cells where space-saving Mate Plus controllers are utilized. It solves the critical problem of signal degradation and bus latency in high-cycle automotive assembly and precision electronic pick-and-place operations. By ensuring Technical Compatibility with OEM Fanuc modules, it prevents system-level communication errors that lead to unplanned downtime.
Lifecycle and Maintenance
Condition: New, Original Equipment Manufacturer (OEM)
Lead Time: Standard global logistics availability
Certifications: CE, UL, RoHS compliant
Installation Note: Ensure all power is disconnected from the R-30iB Mate Plus cabinet before replacing the backplane to prevent electrostatic discharge (ESD) damage to the sensitive CMOS components.
Key Attributes
Place of Origin: Japan
Model Number: A05B-2650-C040
Brand Name: Fanuc
Product Name: Fanuc backplane
Condition: Original new
Warranty: 12 Months
Stock: Available
Shipping terms: All terms are accepted
Payment terms: All terms are accepted
Lead Time: 1-2 Days
Delivery Time: 3-5 Days
Package: Carton packing
MOQ: 1 Piece
Packaging and Delivery
Packaging Details: Standard export cartons or wooden boxes.
Port of dispatch: Shenzhen,Guangzhou,Hongkong
Selling Units: Single item
