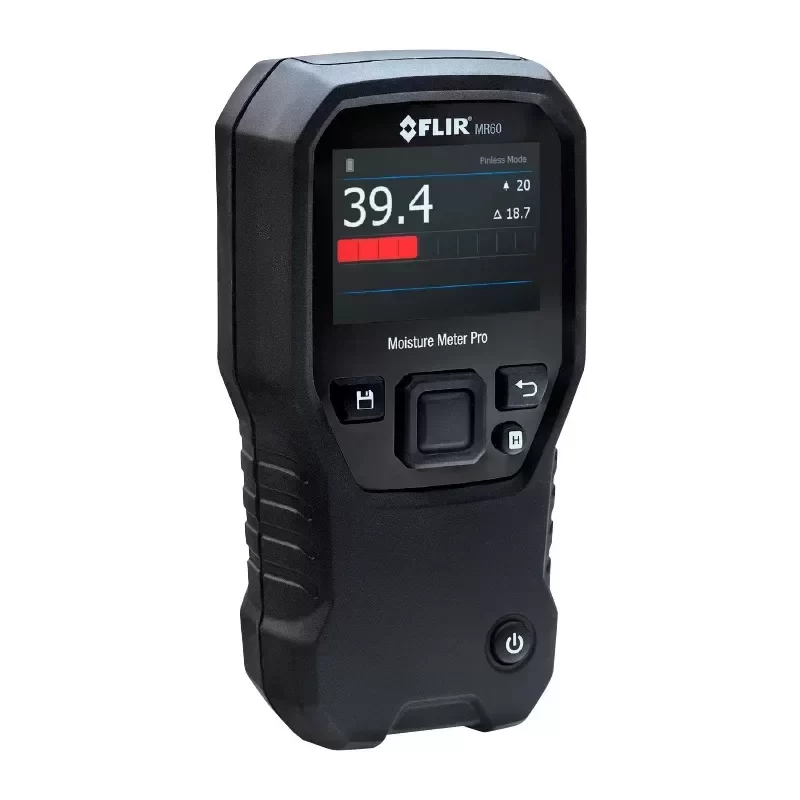

FLIR MR60 MR160 Moisture Meter Pro

Description

The FLIR MR60 and MR160 are professional-grade moisture meters engineered for industrial building inspection, water damage restoration, and HVAC/R diagnostics. The MR60 provides advanced pin and pinless moisture measurement capabilities with data logging, while the MR160 integrates Infrared Guided Measurement (IGM) powered by an 80 x 60 Lepton thermal imaging sensor to visually guide operators to the exact location of potential moisture anomalies.

Technical Specifications:
Manufacturer: FLIR Systems
Model Series: MR60 / MR160 Moisture Meter Pro

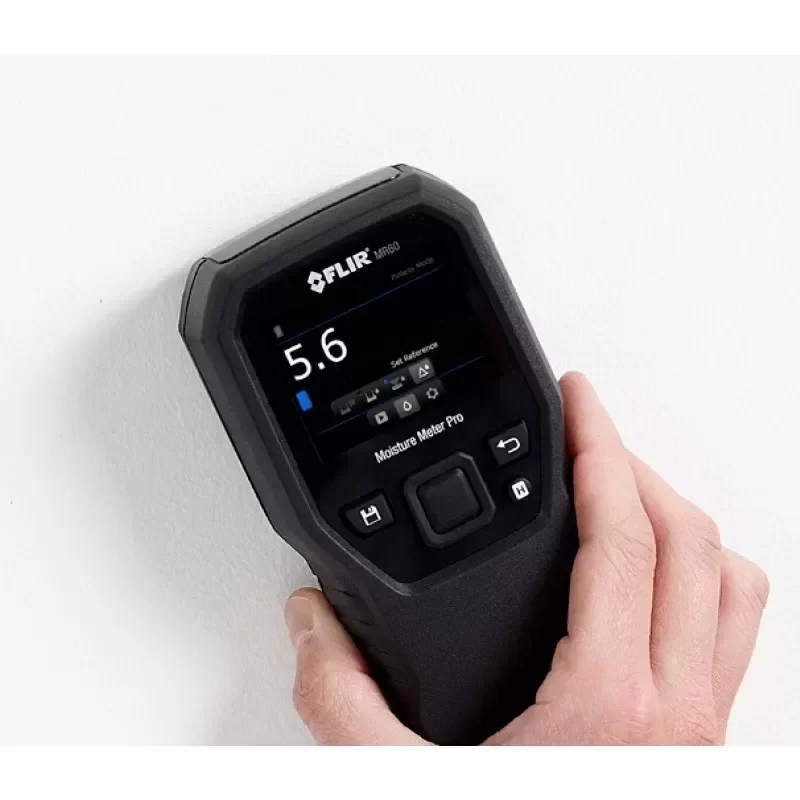

Measurement Technology: Pinless capacitive (non-destructive) and resistive pin-type
Pinless Moisture Depth: Up to 19 mm (0.75 in)
Pin Moisture Range: 7% to 30% (Accuracy: ±1.5% MC); 30% to 100% (Reference Only)
Pinless Moisture Range: 0 to 100 relative measurement
Thermal Imaging Sensor (MR160): FLIR Lepton microbolometer
Thermal Image Resolution (MR160): 80 x 60 pixels (4800 measurement points)
Spectral Response: 8 to 14 micrometers
Field of View: 51 degrees x 38 degrees
Thermal Sensitivity: Less than 150 mK
Display Type: 320 x 240 pixel 2.3 inch color TFT graphical display
Data Storage Capacity (MR60): 9968 readings across 100 files
Data Storage Capacity (MR160): 9999 readings with co-registered thermal images
File Format: BMP with measurement values overlaid

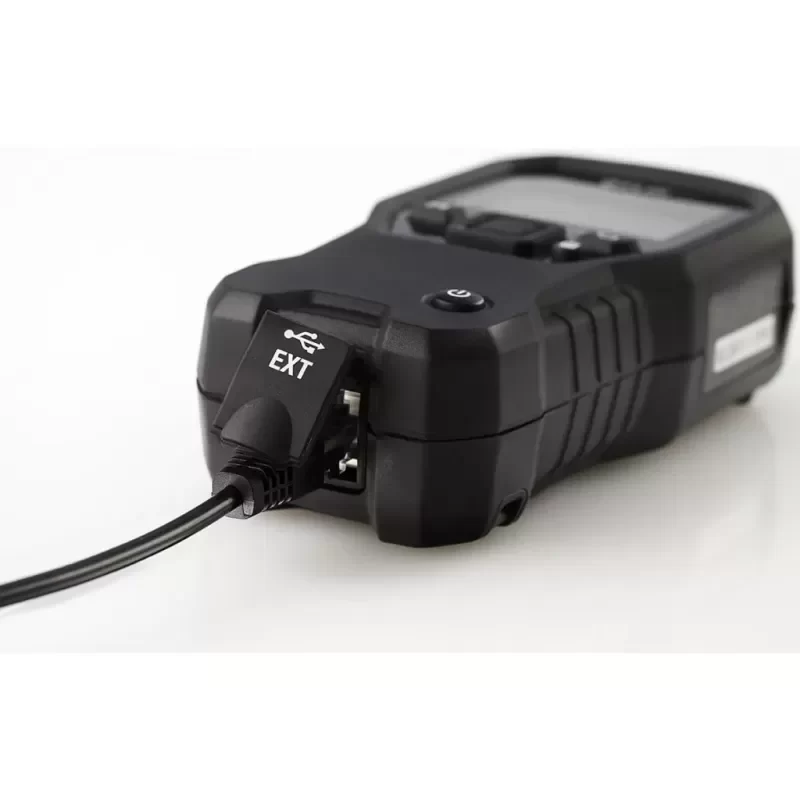

Battery Type: 3.7 V, 3000 mAh Li-ion rechargeable via Micro-USB
Battery Runtime: Up to 18 hours continuous operation
Drop Test Rating: 3 meters (9.8 feet)
Enclosure Rating: IP40
Certifications: CE, FCC Class B, RCM
Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)

Industrial Application Scenario:
In commercial water damage restoration and building envelope diagnostics, identifying hidden moisture pathways behind structural surfaces is critical to preventing structural degradation and mold growth. The FLIR MR60 and MR160 series solve this by combining non-destructive pinless scanning with precise pin-probe verification. For the MR160, the integrated Infrared Guided Measurement (IGM) technology allows field engineers to visually locate cold spots associated with moisture evaporation on walls, ceilings, and floors before deploying physical pins. Once a thermal anomaly is identified, the integrated pinless sensor or external pin probe is utilized to quantify the exact moisture content. This dual-method approach reduces inspection times by up to 50 percent and eliminates unnecessary destructive testing on dry structures.

Technical Compatibility:

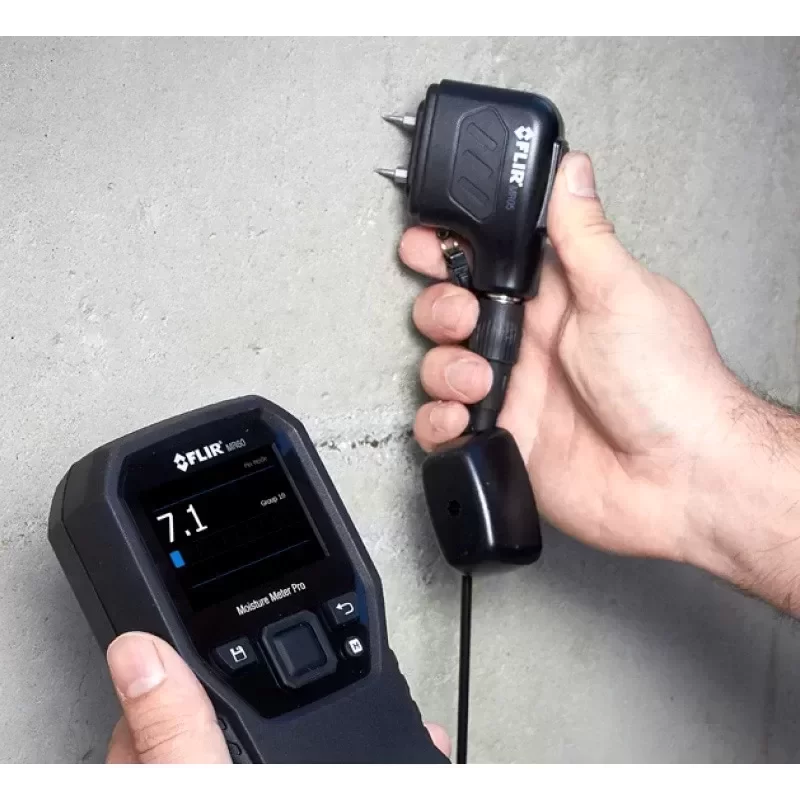

The MR60 and MR160 are fully compatible with FLIR Tools professional reporting software for comprehensive data analysis and report generation. They feature standard compatibility with a wide range of external FLIR moisture probes, including the MR05 Impact Pin Probe, MR06 Wall Cavity Probe, MR07 Hammer Probe, and MR08 Deep Wall Probe.

Commercial and Quality Standards:
Original Engineering: Designed and engineered by FLIR Systems to meet rigorous industrial metrology standards.
Lead Time: Standard commercial dispatch within 3 to 5 business days, subject to regional distributor stock levels.
Calibration: Factory calibrated with internal self-calibration checks to ensure continuous measurement fidelity.

Key Attributes
Type: Moisture Meter
Place of origin: China
Model number: MR60
Brand name: FLIR
Customized support: OEM, ODM
Warranty: 1 years
Product name: FLIR
Model: MR60
Pinless moisture range: 0 - 100 relative measurement
Pinless Moisture Depth: 1.9cm (0.75") maximum
Sample Rate: 10Hz (approx., both modes)
Measurement Resolution: 0.1
Internal Memory: 4GB
Power Requirements: Integrated rechargeable battery
Continuous Run Time: 18 hours max

Packaging and Delivery
Packaging Details: Cardboard box
Selling Units: Single item
Single package size: 31X18X15 cm
Single gross weight: 1.100 kg
