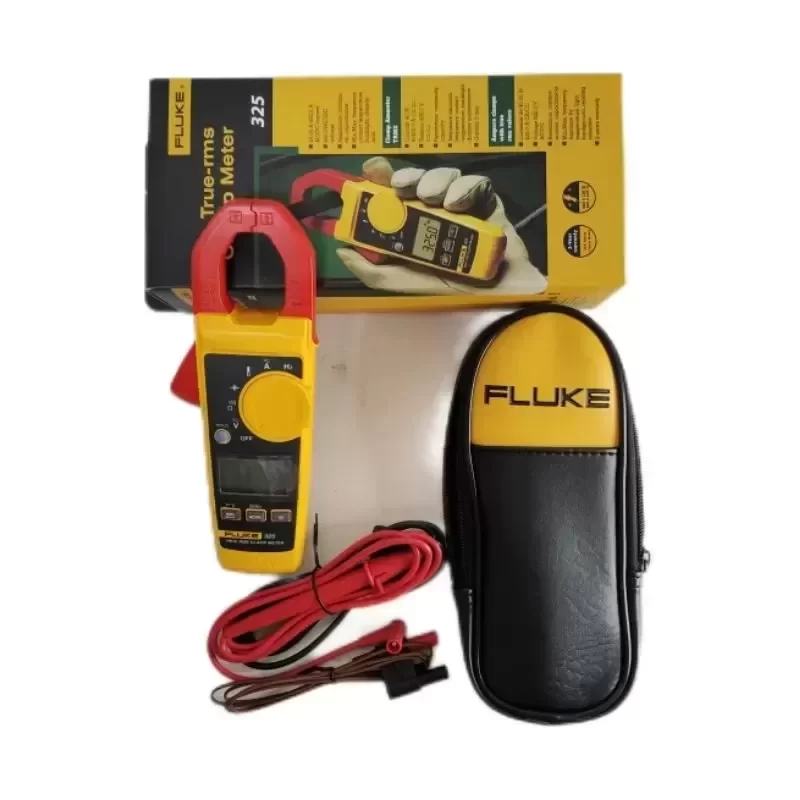

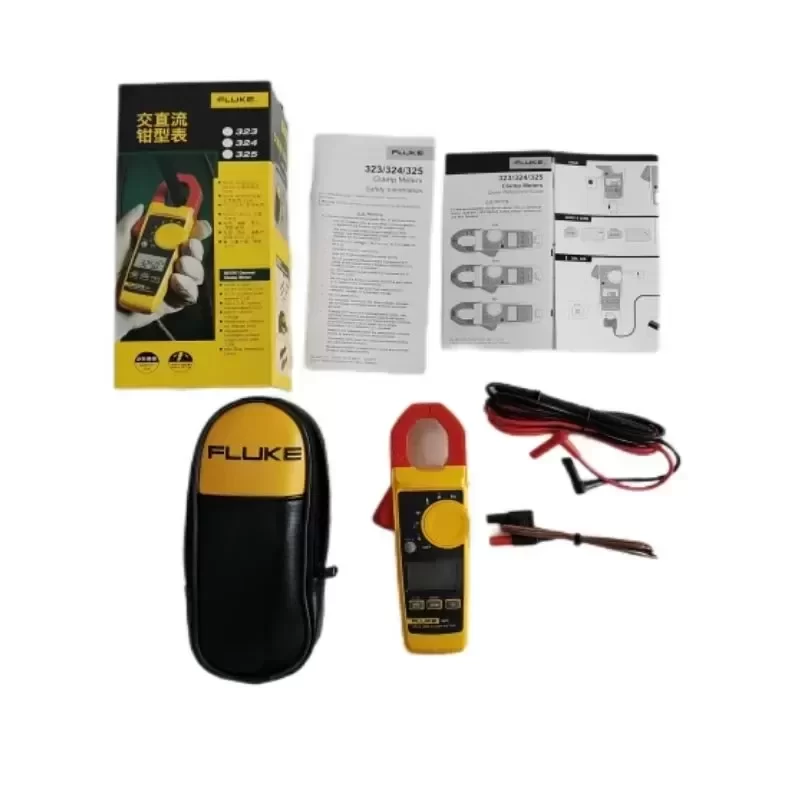

Fluke 325 True RMS Digital Clamp Meter AC&DC Current Measurement

Description

The Fluke 325 True RMS Clamp Meter represents the pinnacle of commercial and industrial electrical troubleshooting, combining high-accuracy AC/DC current measurement with robust environmental resilience. Engineered for professional electricians and maintenance technicians, this instrument delivers reliable diagnostics in electrically noisy environments.

TECHNICAL SPECIFICATIONS
AC Current Range: 40.00 A / 400.0 A
AC Current Accuracy: 2% ± 5 digits (45 Hz to 65 Hz)
DC Current Range: 40.00 A / 400.0 A
DC Current Accuracy: 2% ± 5 digits
AC Voltage Range: 600.0 V
AC Voltage Accuracy: 1.5% ± 5 digits
DC Voltage Range: 600.0 V
DC Voltage Accuracy: 1.0% ± 5 digits
Resistance Range: 400.0 Ω / 4000 Ω / 40.00 kΩ
Capacitance Range: 100.0 µF to 1000 µF
Frequency Range: 5.0 Hz to 500.0 Hz
Contact Temperature Range: -10.0 °C to 400.0 °C
Jaw Opening: 30 mm
Maximum Wire Size: 600 MCM
Safety Rating: CAT III 600 V / CAT IV 300 V
Dimensions: 207 mm x 75 mm x 34 mm
Weight: 283 g
Warranty: 2 Years

INDUSTRIAL APPLICATION SCENARIO
In modern industrial automation plants, variable frequency drives (VFDs) and switching power supplies generate non-linear loads that distort current waveforms. Standard average-responding meters yield highly inaccurate readings in these environments, leading to premature component replacement or undetected system overloads. The Fluke 325 utilizes True RMS measurement technology to accurately capture the heating value of distorted currents. This allows technicians to precisely balance phases, diagnose motor winding degradation, and verify capacitor bank health without false trips or diagnostic errors.

PROCUREMENT & INTEGRATION
Original Engineering: This instrument features authentic Fluke design and calibration, ensuring compliance with global safety standards and long-term measurement stability.
Technical Compatibility: Seamlessly integrates into standard industrial preventive maintenance workflows, compatible with standard TL75 test leads and Type K thermocouples.
Lead Time: Standard shipping options available with optimized processing times to minimize facility downtime.

Key Attributes
Max. Ac Current: 40.00 A/400.0 A
Max. DC Current: 40.00 A/400.0 A
Measuring Voltage Range: 600V
Place of Origin: China
Model Number: 325
Brand Name: Fluke
Dimensions: 207 x 75 x 34 mm
Display Type: Digital Only
Max. Ac Voltage: 600.0 V
Max. DC Voltage: 600.0 V
Measuring Capacitance Range: 100.0 to 1000 uF
Measuring Current Range: 40.00 A/400.0 A
Measuring Inductance Range: 100.0 to 1000 uF
Measuring Resistance Range: 400.0 Ω/4000 Ω/40.00 kΩ
Operating Temperature: 14 to 752°F (-10 to 400°C)
Parameters Measured: DC Current, AC Voltage, Temperature (K)
Weight: 300g
DC/AC Current Range: 40.00 A/400.0 A
DC/AC Voltage Range: 600.0 V
Resistance Range: 400.0 Ω/4000 Ω/40.00 kΩ
Capacitance: 100.0 to 1000 uF
Frequency: 5.0 to 500.0 Hz
Contact Temperature: 14 to 752°F (-10 to 400°C)
Dimensions: 207 x 75 x 34 mm
Category Rating: CAT III 600 V CAT IV 300 V

Packaging and Delivery
Selling Units: Single item
Single package size: 26X14X10 cm
Single gross weight: 0.780 kg
