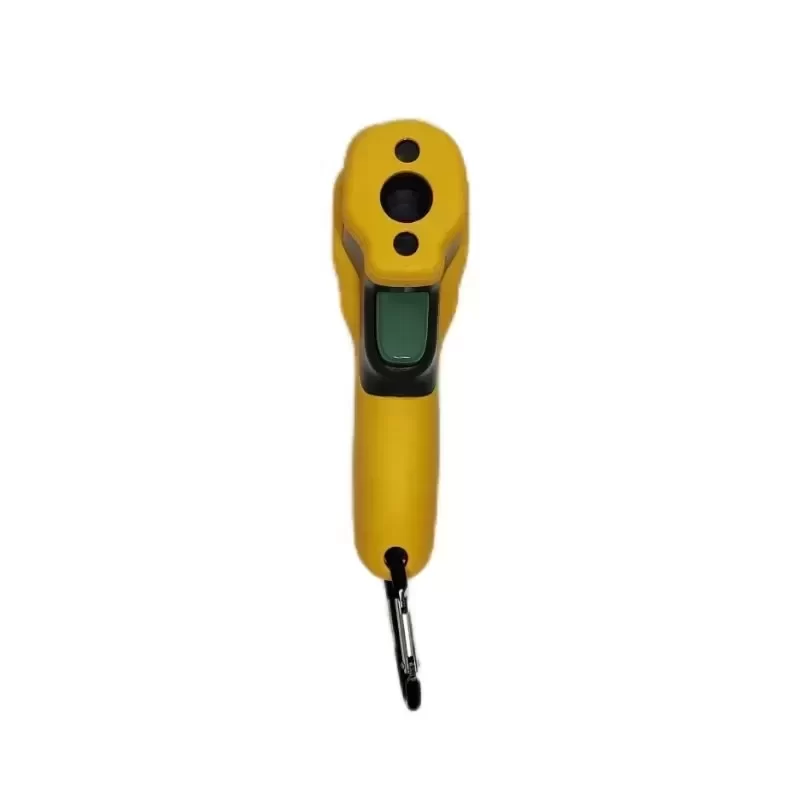

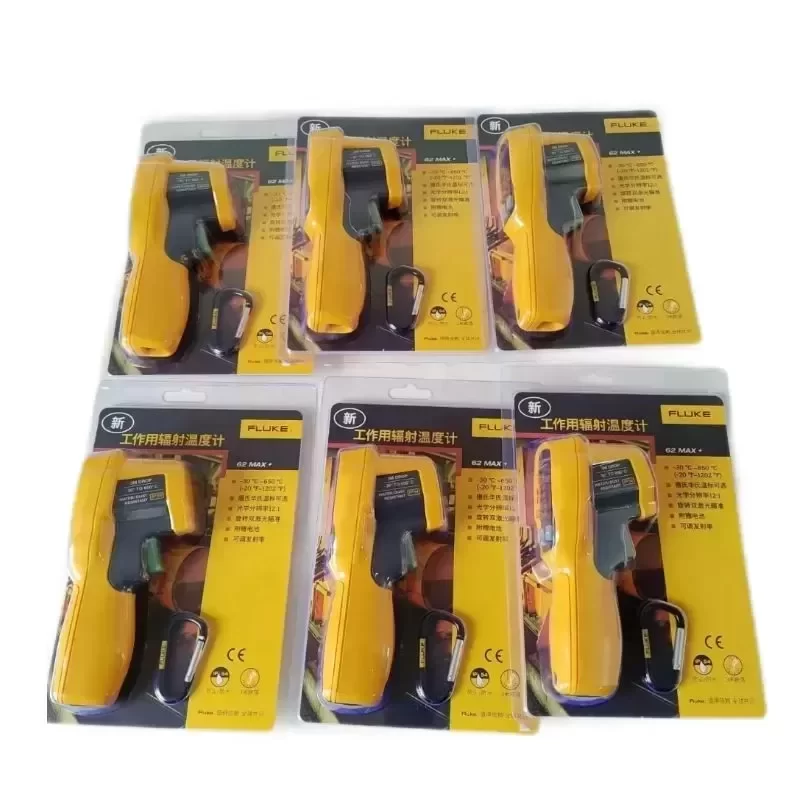

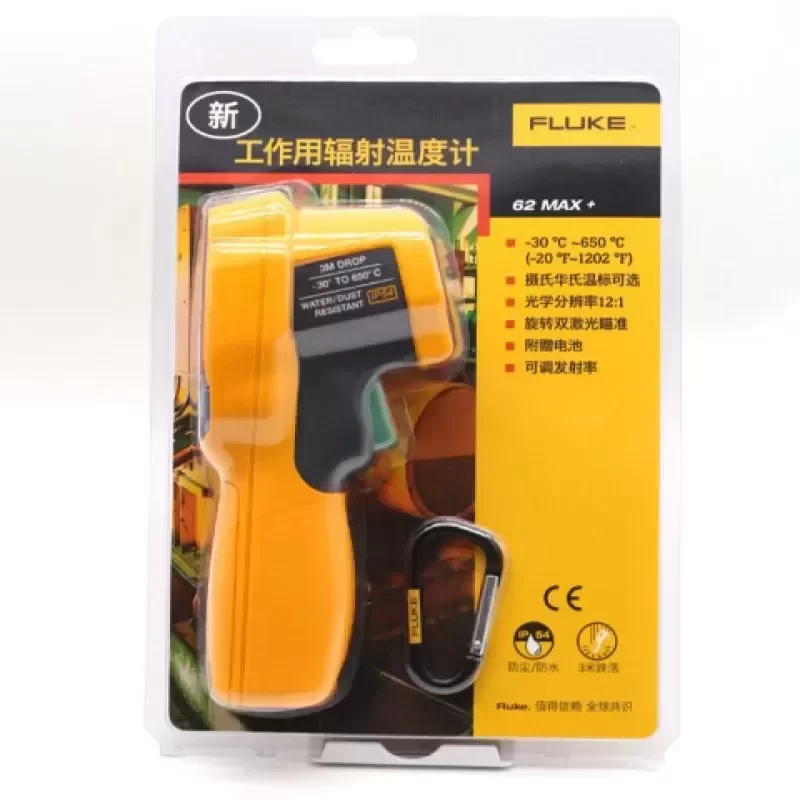

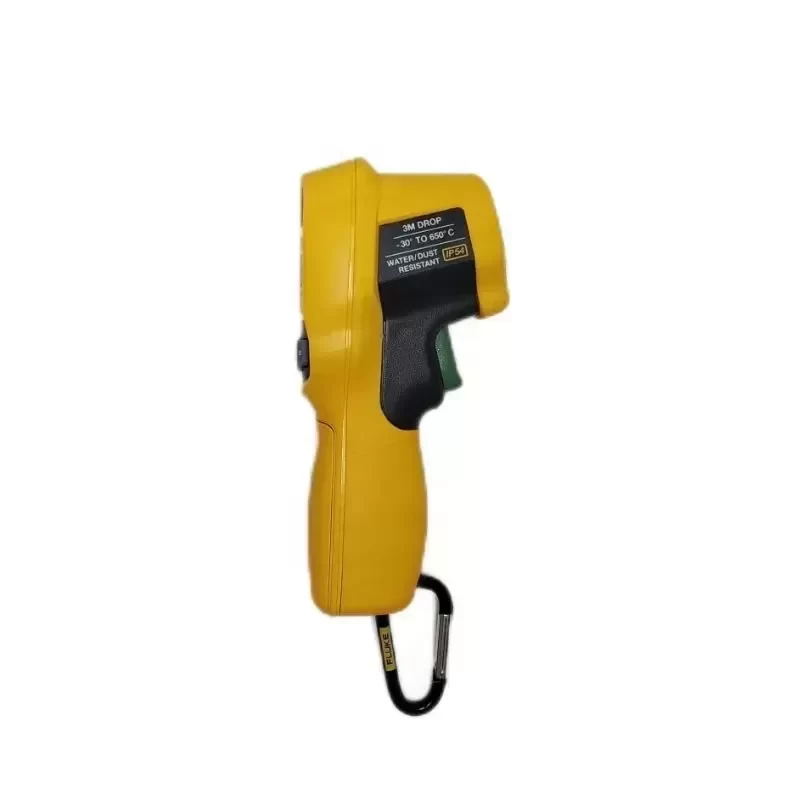

Fluke 62 MAX+ Infrared Thermometer 62MAX

$166.00

SKU: 1600920564657 Brand:

Description

The Fluke 62 MAX+ is a precision non-contact infrared thermometer engineered for demanding industrial diagnostics and predictive maintenance. Built with Fluke Original Engineering, this instrument features dual rotating lasers to pinpoint the exact measurement spot, an extended measurement envelope up to 650 °C, and an optical resolution of 12:1. The housing is certified to IP54 ingress protection and drop-tested to withstand a 3-meter impact, ensuring uninterrupted service in harsh plant environments.

Technical Specifications:
Manufacturer: Fluke Corporation
Model: 62 MAX+
Measurement Range: -30 °C to 650 °C (-22 °F to 1202 °F)
Accuracy: ±1.0 °C or ±1.0 % of reading (≥ 0 °C); ±2.0 °C (-10 °C to < 0 °C); ±3.0 °C (< -10 °C)
Distance to Spot (D:S) Ratio: 12:1 at 90 % energy
Response Time: < 300 ms (95 % of reading)
Spectral Response: 8 µm to 14 µm
Emissivity: Digitally adjustable from 0.10 to 1.00
Sighting Mechanism: Dual laser sighting defining the measurement perimeter
Display Resolution: 0.1 °C (0.2 °F)
Ingress Protection: IP54 (IEC 60529)
Drop Test Rating: 3 meters
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -20 °C to 60 °C (without battery)
Operating Humidity: 10 % to 90 % RH non-condensing up to 30 °C
Power Supply: 1x AA IEC LR06 alkaline battery
Battery Life: 8 hours continuous with laser and backlight active
Dimensions: 175 mm x 85 mm x 75 mm
Weight: 255 g
Safety Standards: EN/IEC 61010-1, EN 60825-1 Class II, CE

Operational Application:
The Fluke 62 MAX+ resolves critical diagnostic challenges in electrical switchgear monitoring, mechanical conveyor bearings, and HVAC/R balancing. Where live high-voltage components or rotating mechanical assets present safety hazards, the 12:1 optical ratio allows technicians to evaluate small components from a secure standoff distance. Technical Compatibility across standard industrial calibration cycles ensures seamless integration into plant safety and maintenance protocols. Optimized distribution networks maintain minimal Lead Time for critical operations requiring rapid inventory replenishment.

Key Attributes
Type: Infrared Thermometer
Place of origin: China
Model number: 62 MAX+
Brand name: Fluke
Customized support: NO
Infrared resolution: Other
Material: Plastic+Iron
Thermal color palettes: Other
Warranty: 1 years
Temperature Range: -22 to 1202°F (-30 to 650°C)
Accuracy: ±1.0°C or ±1.0%
Response Time (95%): <500 ms (95% of reading)
Optical Resolution: 12:1 (calculated at 90% energy)
Drop Test: 9.8' (3 m)
IP Rating: IP 54 per IEC 60529
Dimensions: 6.88 x 3.34 x 2.95" (175 x 85 x 75 mm)
Weight: 0.56 lbs (255 g)

Packaging and Delivery
Selling Units: Single item
Single package size: 29X15X14 cm
Single gross weight: 1.000 kg
