Fluke 771 Milliamperes Process Clamp Meter 772 773 Digital Clamp Meter

Description

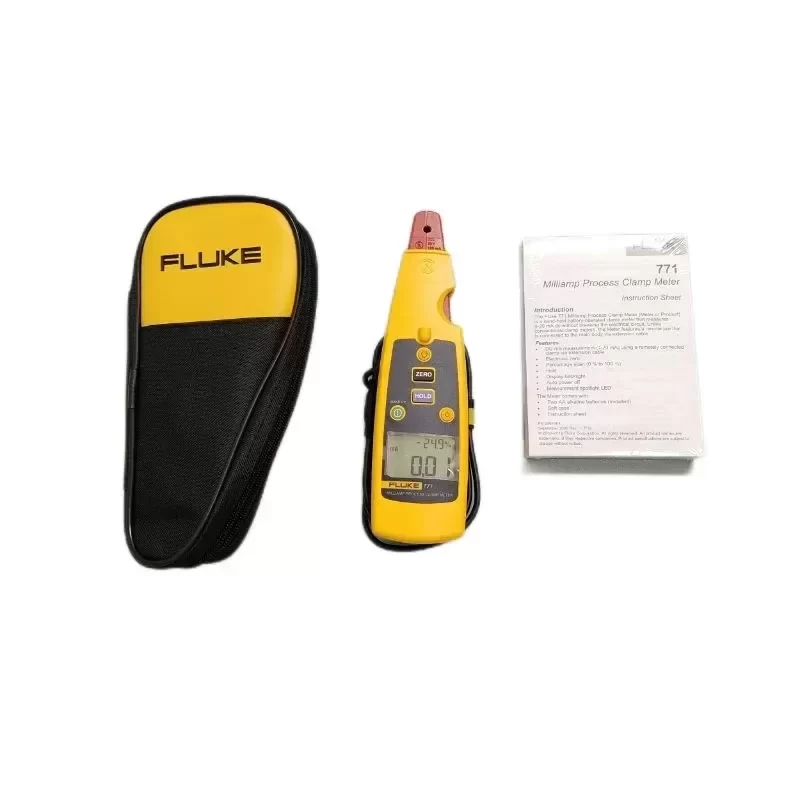

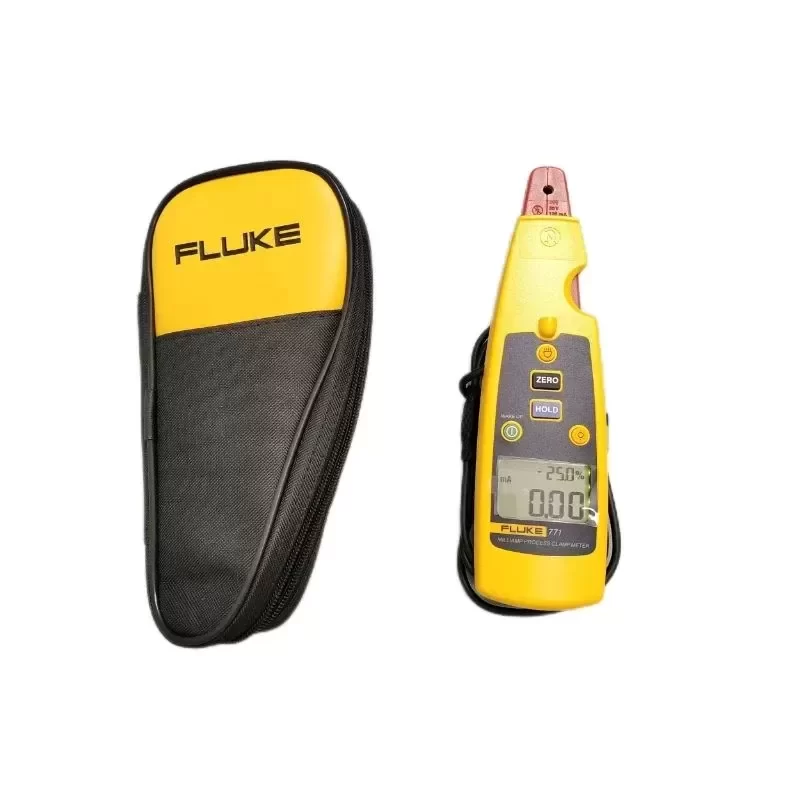

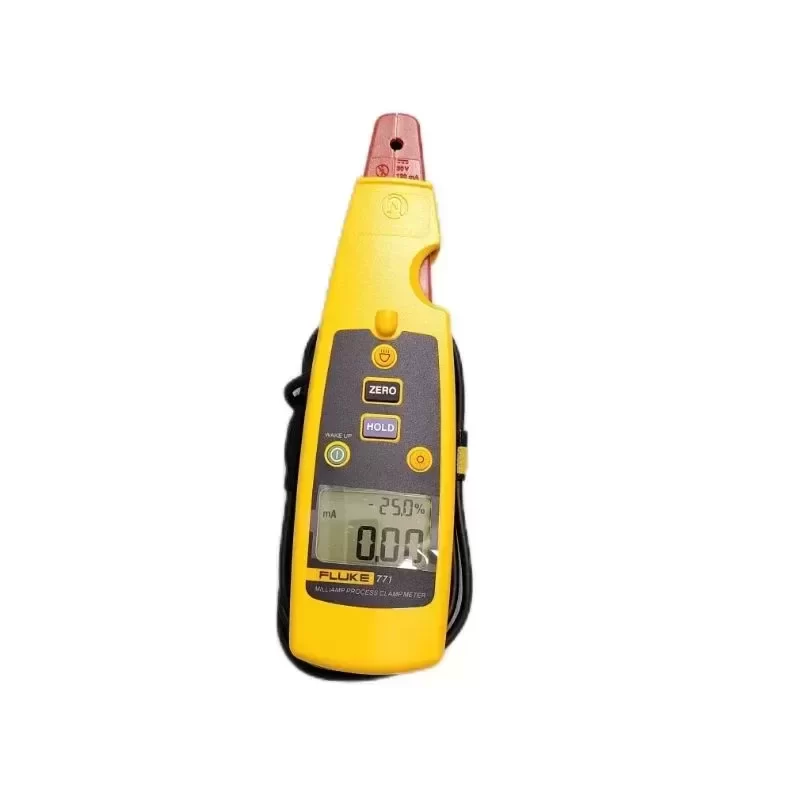

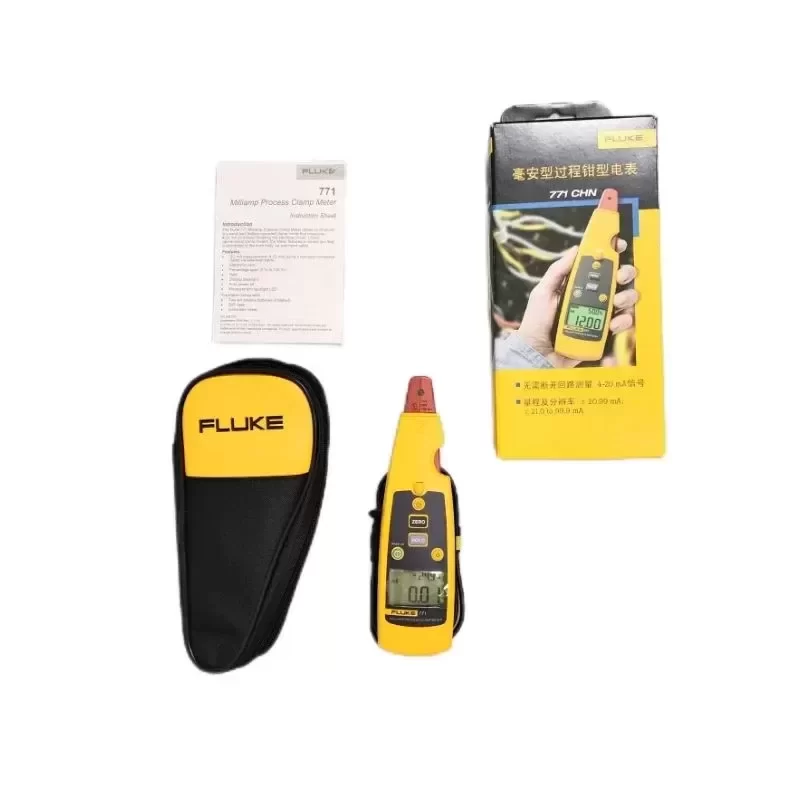

Fluke 771 Milliamp Process Clamp Meter
Manufacturer: Fluke Corporation
Series: 700 Series Process Calibration Tools
Model Number: 771

Technical Specifications:
Measurement Range: 0 to 20.99 mA (Low Range), 21.0 to 99.9 mA (High Range)
Resolution: 0.01 mA (Low Range), 0.1 mA (High Range)
Accuracy: 0.2% ± 5 counts (Low Range), 1% ± 5 counts (High Range)
Jaw Opening: 4.5 mm (0.177 inches)
Operating Temperature: -10 °C to 50 °C
Storage Temperature: -25 °C to 60 °C
Operating Humidity: < 90% @ < 30 °C, < 75% @ 30 to 50 °C
IP Rating: IP 40
Battery Type: Two 1.5V Alkaline, IEC LR6 (AA)
Battery Life: 40 hours typical
Dimensions: 212 mm x 59 mm x 38 mm
Weight: 260 g

Advanced Functional Attributes:
Signal Measurement: Measures 4-20 mA signals without breaking the loop.
Detachable Clamp: Remote testing capability via extension cable for cramped spaces.
Illumination: Integrated Measurement Spotlight for dark enclosures.
Display: Dual backlit display showing both mA measurement and percentage of 4-20 mA span.
Power Management: Auto-off feature to extend field battery life.
Zero Function: One-touch zeroing to compensate for environmental magnetic interference.

Industrial Application and Technical Compatibility:
The Fluke 771 is engineered for instrumentation and control technicians working in process plants, water treatment facilities, and automated manufacturing. It solves the critical problem of measuring PLC and control system I/O signals without interrupting the current loop, preventing unplanned downtime of the entire control process. This Original Engineering solution is essential for troubleshooting PID controllers and frequency drives where signal integrity is paramount.

Certifications and Standards:
Safety Rating: IEC 61010-1, Pollution Degree 2
Electromagnetic Compatibility: EN61326-1
Calibration: NIST Traceable

Logistics and Availability:
Condition: New Original Equipment
Lead Time: Immediate dispatch available for standard inventory
Technical Support: Full manufacturer documentation and compatibility verification provided.

Key Attributes
Max. Ac Current: 20A
Max. DC Current: 20A
Measuring Voltage Range: ,
Place of Origin: China
Model Number: 771
Brand Name: Fluke
Dimensions: Diameter 168x245mm
Display Type: Digital Only
Max. Ac Voltage: ,
Measuring Capacitance Range: ,
Measuring Current Range: 0 to 20.99 mA
Measuring Inductance Range: ,
Measuring Resistance Range: ,
Operating Temperature: -10℃~50℃
Parameters Measured: AC Voltage, DC Current
Weight: 500g
Resolution/Range: 0 to 20.99 mA
Accuracy: 0.2% + 2 counts
Resolution/Range,: 21.0mA to 100.0 mA
Diameter of Measurable Conductor: 0.177" (4.5mm) max
IP Rating: IP 40

Packaging and Delivery
Selling Units: Single item
Single package size: 30X21X15 cm
Single gross weight: 1.500 kg
