Description

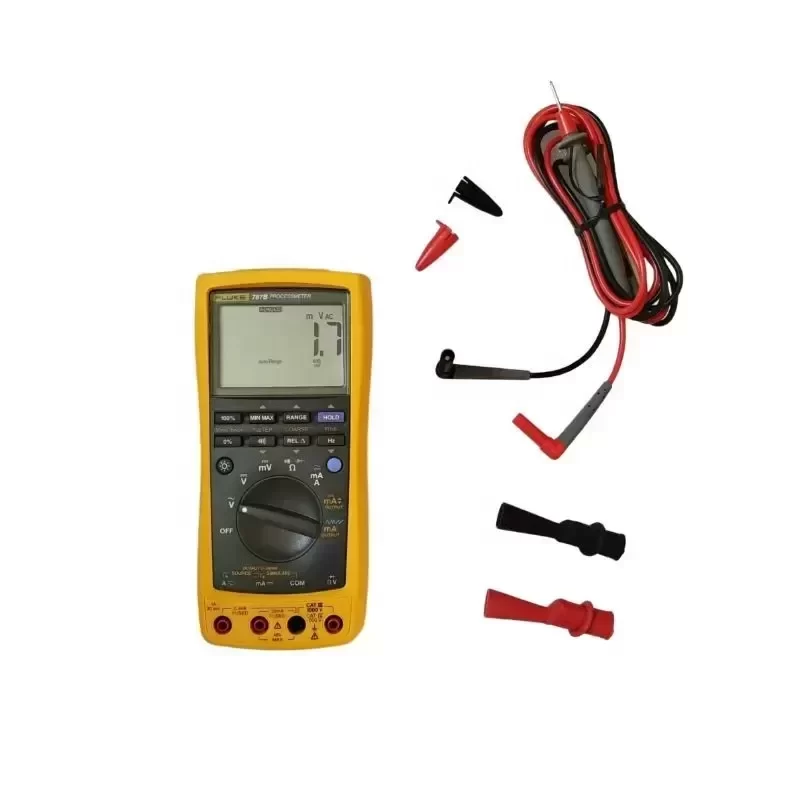

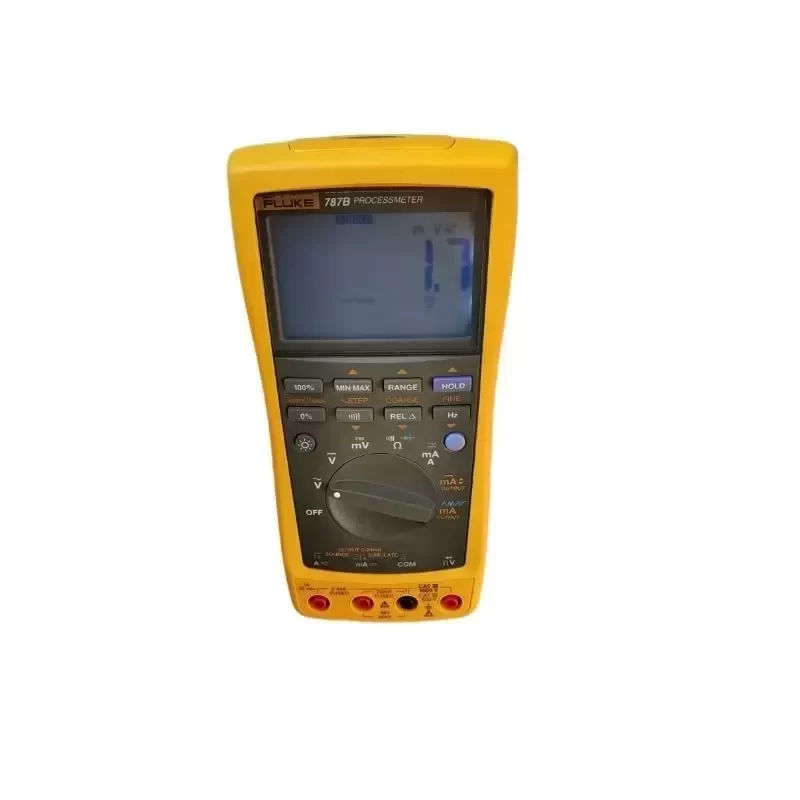

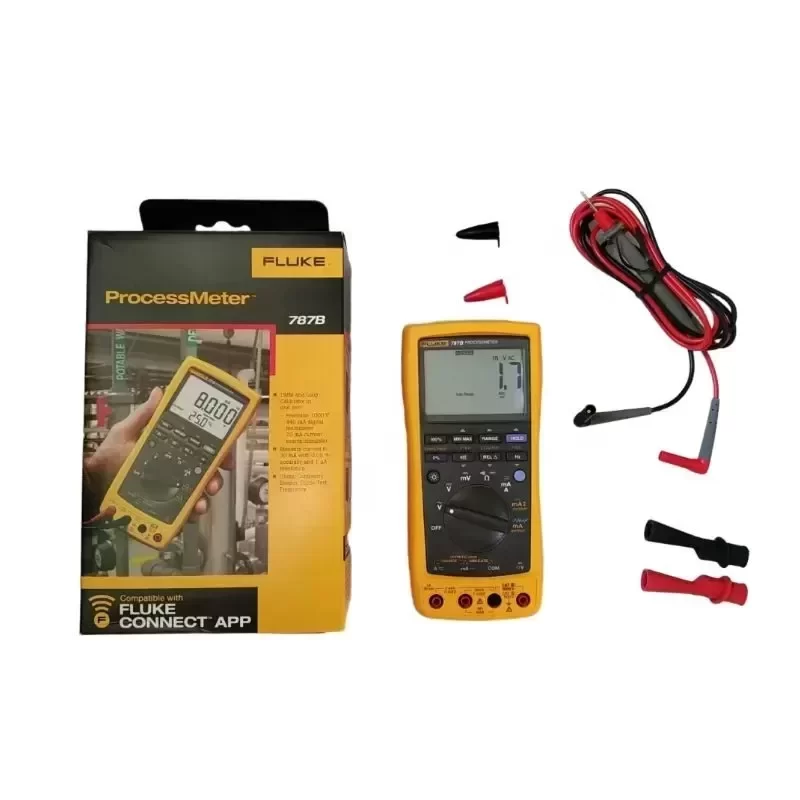

The Fluke 787B ProcessMeter integrates the capabilities of a safety-rated digital multimeter and a mA loop calibrator into a single, compact diagnostic tool. Designed for process technicians and engineers, this high-precision instrument doubles troubleshooting capabilities by allowing users to source, simulate, and measure DC current with microamp resolution, alongside standard true-RMS AC/DC voltage and current measurements.
Technical Specifications:
Measurement Range (Voltage): 0 to 1000 V AC/DC
Measurement Range (Current): 0 to 1 A (DMM), 0 to 24 mA (Loop Calibrator)
Current Sourcing/Simulation: 20 mA DC
Resolution: 1 µA (mA ranges), 1 mV (Voltage ranges)
Accuracy (DC Voltage): ± 0.1% + 1 count
Accuracy (DC Current): ± 0.05% + 2 counts
Frequency Measurement: Up to 19.999 kHz
Resistance Measurement: Up to 40 MΩ
Diode Test: 2.0 V
Safety Rating: IEC 61010 CAT III 1000 V, CAT IV 600 V
Operating Temperature: -20°C to +55°C
Storage Temperature: -40°C to +60°C
Relative Humidity: 95% up to 30°C, 75% up to 40°C
Power Supply: 4 x AA 1.5V Alkaline Batteries
Battery Life: 140 hours typical (measurement), 10 hours typical (sourcing 12 mA)
Dimensions: 203 mm x 100 mm x 50 mm
Weight: 610 g
Ingress Protection: IP52
Industrial Application:
The Fluke 787B is engineered for critical process automation environments, specifically in petrochemical refineries and pharmaceutical manufacturing facilities. It excels in troubleshooting 4-20 mA control loops, calibrating pressure transmitters, and verifying PLC I/O modules without requiring multiple instruments. The ability to simultaneously read mA and % of scale ensures rapid diagnostics of proportional valves and flow meters.
Commercial & Procurement Data:
Original Engineering: Fluke Corporation
Technical Compatibility: Seamlessly integrates with standard 4-20 mA industrial control loops and PLC systems. Fluke Connect compatible via optional IR3000FC module.
Lead Time: Subject to regional distribution availability; typically standard stock for immediate dispatch to minimize facility downtime.
Key Attributes
Measuring Current Range: 30.000 mA
Measuring Voltage Range: 1000 V
Parameters Measured: Temperature (K), DC Current, AC Voltage, Frequency, Temperature
Place of Origin: United States
Model Number: 787B
Brand Name: Fluke
Application: Industrial Use, Household Use
Dimensions: 60 x 100 x 203 mm
Feature: Waterproof
Low Battery Indicator: Yes
Material: Plastic
Max. AC Current: 30.000 mA
Max. AC Voltage: 1000 V
Max. DC Current: 30.000 mA
Max. DC Voltage: 1000 V
Measuring Capacitance Range: Other
Measuring Inductance Range: 0.5 Hz to 20 kHz
Measuring Resistance Range: 40 MΩ
Operating Temperature: -4 to 131°F (-20 to 55°C)
Range and Resolution: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
Best Accuracy: 0.1%
Frequency Range: 0.5 Hz to 20 kHz
Packaging and Delivery
Selling Units: Single item
Single package size: 29X18X14 cm
Single gross weight: 1.300 kg
