Description

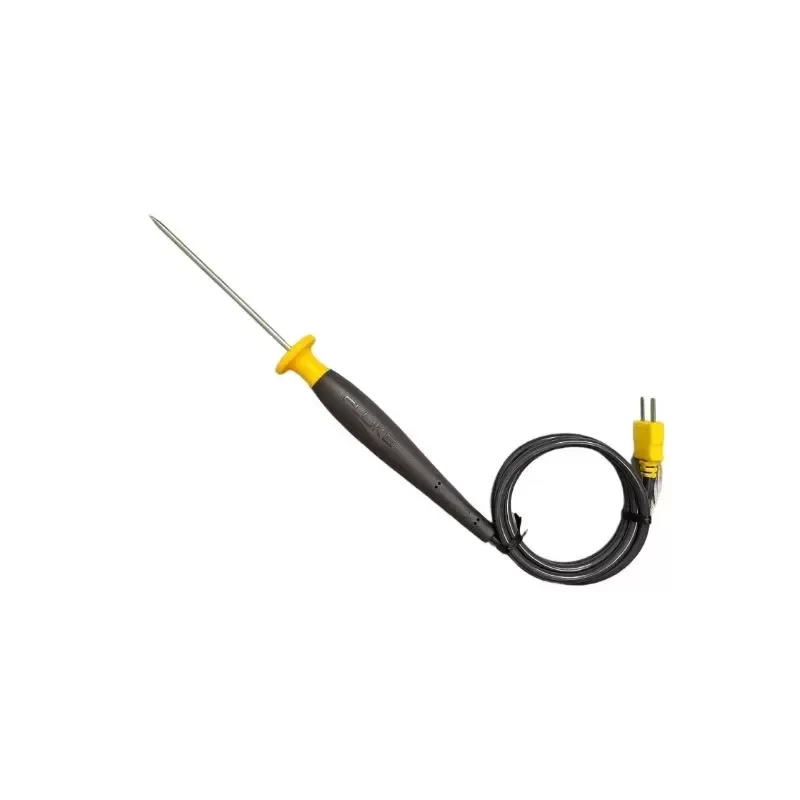

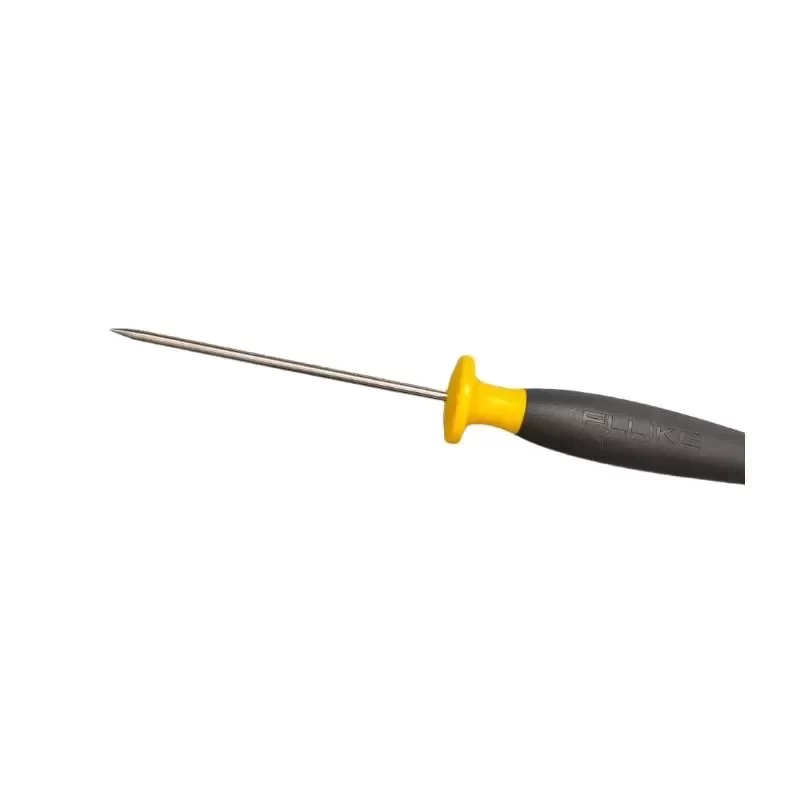

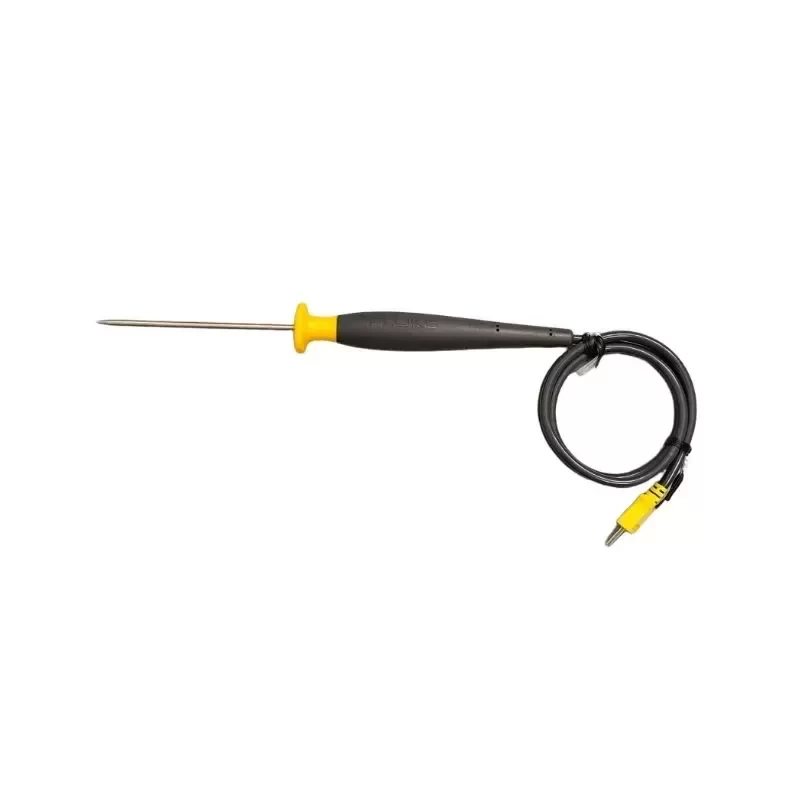

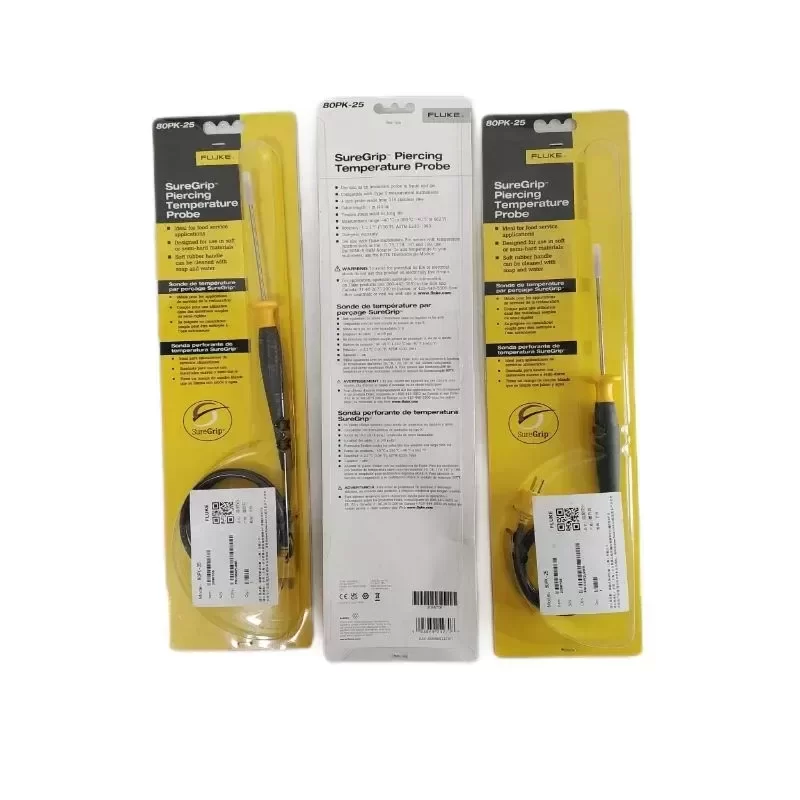

The Fluke 80PK-25 SureGrip Piercing Temperature Probe is a high-precision Type-K thermocouple engineered for direct insertion measurements in liquids, gels, and semi-solid materials. Featuring Original Engineering from Fluke, this probe utilizes a robust 316 stainless steel sheath to ensure chemical resistance and structural integrity during penetration testing. The ergonomic SureGrip handle isolates thermal transfer to protect the operator while providing a secure grip in wet or demanding environments.
Technical Specifications:
Sensor Type: Type-K Thermocouple
Measurement Range: -40 °C to 350 °C (-40 °F to 662 °F)
Probe Material: 316 Stainless Steel
Probe Length: 10.16 cm
Probe Diameter: 3.175 mm
Cable Length: 1 m
Cable Insulation: PVC jacketed lead wire
Connector Type: Yellow mini-thermocouple connector with 19 mm pin spacing
Maximum Voltage: 30 V AC, 60 V DC
Weight: 0.12 kg
Technical Compatibility:

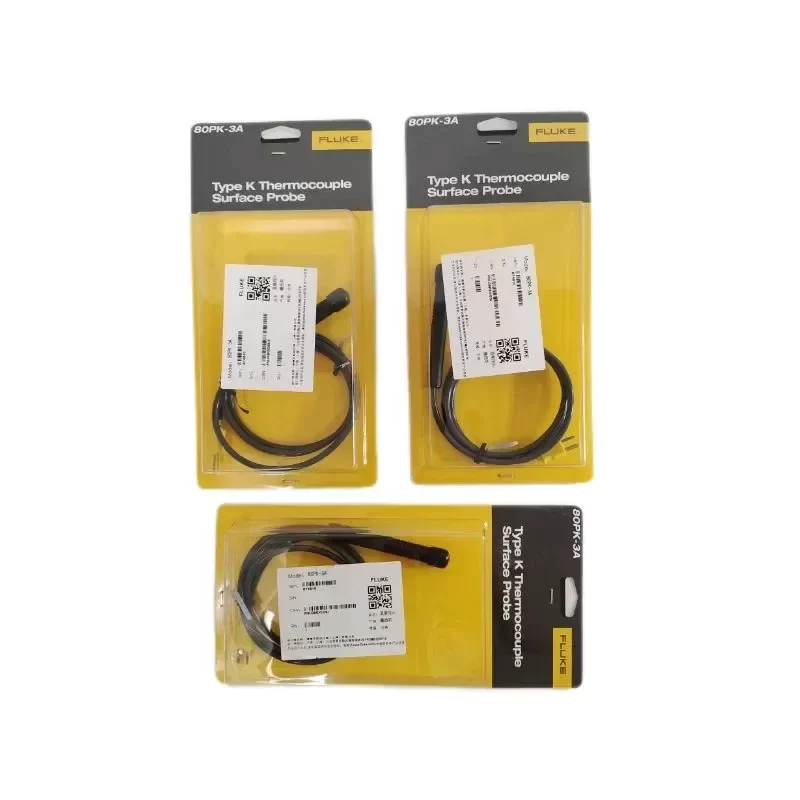

This probe features universal Technical Compatibility with all digital multimeters, thermometers, and data loggers that accept standard Type-K thermocouple inputs via mini-connectors. It serves as a direct integration option alongside related models such as the 80PK-27 and 80PK-3A to cover comprehensive surface and immersion testing profiles within the same diagnostic setup.
Industrial Application Scenario:
In commercial food processing and cold-chain logistics, maintaining precise internal product temperatures is critical for HACCP compliance. The Fluke 80PK-25 solves the challenge of measuring dense, semi-frozen food matrices without bending or breaking. The sharp piercing tip easily penetrates packaging and product outer layers, delivering rapid thermal stabilization times to minimize inspection bottlenecks.
OEM/ODM and Logistics:
Customizable OEM & ODM support is available for specialized sheath lengths, high-temperature cabling, or alternative connector terminations to meet specific system integration requirements.
Lead Time: Standard configurations are available for immediate dispatch, while custom OEM/ODM production runs carry a standard lead time of 4 to 6 weeks depending on batch volume.
Key Attributes
Type: Emperature Probe
Place of origin: China
Model number: 80PK-25
Brand name: Fluke
Customized support: OEM, ODM
Infrared resolution: Other
Material: Plastic + iron
Thermal color palettes: Other
Warranty: 1 years
Type: K, Standard grade Ni-Cr vs Ni-Al
Measurement Range: -40 to 662°F (-40 to 350°C)
Accuracy: ±1.1°C from 32 to 662°F (0 to 350°C)
Cable Material: PVC
Packaging and Delivery
Selling Units: Single item
Single package size: 56X15X12 cm
Single gross weight: 0.500 kg
